Ports & Slots

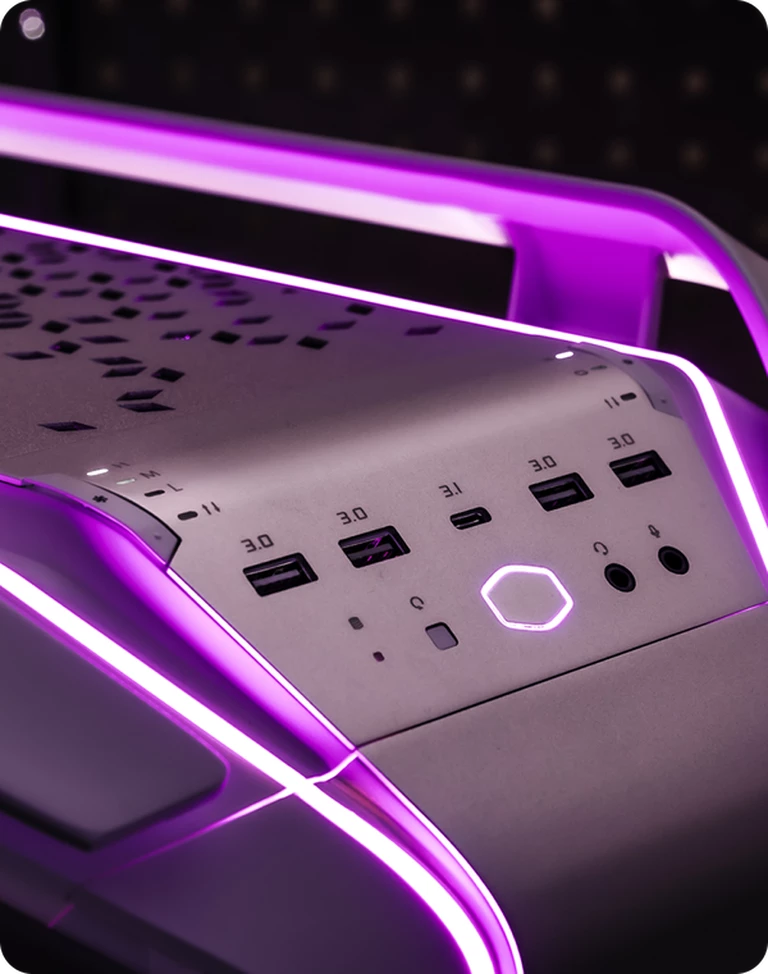

Rich Connectivity

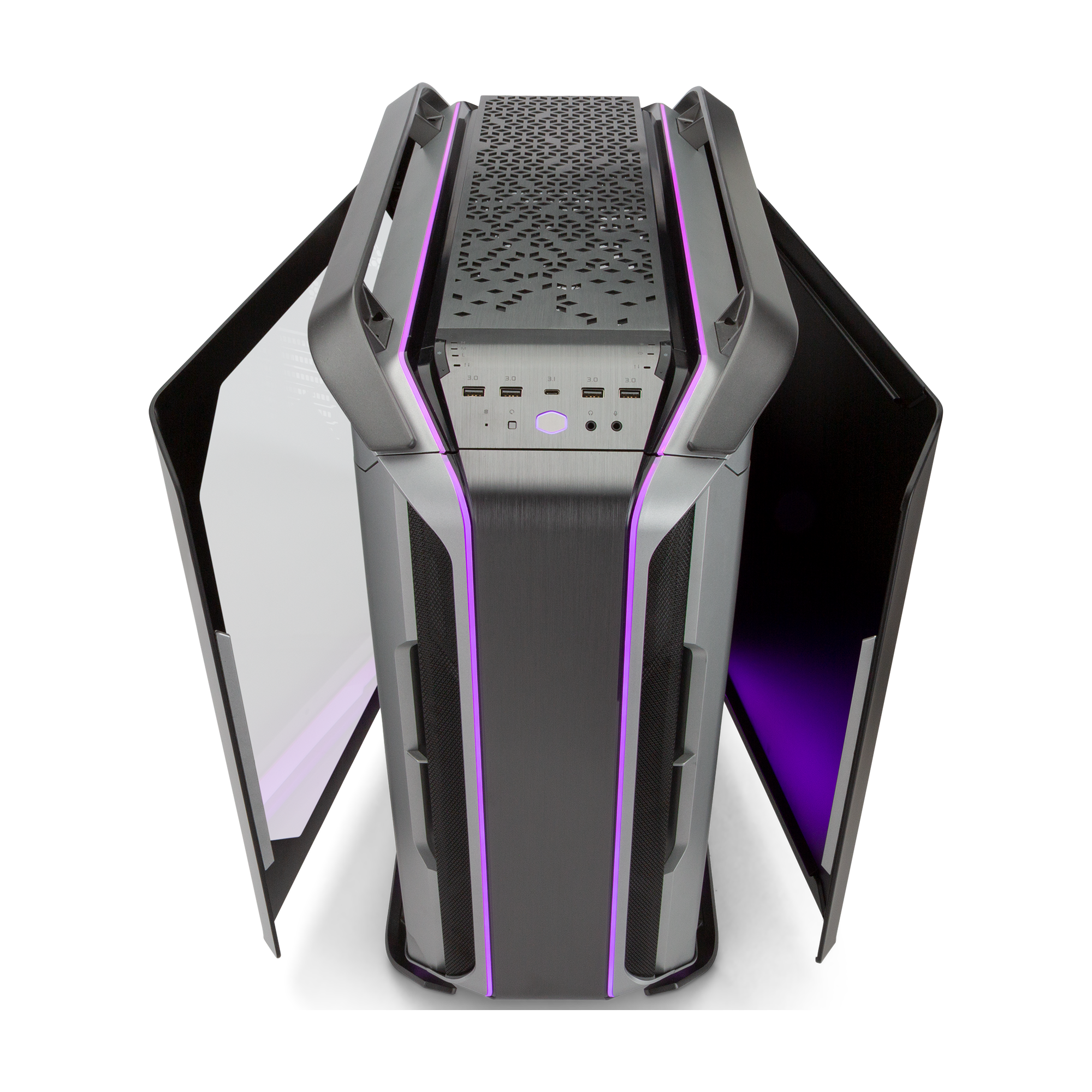

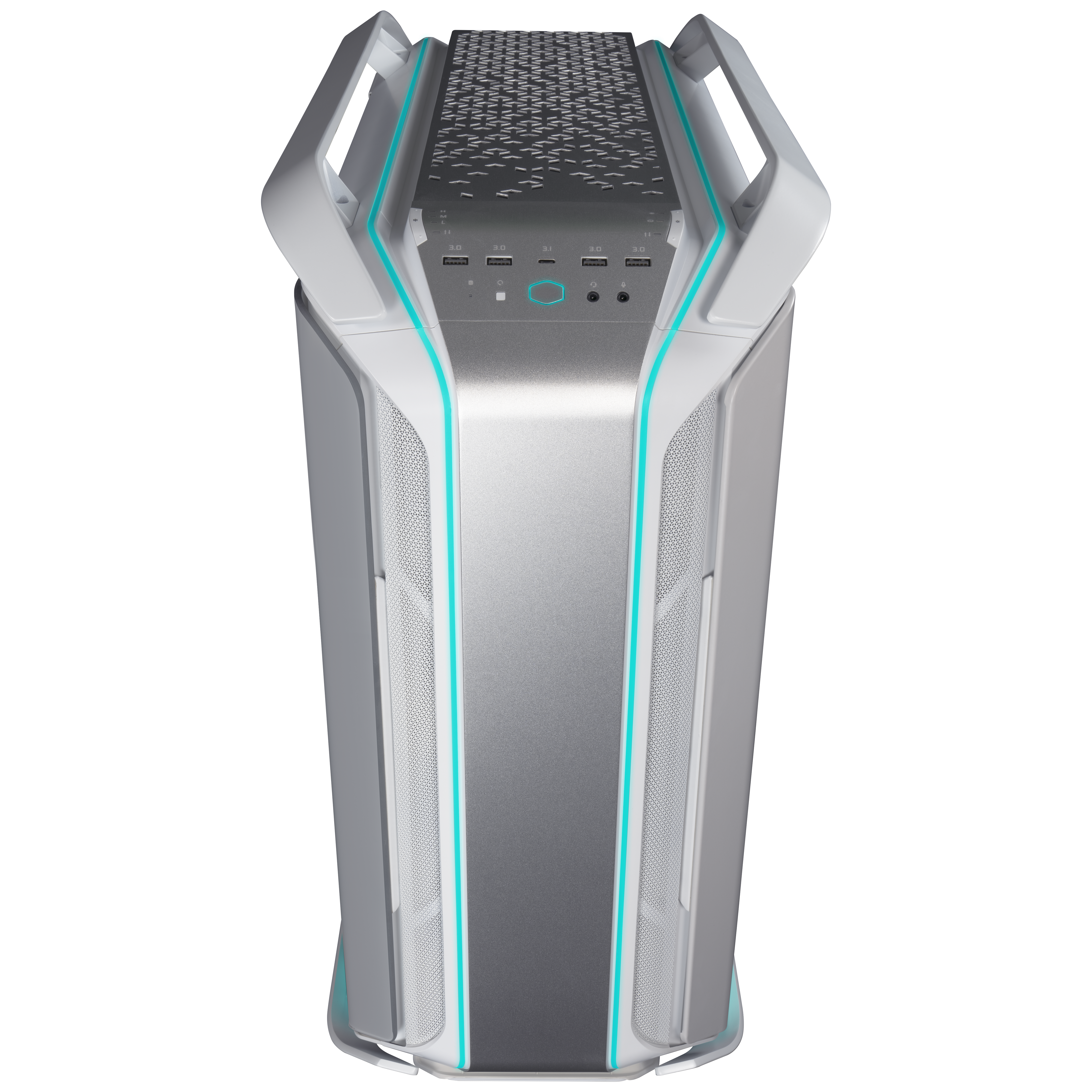

The advanced I/O panel comes with a 4-Pole headset jack (audio+mic), dedicated mic jack, USB 3.1 (Gen 2) Type-C port, four additional USB 3.0 ports, PWM fan speed button, and an addressable RGB control button.
Raising the Bar(s)
COSMOS C700M
Highly Versatile Layout, Graphics Card Mounting with Riser Cable, Addressable RGB Lighting, Extensive Cable Cover System, Aluminum Panels & Handles, Versatile Liquid Cooling Support, Rich Connectivity, Curved Tempered Glass Side Panel
Color
Availability:
-
Select Styles for Availability
Design

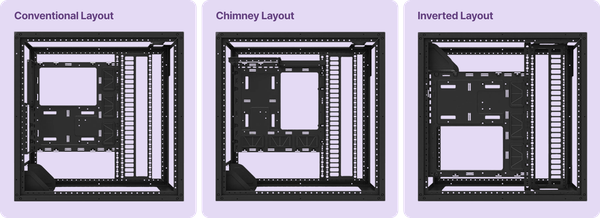

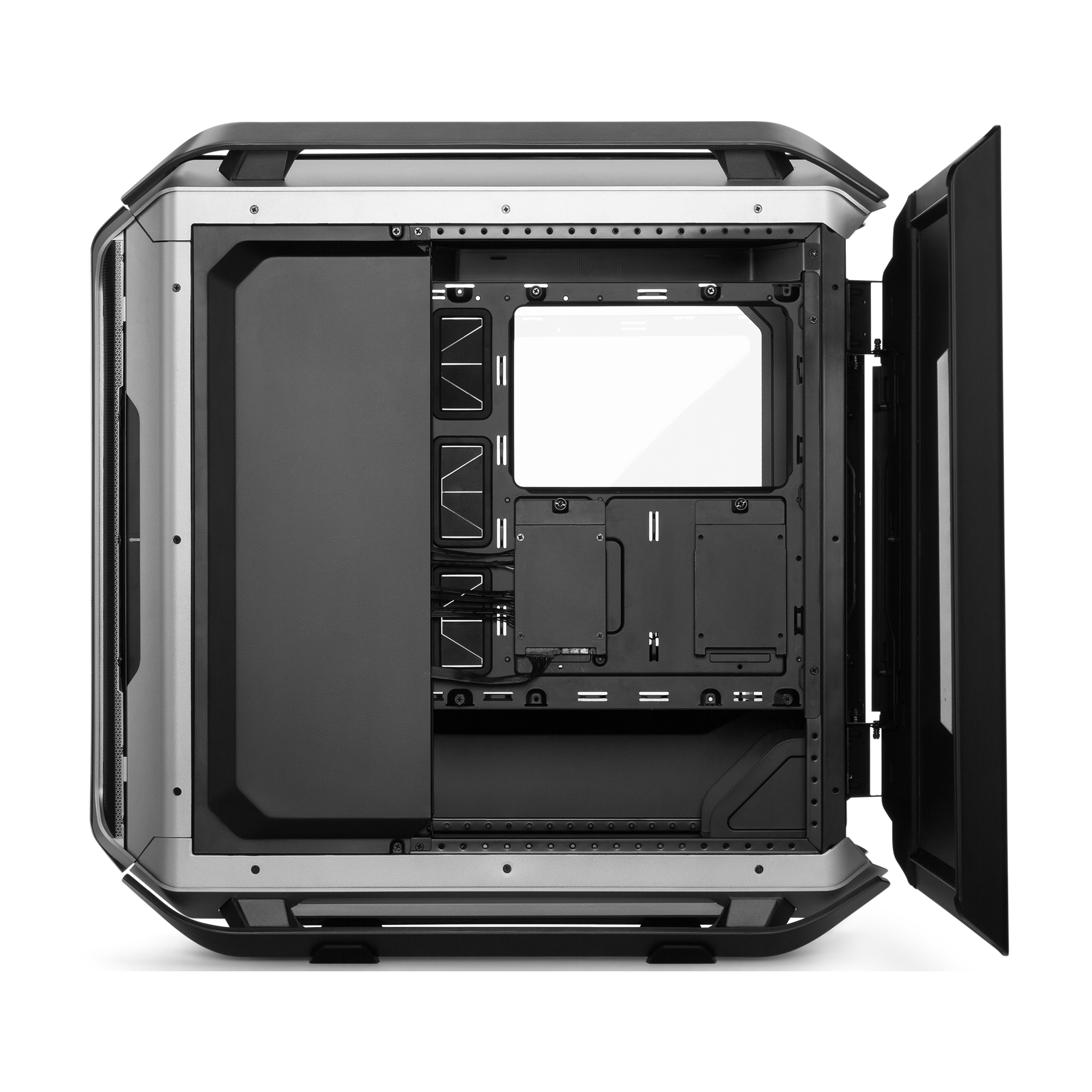

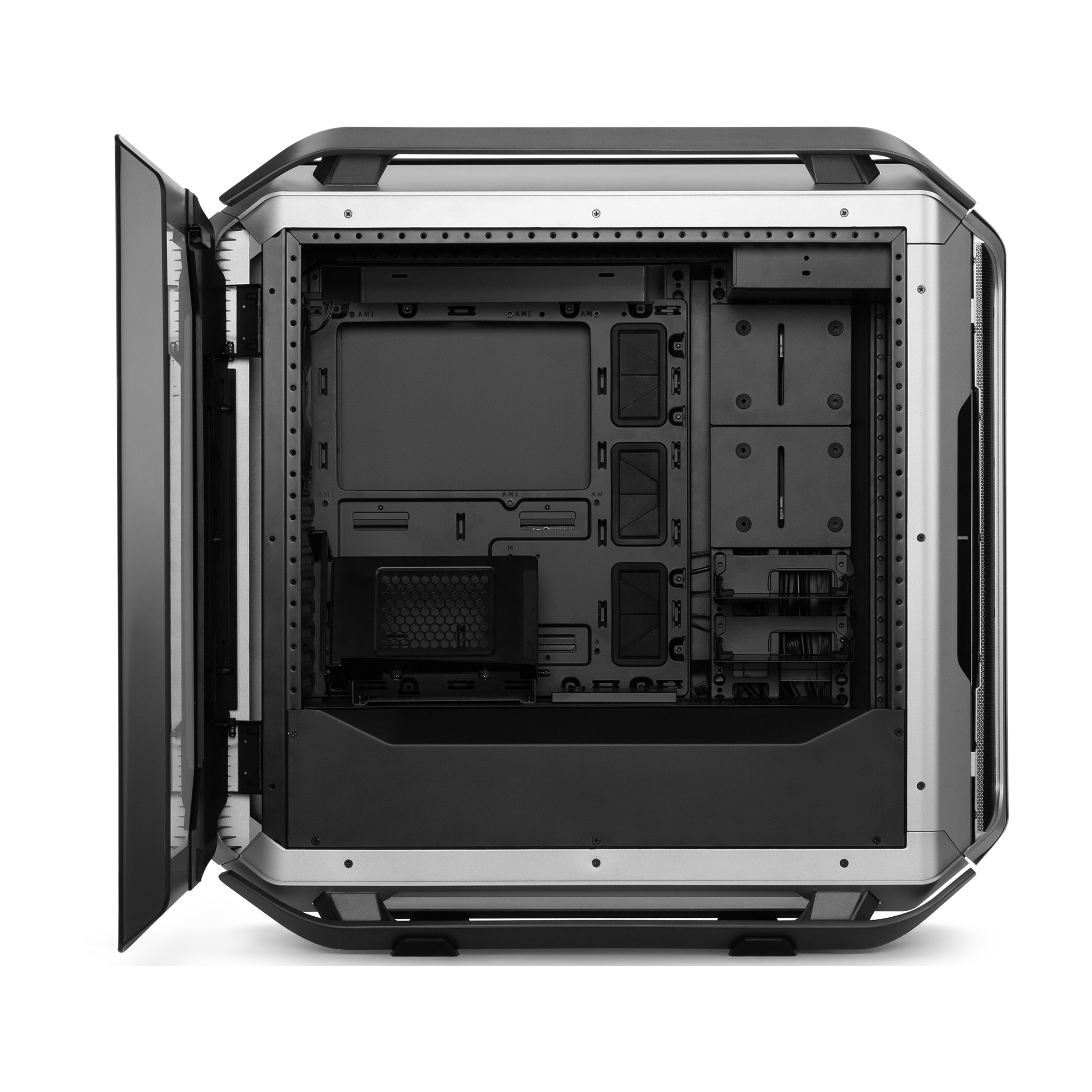

HIGHLY VERSATILE LAYOUT
The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. Each part of the frame enables a high level of versatility. From multi-functional brackets to options in component positioning, the COSMOS C700M encourages freedom in building and out-of-the-box customizability.
Design

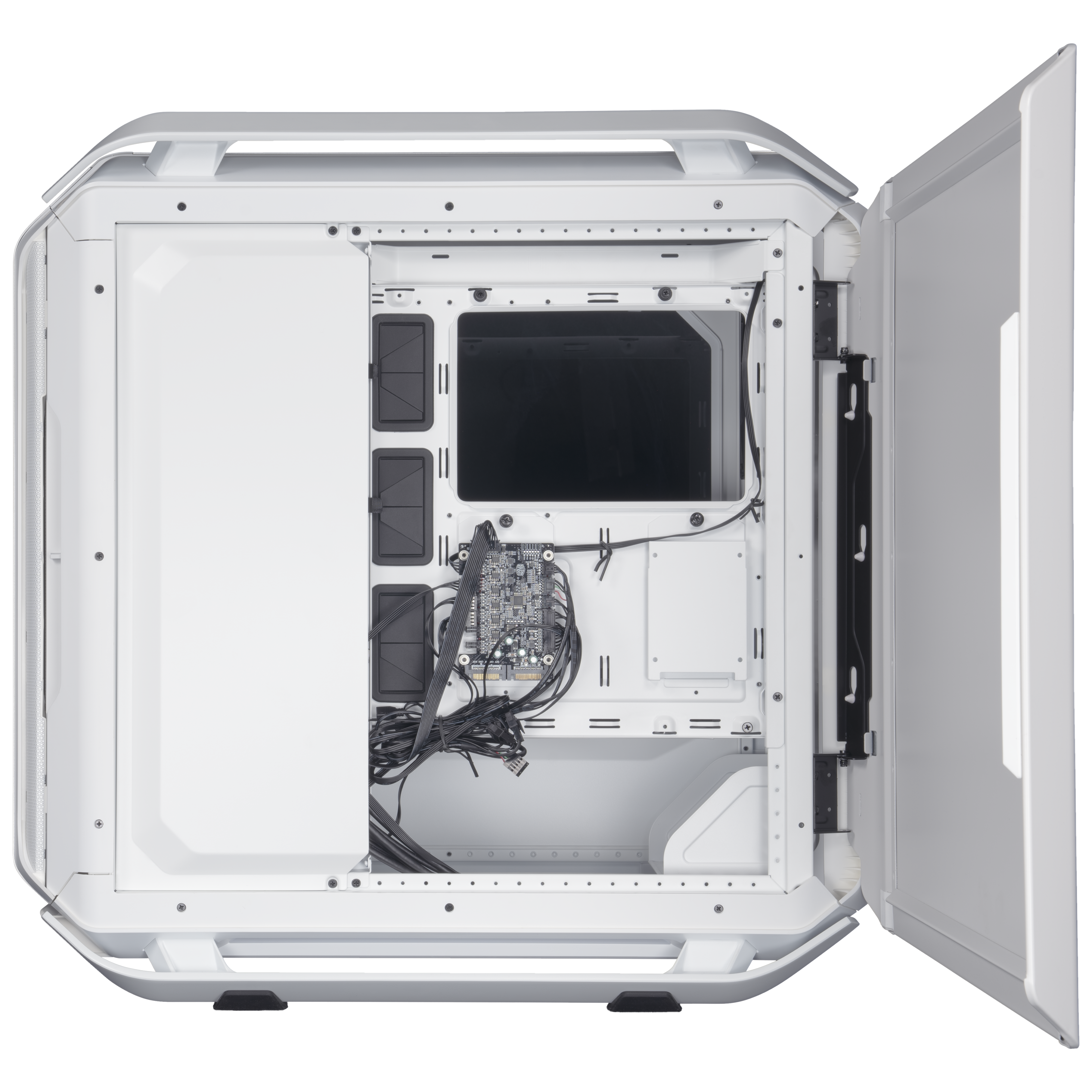

EXTENSIVE CABLE COVER SYSTEM
The 3 included covers can be placed on either the M. Port or on the mid-plate, with the ability to mount SSD storage or a reservoir.
Our Achievements
6 awards
Design

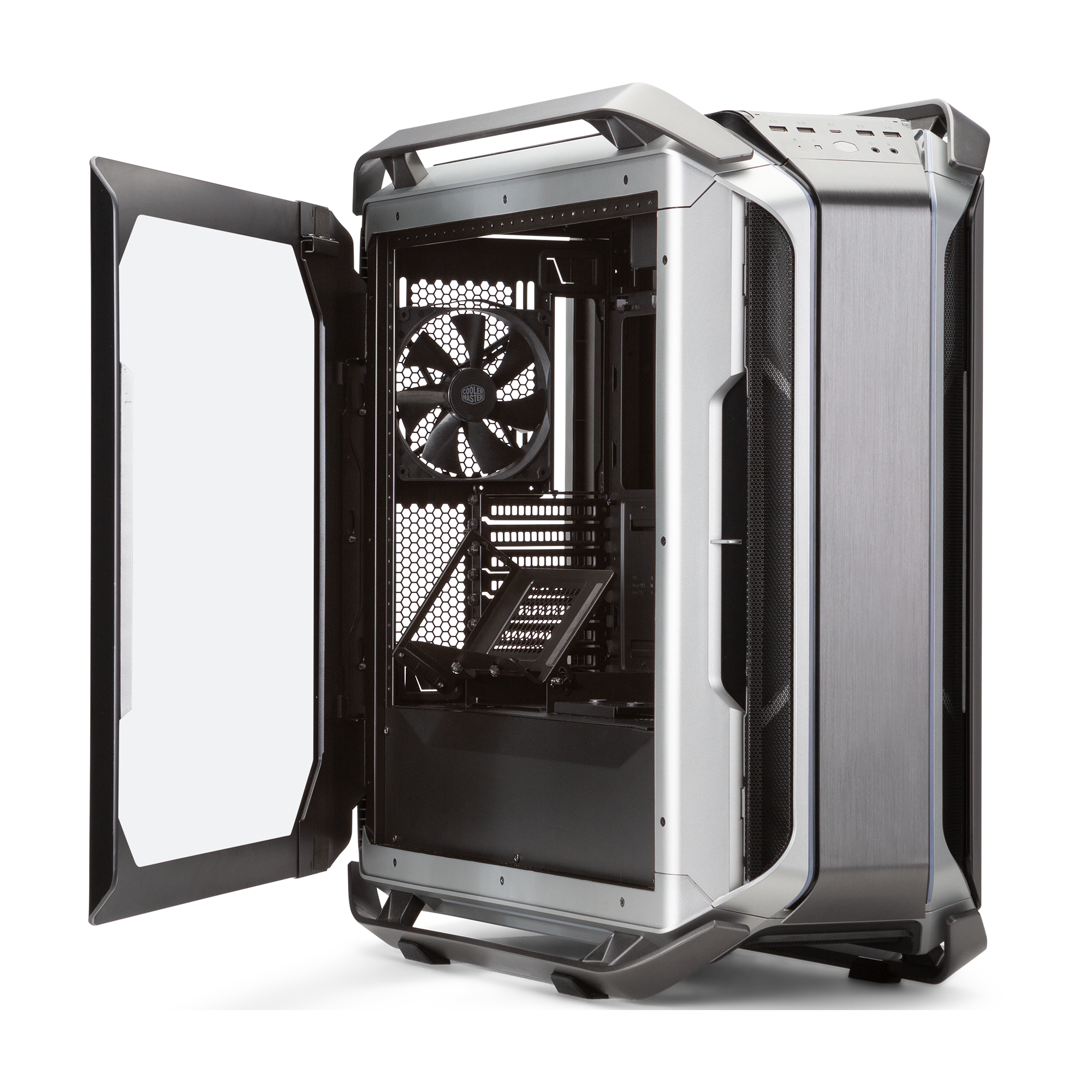

graphics card mounting with riser cable
The graphics card bracket can be mounted vertically or horizontally on either the PSU midplate or on the M. Port. The bracket can also be rotated from 0 to 90 degrees.
Also included is a 400mm riser cable for the convenience of being able to connect a vertically mounted graphics card to the motherboard.

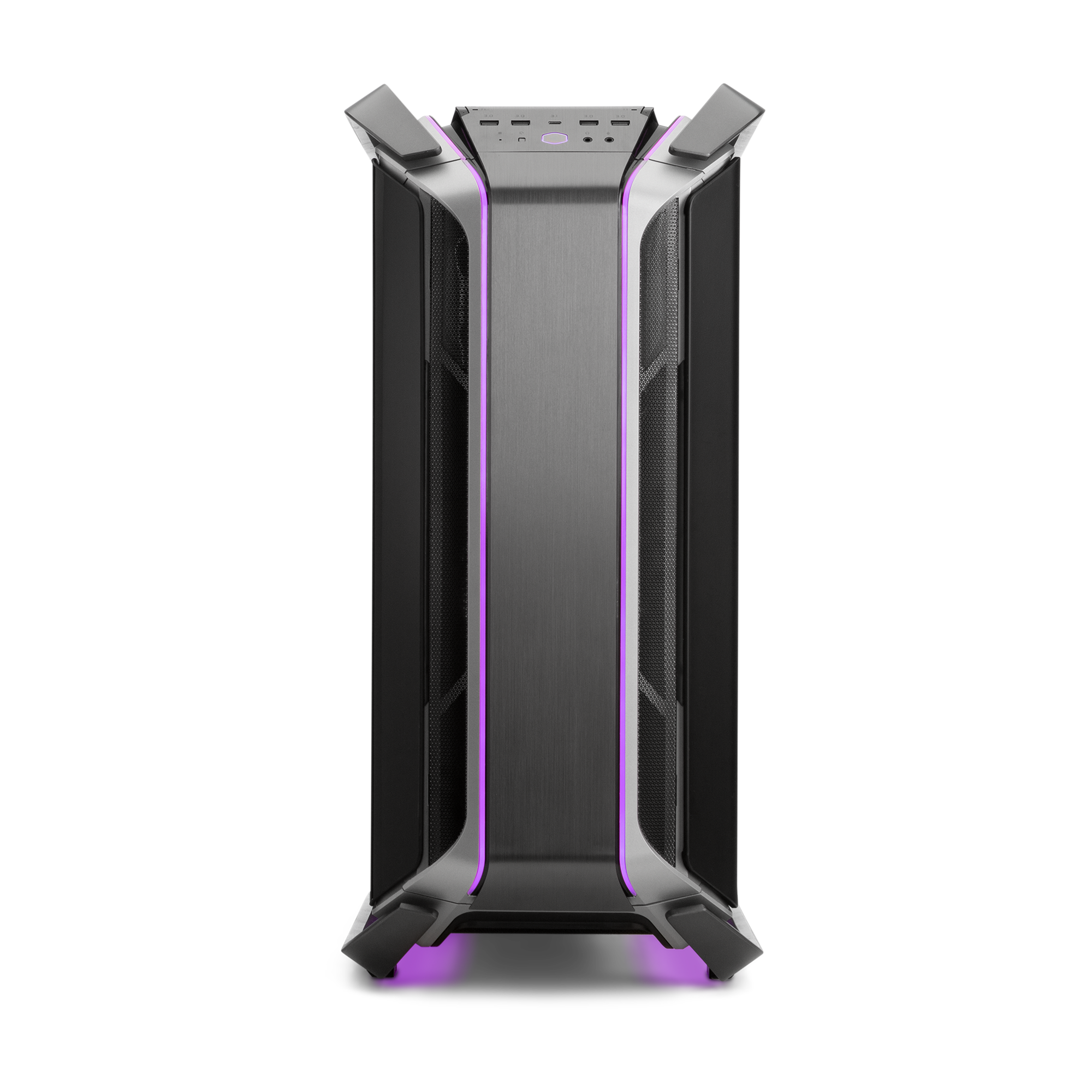

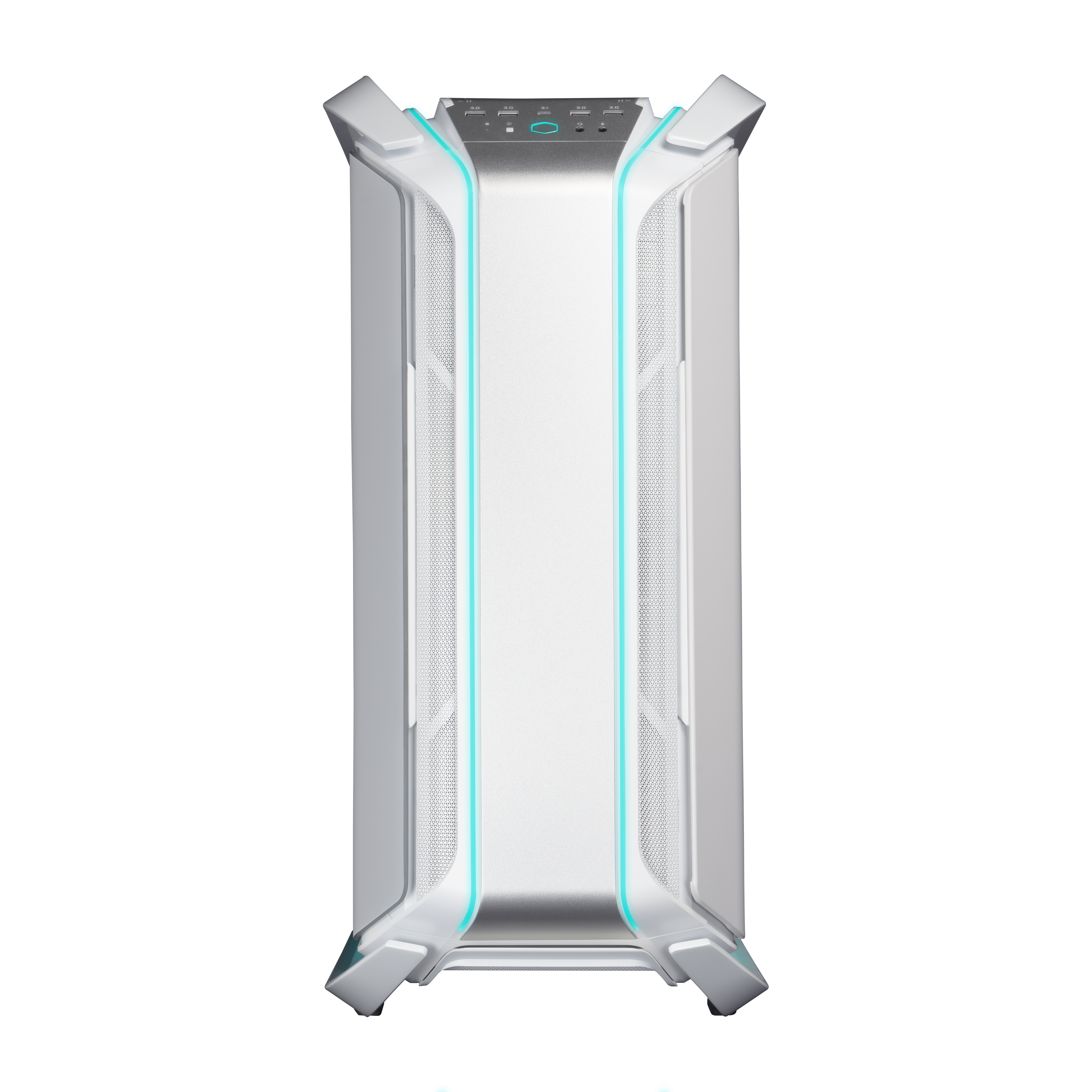

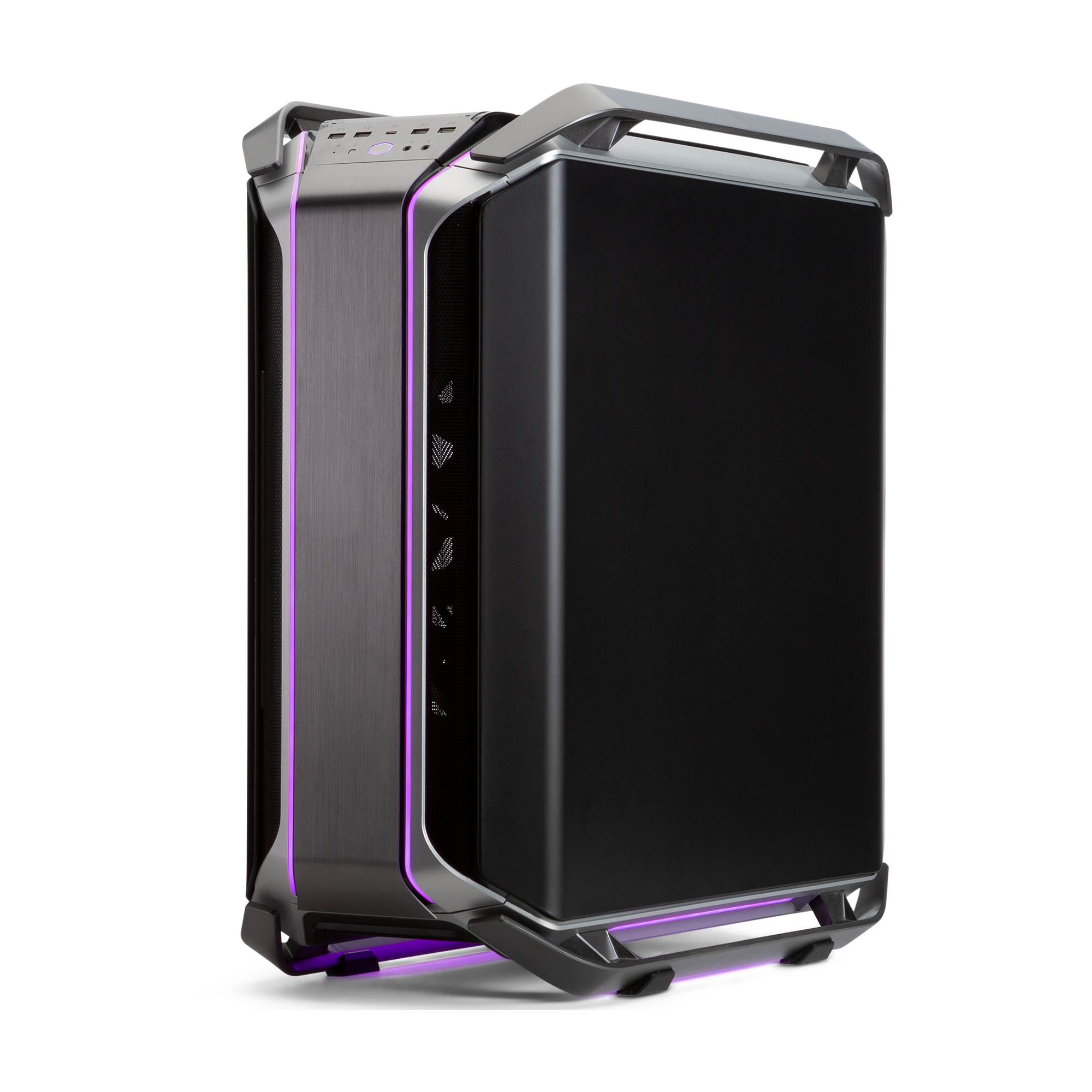

ALUMINUM PANELS & HANDLES
Brushed aluminum spans the top panel and front panel, with cast aluminum handles (and feet) that provide protection & support for carrying the case.

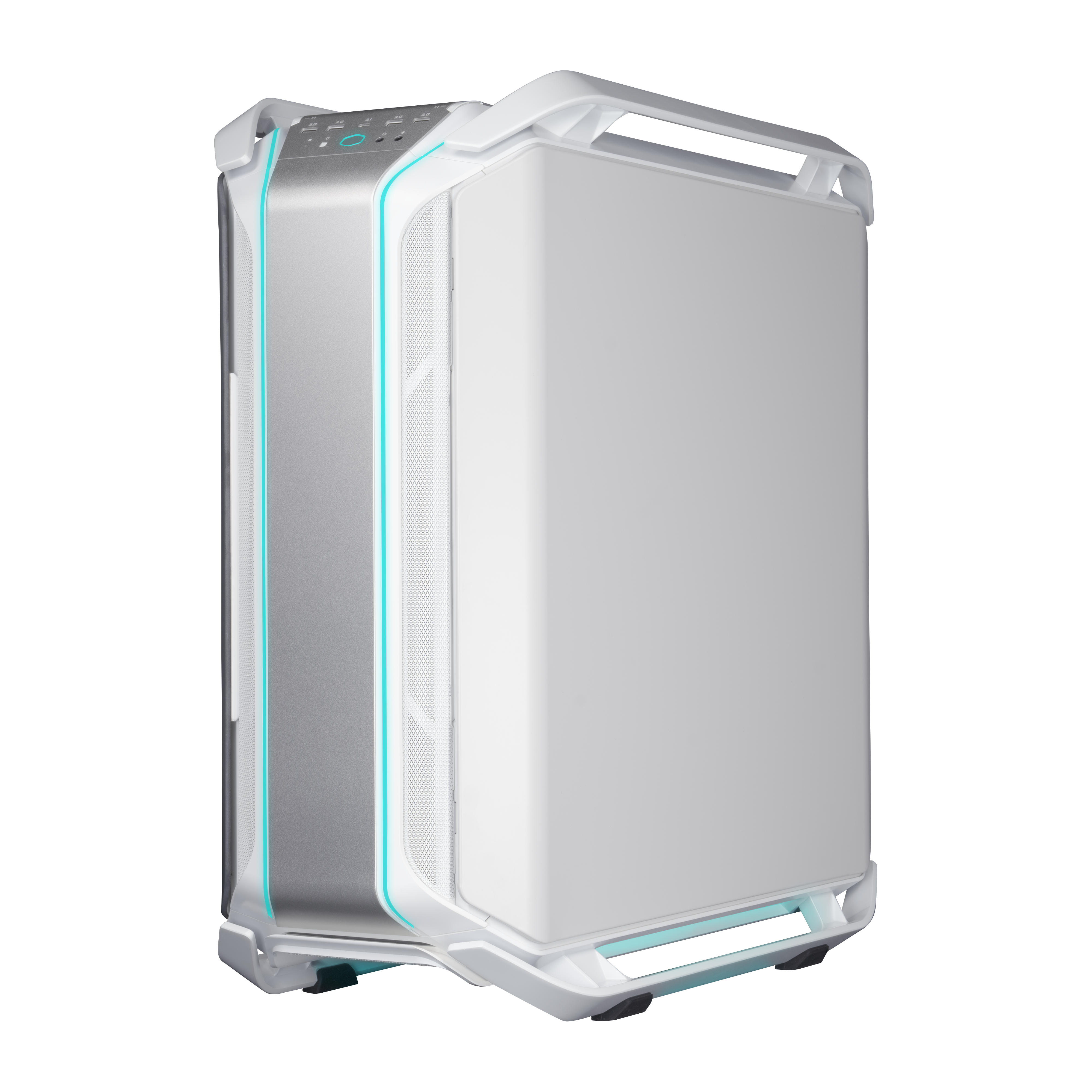

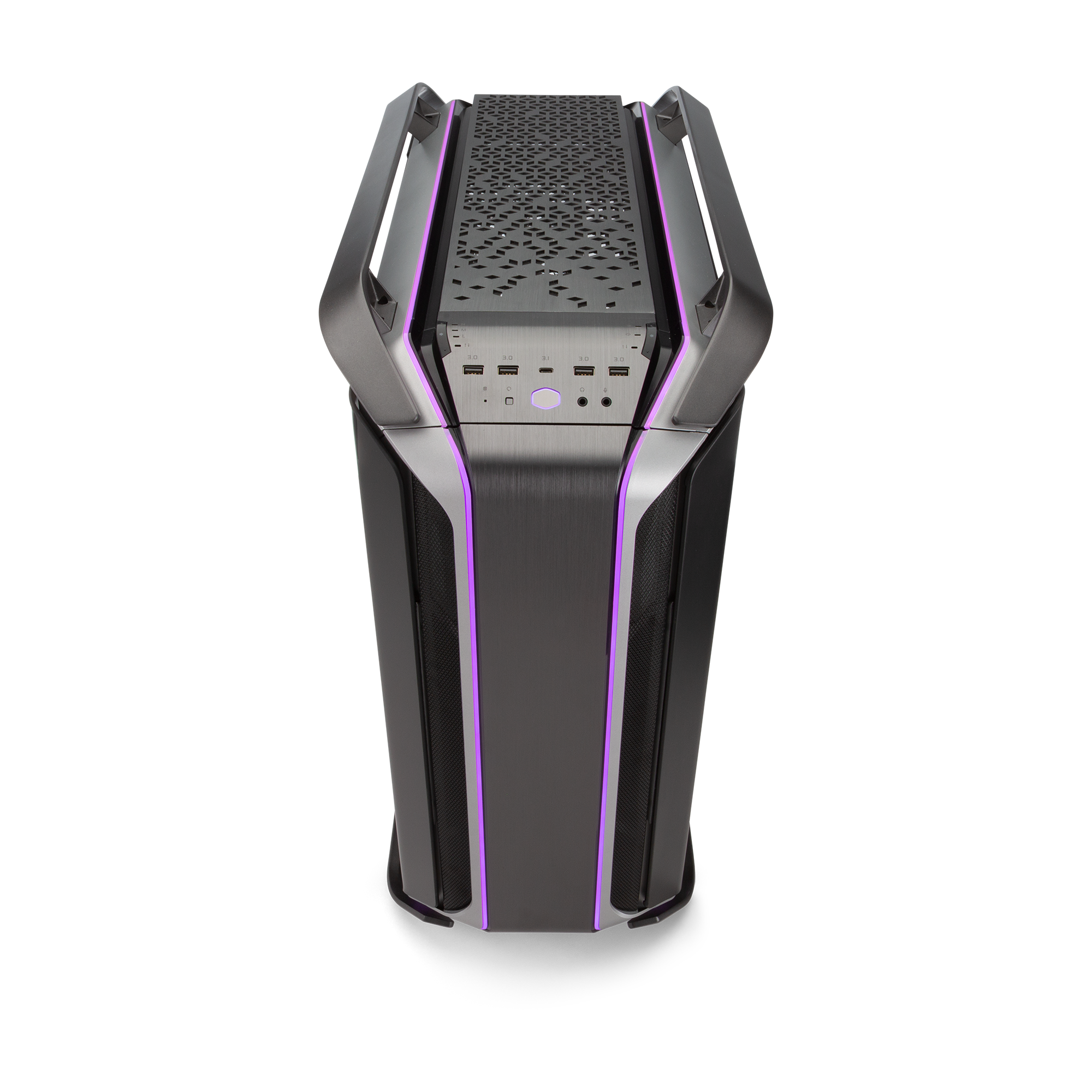

ADDRESSABLE RGB LIGHTING
Two parallel strips of addressable RGB lighting run continuously from the top panel to the front panel, with ambient ARGB lighting on the bottom that reflects against the aluminum bars.
VERSATILE LIQUID COOLING SUPPORT
A flat radiator bracket design offers more versatility for liquid cooling with the ability to be mounted on the top, front, or bottom of the frame. The two included brackets can each support a 420mm radiator, with the ability to mount fans and a radiator on either side of the bracket.

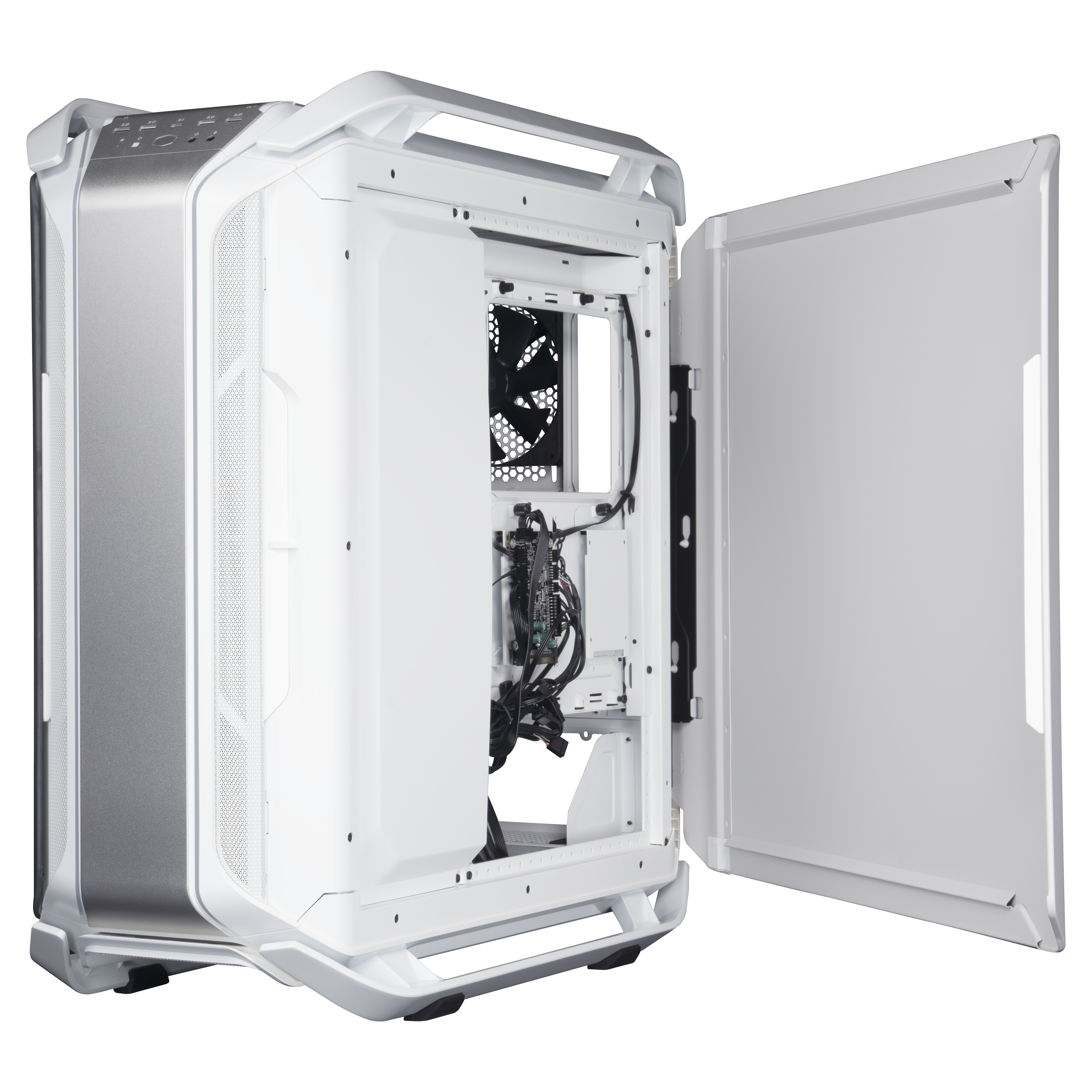

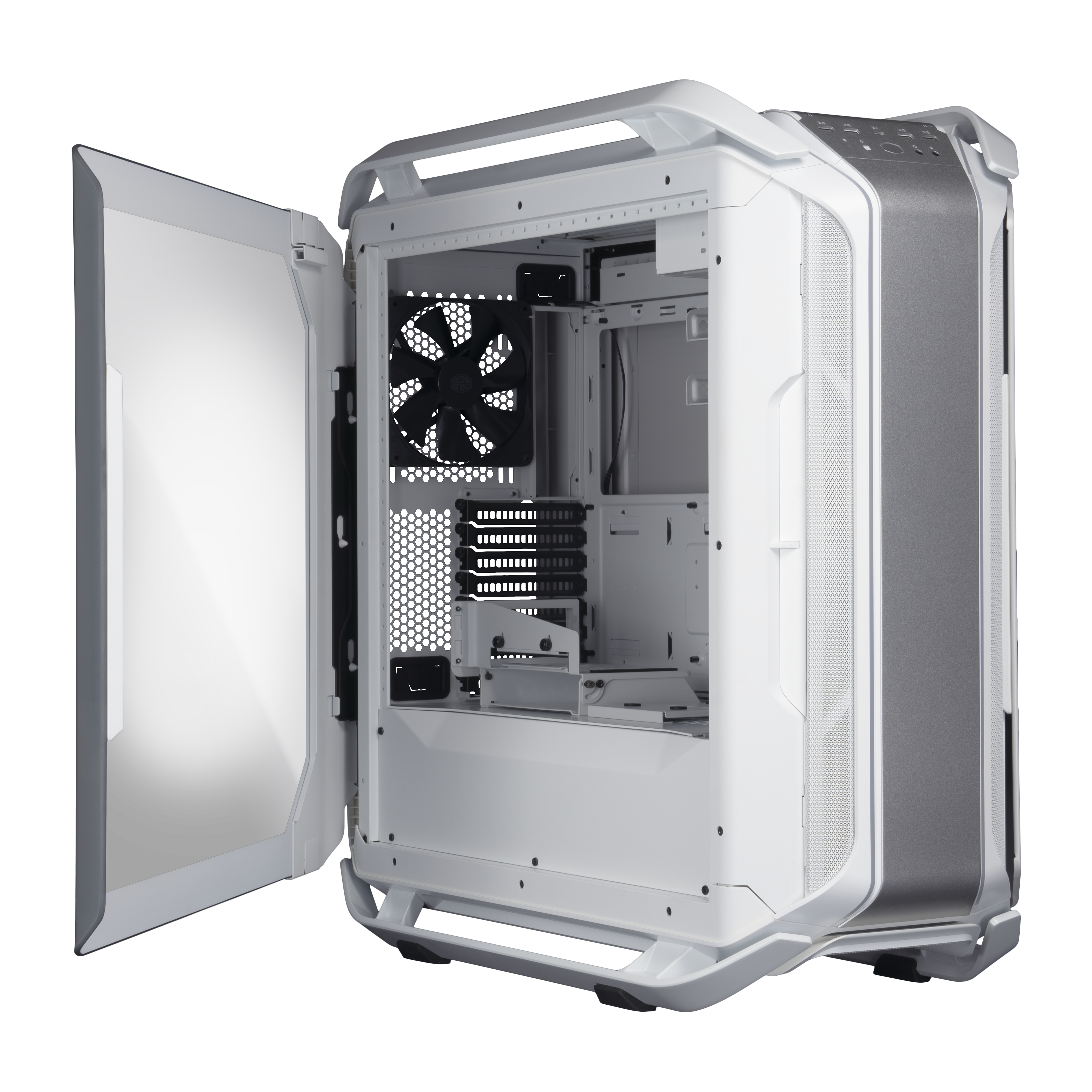

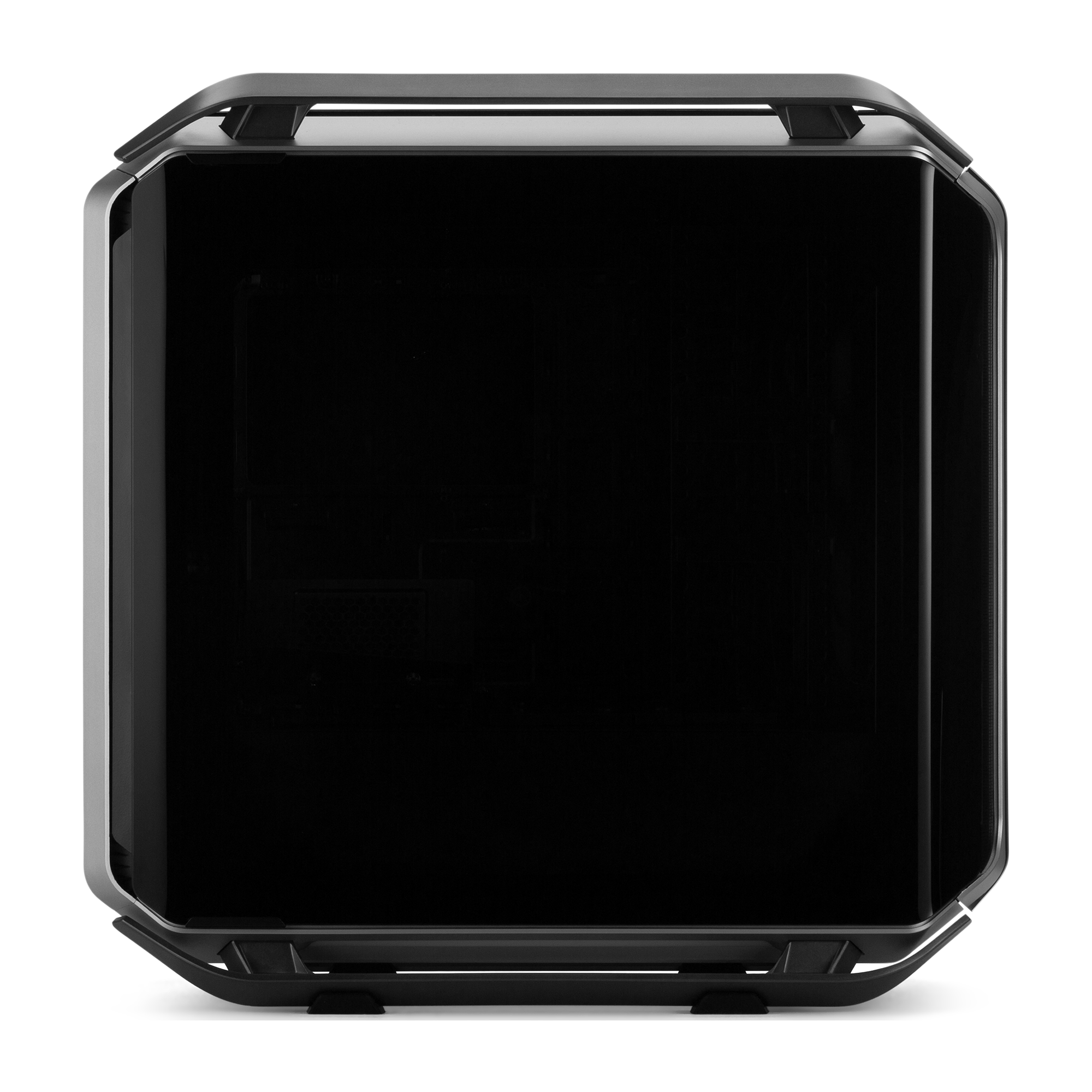

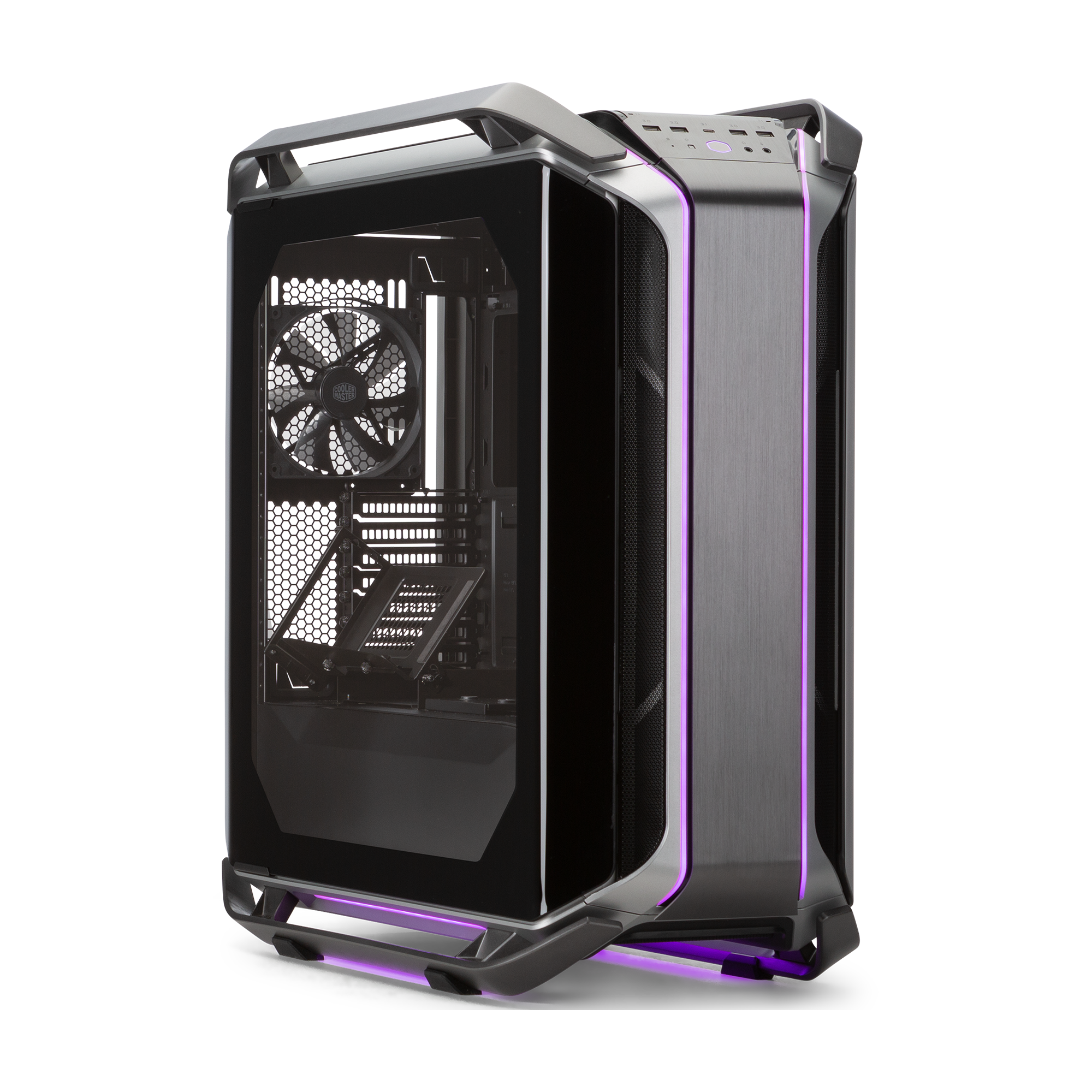

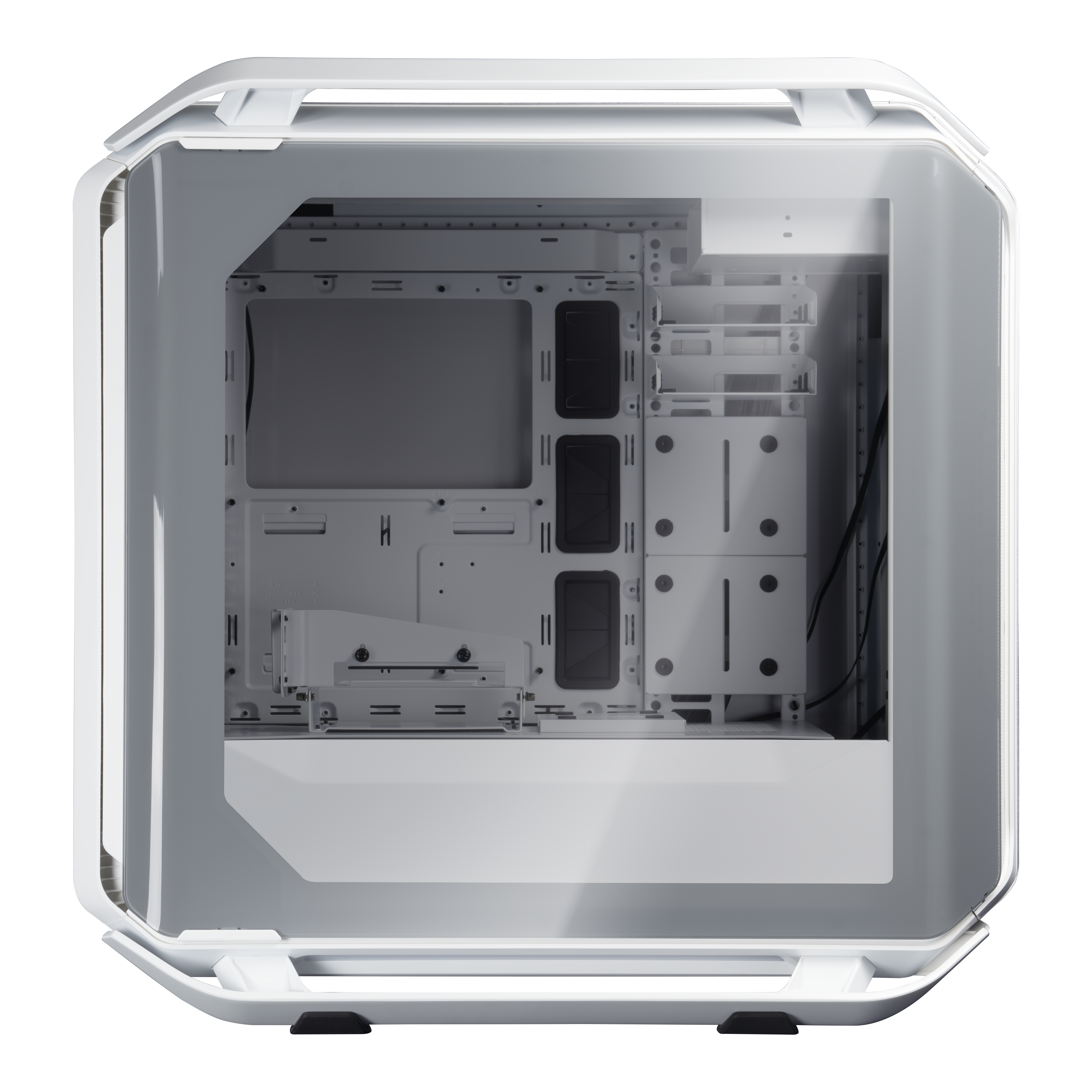

CURVED TEMPERED GLASS SIDE PANEL
A panoramic tempered glass side panel, with two curved edges, offer
a wide view of the system build.
- Model Number MCC-C700M-MG5N-S00, MCC-C700M-WG5N-S00
- Color(s) Grey, Silver & Black (MCC-C700M-MG5N-S00), Silver & White (MCC-C700M-WG5N-S00)
- Materials - Body Steel
- Materials - Side Panel Curved Tempered Glass, Steel
- Dimensions (L x W x H) 650 x 306 x 651mm / 25.6 x 12.0 x 25.6 inch
- Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (support up to 12" x 10.7")

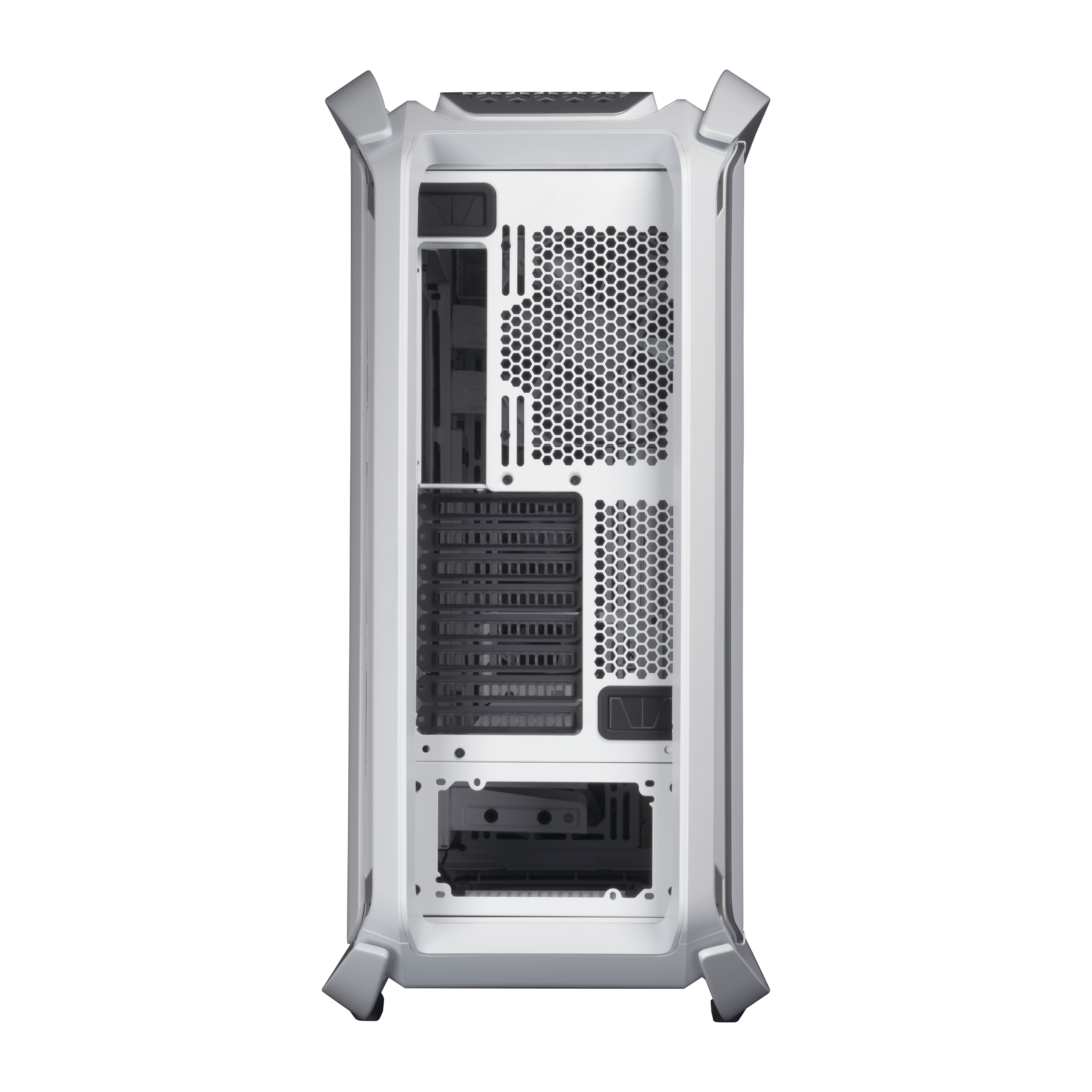

- Expansion Slots 8
- 5.25" Drive Bays 1
- 2.5" / 3.5" Drive Bays (Combo) 4+1 (In The Accessory Box)
- Drive Bays - SSD 4
- I/O Port - USB Ports / USB 3.1 Type-C 1
- I/O Port - USB Ports / USB 3.0 Type-A 4
- I/O Port - Audio - 3.5mm Headset Jack (Audio+Mic) 1
- I/O Port - Audio - 3.5mm Mic Jack 1
- I/O Port - Fans / Lighting Fan Speed Control Button, ARGB Control Button
- Pre-installed Fans - Front 3x 140mm PWM Fan (Speed: 1200RPM / Connector: 4Pin)
- Pre-installed Fans - Rear 1x 140mm PWM Fan (Speed: 1200RPM / Connector: 4Pin)
- Fan Support - Top 3x 120/140mm
- Fan Support - Front 3x 120/140mm
- Fan Support - Rear 1x 120/140mm
- Fan Support - Bottom 2x 120/140mm (Bracket Needed)
- Radiator Support - Top 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD, maximum thickness clearance 70mm)
- Radiator Support - Front 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD)
- Radiator Support - Rear 120mm, 140mm
- Radiator Support - Bottom 120mm, 140mm, 240mm
- Clearance - CPU Cooler 198mm
- Clearance - GFX 490mm (w/o 3.5" HDD BRK), 320mm (w/ 3.5" HDD BRK)
- Accessories Riser Cable PCIe 4.0 x16 - 400mm (Compatible with PCI Express 4.0 Gen 3 and below)
- Size Full Tower
- Series COSMOS Series
