Effortless Efficiency

Elite 502

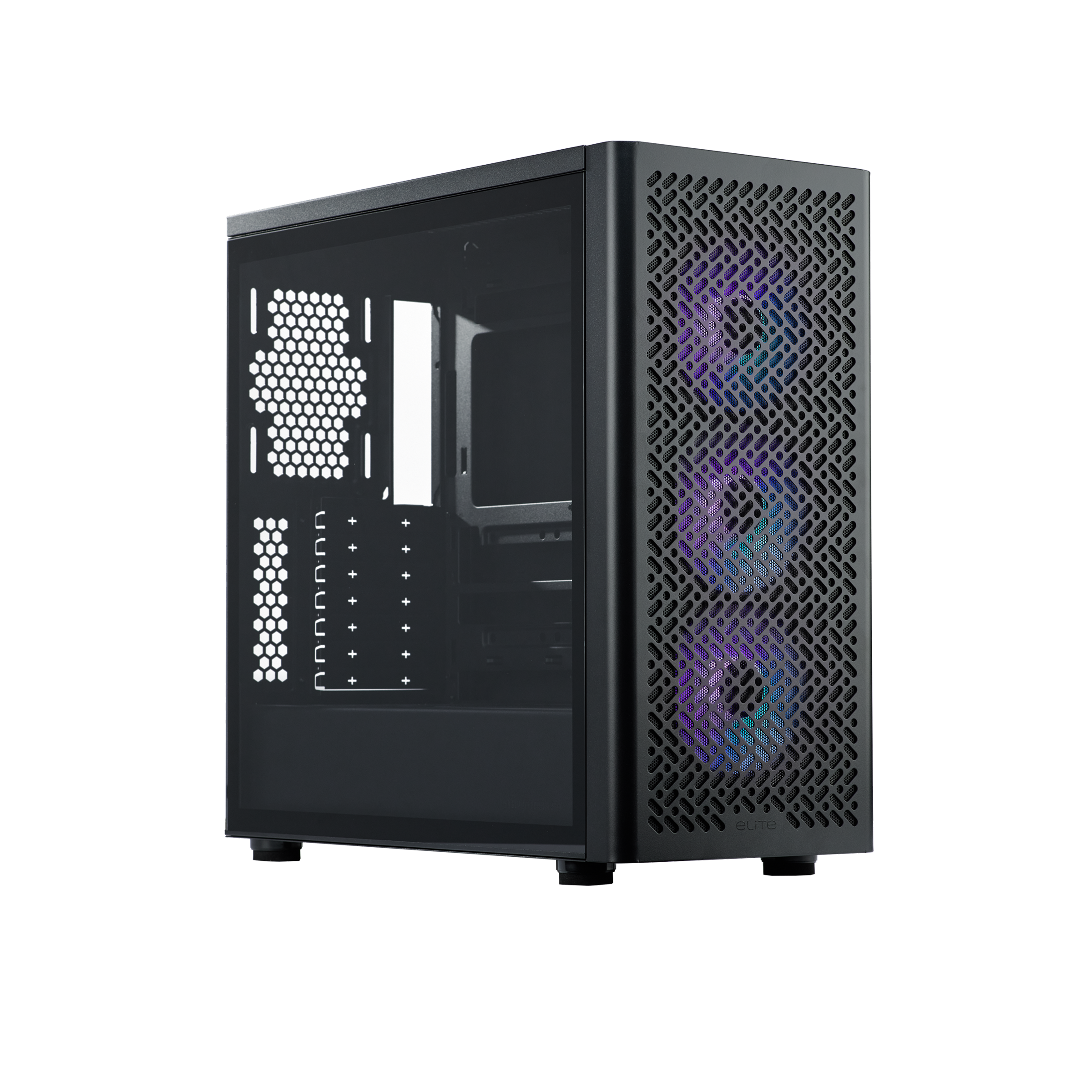

The Elite 502 delivers exceptional cooling and performance with its advanced mesh front panel for enhanced airflow. Designed for mid-to-entry-level builders, it supports up to a 420mm radiator, 410mm GPUs, and modern back-connector motherboards, offering a streamlined and efficient building experience at an accessible price.

model

Quantity

Availability:

In Stock

€ 72,99

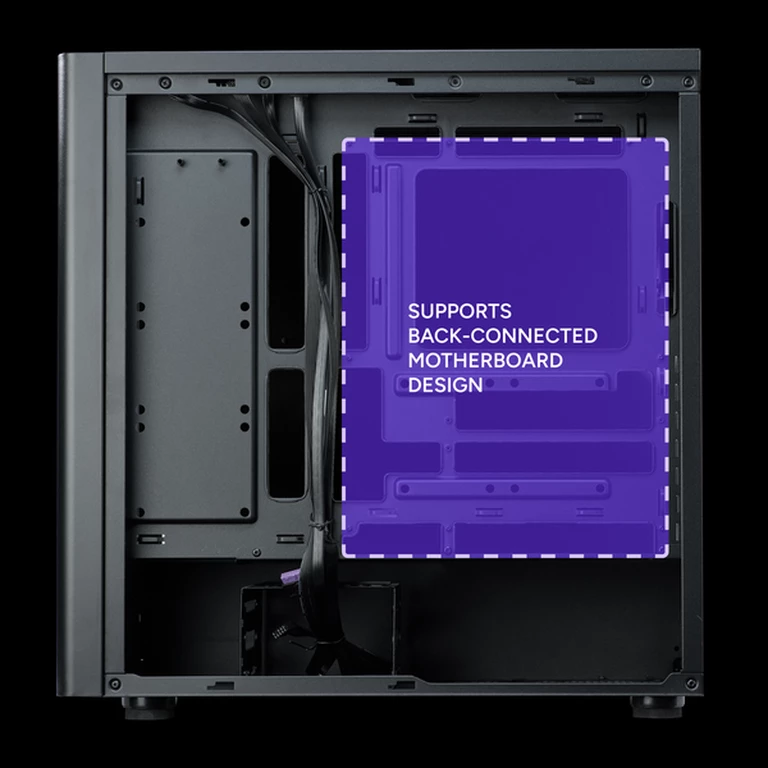

Back-Connected Motherboard Support

Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.

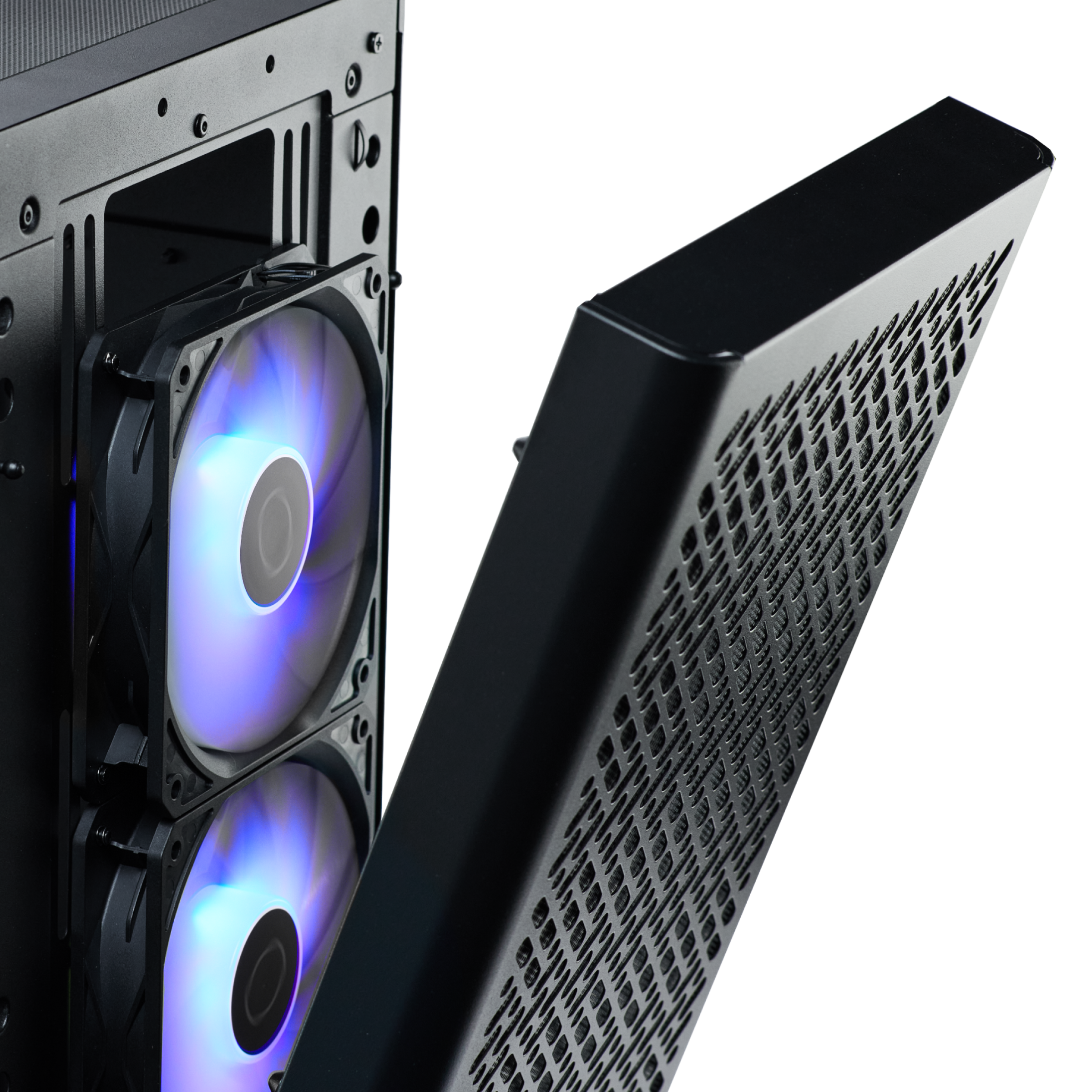

Optimized Airflow

Equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.

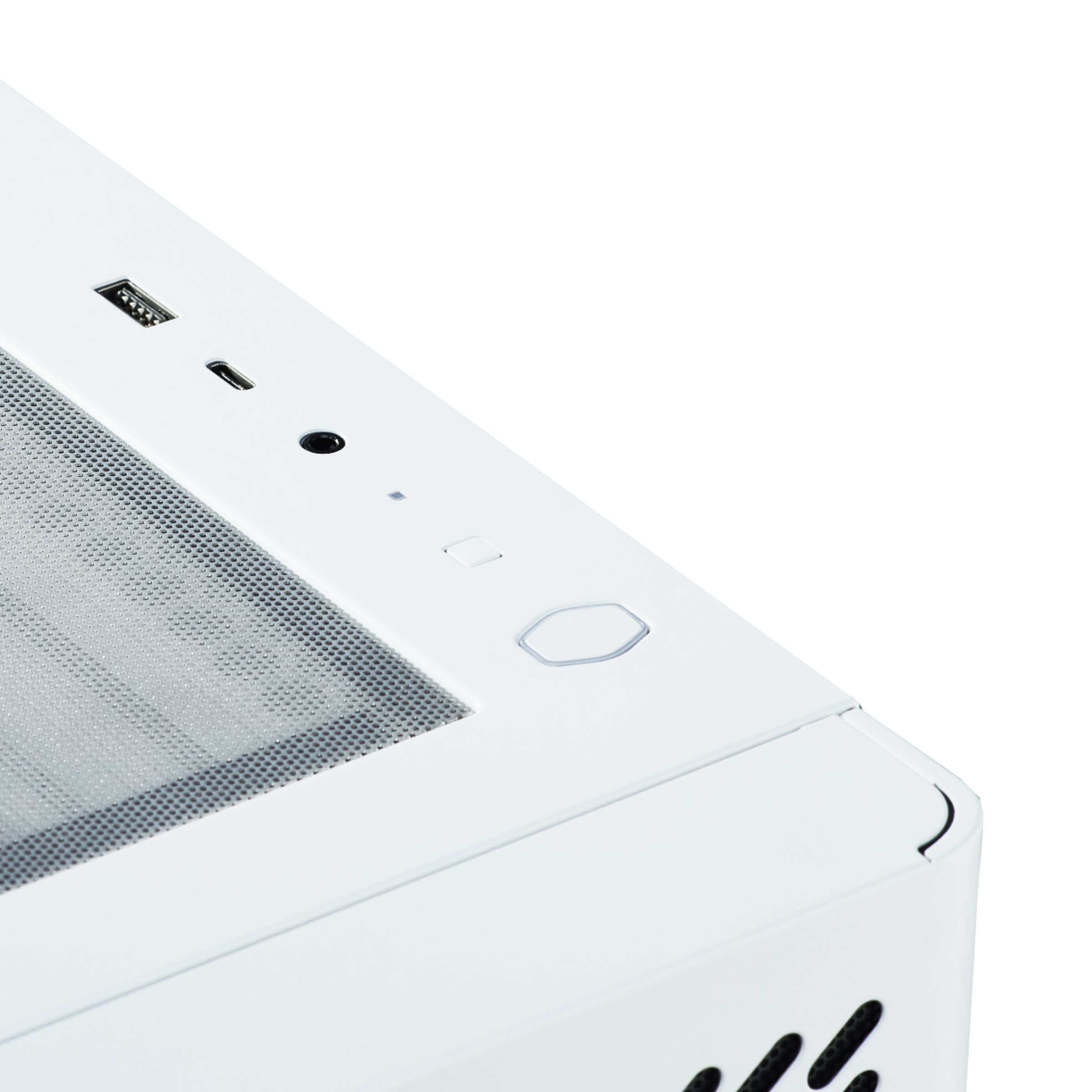

USB Type-C Upgrade

USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

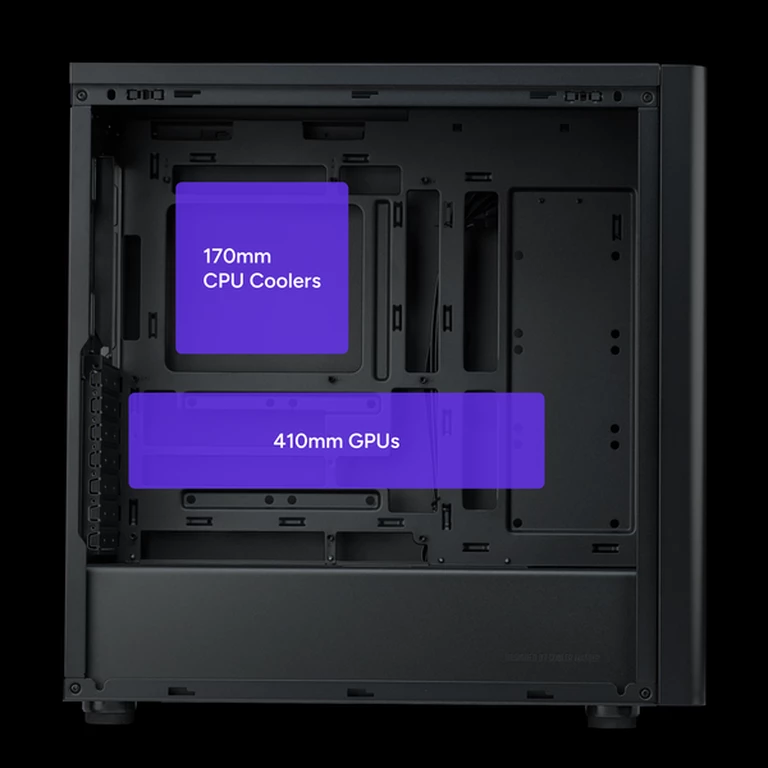

Room For Updates

Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.

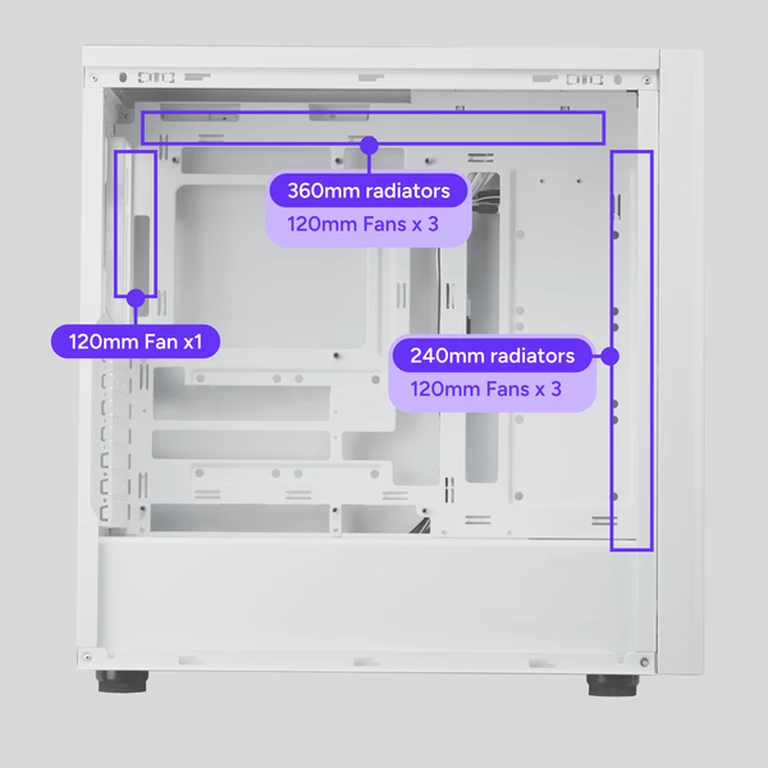

Versatile Thermal Options

Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.

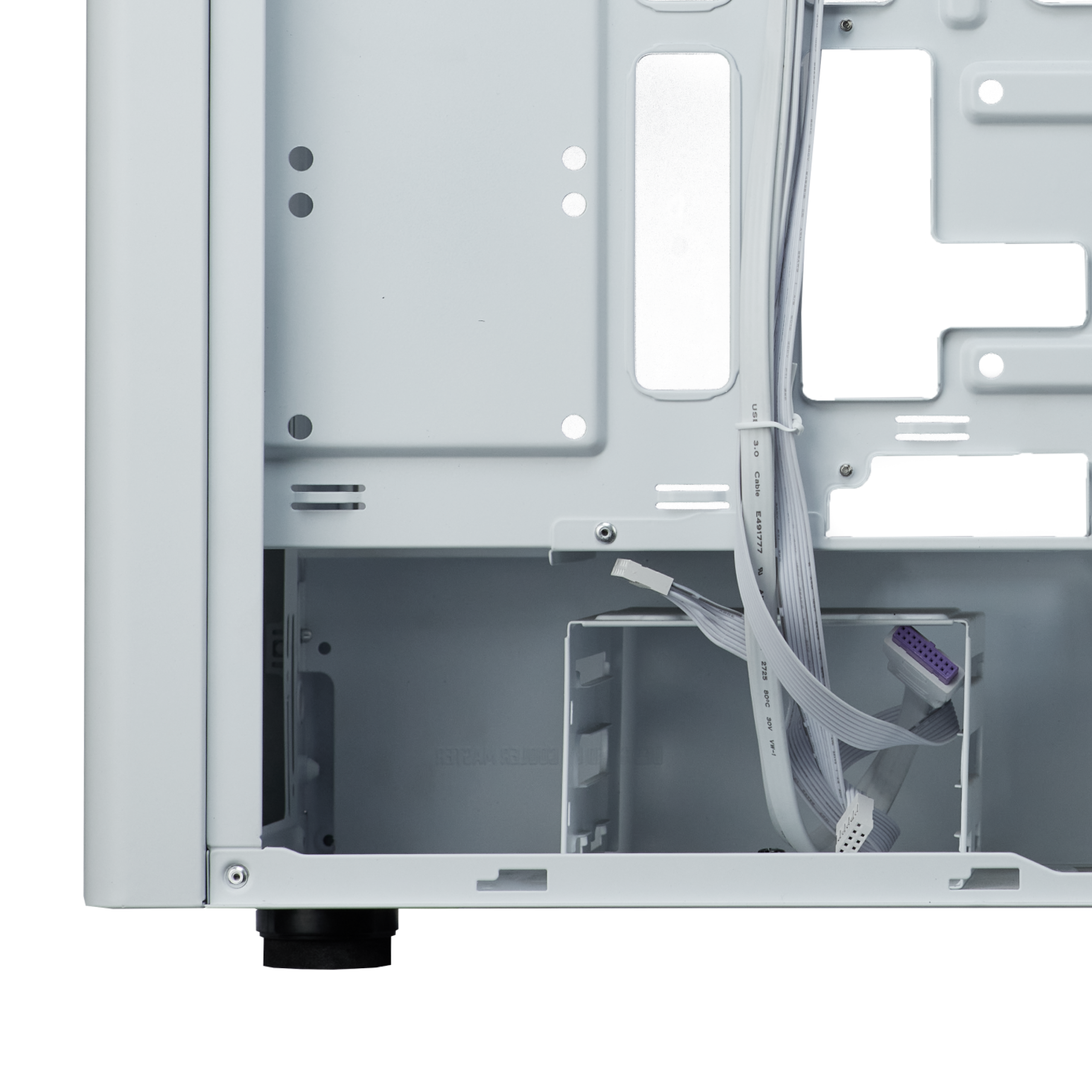

Removable HDD Cage

The HDD cage is completely removable, providing better access during assembly and system upgrades.

Product Name ELITE 502

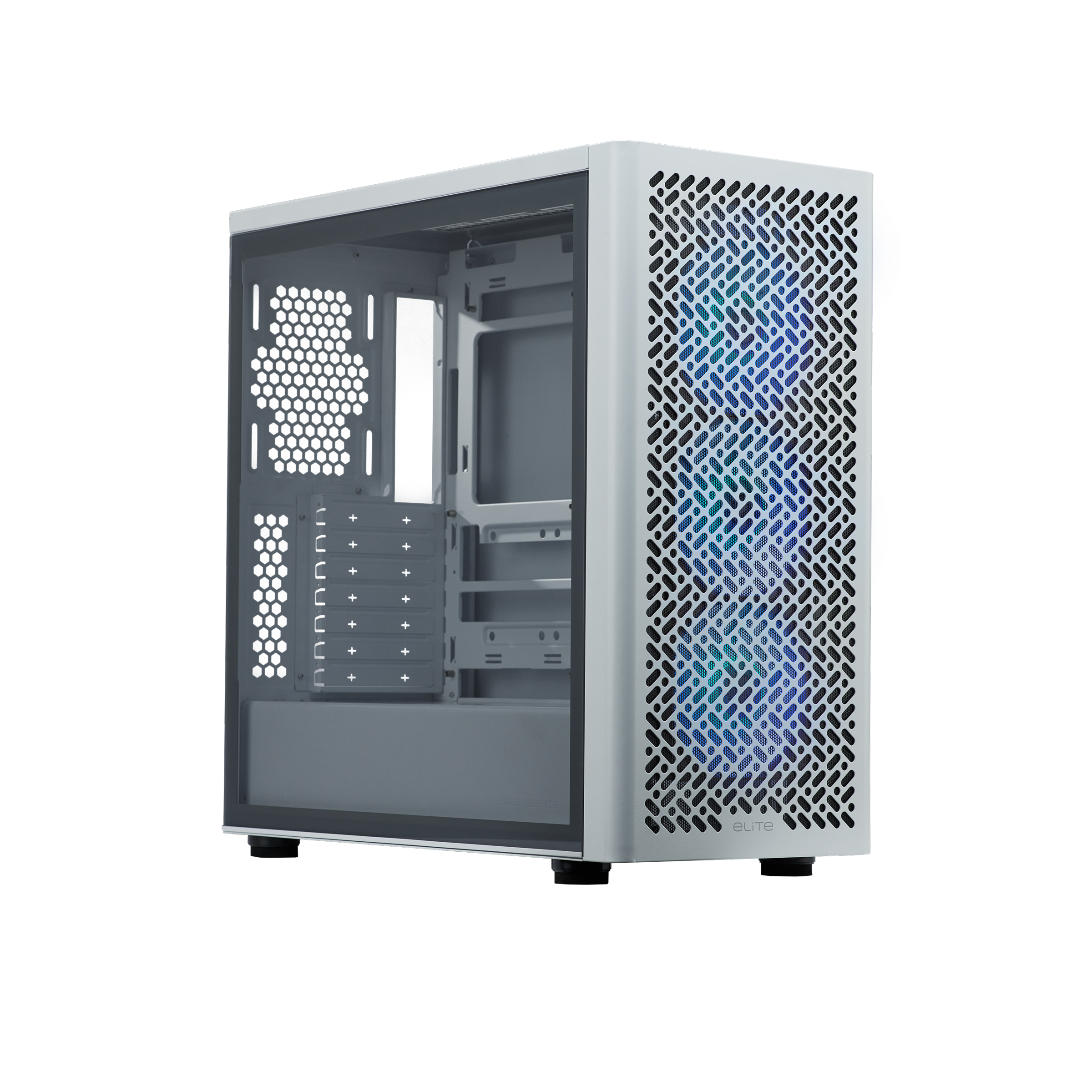

Product Name ELITE 502 White
Model Number ELITE 502: E502-KGNN-S00
Model Number ELITE 502 White: E502-WGNN-S00
Color(s) ELITE 502: Black / ELITE 502 White: White
Materials - Exterior Steel
Materials - Right Side Panel Steel
Materials - Left Side Panel TG
Dimensions (L x W x H) 474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions)
Volume (incl. Protrusions) 49.73 L
Motherboard Support ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management)
Expansion Slots 7
5.25" Drive Bays N/A
3.5" Drive Bays 2
2.5" Drive Bays 2 (Max.6)
I/O Panel - USB Ports 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C
I/O Panel - Audio In / Out 3.5 mm Combo x 1
Fan Support - Front (Filtered) 140 mm x 3 / 120 mm x 3
Fan Support - Top (Filtered) 140 mm x 2 / 120 mm x 3
Fan Support - Rear 1x 120mm
Pre-installed Fans - Front 3x 120mm ARGB Fans
Pre-installed Fans - Top N/A
Pre-installed Fans - Rear N/A
Radiator Support - Front 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)
Radiator Support - Top 120 / 140 / 240 / 280 / 360mm
Radiator Support - Rear 120mm
Clearance - CPU Cooler 170mm
Clearance - PSU 170 / 210mm (w/o HDD Cage)
Clearance - Graphics Card (installed 3.5"HDD BRK) 360 / 410 mm (w/o front radiator)
Cable Routing - Behind Motherboard Tray 33-35 mm
Dust Filters Top, Front, Bottom
Power Supply Support ATX
Warranty 2 years
Series Elite Series
Size Mid Tower
