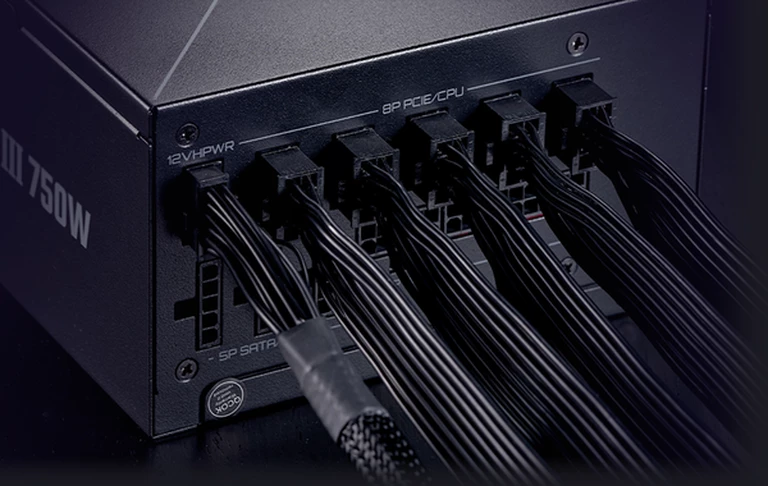

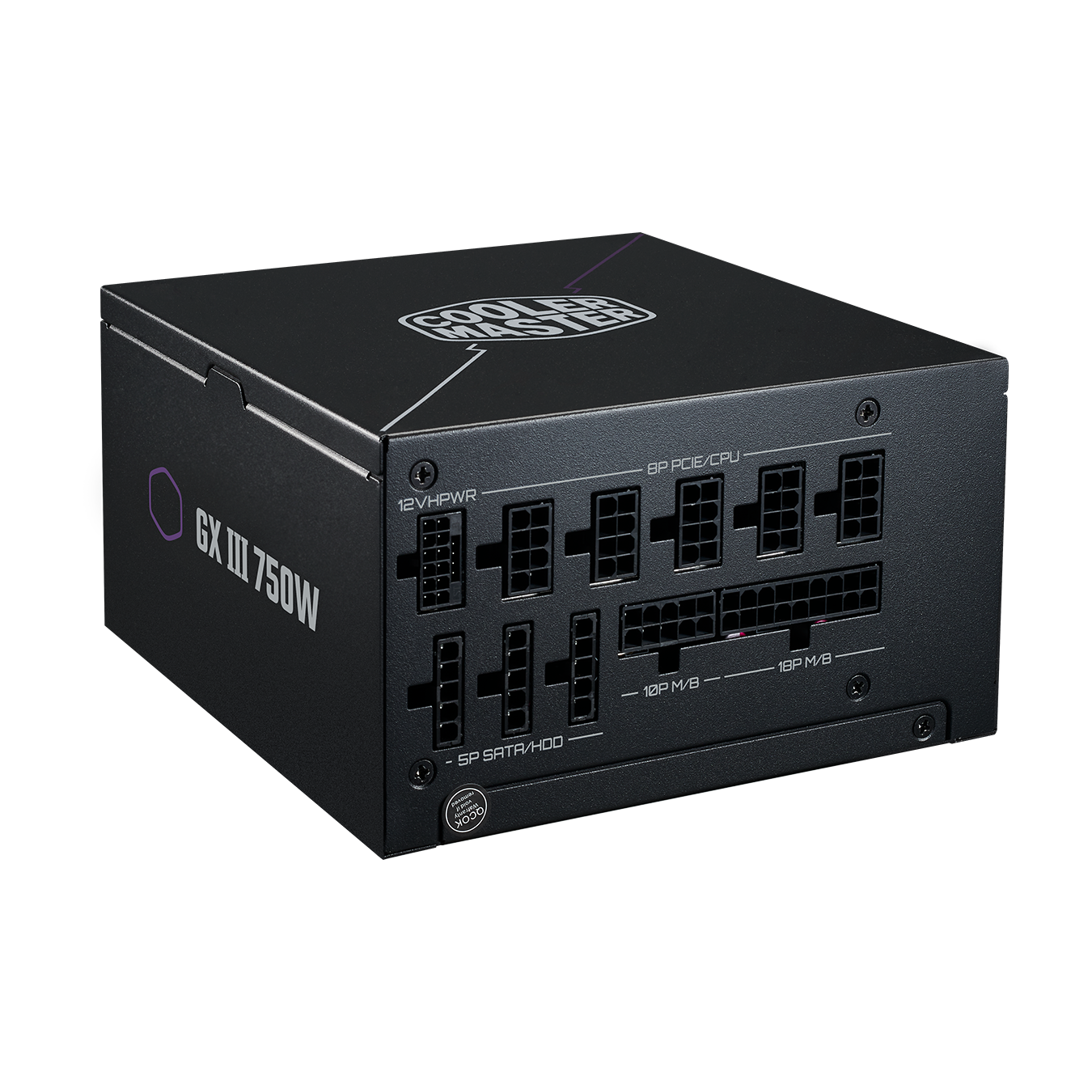

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Strength in Elegance

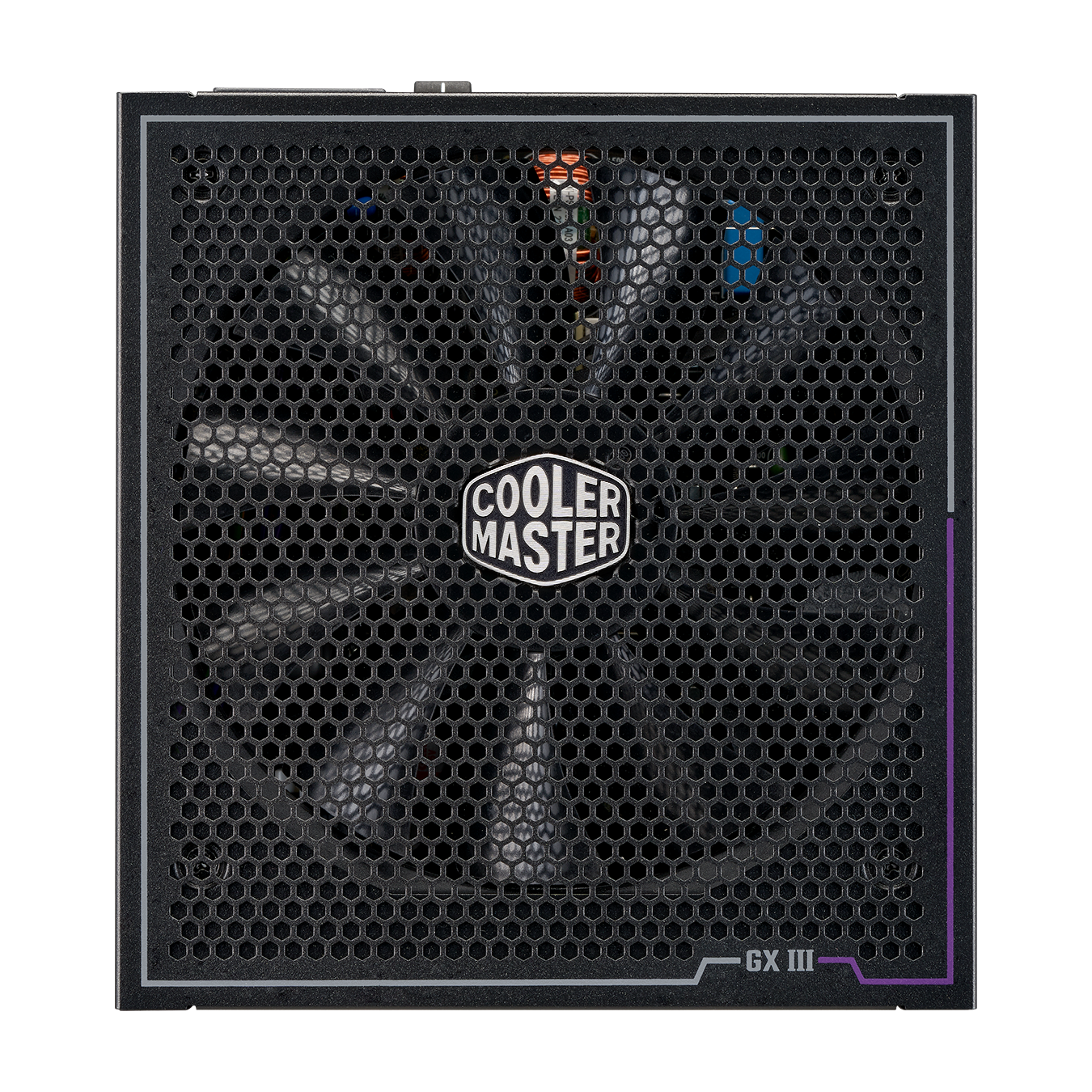

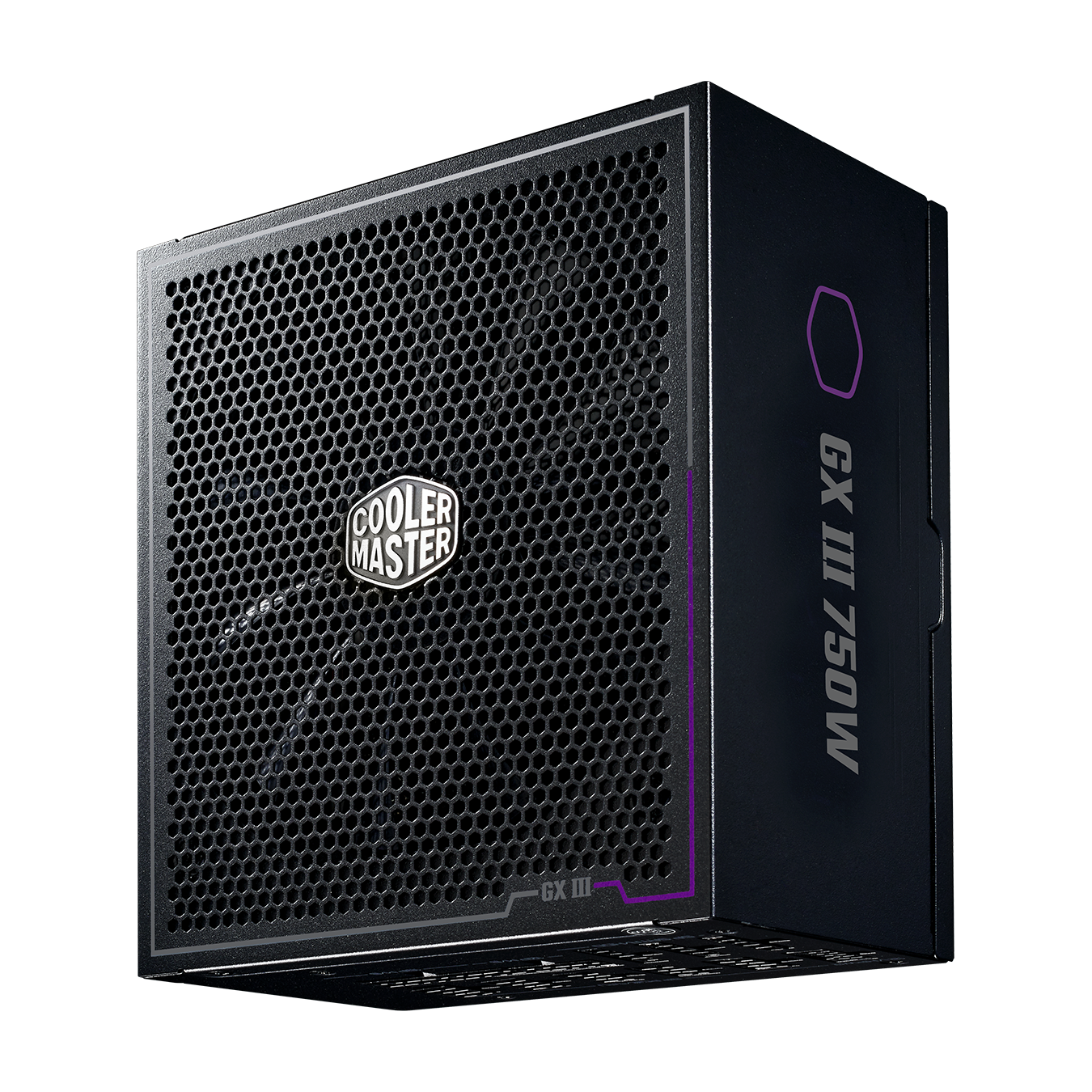

GX III Gold 750
Innovative, streamlined design
ATX 3.0 support & a 90-degree 12VHPWR cable
Optimized and silent thermal performance
Titanium efficiency at light loads
Fully modular cabling
10-year warranty
model
Availability:
-
In Stock
€ 169,99

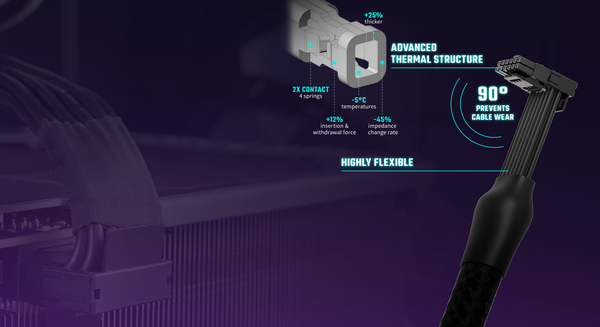

ATX 3.0 Support & a Durable 90-degree 12VHPWR Cable

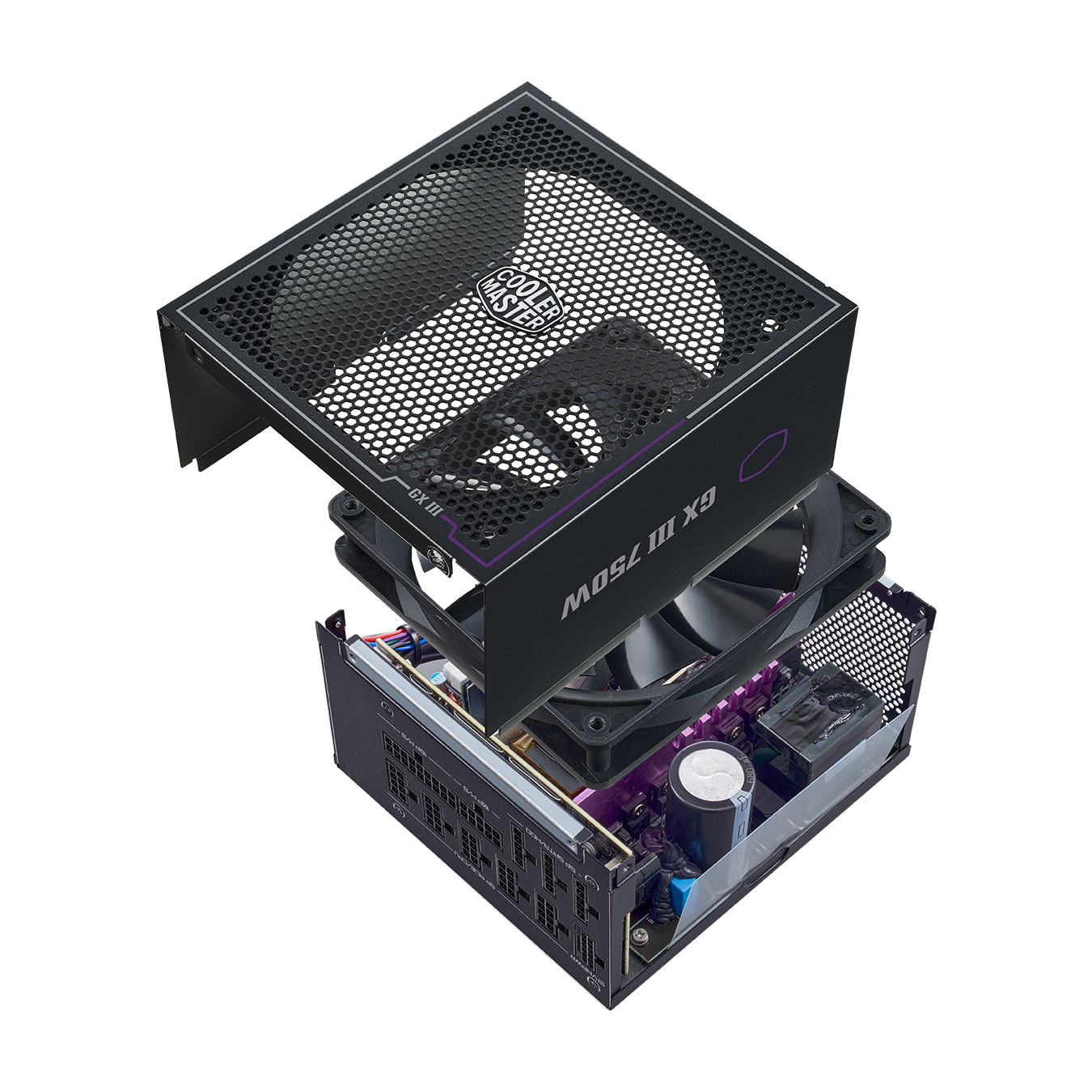

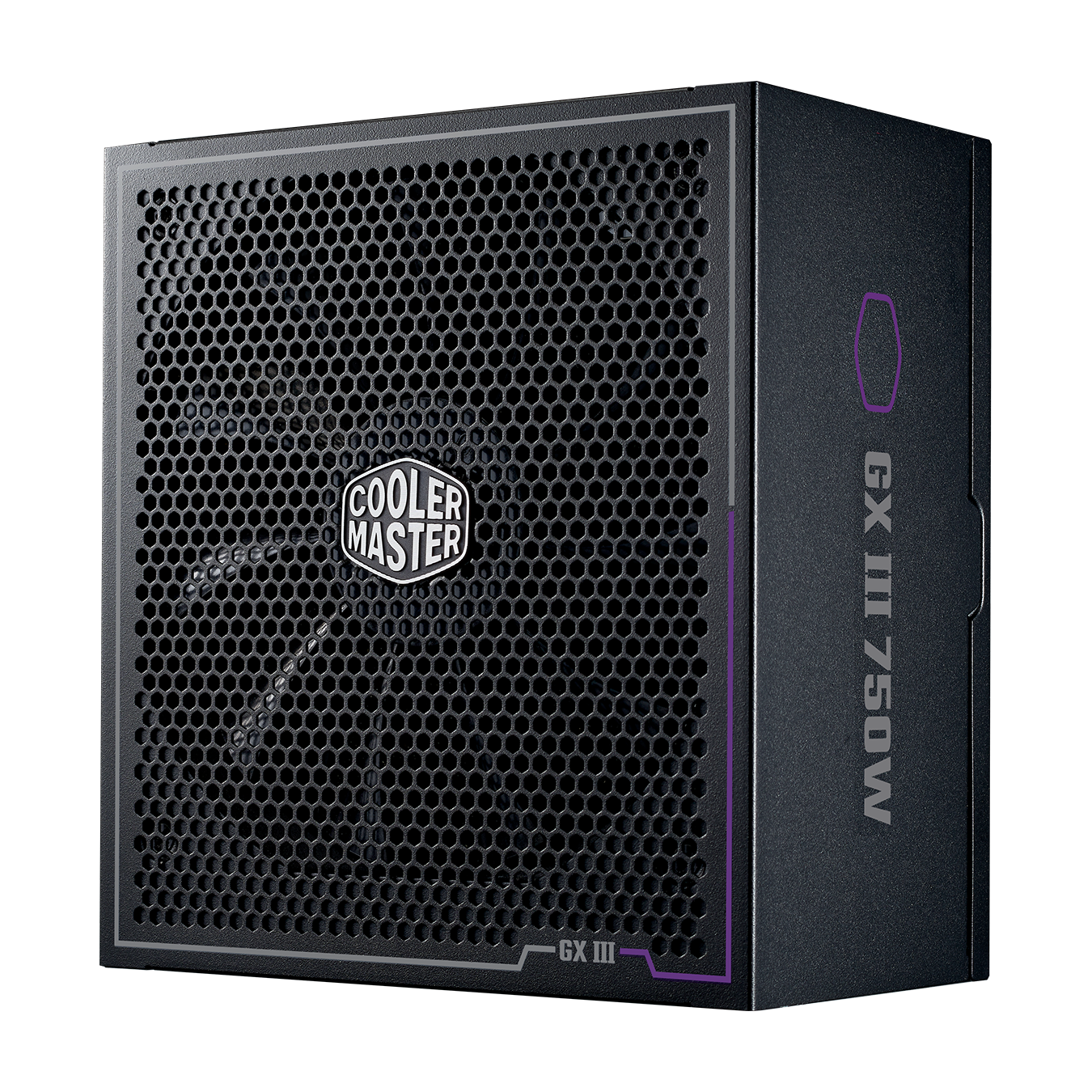

Innovative, streamlined Design
The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.

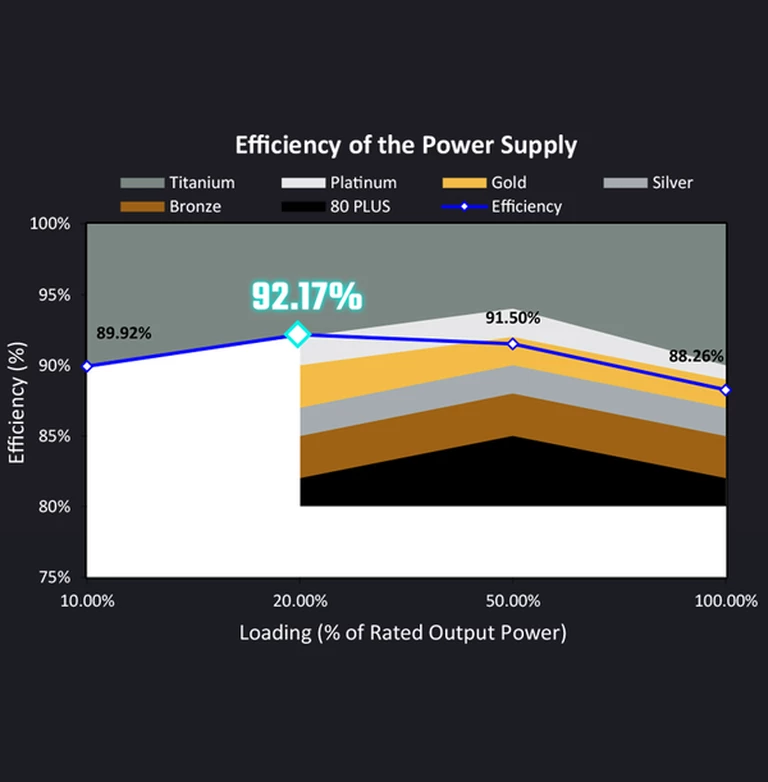

Exceptional Efficiency
This 80 Plus Gold certified unit can achieve Titanium level efficiency at light loads in a 115V test.
- Model MPX-7503-AFAG
- ATX Version ATX 12V Ver. 3.0
- PFC Active PFC
- Input Voltage 100-240V
- Input Current 10-5A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 160 x 150 x 86 mm
- Fan Size 135mm
- Fan Bearing HDB
- Fan Speed 1900 RPM
- Efficiency ≥90% @ Typical Load
- 80 PLUS Rating 80 PLUS Gold
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-50°C
- Power Good Signal 100 - 150 ms
- Hold Up Time >16ms
- MTBF >100,000 Hours
- Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA Connectors 8
- Peripheral 4 Pin Connectors 4
- PCI-e 6+2 Pin Connectors 3
- 12VHPWR Connector 1
- Series GX Series
- 80 Plus Efficiency Gold
- Modular Fully Modular
- Category Above 750W
- Form Factor ATX
- Watts 750W
