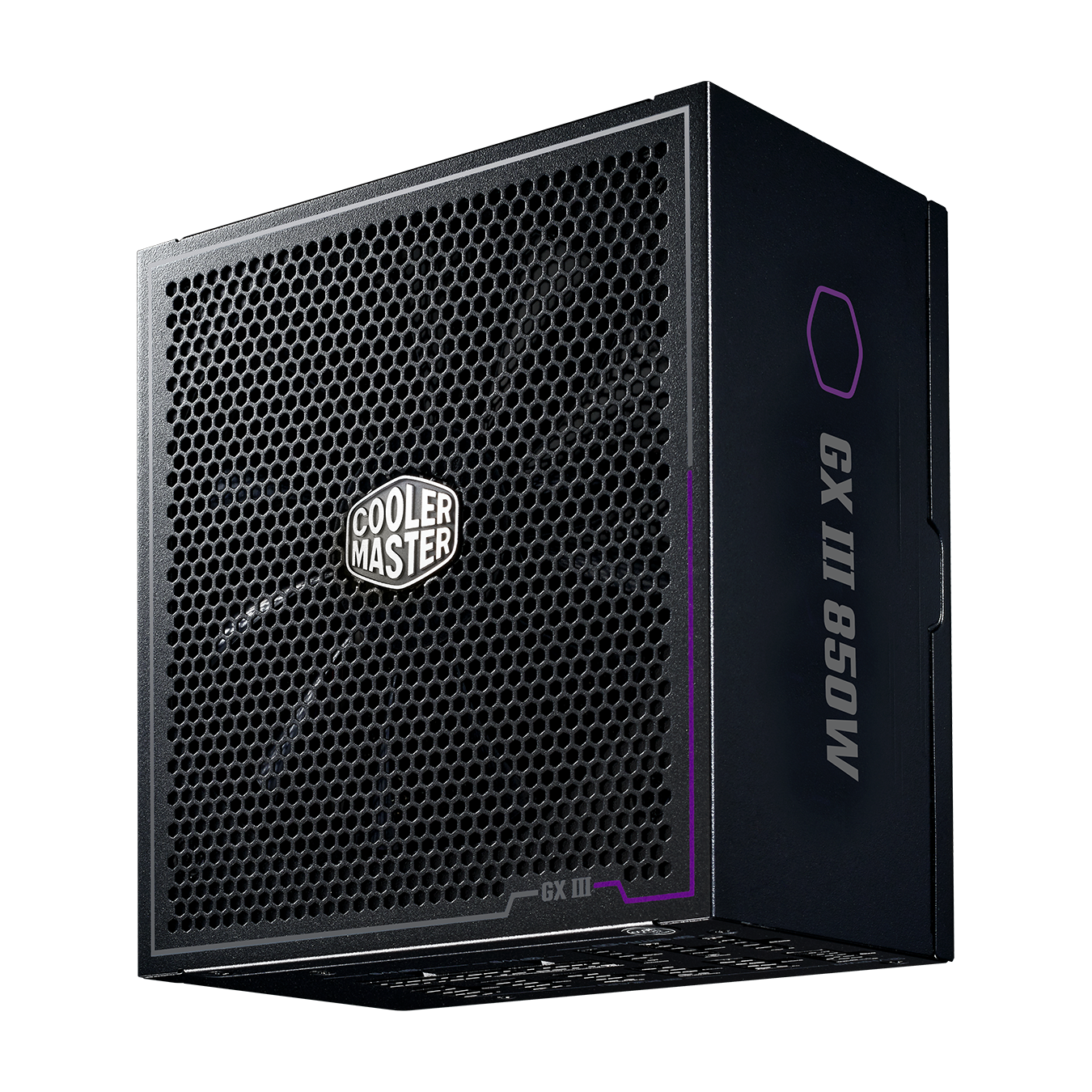

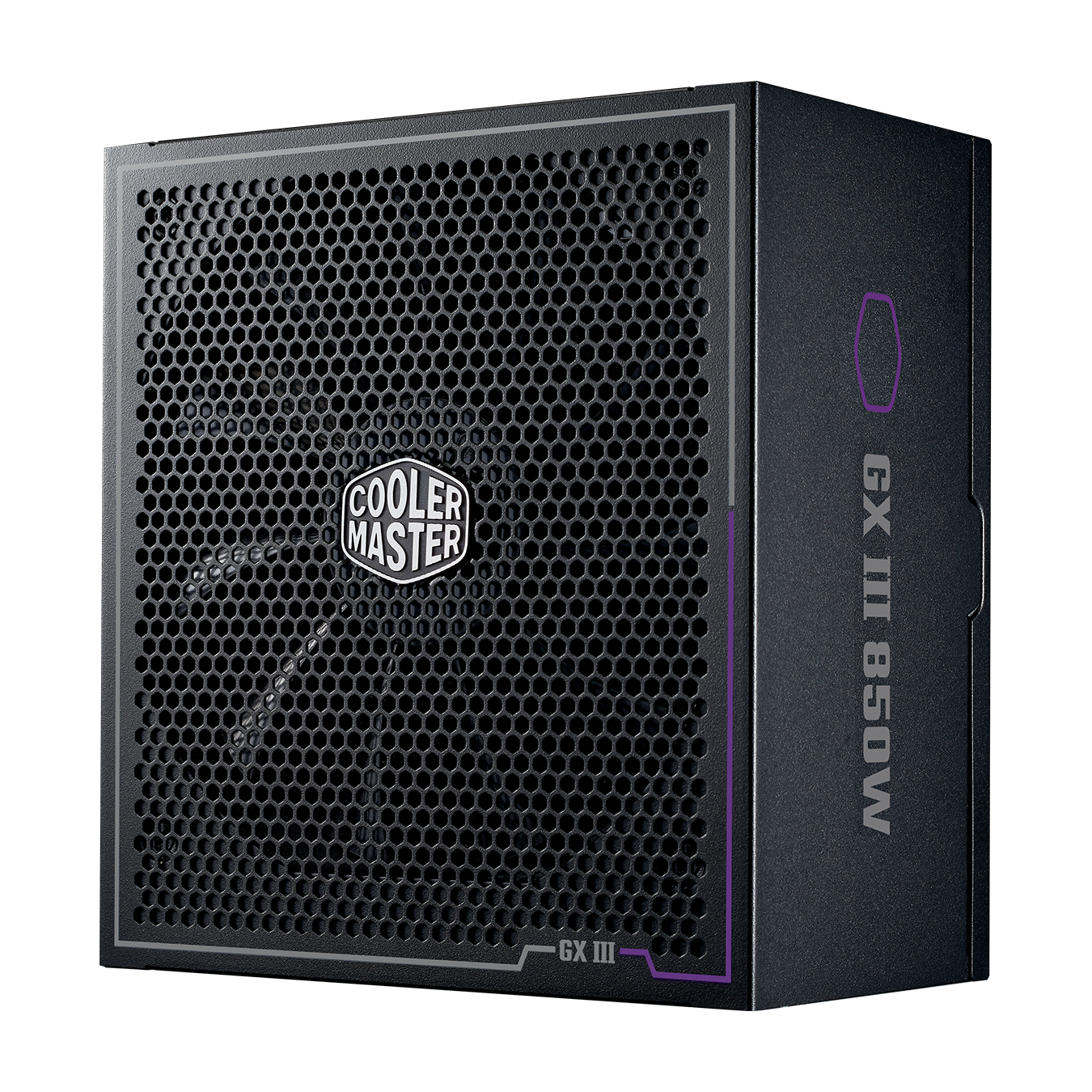

GX III Gold 850
Innovative, streamlined design
ATX 3.0 support & a 90-degree 12VHPWR cable
Optimized and silent thermal performance
Titanium efficiency at light loads
Fully modular cabling
10-year warranty
regional
Availability:
-
Select Styles for Availability

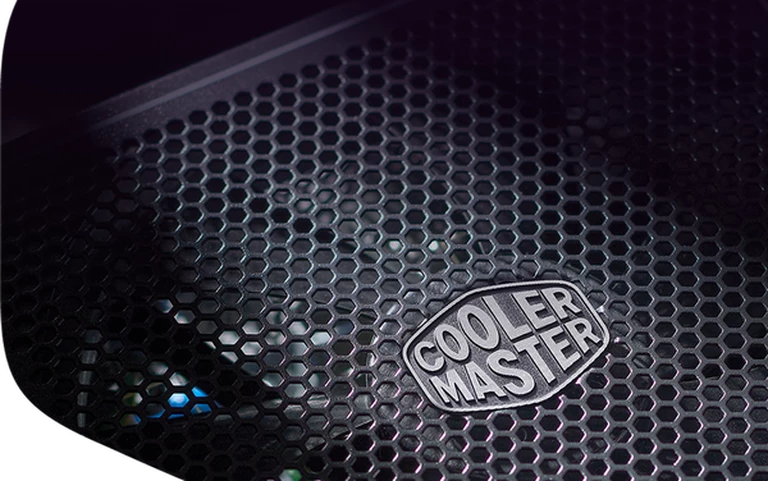

Innovative, streamlined design
The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.
Feature
ATX 3.0 & 12VHPWR cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, improved safety, and capable of bringing up to 450W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.
Feature

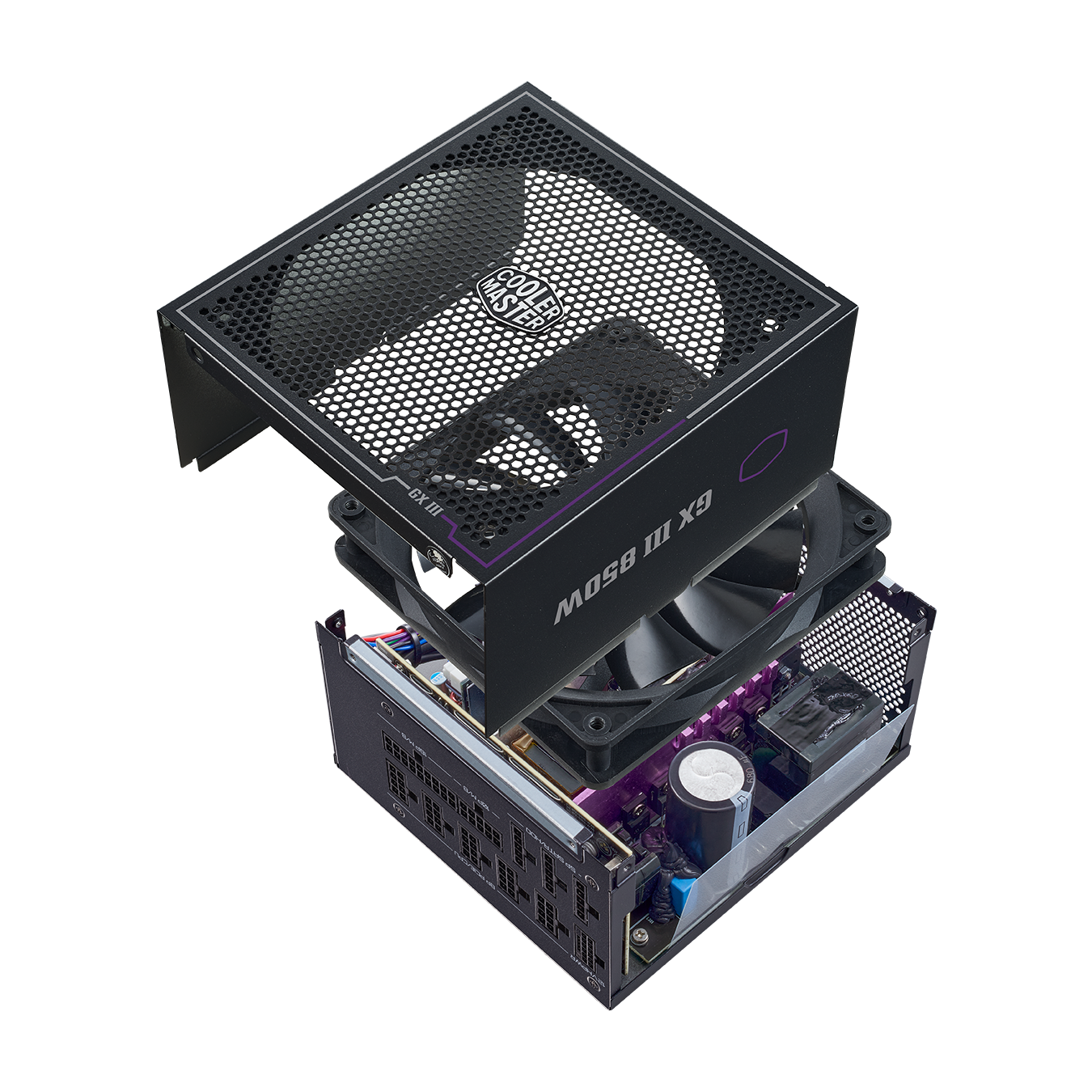

Optimized thermal performance
An anodic-coated heat sink keeps average temperatures 5℃ lower than a traditional heat sink for enhanced durability and a prolonged life span.
*All performance stats confirmed in 25°C ambient temperature testing.
Feature
80 Plus Gold & Cybenetics Platinum certified efficiency
80 Plus Gold and Cybenetics Platinum certifications indicate achievement of more than 90% efficiency at typical loads. This Gold certified unit can also achieve Titanium level efficiency under general light load usage in a 115V test.
Feature
Silent fan performance with a zero-RPM mode
This unit has received a Cybenetics A- noise level certification and includes a smart thermal control mode that defaults to zero spin.
Feature

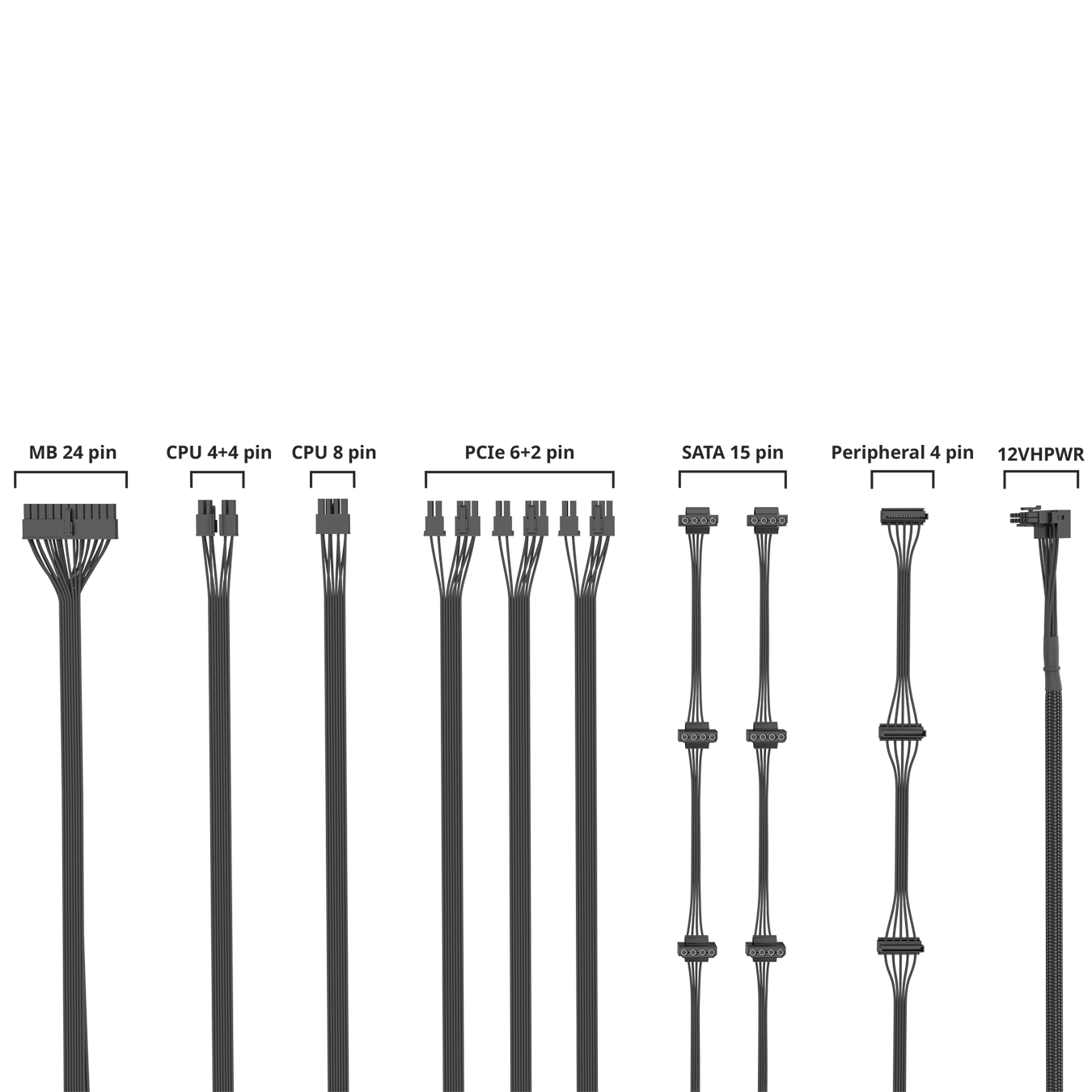

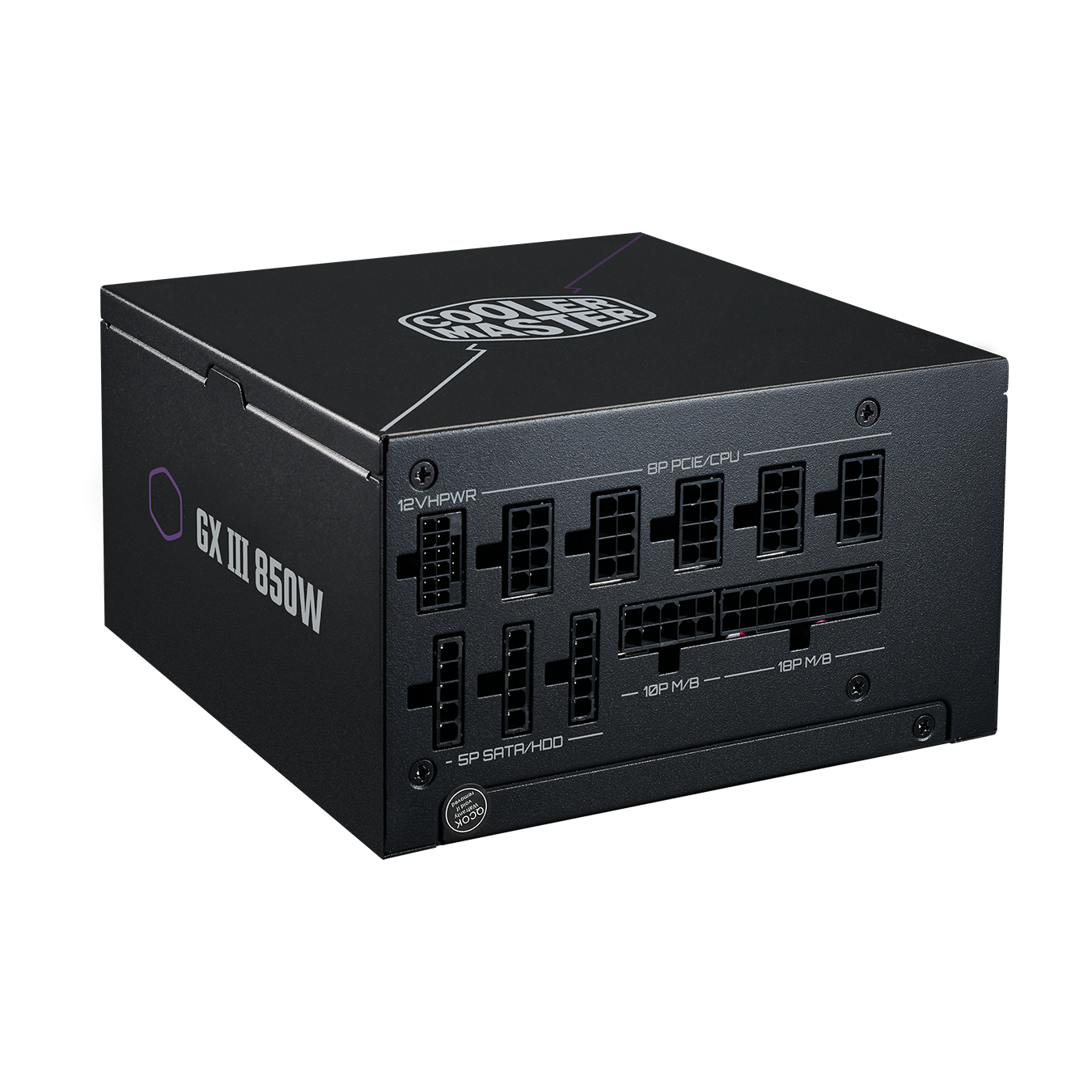

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
- Model MPX-8503-AFAG
- ATX Version ATX 12V Ver. 3.0
- PFC Active PFC
- Input Voltage 100-240V
- Input Current 10-5A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 160 x 150 x 86 mm
- Fan Size 135mm
- Fan Bearing HDB
- Fan Speed 1900 RPM
- Efficiency ≥90% @ Typical Load
- 80 PLUS Rating 80 PLUS Gold
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-50°C
- Power Good Signal 100 - 150 ms
- Hold Up Time >16ms
- MTBF >100,000 Hours
- Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA Connectors 8
- Peripheral 4 Pin Connectors 4
- PCI-e 6+2 Pin Connectors 3
- 12VHPWR Connector 1
- Series GX Series
- 80 Plus Efficiency Gold
- Modular Fully Modular
- Category Above 750W
- Form Factor ATX
- Watts 850W
