Ports & Slots
USB 3.2 gen 2 type C support
USB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.
Homecoming classic

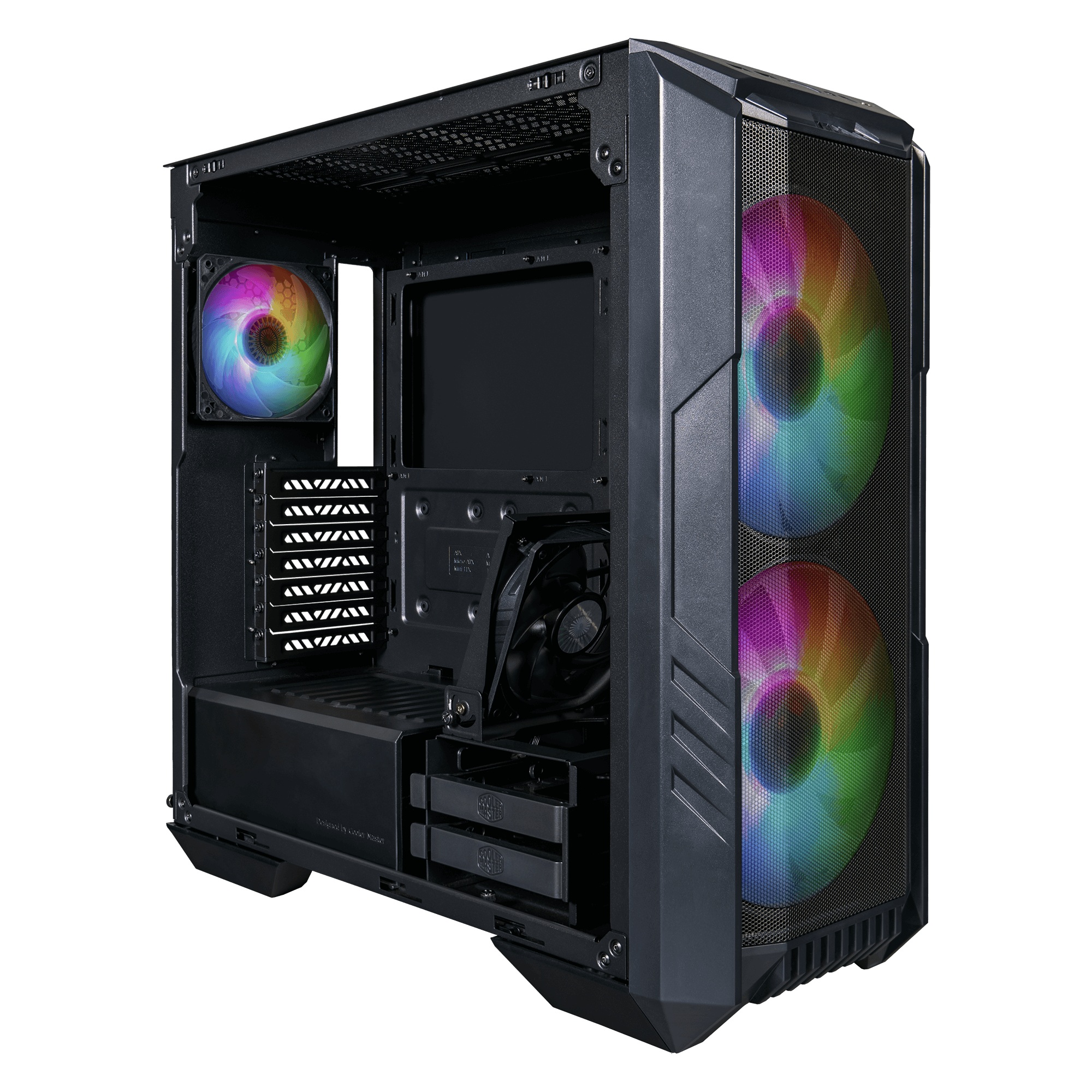

HAF 500
Cooler Master’s classic HAF series is making a return with HAF 500.
Color
Availability:
-
Select Styles for Availability
€ 119,00
Airflow

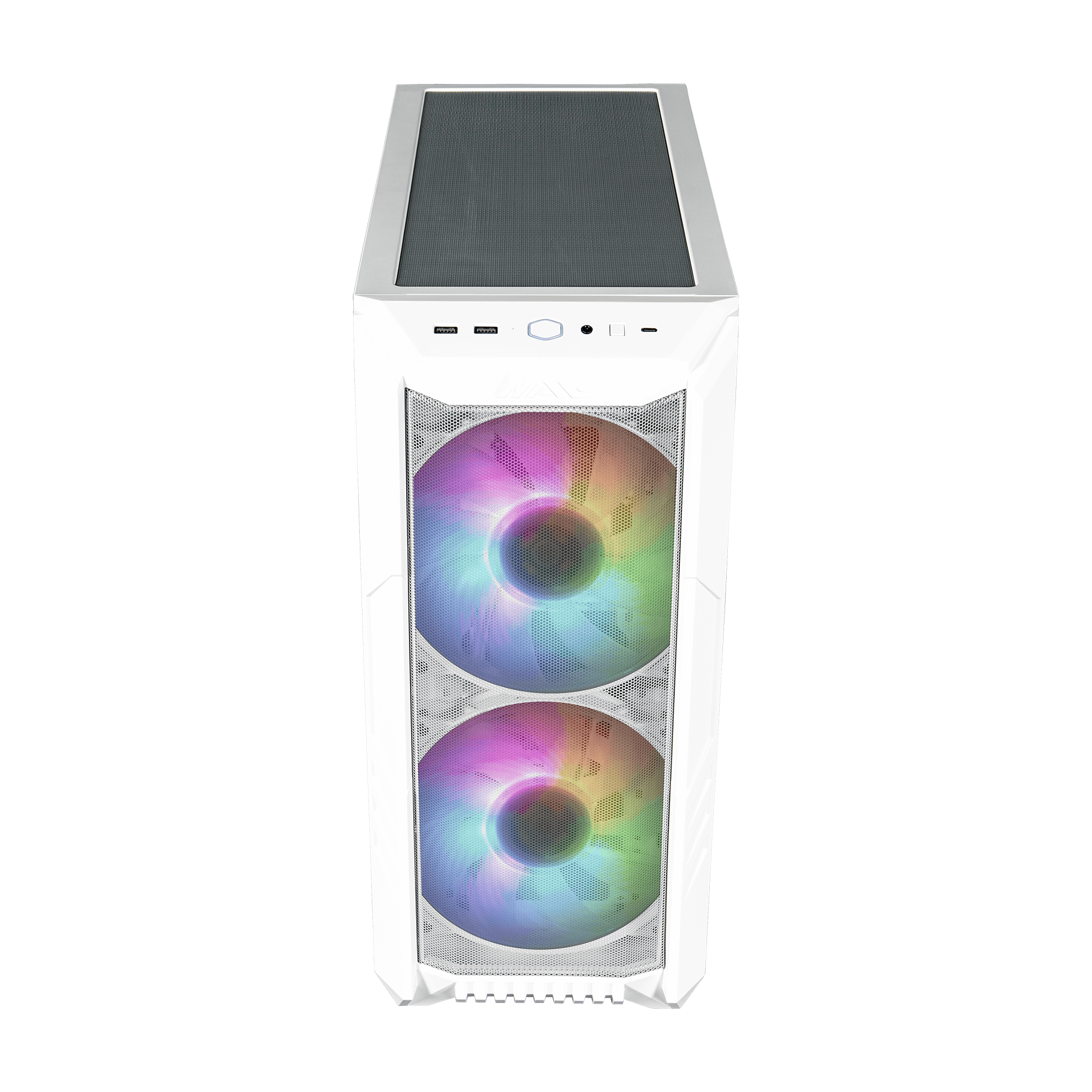

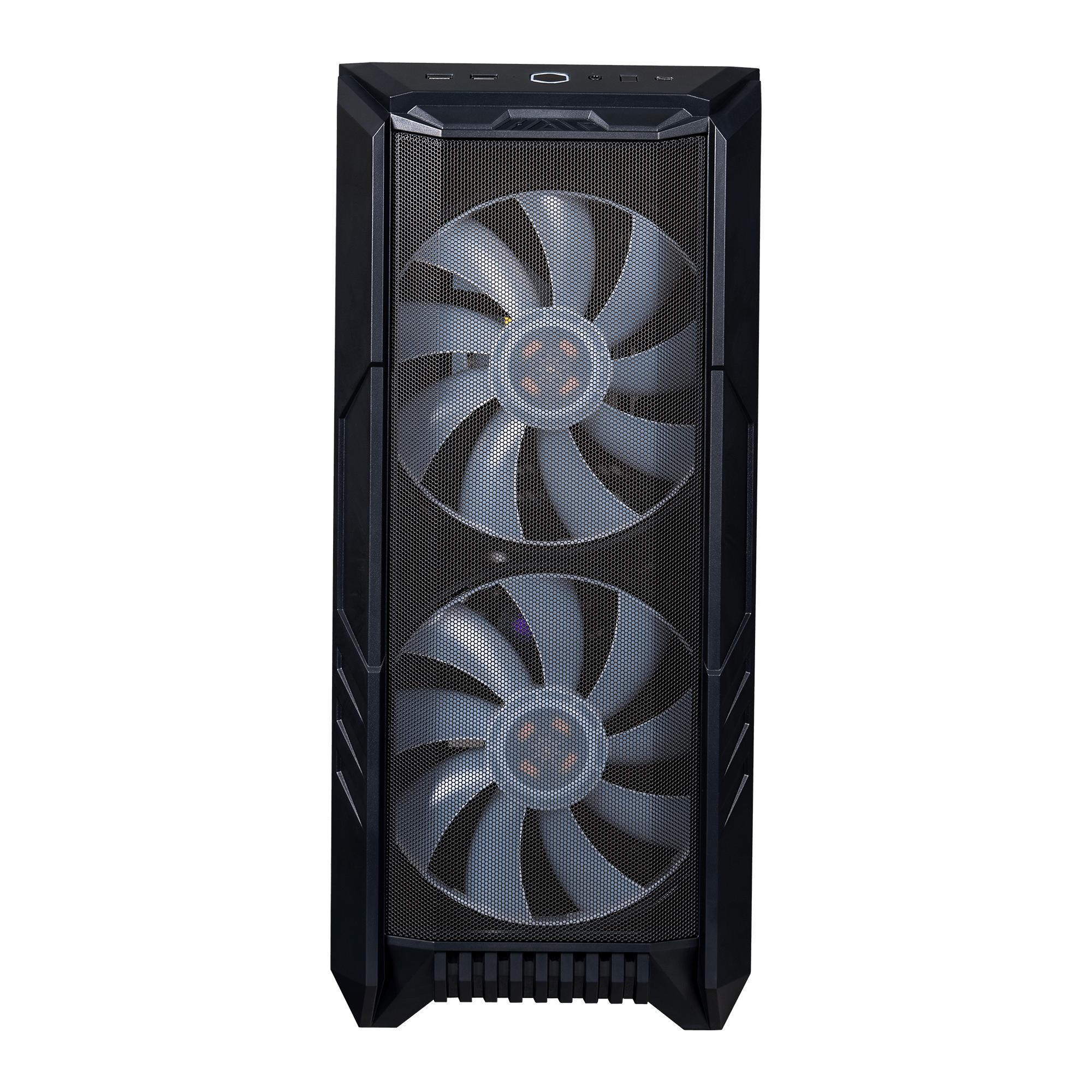

Mesh Front Panel
Large filtered intakes promotes high airflow, keeping internal components
running at optimal temperature
Our Achievements
Awards
Cooling System
GPU
120mm fan
Fans

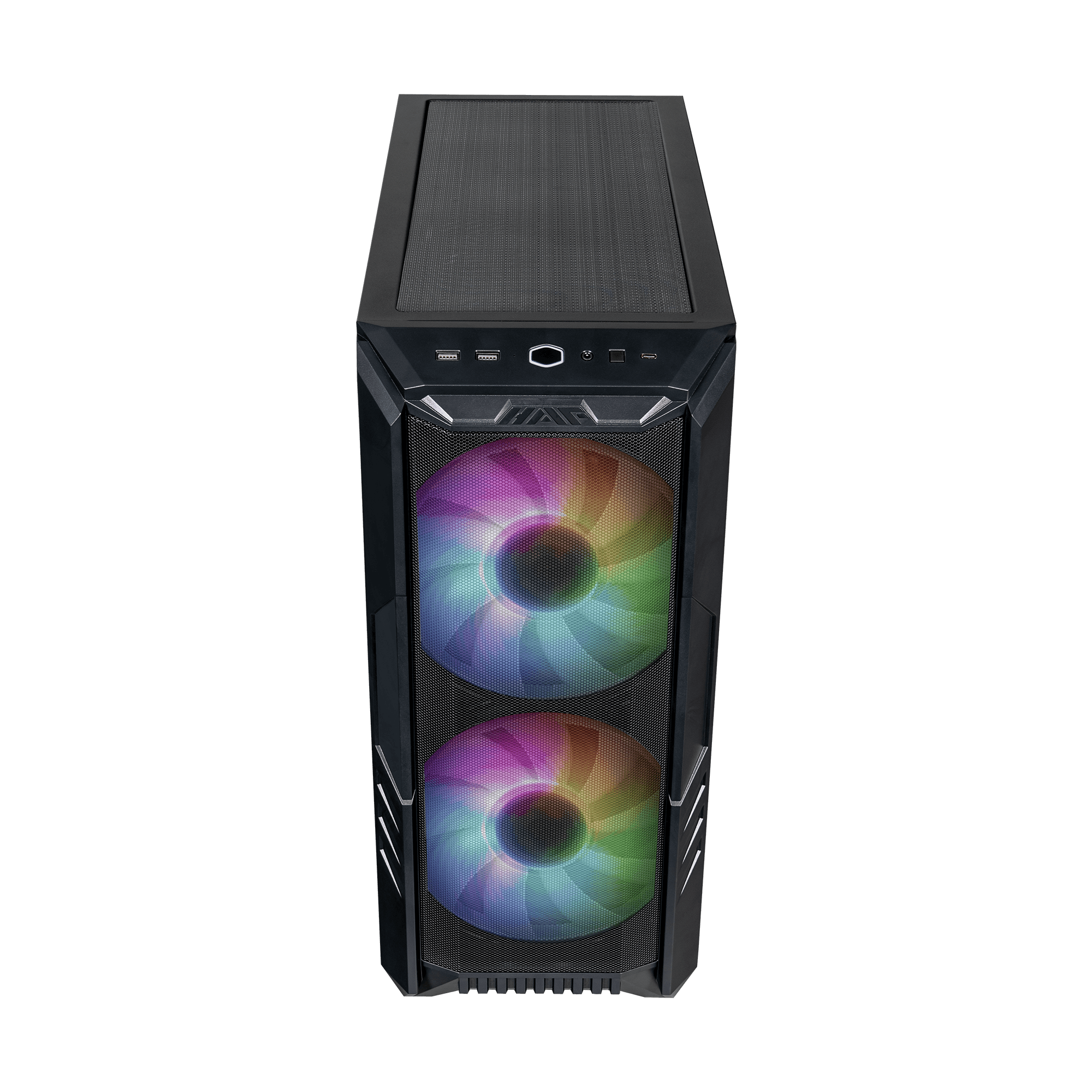

Dual 200mm ARGB fans
Iconic 200mm ARGB fans embedded in the core of the HAF Series
in design and function move high volumes of air quietly and effectively
due to their large size. Utilizing the included hub, ARGB lighting can be
customized to create a comprehensive theme to match your build.

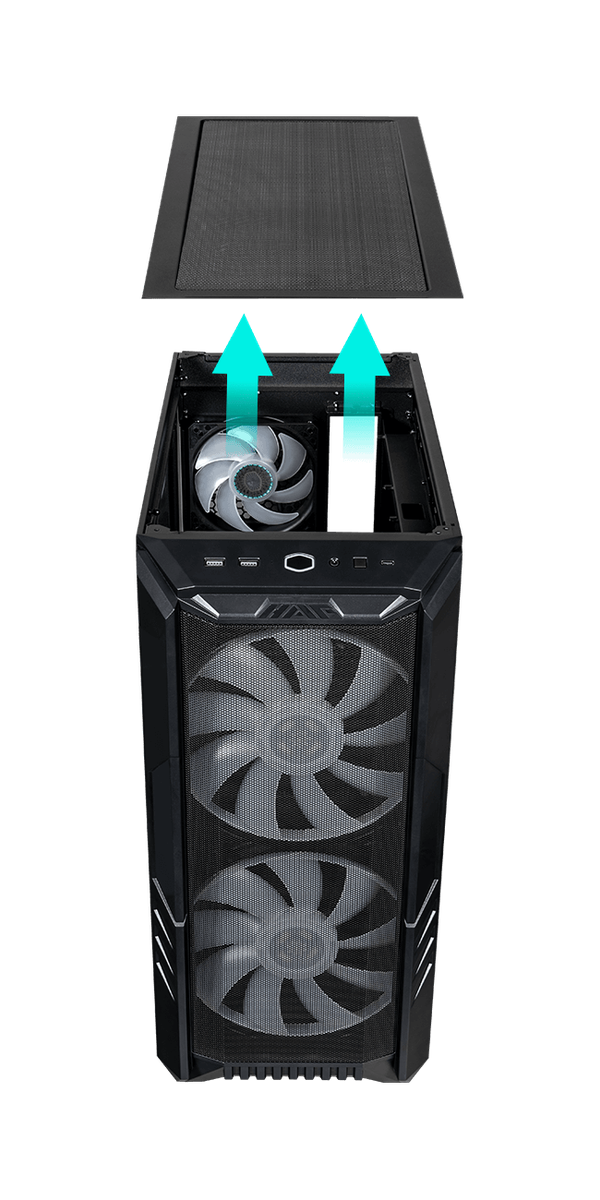

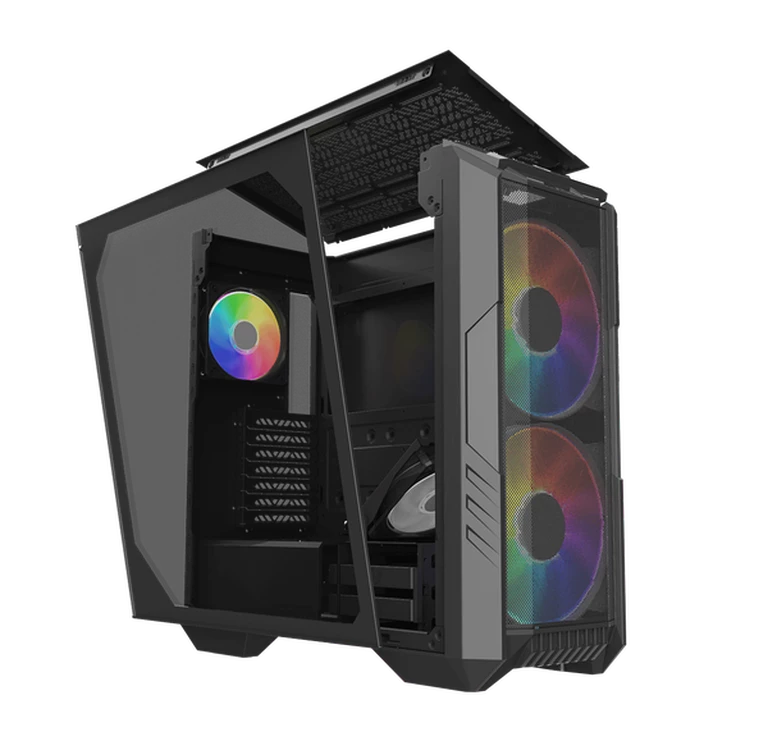

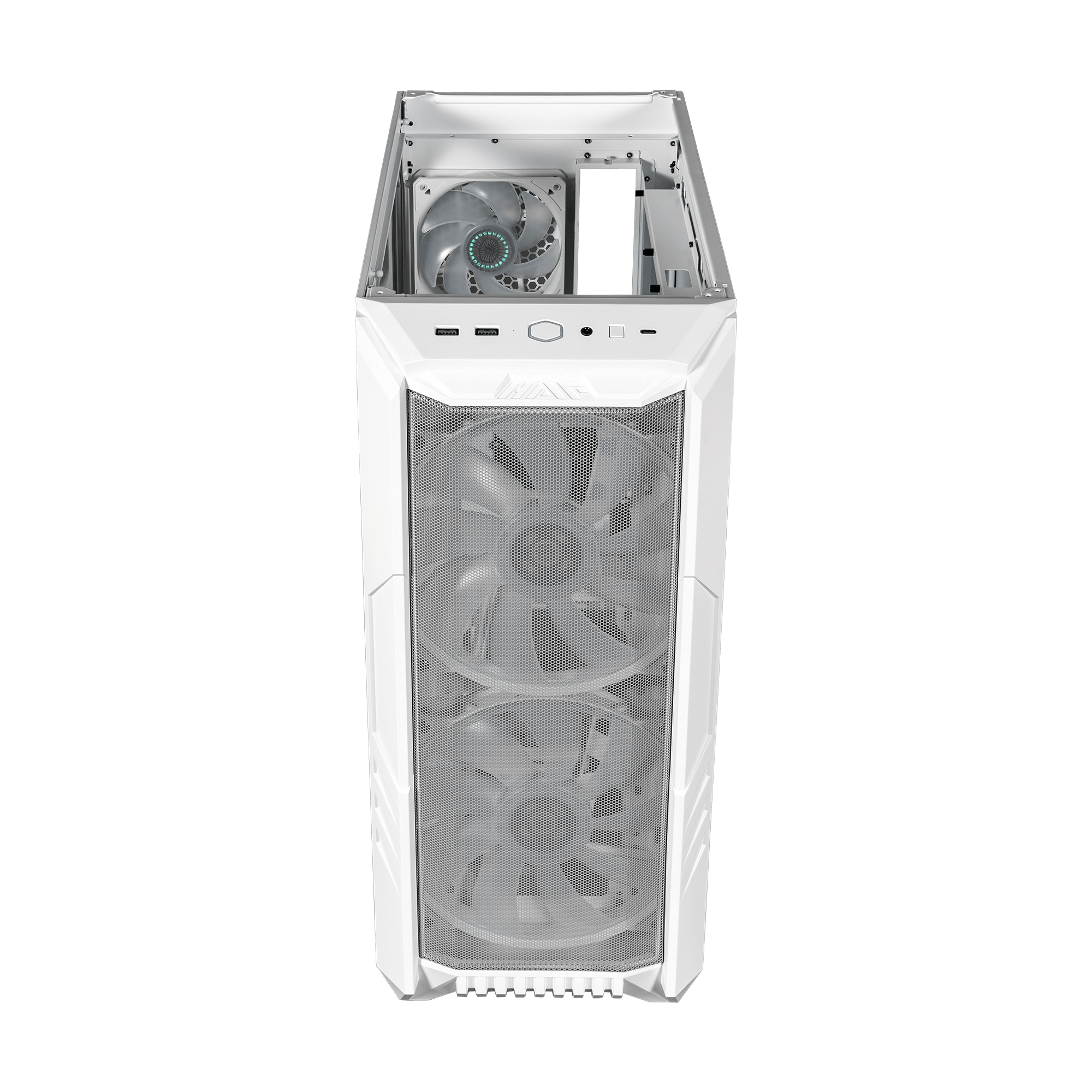

Removable top panel
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
VERSATILE COOLING OPTIONS
Support for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
- Model Number HAF 500: H500-KGNN-S00, HAF 500 White: H500-WGNN-S00

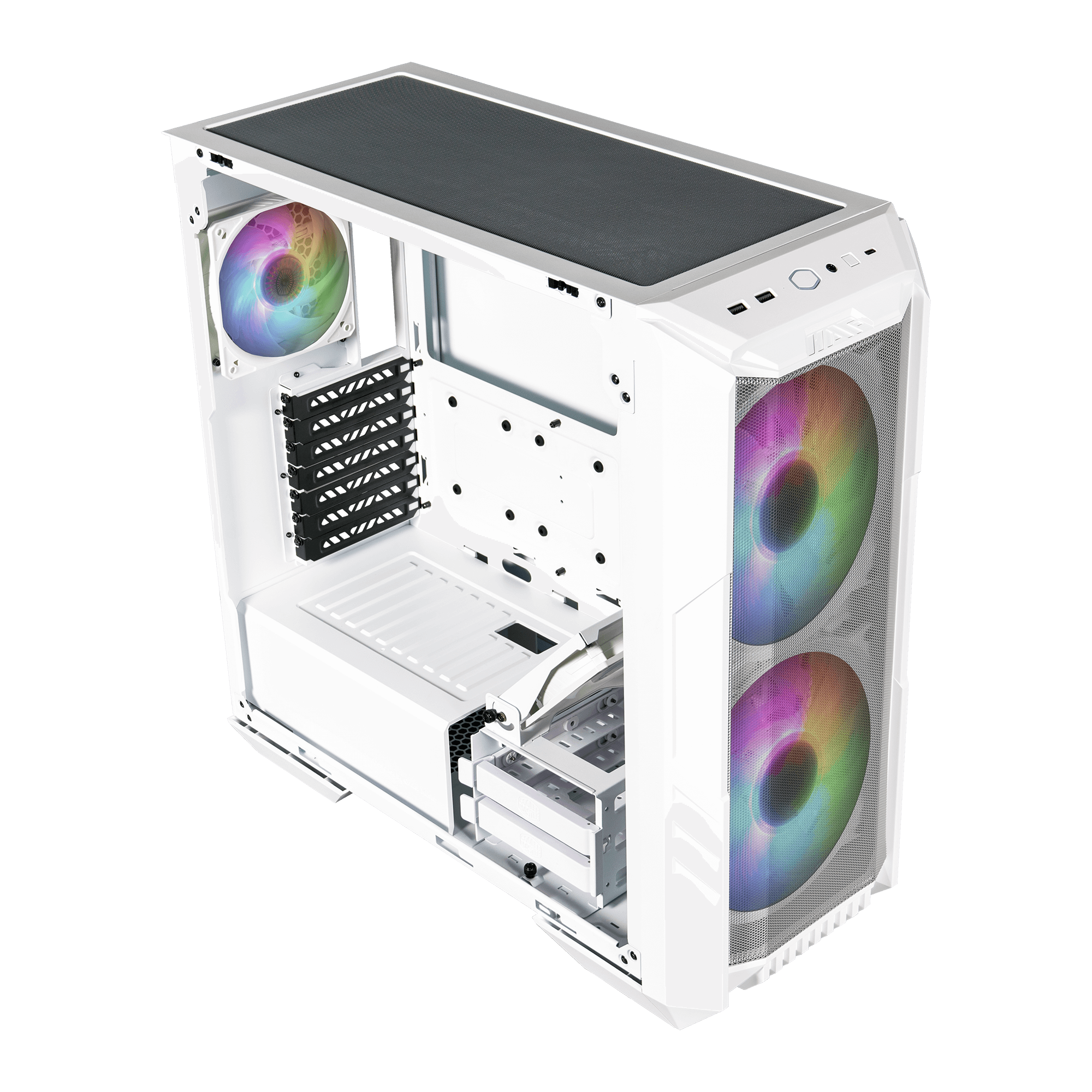

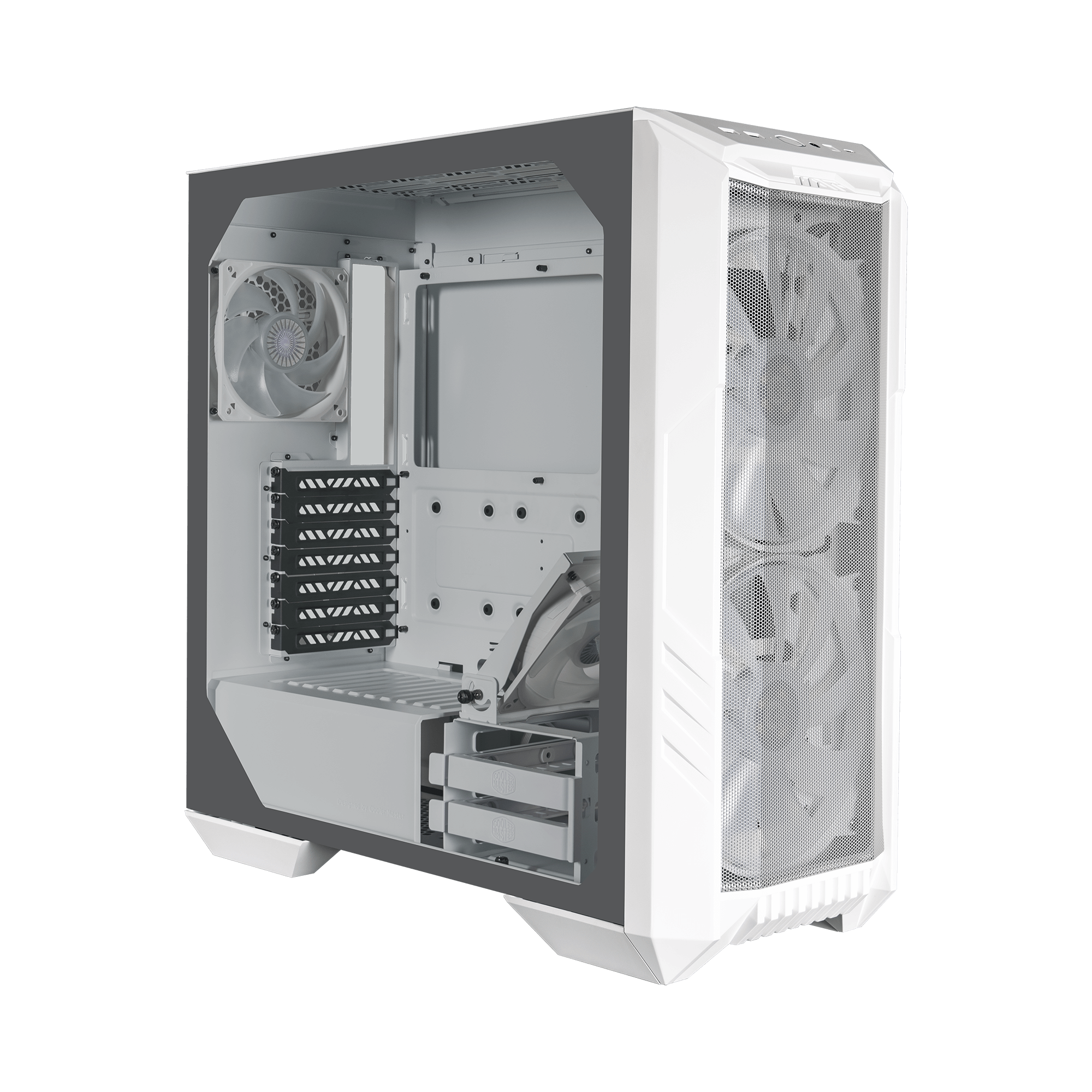

- Exterior Color HAF 500: Black, HAF 500 White: White
- Materials - Exterior Steel, Mesh, Plastic
- Materials - Left Side Panel Tempered Glass, Steel
- Dimensions (L x W x H) 516 x 224 x 510mm (incl. Protrusions)
- Motherboard Support ITX, M-ATX, ATX, SSI CEB, E-ATX* (*up to 12"x14.1", may impact cable management and case features)

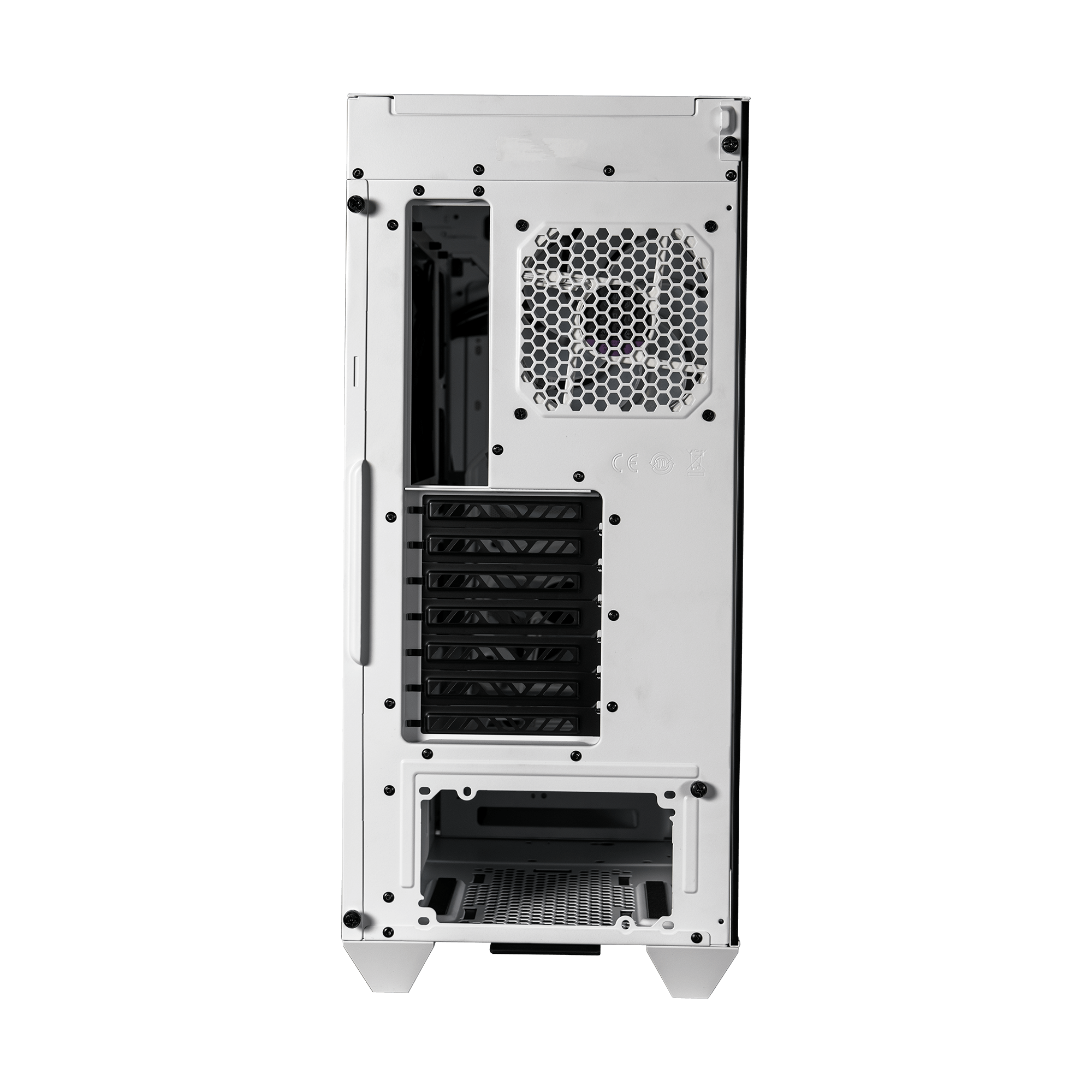

- Expansion Slots 7
- 5.25" Drive Bays N/A
- 2.5" / 3.5" Drive Bays (Combo) 2
- 2.5" Drive Bays 2
- I/O Panel - USB Ports 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2 type C
- I/O Panel - Audio In / Out 1x single Audio jack
- I/O Panel - Other 1x ARGB Hub
- Pre-installed Fans - Front 2x 200mm ARGB Fan
- Pre-installed Fans - Rear 1x 120mm SickleFlow PWM ARGB
- Pre-installed Fans - Top on HDD cage 1x 120mm SickleFlow PWM
- Fan Support - Top 3x 120mm / 2x 140mm / 2x 200mm
- Fan Support - Front 3x 120mm / 2x 140mm / 2x 200mm (*200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness)
- Fan Support - Rear 1x 120mm
- Fan Support - Top on HDD cage 1x 120mm
- Radiator Support - Top 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Front 120 / 140 / 200 / 240 / 280 / 360mm
- Radiator Support - Rear 120mm
- Clearance - CPU Cooler 167mm/6.5"
- Clearance - PSU 180mm/7.1"
- Clearance - GFX 410mm/16.1"
- Cable Routing - Behind Motherboard Tray 30mm
- Dust Filters Top, Bottom
- Power Supply Support Bottom Mount, ATX
- Warranty 2 years
- Size Mid Tower
- Series HAF Series
