The HAF 700 EVO is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.
Created Only for the Best
HAF 700 EVO
The HAF 700 EVO truly has no limits as it is drawing inspiration from our ever-growing community of enthusiasts.
Color
Availability:
-
Select Styles for Availability
€ 499,99
CREATED ONLY FOR THE BEST
HAF 700 EVO unveils a new era of thermal efficiency through unique features designed to transcend the standards of contemporary cooling solutions.
Rediscover PC DIY: a form of entertainment, a polished skillset, an exquisite art form, and a way of living.
Our Achievements
12 Awards
Cooling Options

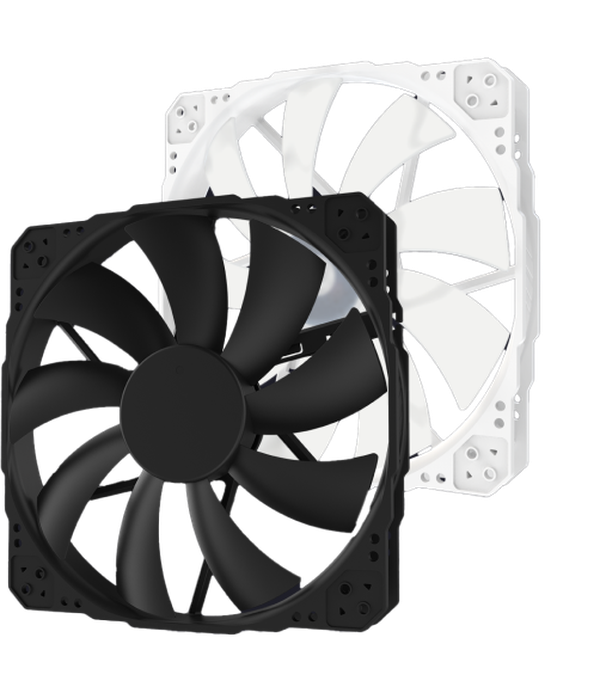

EXCLUSIVE SICKLEFLOW FANS
HAF 700 EVO comes with dual exclusive 200mm SickleFlow PWM "Performance Edition" fans tailored to strike a balance between performance potential and noise levels.

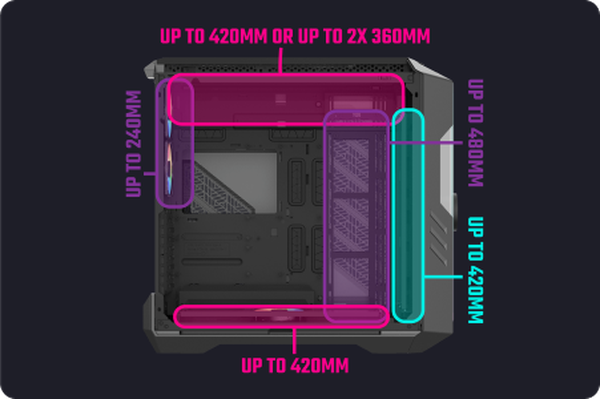

Custom Cooling
6x
MAMMOTH RADIATOR SUPPORT
Effortless Management
12x

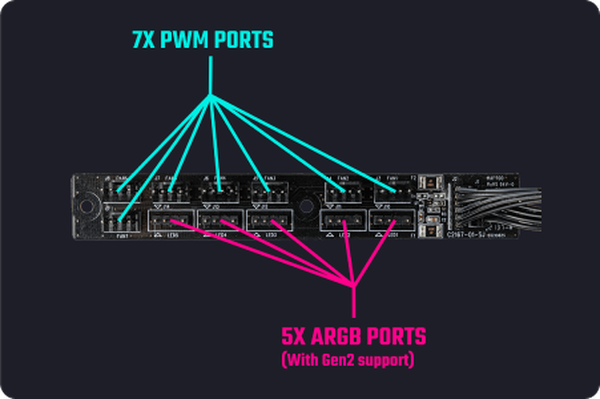

INTEGRATED HUB

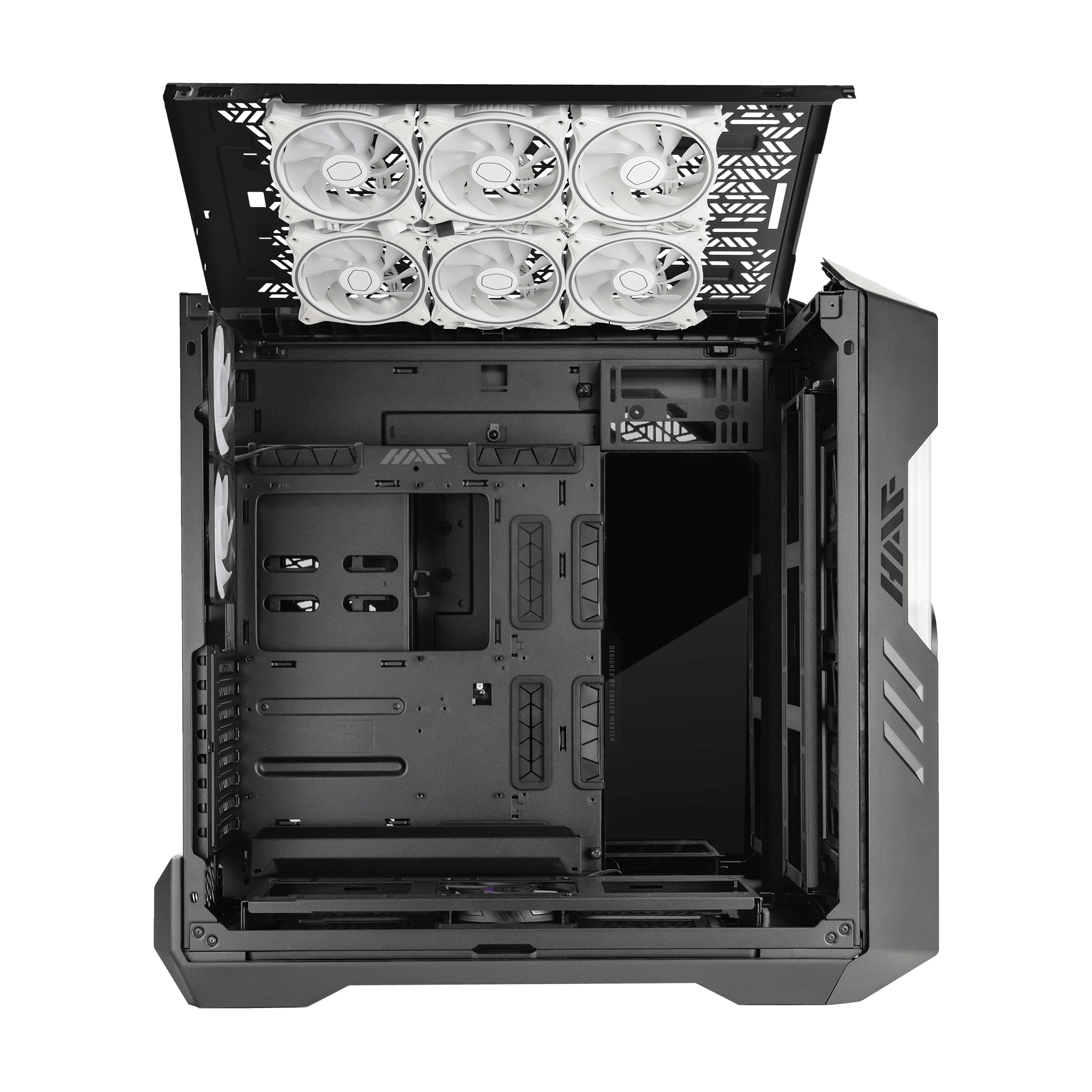

REMOVABLE TOP PANEL
The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems.
Air Flow

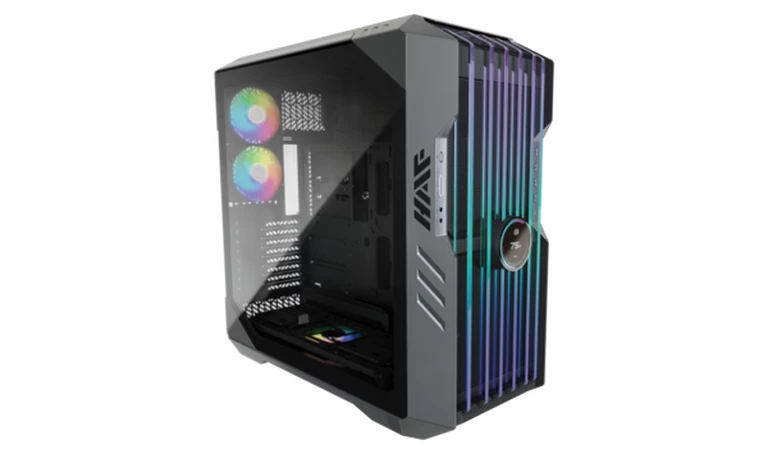

Identify your HAF 700 EVO by the startup screen shown on LCD
HAF 700 EVO 2025
Download MasterCTRL
Design

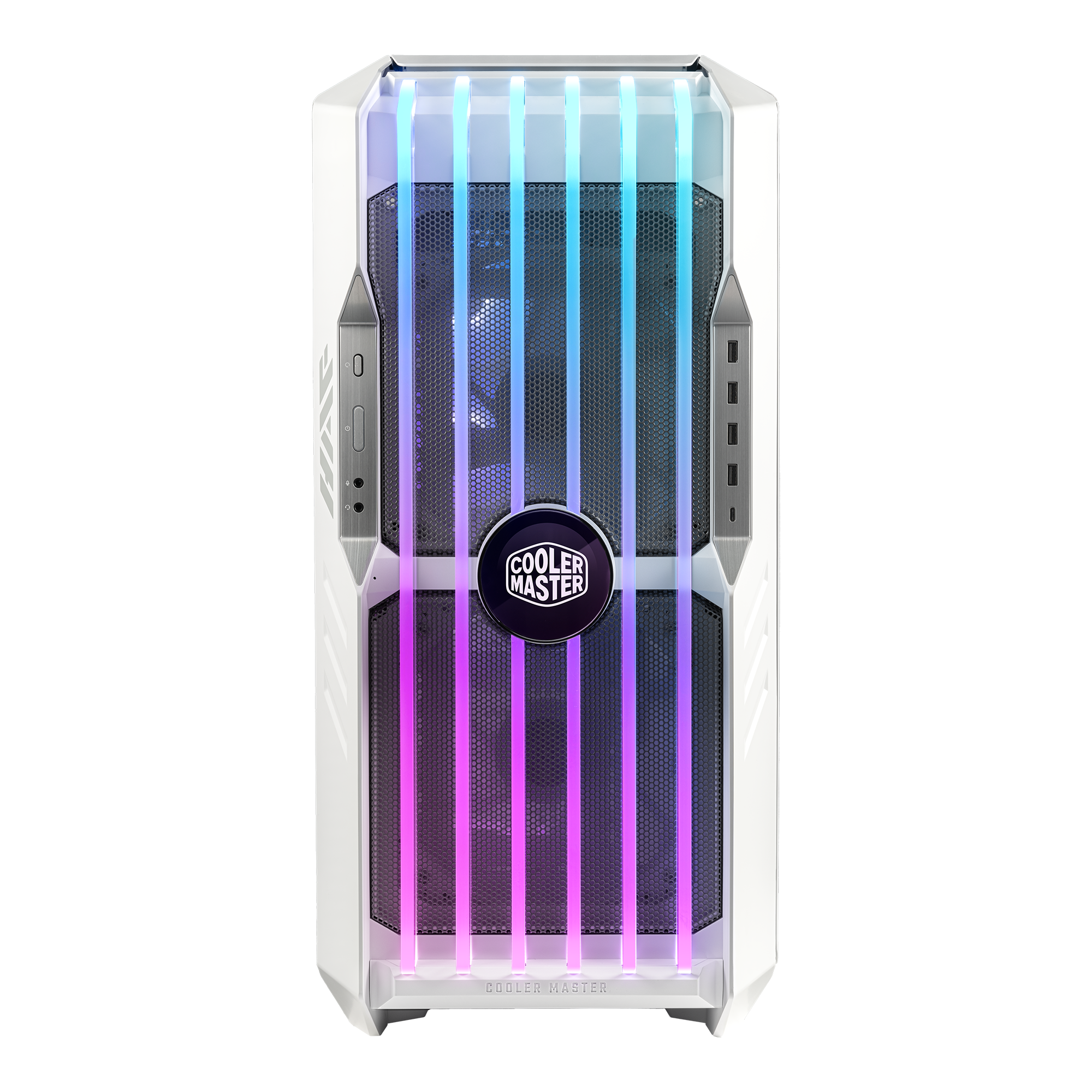

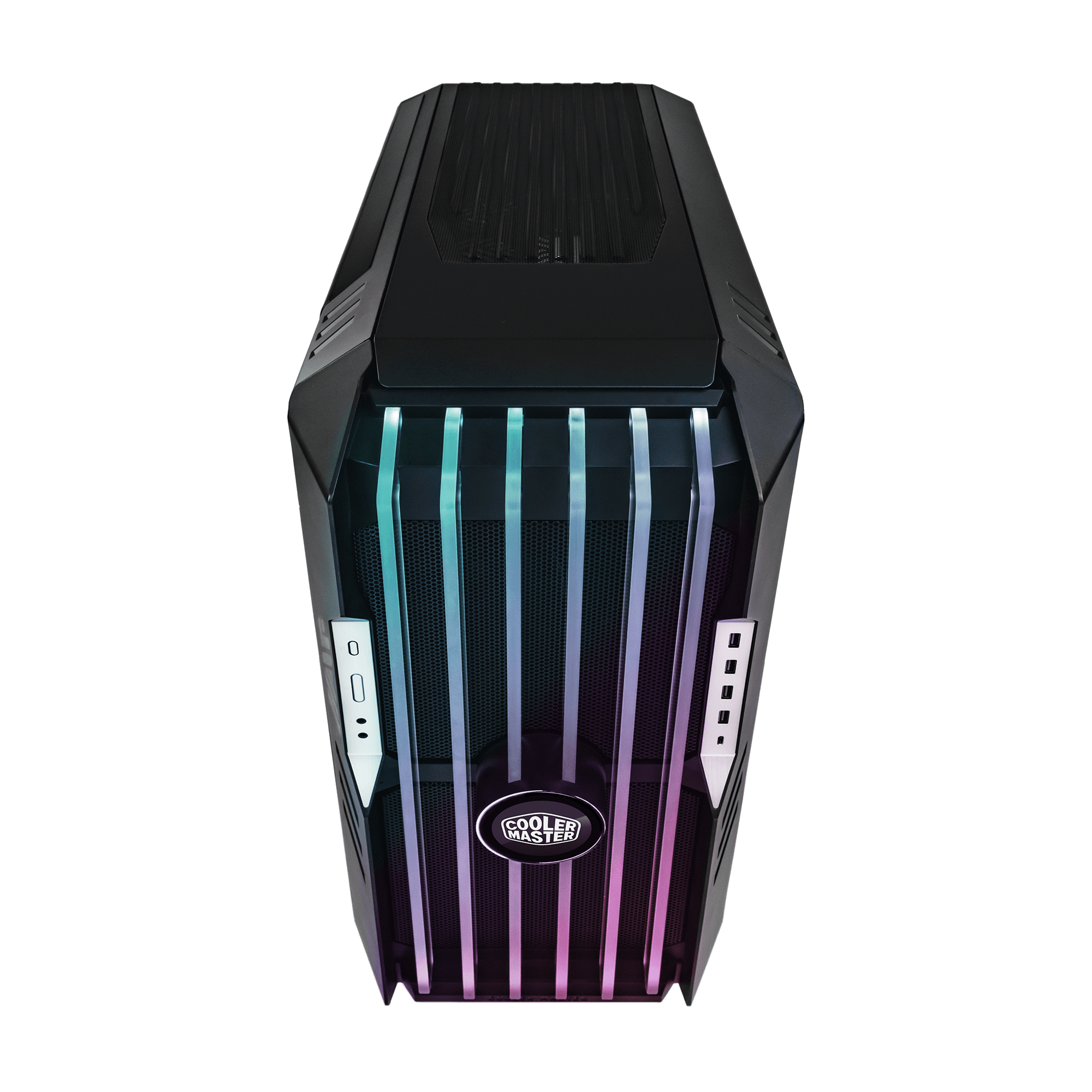

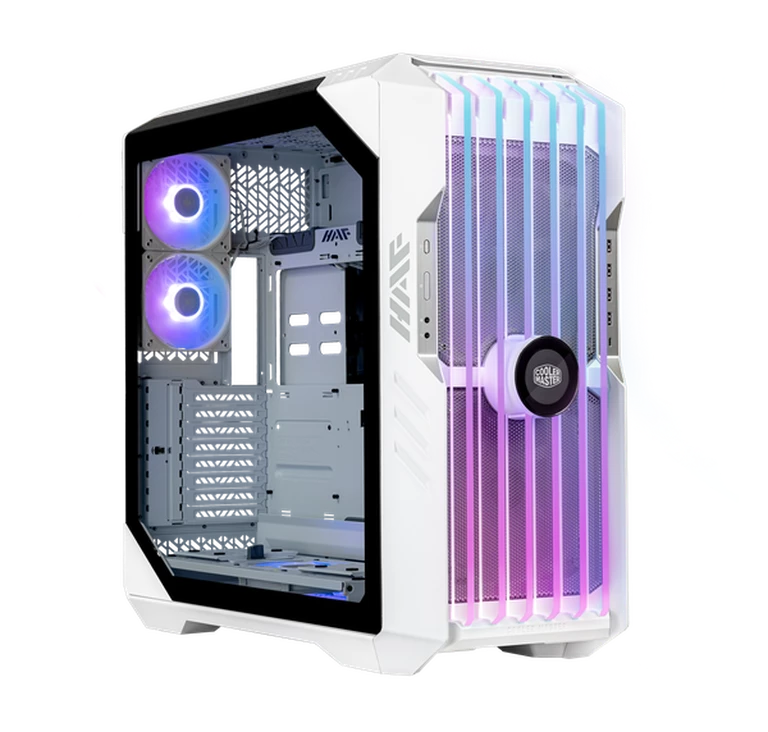

Edge Lit Intake Blades
Sleek, premium tempered glass or performant mesh? Why choose? Thick, robust ARGB tempered glass Intake Blades create unique, futuristic lighting effects while maintaining the thermal efficiency and performance of mesh that you love.
Design

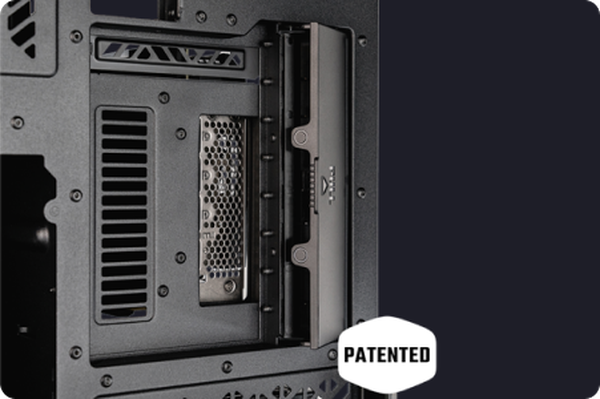

VERTICAL GPU HOLDER WITH PCIE 4.0 RISER CABLE
An included vertical graphics card holder with PCle 4.0 riser cable grant users the flexibility of choice in aesthetic display and airflow performance.
Design
INFINITY MIRROR
...Because what's the point of owning a flagship case without having
a bit of fun? The Infinity Mirror allows you to turn extra clearance in
the build into your personal Hall of Fame.
Design

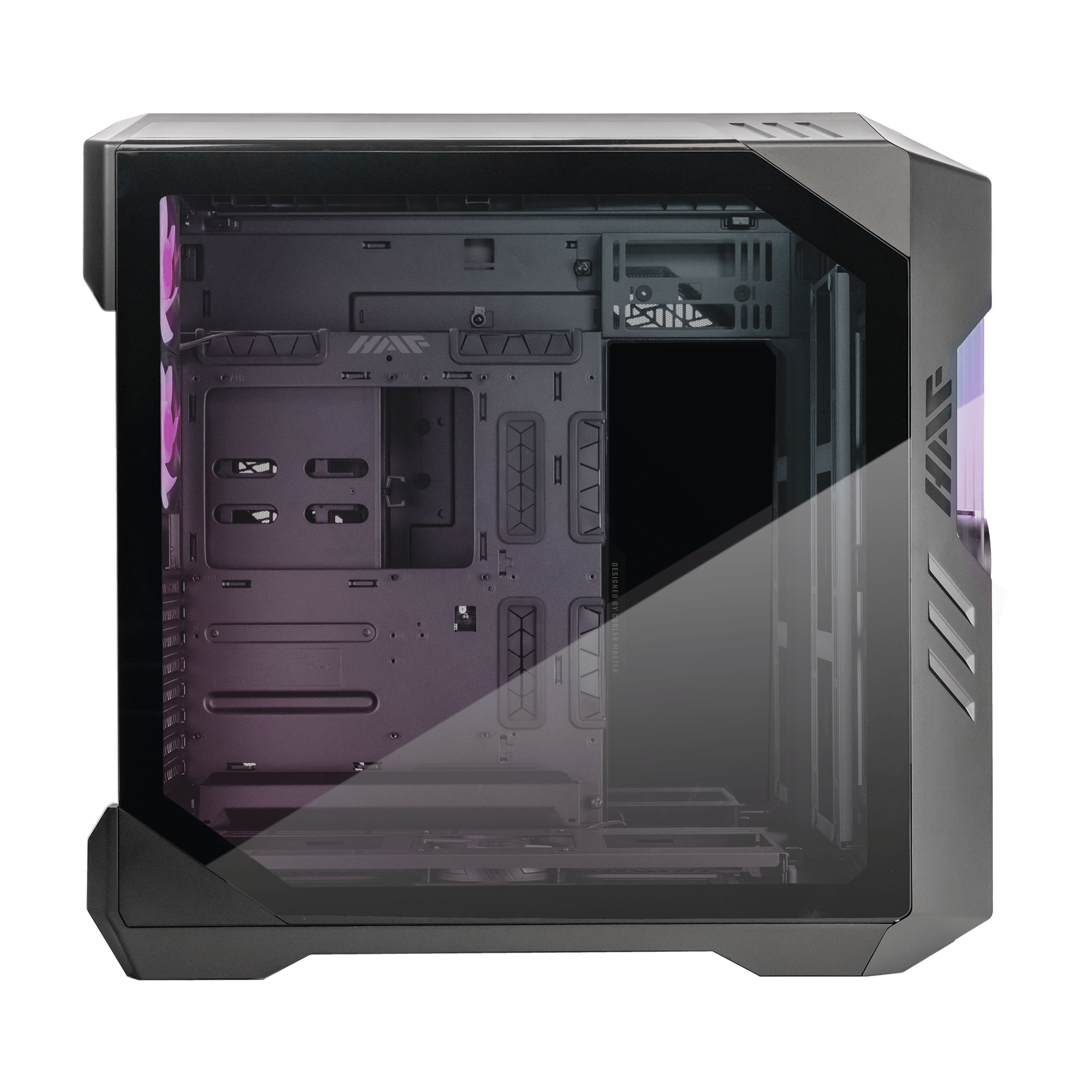

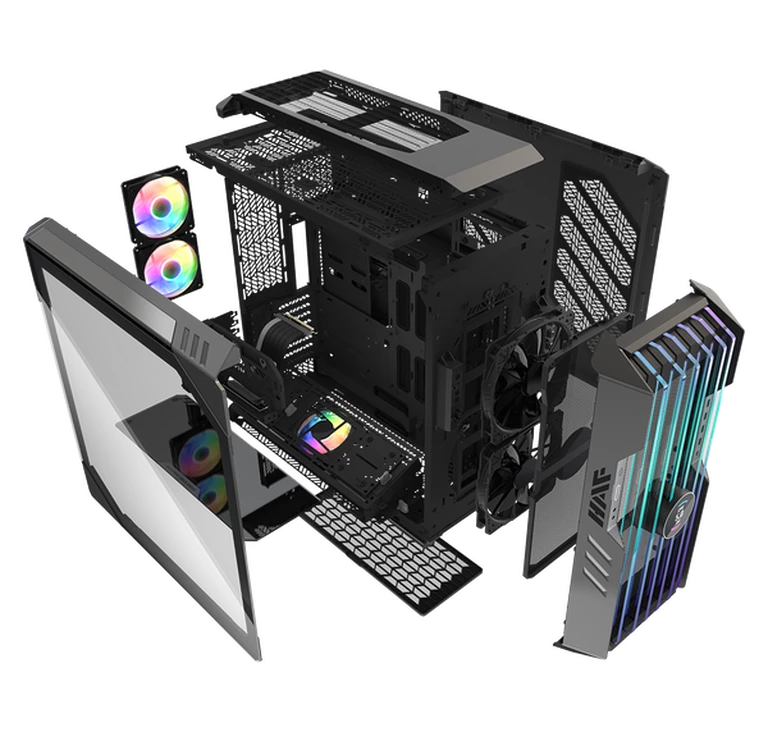

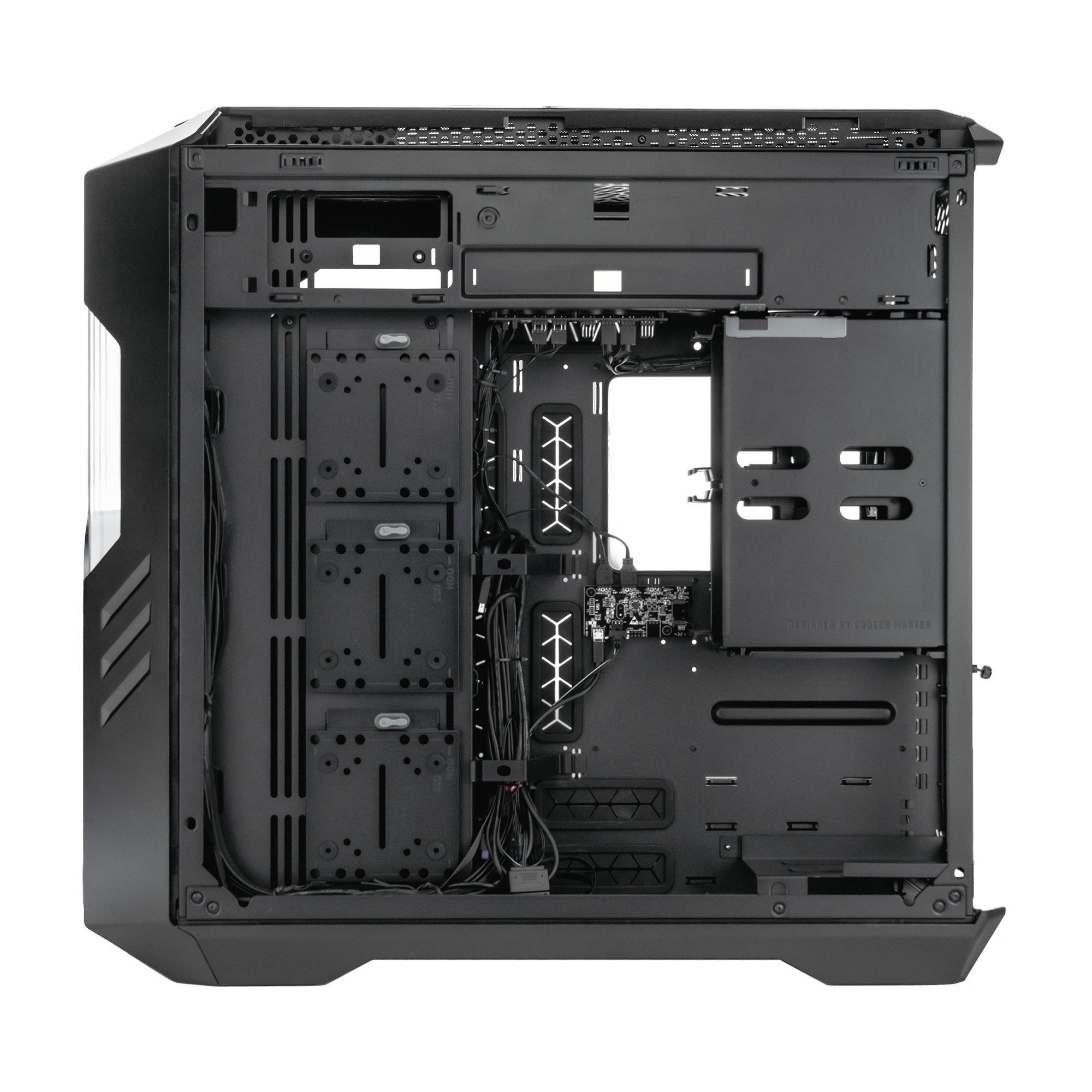

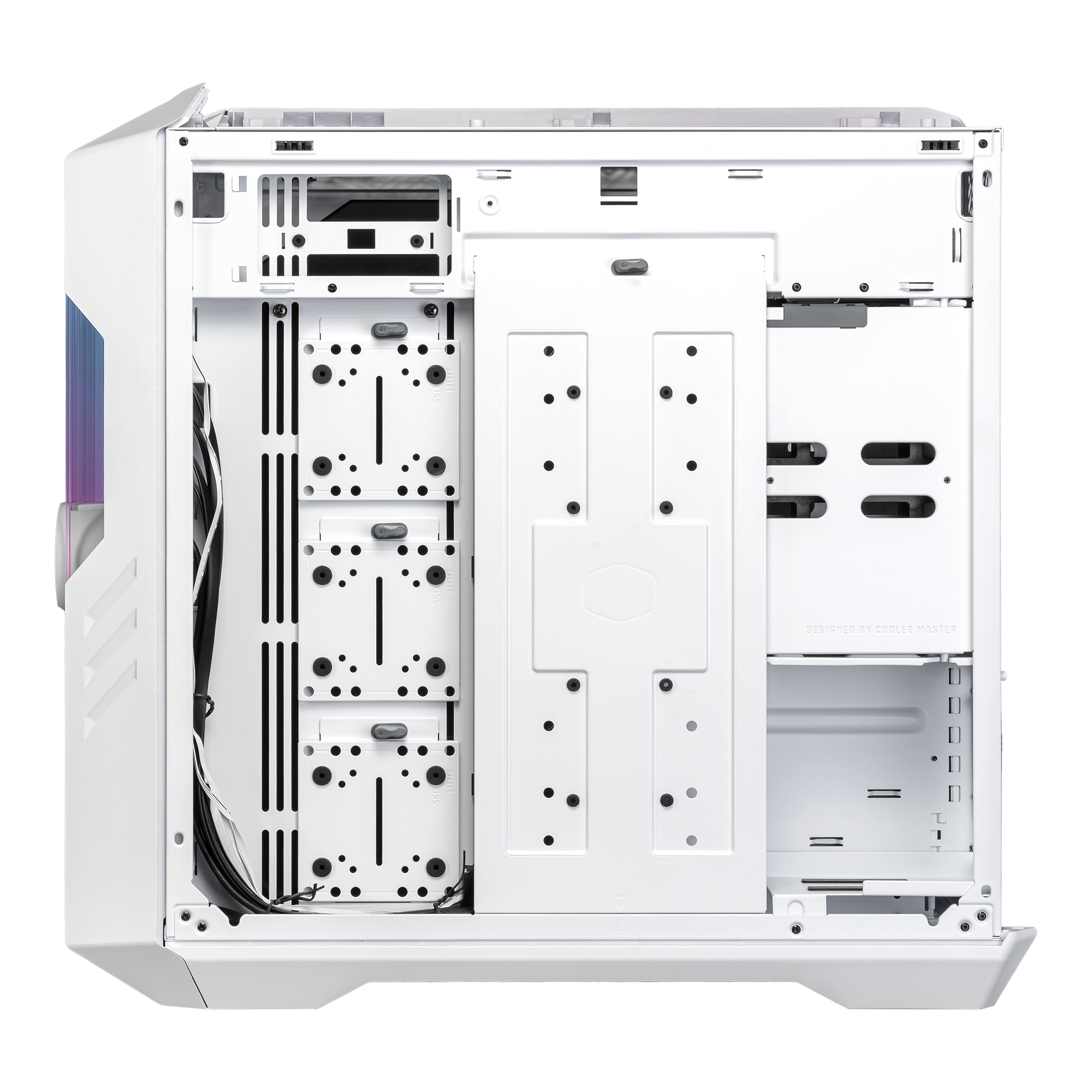

MULTI CHAMBER LAYOUT
HAF 700 EVO's structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.
Design

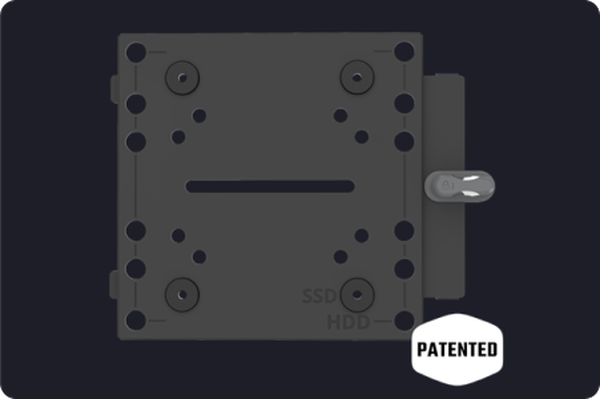

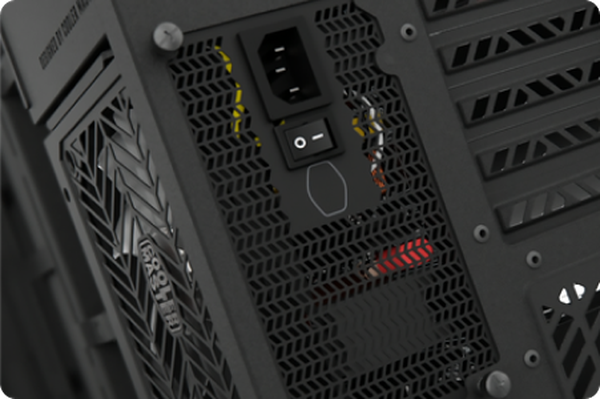

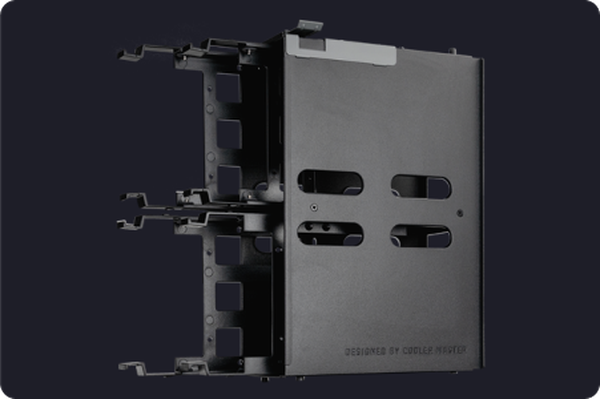

TOOL-LESS INSTALLATION
- Model Number HAF 700 EVO: H700E-IGNN-S00, HAF 700 EVO White: H700E-WGNN-S00
- Exterior Color HAF 700 EVO: Titanium Grey, HAF 700 EVO White: White
- Materials - Exterior Mesh, Steel, Plastic
- Materials - Left Side Panel Tempered Glass, Steel
- Dimensions (L x W x H) 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions)
- Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, SSI-EEB
- Expansion Slots 8
- 5.25" Drive Bays N/A

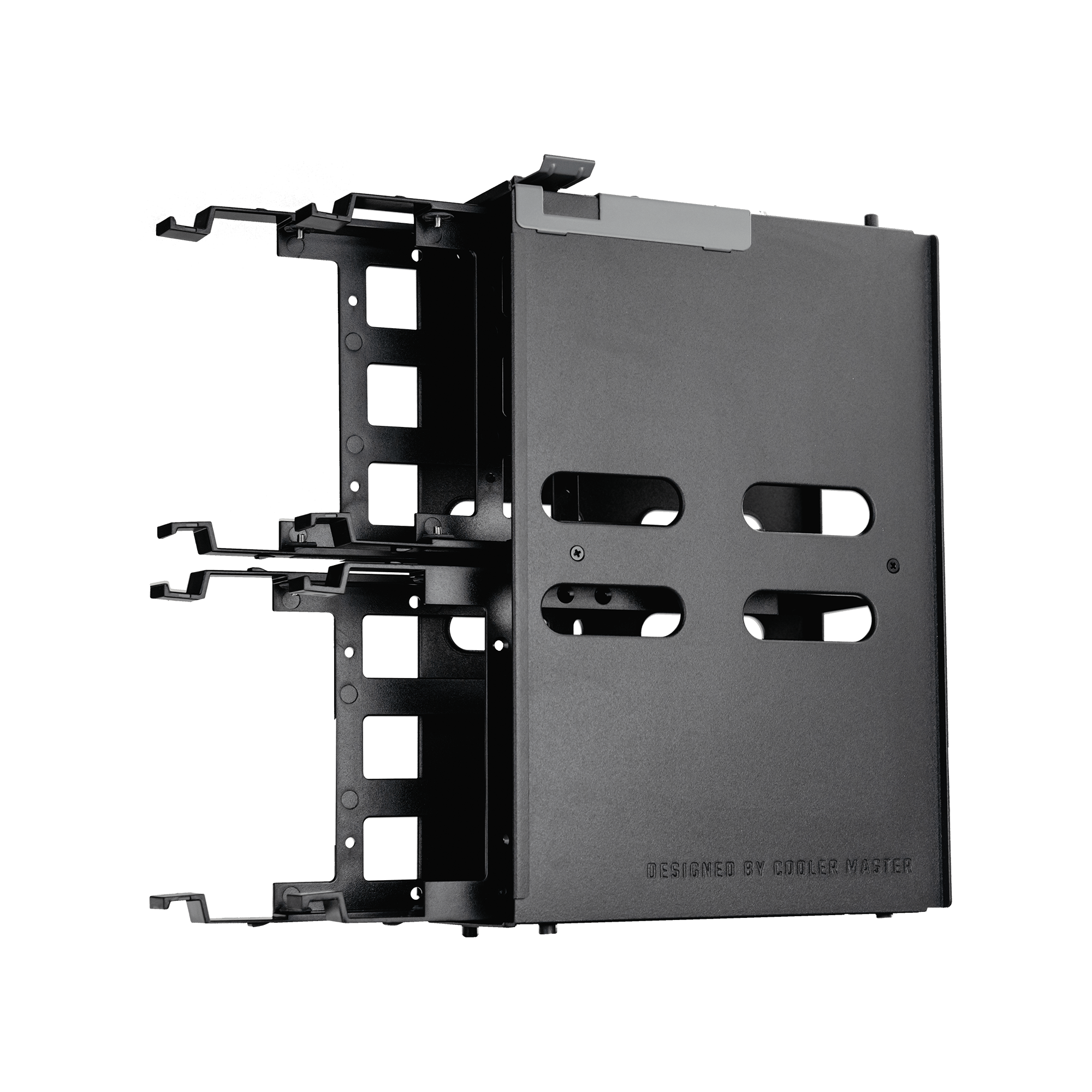

- 2.5" / 3.5" Drive Bays (Combo) 12
- 2.5" Drive Bays 12
- I/O Panel - USB Ports 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0)
- I/O Panel - Audio In / Out 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack

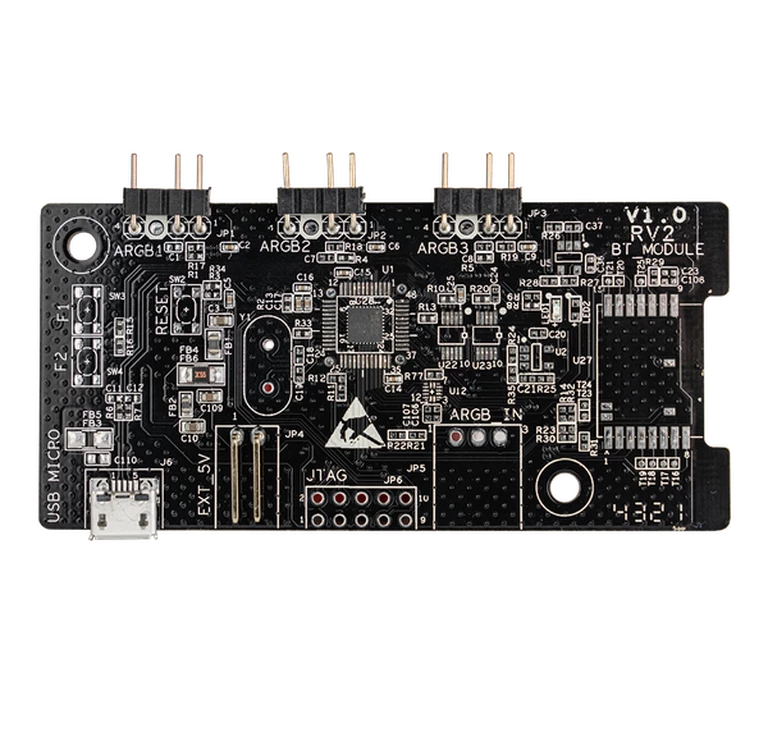

- I/O Panel - Other 1x LED Controller A1 (ARGB Gen2), 1x ARGB/PWM Hub
- Pre-installed Fans - Front HAF 700 EVO: 2x SickleFlow PWM Performance Ed. 200mm, HAF 700 EVO White: 2x SickleFlow White PWM Performance Ed. ARGB 200mm
- Pre-installed Fans - Rear HAF 700 EVO: 2x SickleFlow PWM ARGB 120mm, HAF 700 EVO White: 2x SickleFlow White PWM ARGB 120mm
- Pre-installed Fans - Bottom HAF 700 EVO: 1x SickleFlow PWM ARGB 120mm, HAF 700 EVO White: 1x SickleFlow White PWM ARGB 120mm
- Fan Support - Top 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket)
- Fan Support - Front 2x 200mm, 3x 120/140mm
- Fan Support - Rear 2x 120mm
- Fan Support - Bottom 3x 120/140mm
- Fan Support - Side 4x 120mm / 3x 140mm
- Radiator Support - Top Up to 2x 360mm / 1x 420mm
- Radiator Support - Front Up to 420/360mm
- Radiator Support - Rear Up to 240mm
- Radiator Support - Bottom Up to 420/360mm
- Radiator Support - Side Up to 480/420mm
- Clearance - CPU Cooler 166mm / 6.53"
- Clearance - PSU 200mm / 7.87"
- Clearance - GFX 490mm / 19.29"
- Cable Routing - Behind Motherboard Tray 90-101mm
- Included Accessories HAF 700 EVO: Vertical Graphics Card Holder V3 (Include 165mm PCIe 4.0 Riser Cable), HAF 700 EVO White: Universal Graphics Card Holder Kit V3 White
- Dust Filters Front, Bottom, Side
- Power Supply Support Bottom Mount, ATX
- Warranty 2 years
- Size Full Tower
- Series HAF Series
- Note * For regular 30mm thick radiators, for thicker please reference user manual.
