Six SCHP design for better heat dissipation

Patented Superconductive Composite Heat Pipes

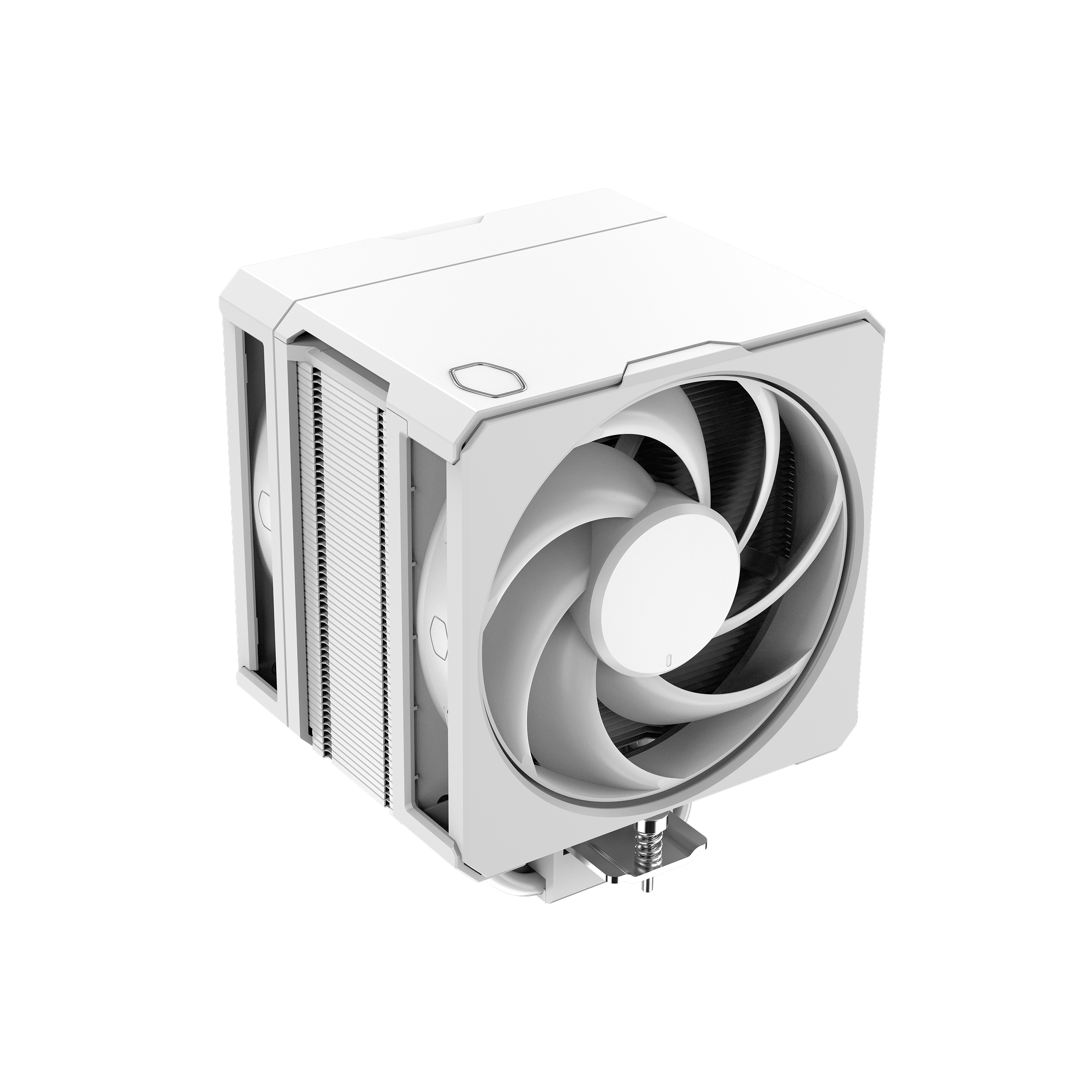

Available in Black and White colorations

Dual Mobius 120P fans included

Color
Availability:
  • Select Styles for Availability
Price reduced from € 59,00 to € 54,99

Hyper 612 APEX

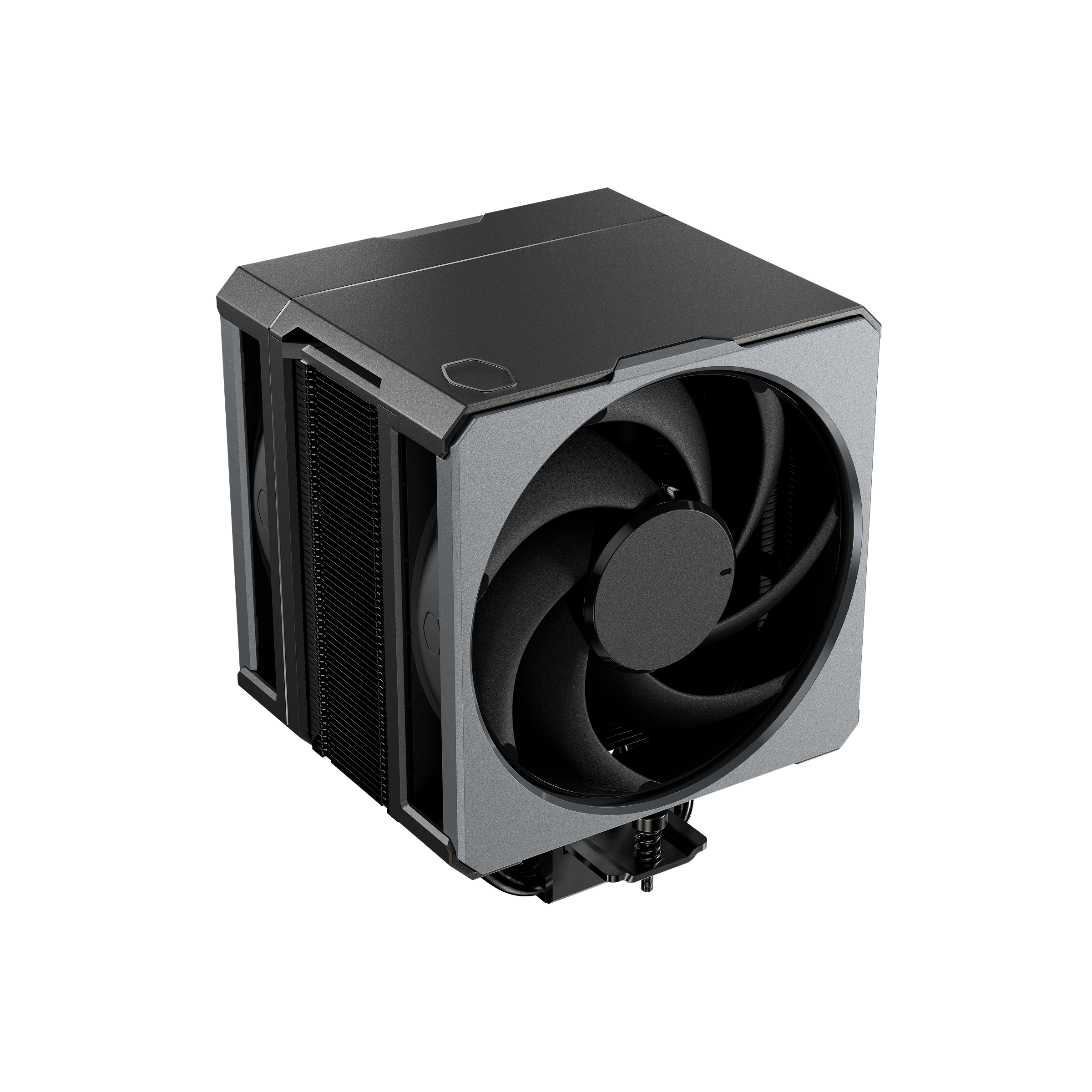

The Cooler Master Hyper 612 Apex is a high-performance air cooler engineered for builders who demand raw cooling power without compromise. It features six patented Superconductive Composite copper heat pipes and dual Mobius 120P PWM fans for efficient heat dissipation and quiet operation, even under heavy loads. With support for AMD AM5/AM4 and Intel LGA 1851/1700 sockets, the 612 Apex delivers broad compatibility across modern platforms. Its 159mm height fits most mid-tower cases, while the clean top cover and color options (Black or White) make it a perfect match for performance-focused, visually refined builds. No gimmicks—just pure cooling muscle.

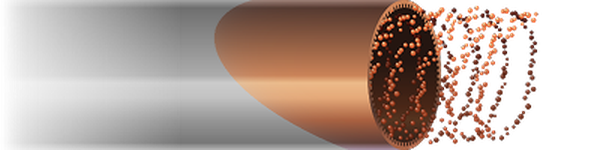

Superconductive Composite Heat Pipes


Six advanced copper heat pipes deliver fast, even heat transfer from modern high-core CPUs.

Dual Mobius 120P PWM Fans

Pressure-optimized fans with Loop Dynamic Bearings for silent, high-performance airflow under load.

159mm Tower Height

Compact enough to fit most mid-tower cases without sacrificing performance or clearance.

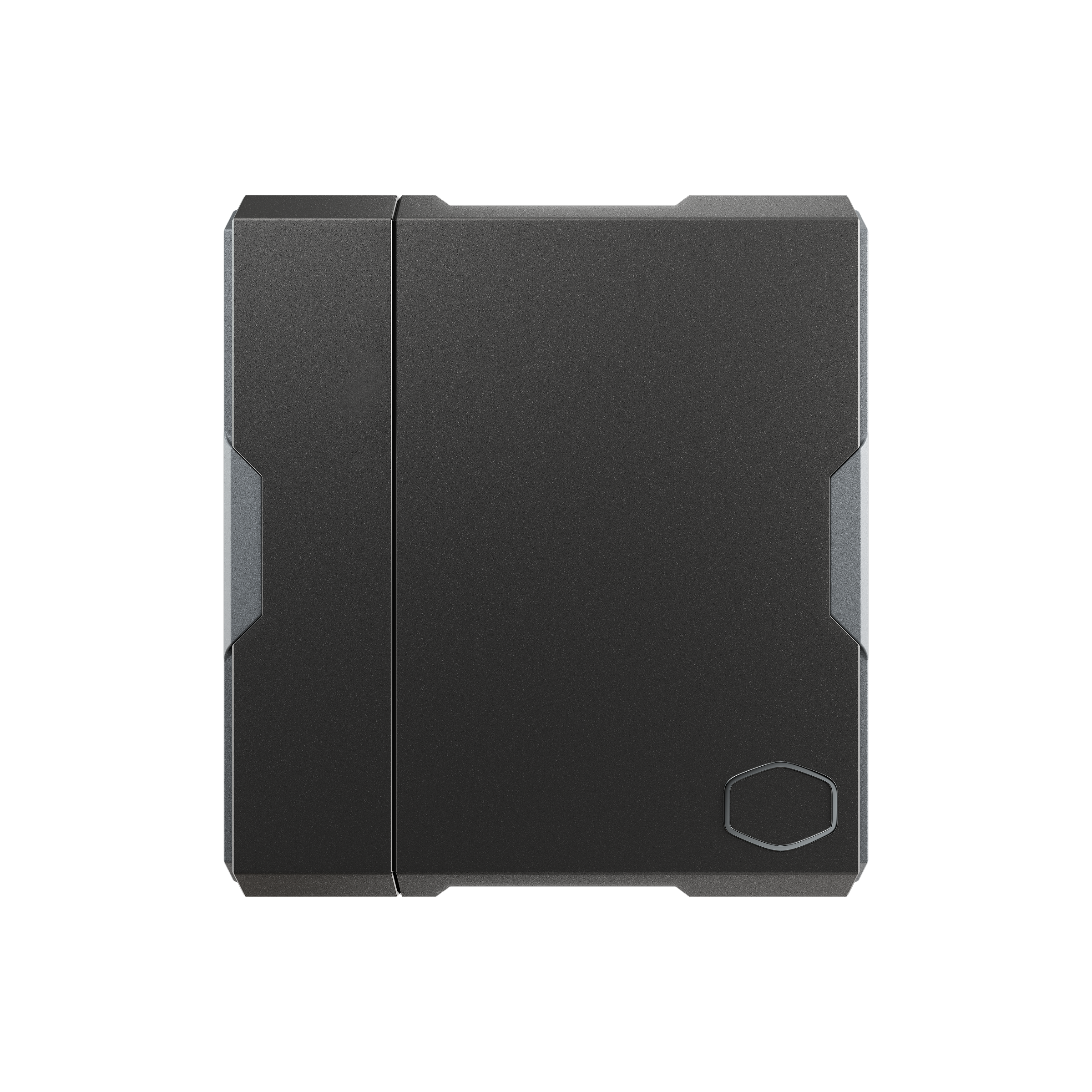

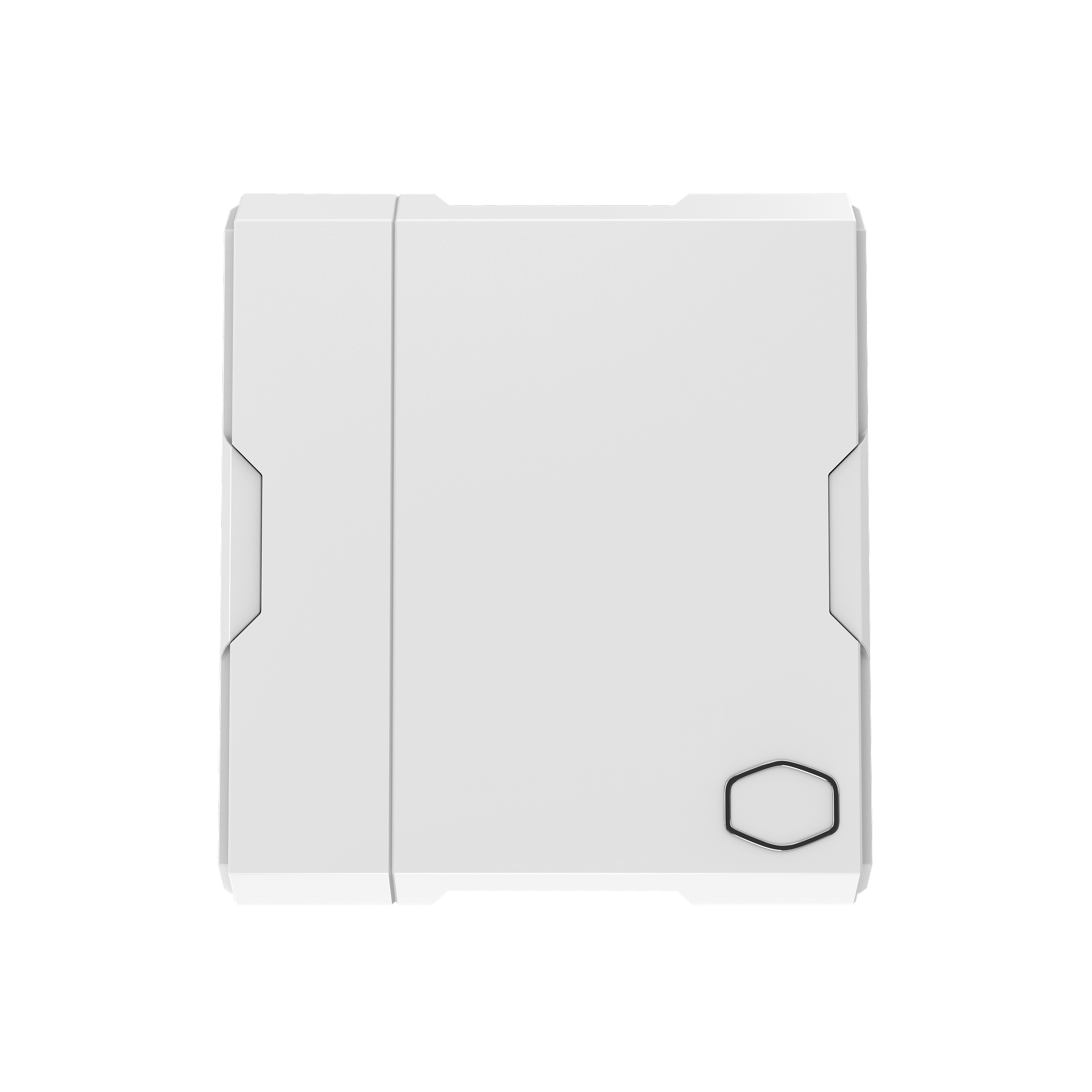

Sleek,

Minimalist Top Cover

Available in Black or White to match your build, with premium finish and clean aesthetics.

Wide Platform Compatibility

Supports AMD AM5/AM4 and Intel LGA 1851/1700 out of the box for next-gen readiness.

Easy Installation

Tool-free brackets and streamlined mounting make setup fast, clean, and frustration-free.

5-Year Warranty

Built to last and backed by Cooler Master's industry-leading support and reliability guarantee.

  • Product Number Black: MAP-T6PN-225PK-R1, White: MAP-T6PN-225PW-CW
  • Color Black / White
  • CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
  • CPU Socket AMD® AM5 / AM4 Socket
  • Dimensions (L x W x H) 127 x 114 x 159 mm / 5.0 x 4.4 x 6.2 inch
  • Fan Size 120
  • Fan Profiles Non-LED
  • Fan Quantity 2 PCS
  • Fan Speed 0-2400 RPM ± 10%
  • Fan Airflow 75.2 CFM (Max)
  • Fan Pressure 3.63 mmH₂O (Max)
  • Fan MTTF >200,000 Hours
  • Fan Noise Level 30 dBA (Max)
  • Fan Bearing LDB
  • Fan Power Connector 4-Pin (PWM)
  • Fan Rated Voltage 12 VDC
  • Fan Rated Current 0.18A
  • Fan Safety Current 0.35A
  • Fan Power Consumption 2.16W
  • Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch
  • Warranty 5 years
  • Cooler Type Air Cooler
  • Series Hyper
  • Fan Size 120
