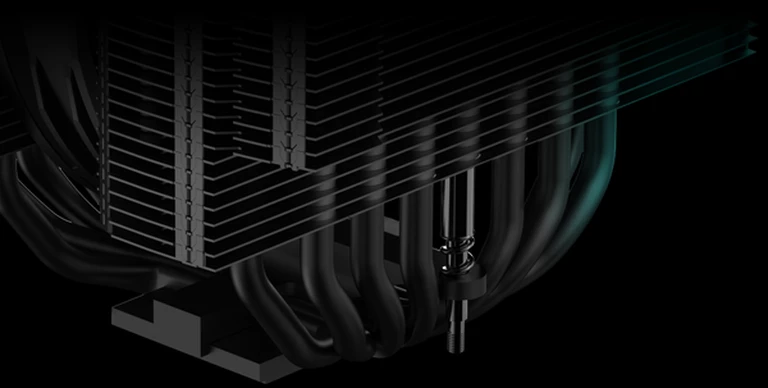

8 In-house Designed Superconductive Composite Heat Pipes
8 Superconductive composite heat pipes utilize groove and powder wick structure with dual variable heat pipe thickness for maximum efficiency of heat transfer.
Eight Recreated

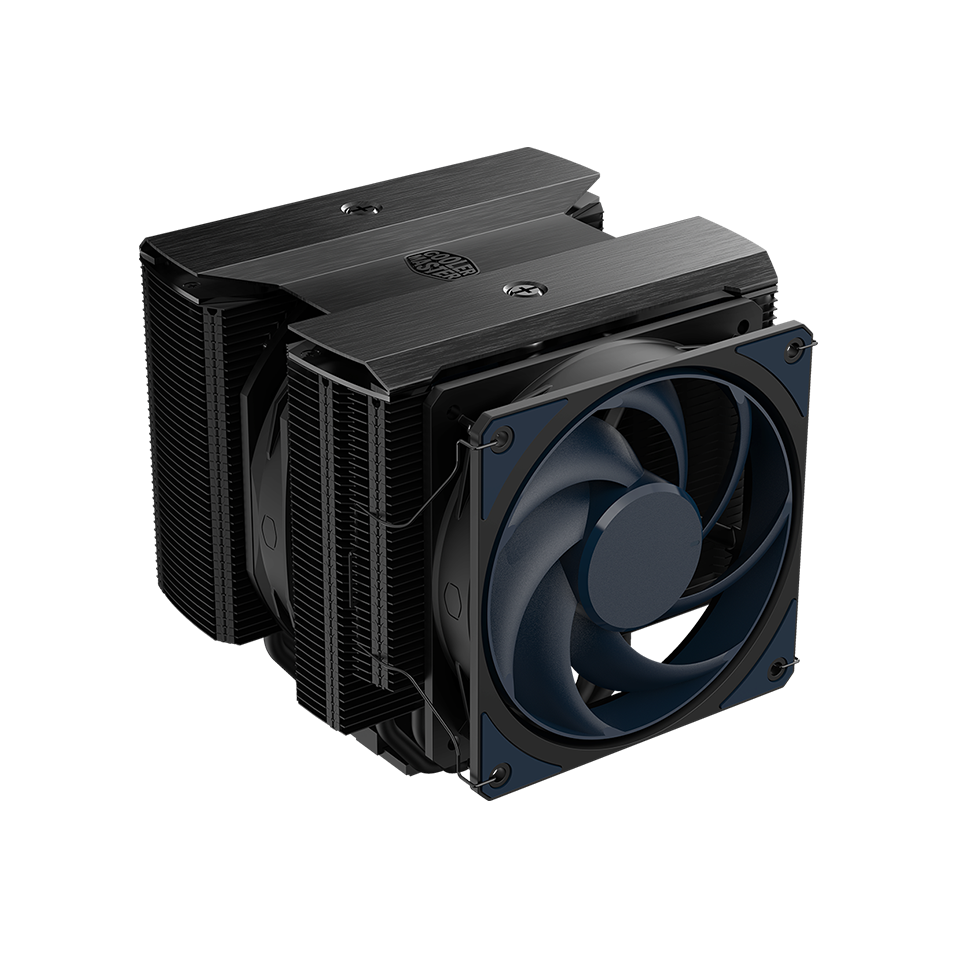

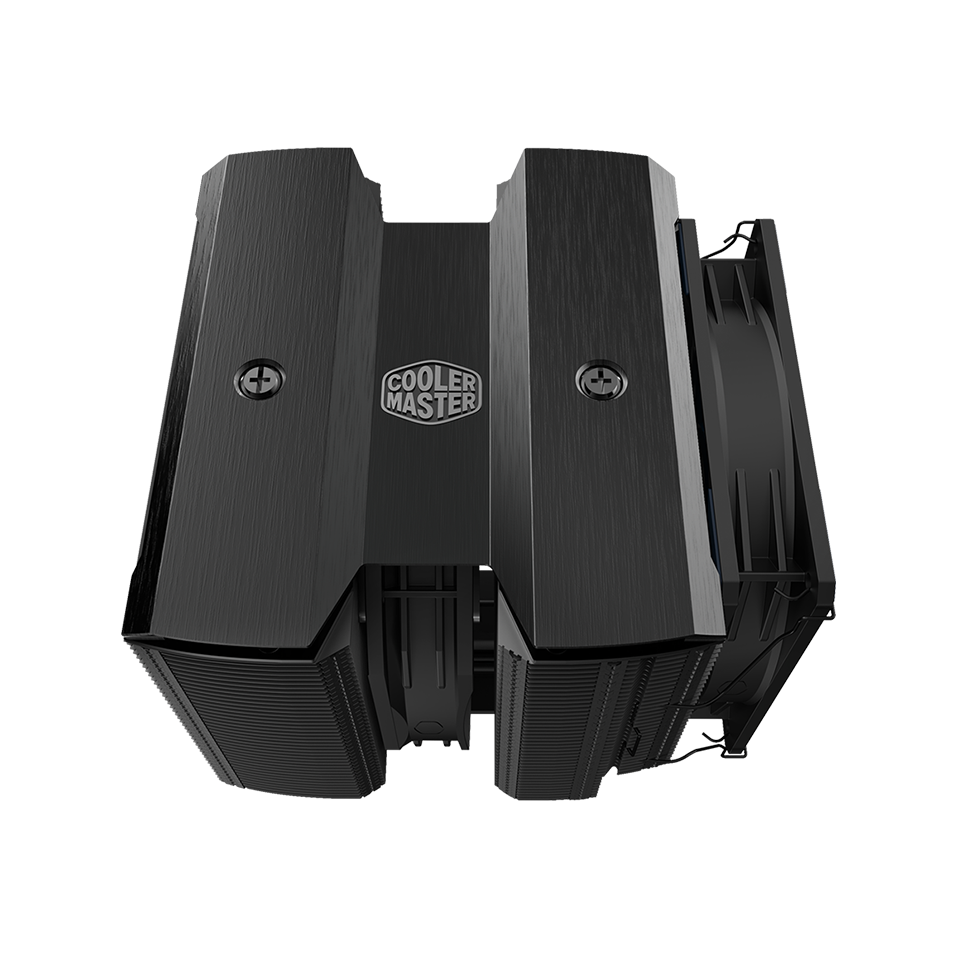

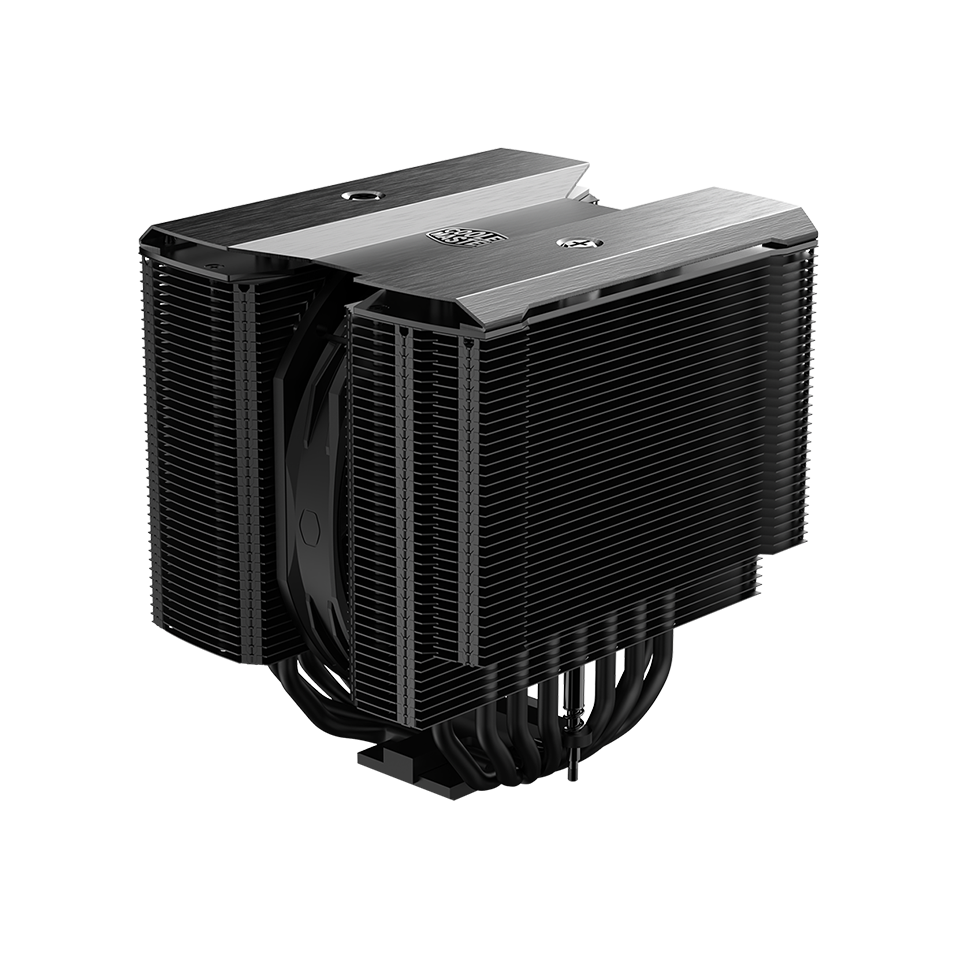

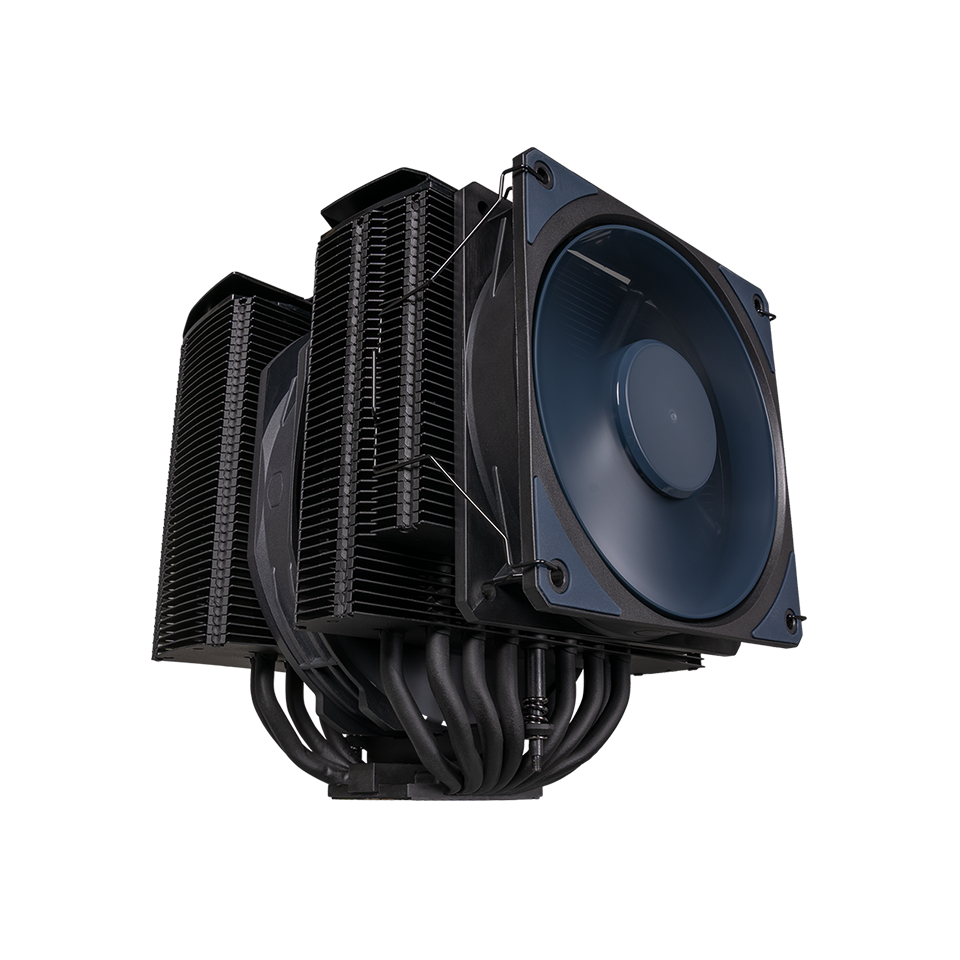

MasterAir MA824 Stealth
Cooler Master is unveiling its flagship air cooler and newest addition to the Stealth Series – the MA824 Stealth.
model
Availability:
-
In Stock

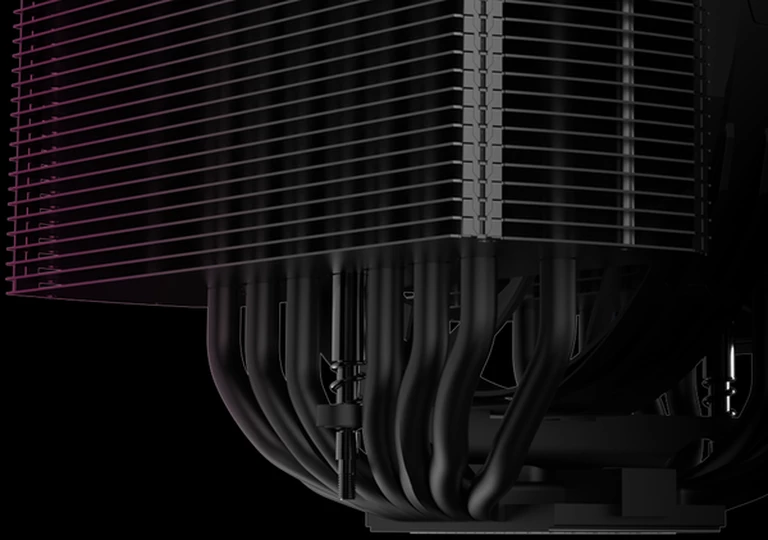

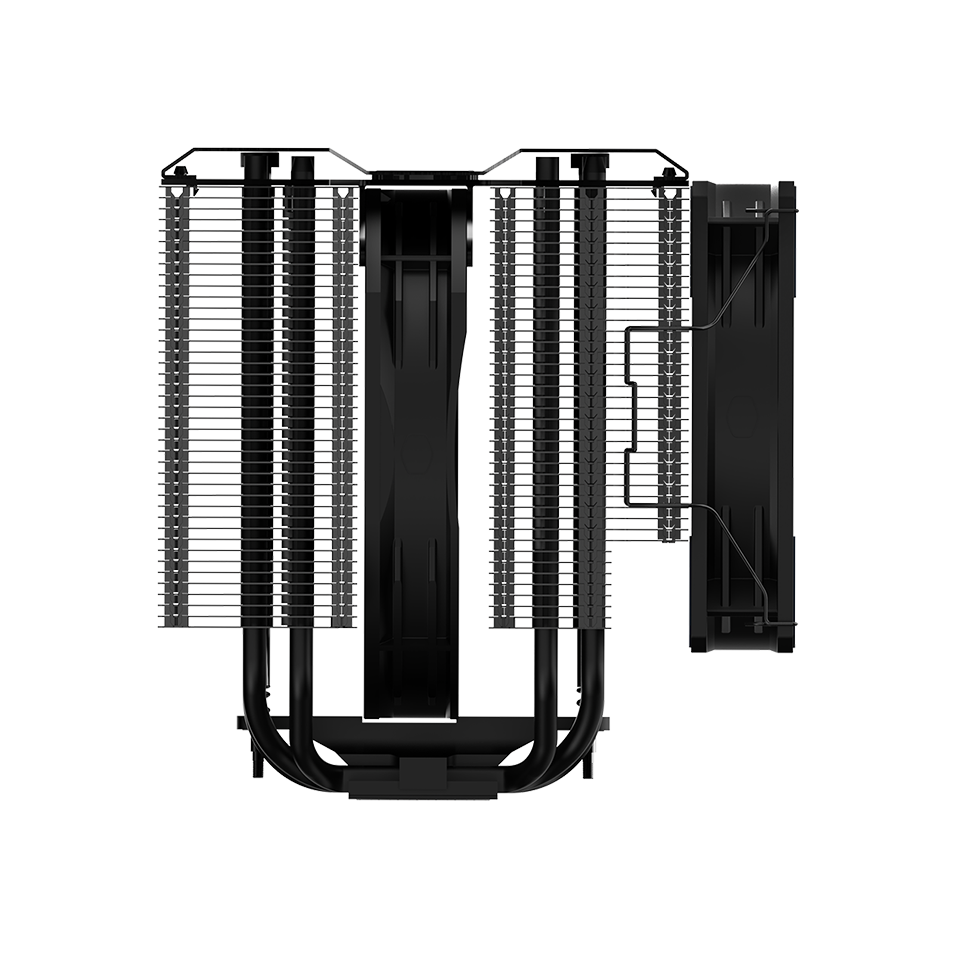

Performance Dual Tower
Redesigned dual tower maximizes performance and surface area with optimized fin density and thickness.

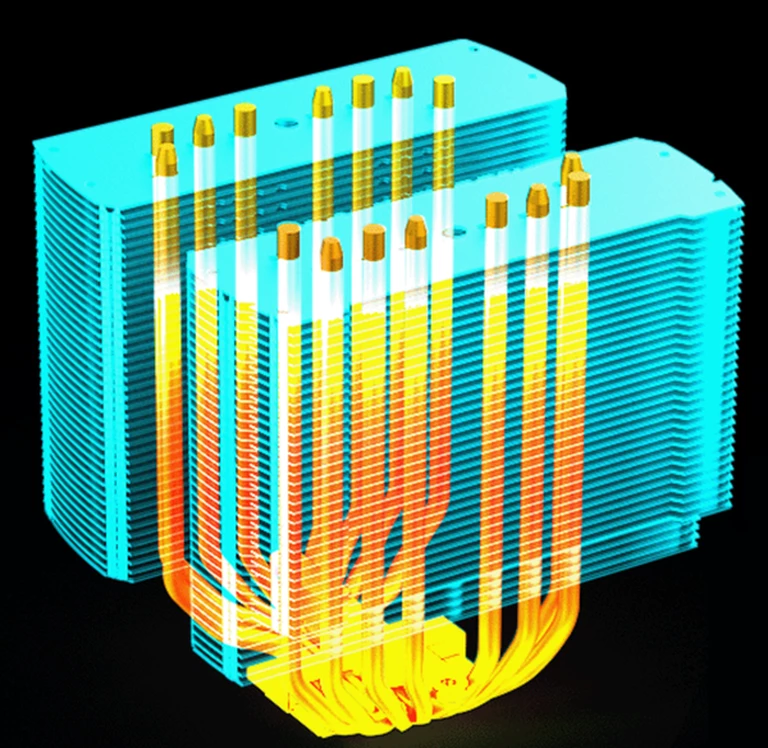

8 Heat Pipe Array
Optimized lay out consisting of 8 heat pipes to ensure the heat is transferred to all fin area for efficient dissipation.

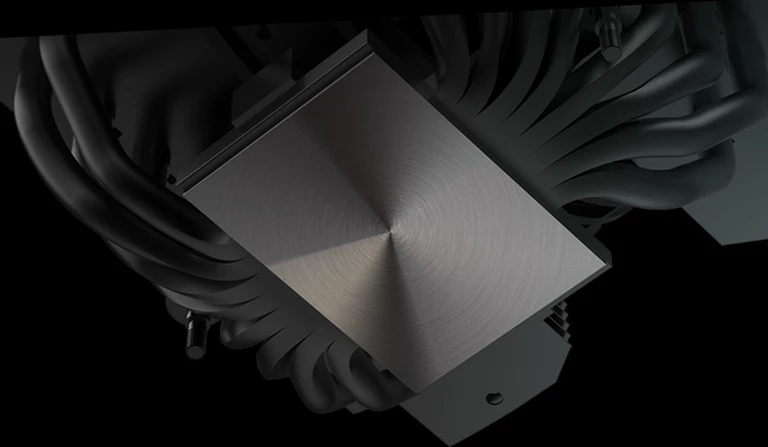

Expanded Copper Base
Expanded surface area of nickel plated copper base provides seamless contact and complete coverage to target all heat zones. Base layer thickness minimized for faster heat conductivity as well as lower cooler height for improved case compatibility.

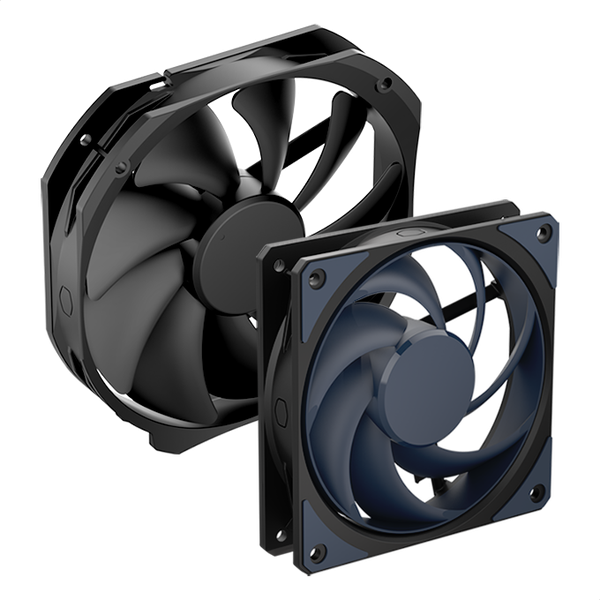

Dual Mobius Fans
Equipped with dual variable Mobius fans for exceptional silence without compromising performance.
Staggered 120mm and 135mm Mobius fans create ultimate Push-Pull setup for perfect airflow and air pressure to maximize heat dissipation.

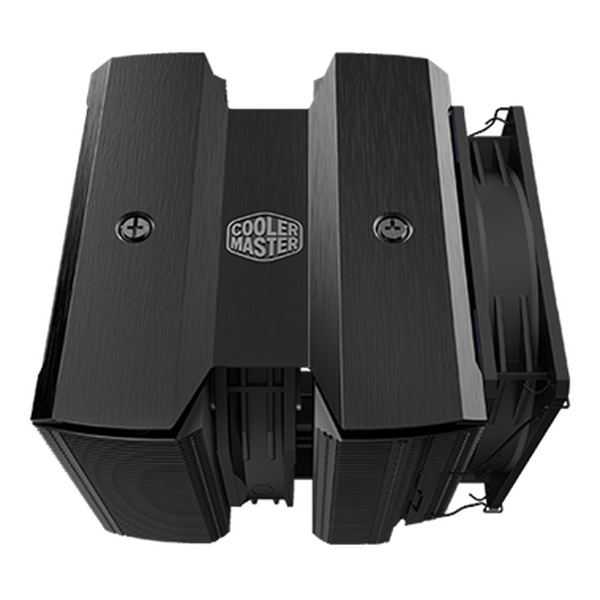

All Black Stealth Design
Stealth Series aluminum top cover and all black hardware provides a premium and clean design.

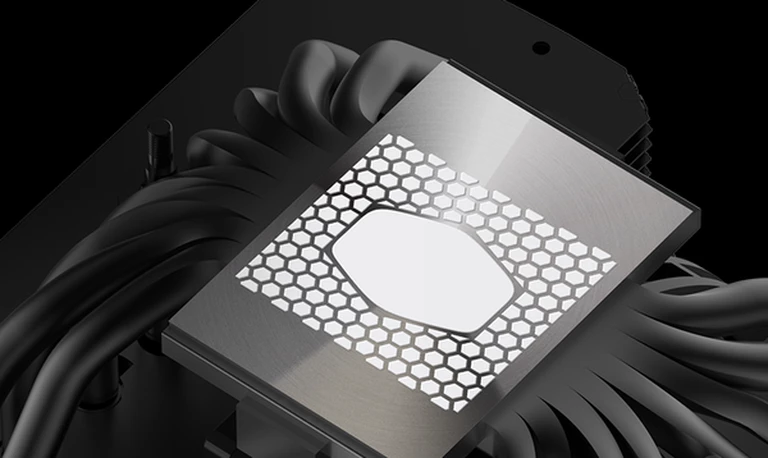

Pre-applied High Performance Thermal Paste

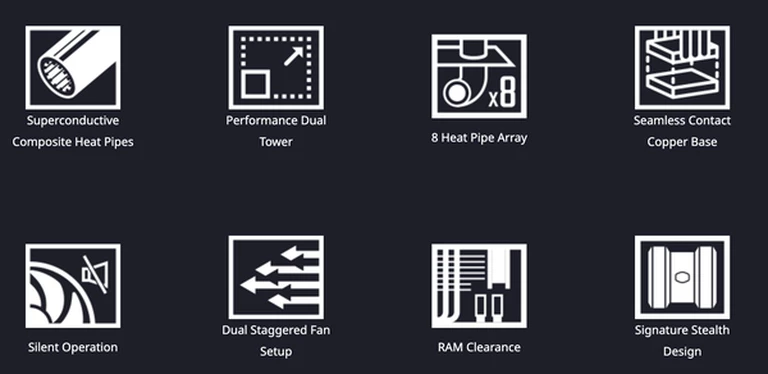

Key Features

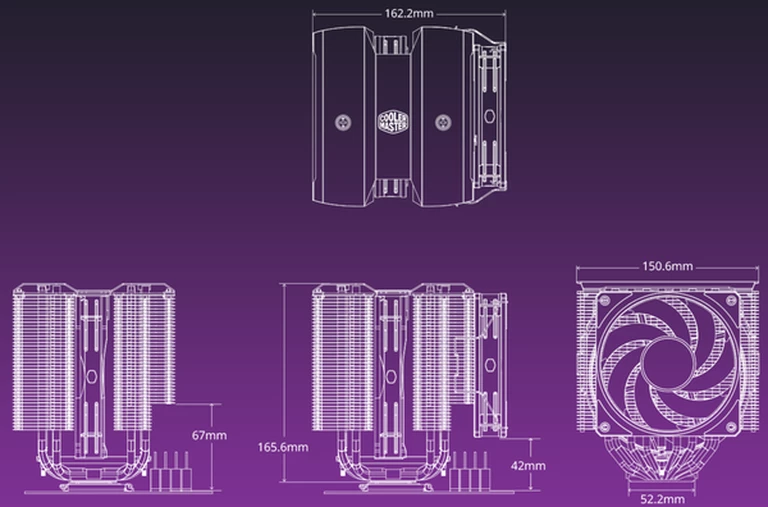

Dimensions
- Product Number MAM-D8PN-318PK-R1
- Exterior Color Black
- CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
- CPU Socket AMD® AM5 / AM4 Socket
- Dimensions (L x W x H) 162.2 x 150.6 x 165.6 mm / 6.3 x 5.9 x 6.5 inch
- Heat Sink Material 8 Heat Pipes / Aluminum Fins
- Fan Dimensions (L x W x H) 135mm Fan: 135 x 135 x 26 mm, 120mm Fan: 120 x 120 x 25 mm
- Fan Profiles Non-LED
- Fan Quantity 1 PC
- Fan Speed 135mm Fan: 0-1550 RPM ± 15%, 120mm Fan: 0-1950 RPM ± 15%
- Fan Airflow 135mm Fan: 63.6 CFM (Max), 120mm Fan: 63.1 CFM (Max)
- Fan Pressure 135mm Fan: 1.92 mmH₂O, 120mm Fan: 2.69 mmH₂O
- Fan MTTF >200,000 Hours
- Fan Noise Level 135mm Fan: 24.6 dBA (Max), 120mm Fan: 22.6 dBA (Max)
- Fan Bearing Type Loop Dynamic Bearing
- Fan Power Connector 4-Pin (PWM)
- Fan Rated Voltage 12 VDC
- Fan Rated Current 135mm Fan: 0.1 A, 120mm Fan: 0.12 A
- Fan Safety Current 0.25A
- Fan Power Consumption 135mm Fan: 1.2-2.4W, 120mm Fan: 1.44-3.0W
- Warranty 5 years
- Cooler Type Air Cooler
- Series MasterAir
- Heatpipes 8
