PCIe 5.0 Riser Cable Included
Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.
Reaching New Brights

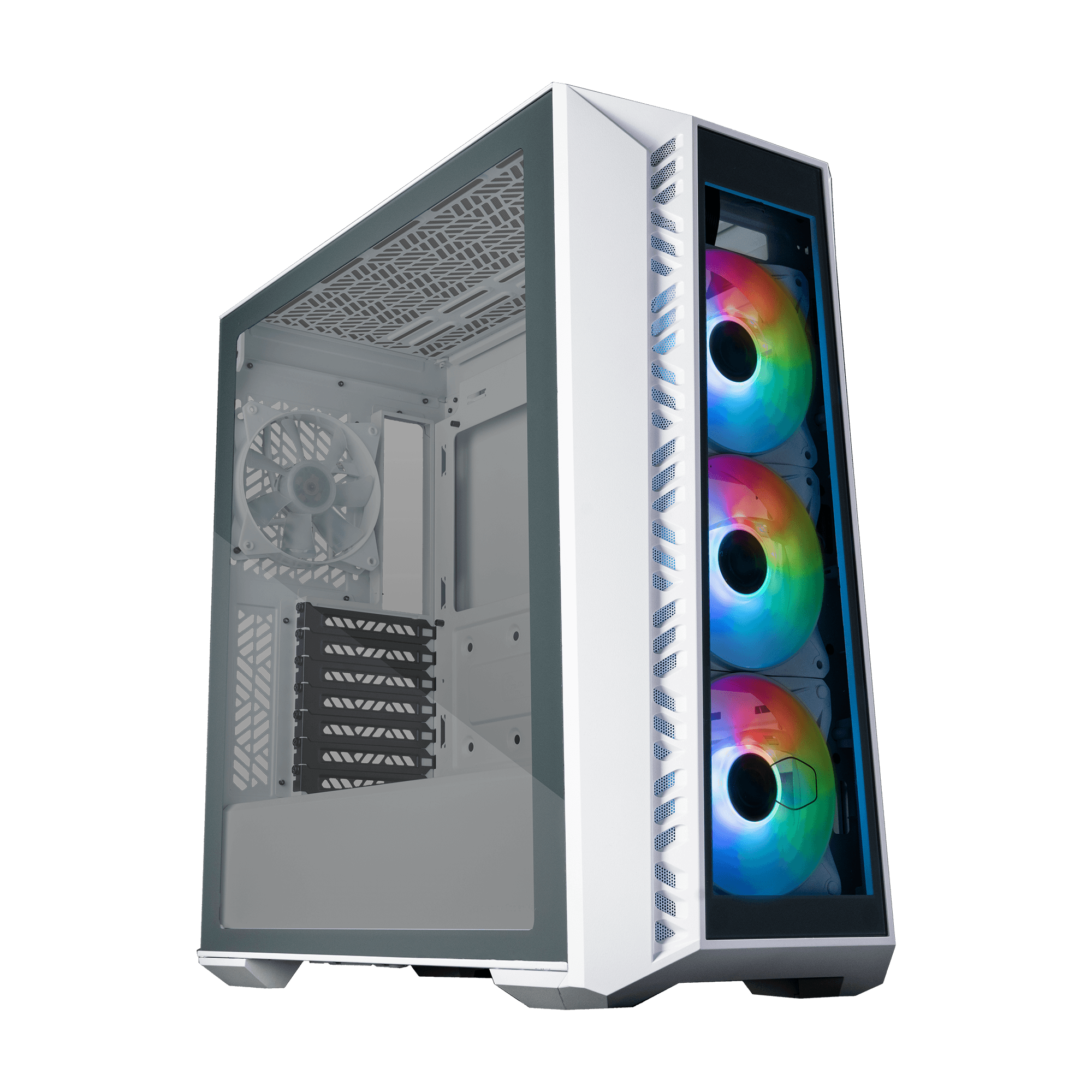

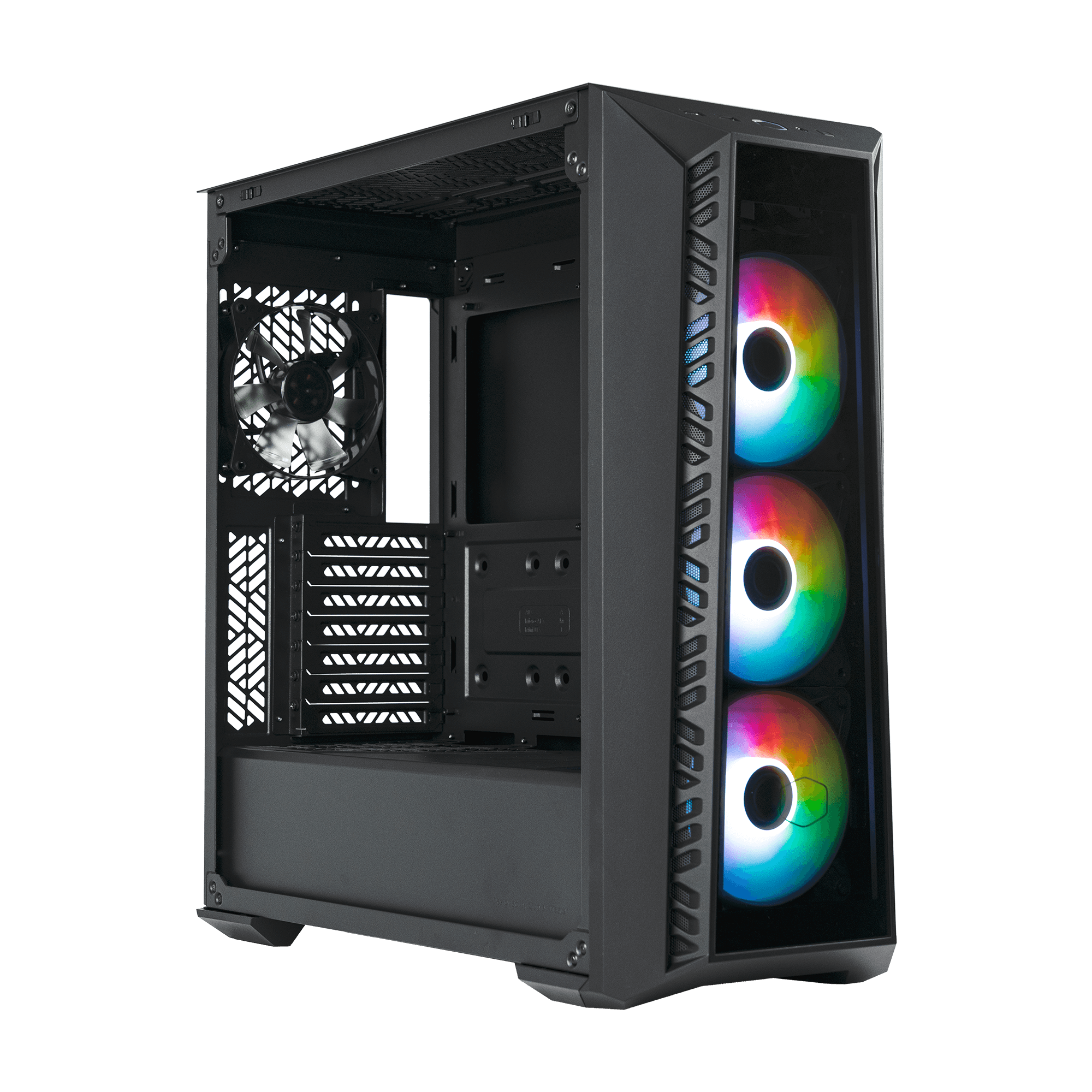

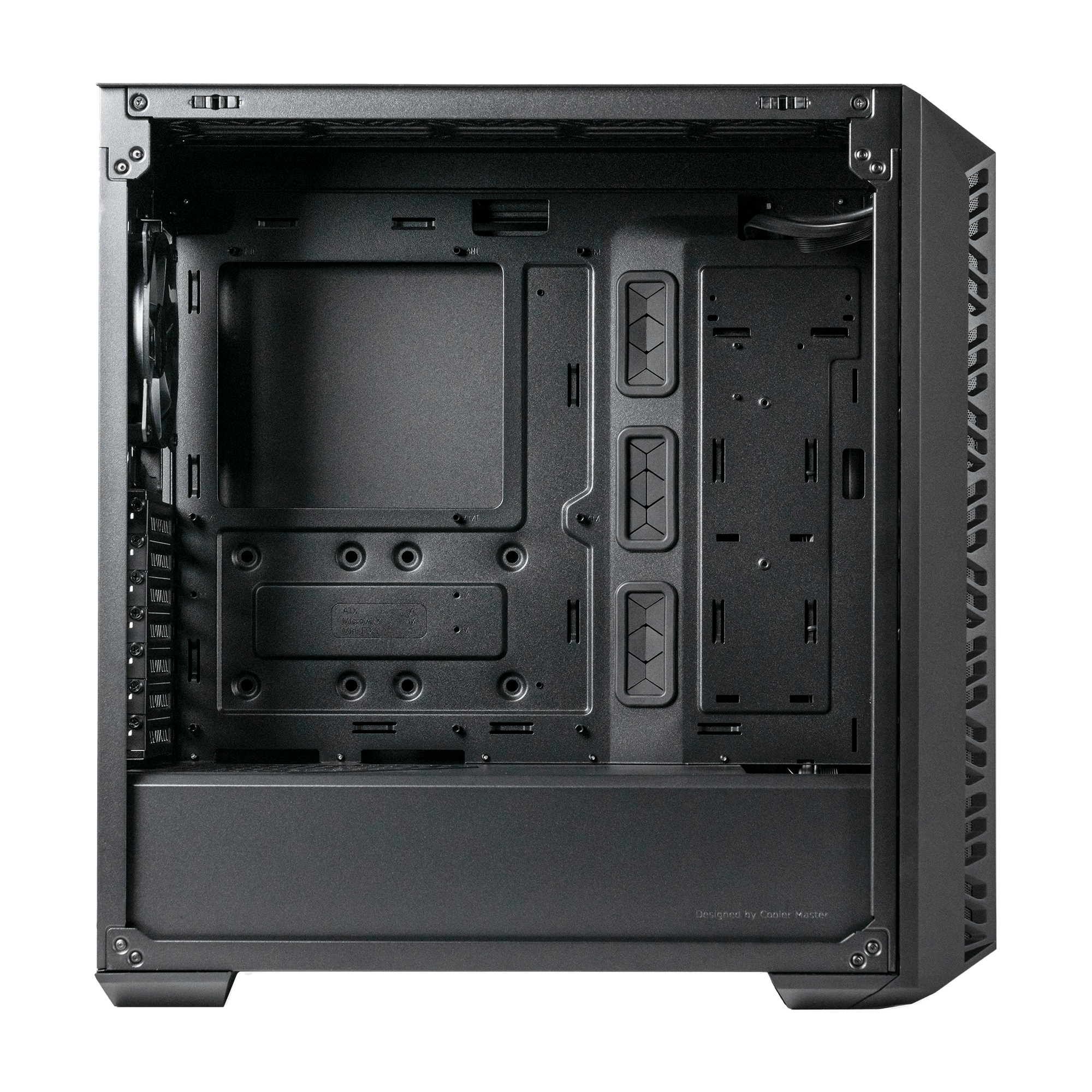

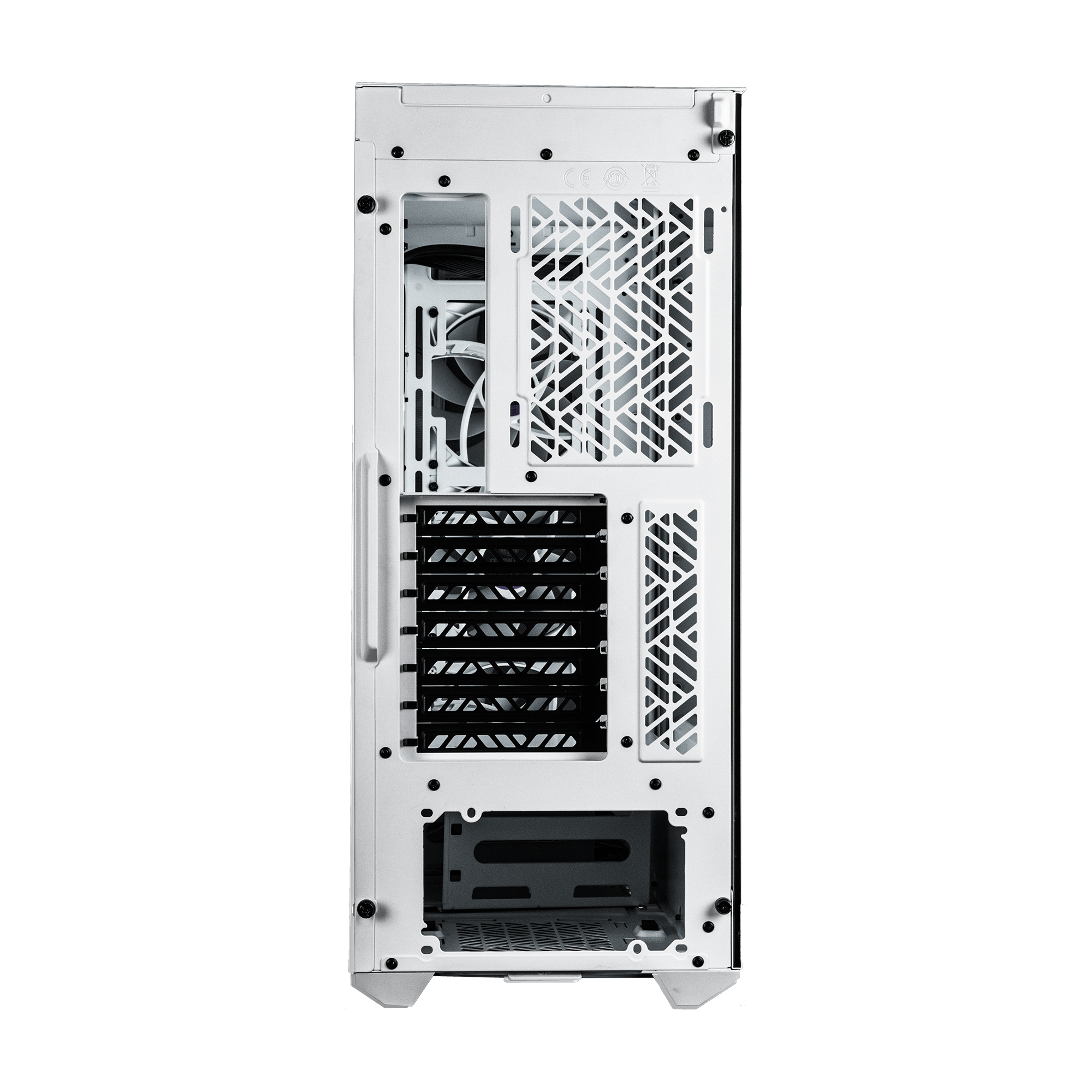

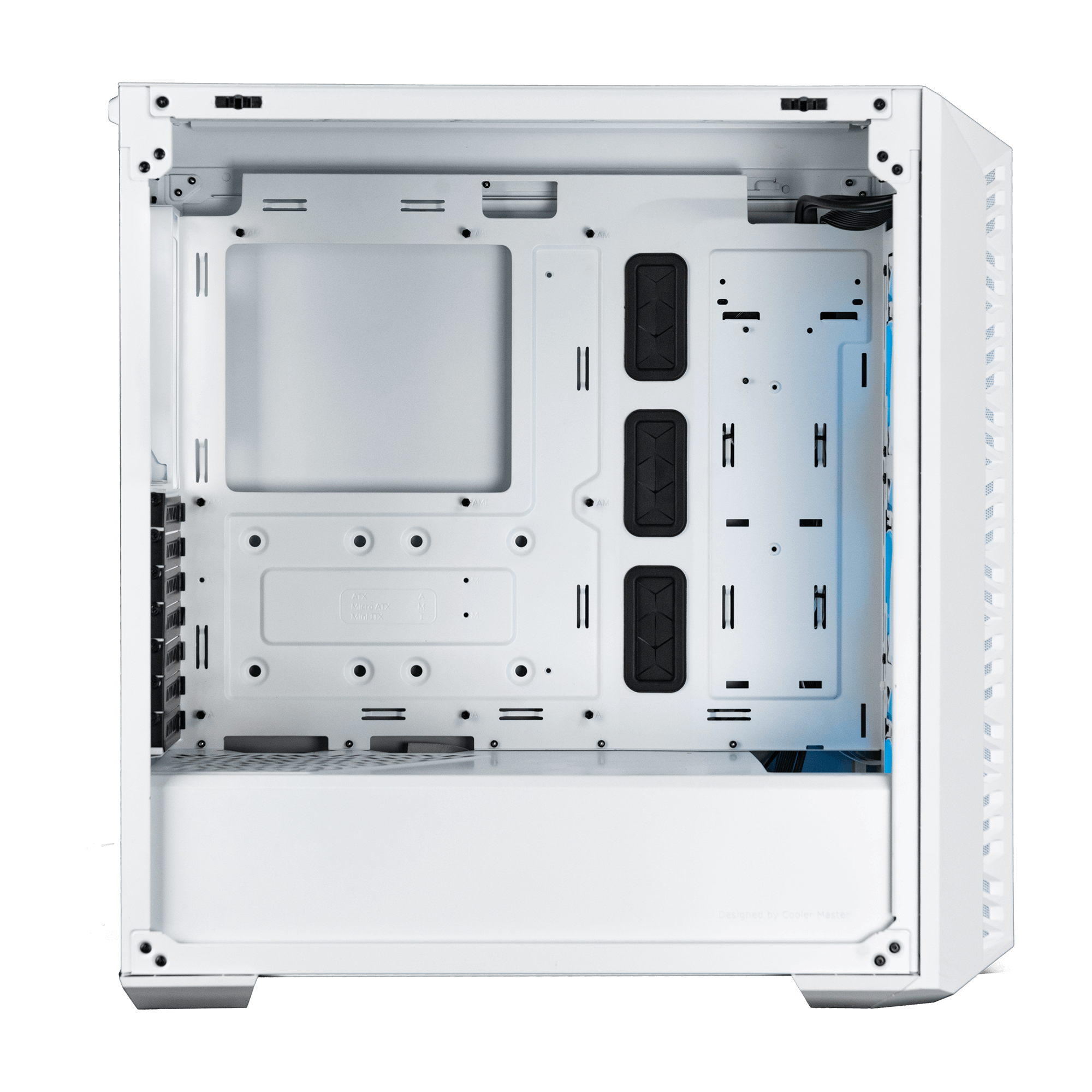

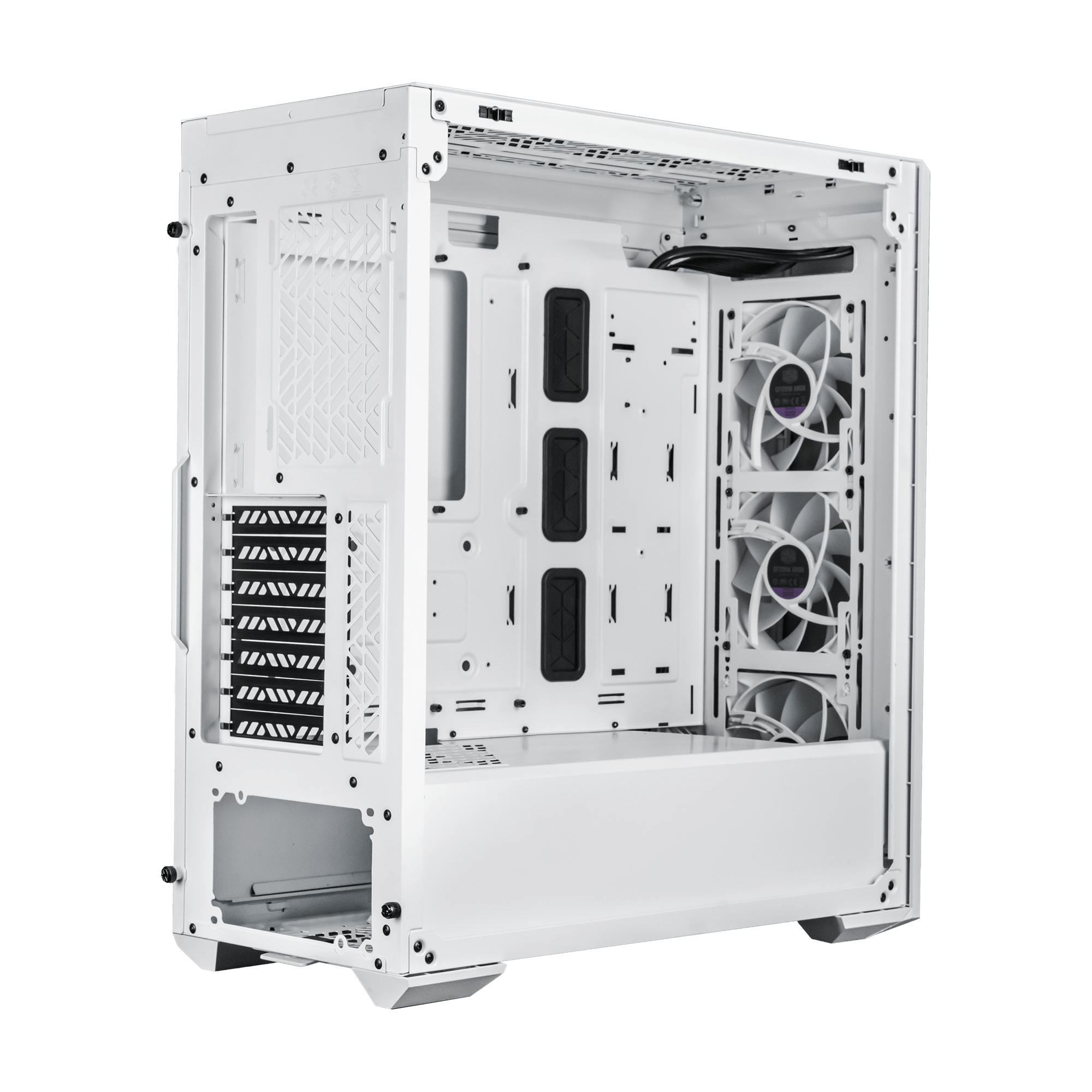

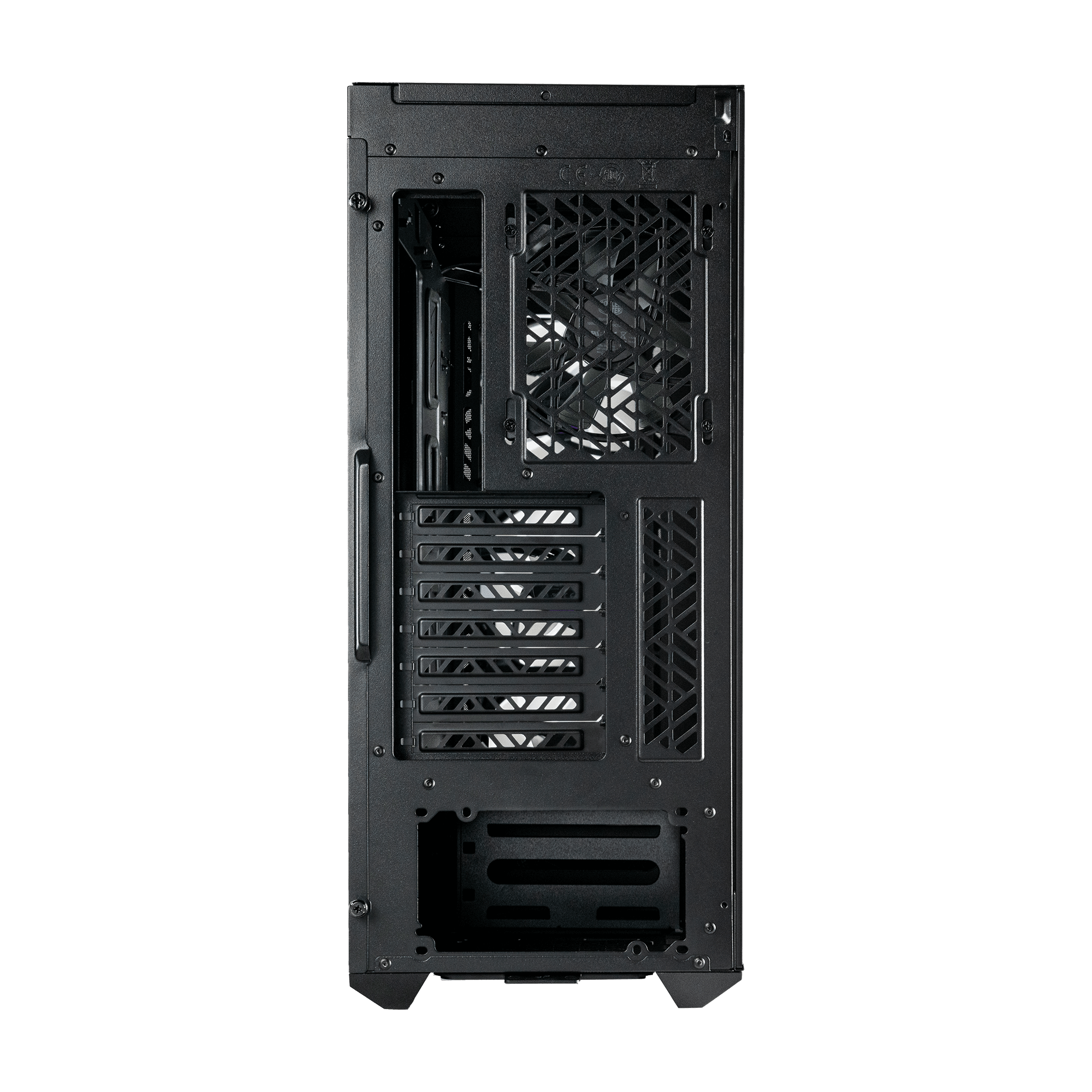

MasterBox 520
MasterBox 520 is the ideal chassis for satisfying the needs of both novice and experienced gamers.

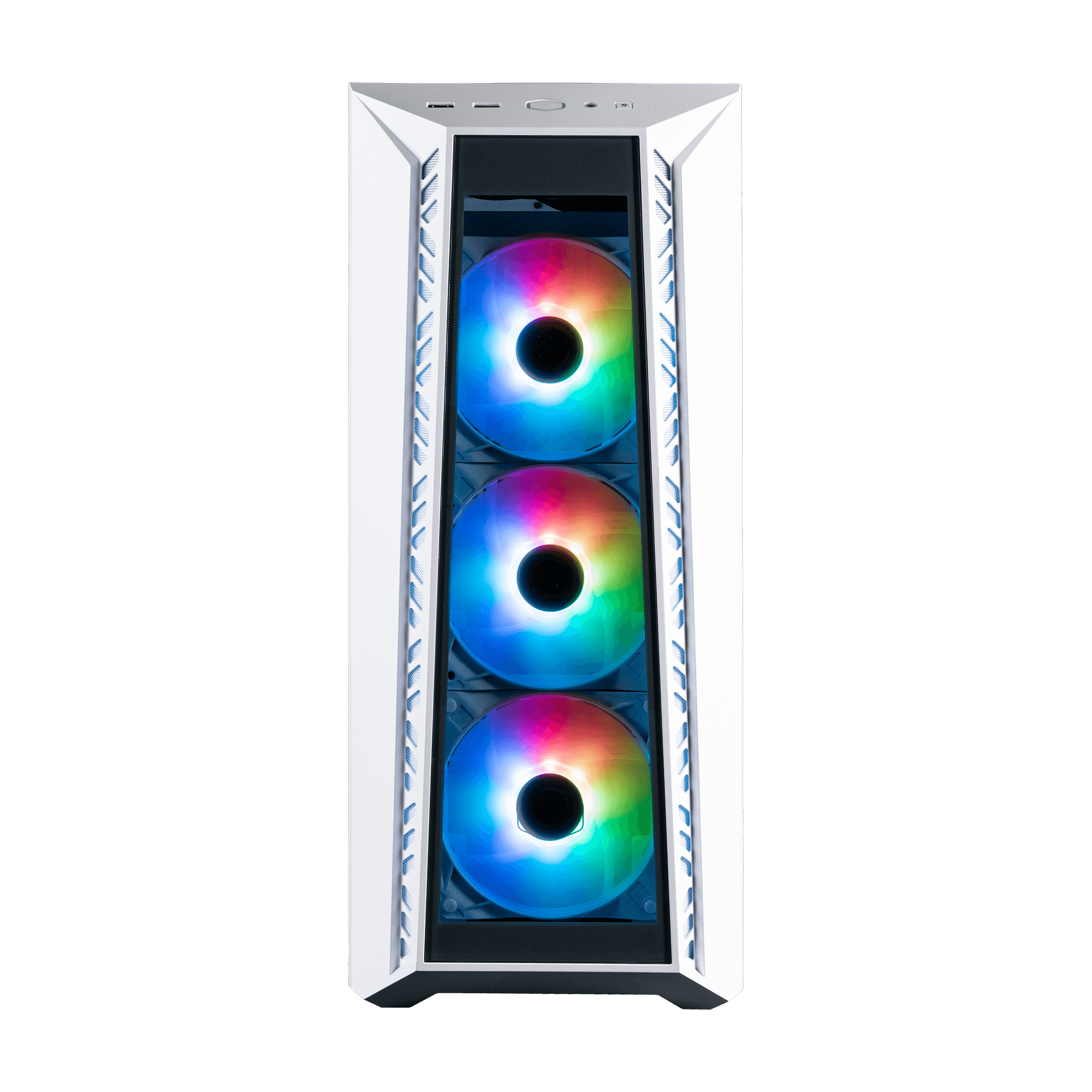

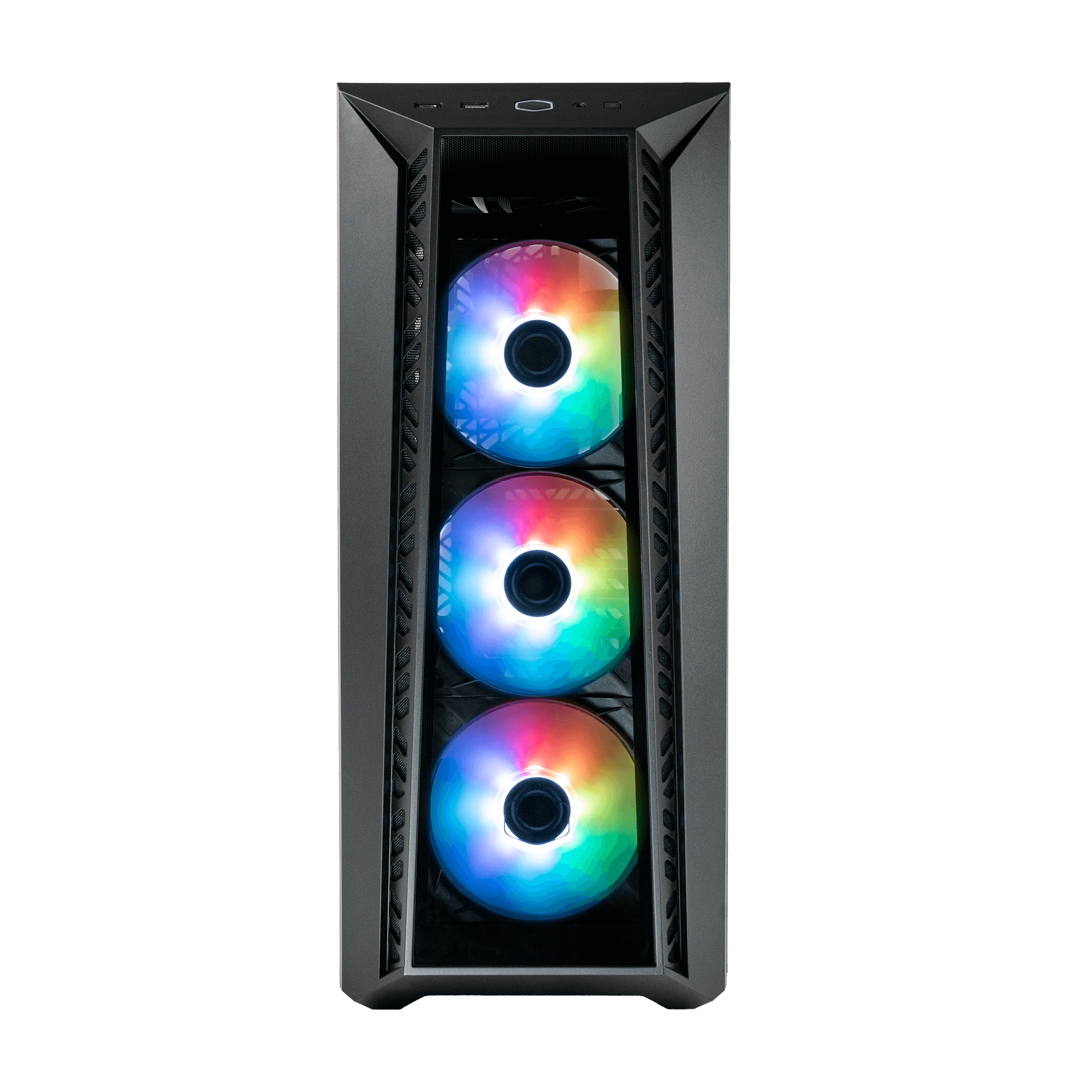

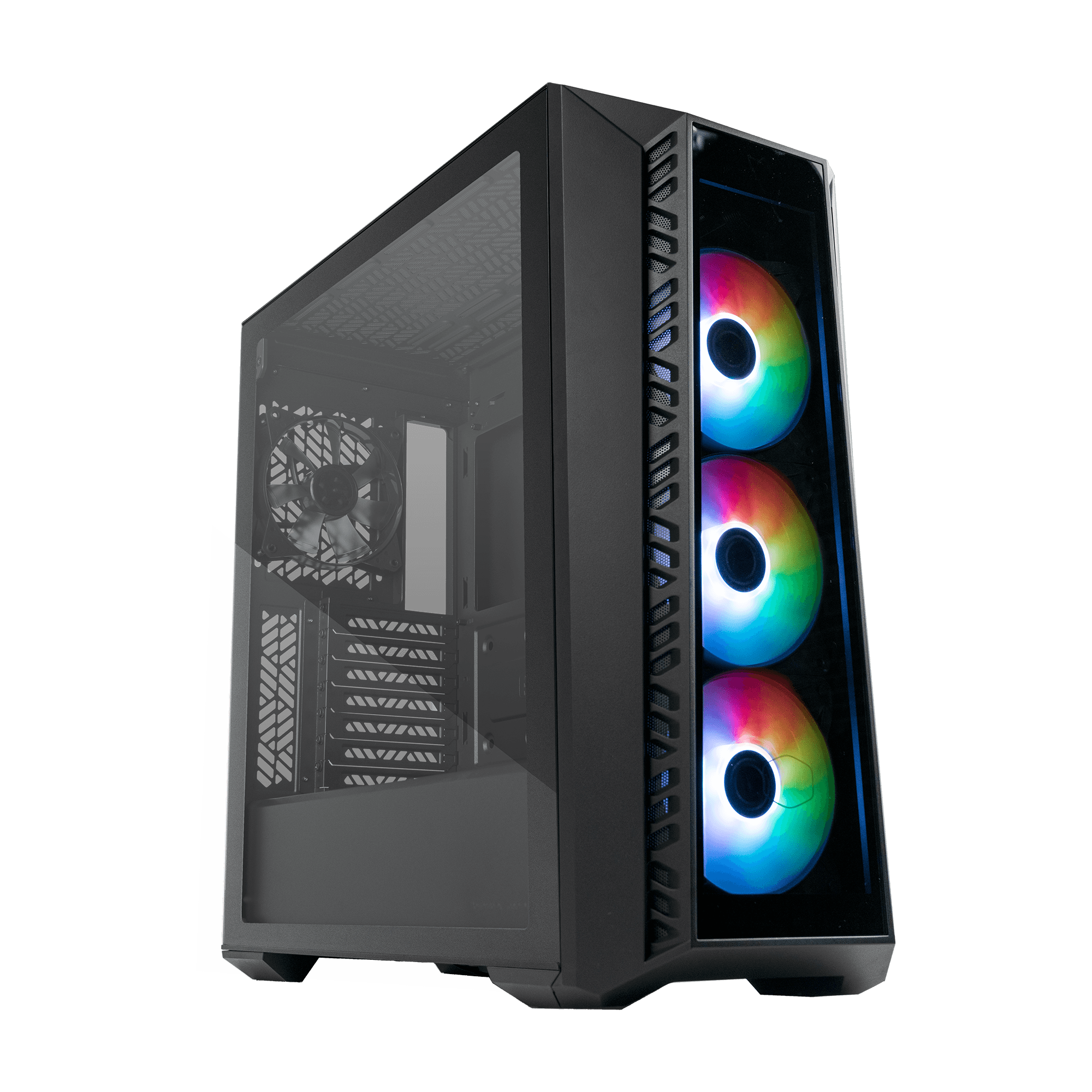

Tempered Glass Front Panel

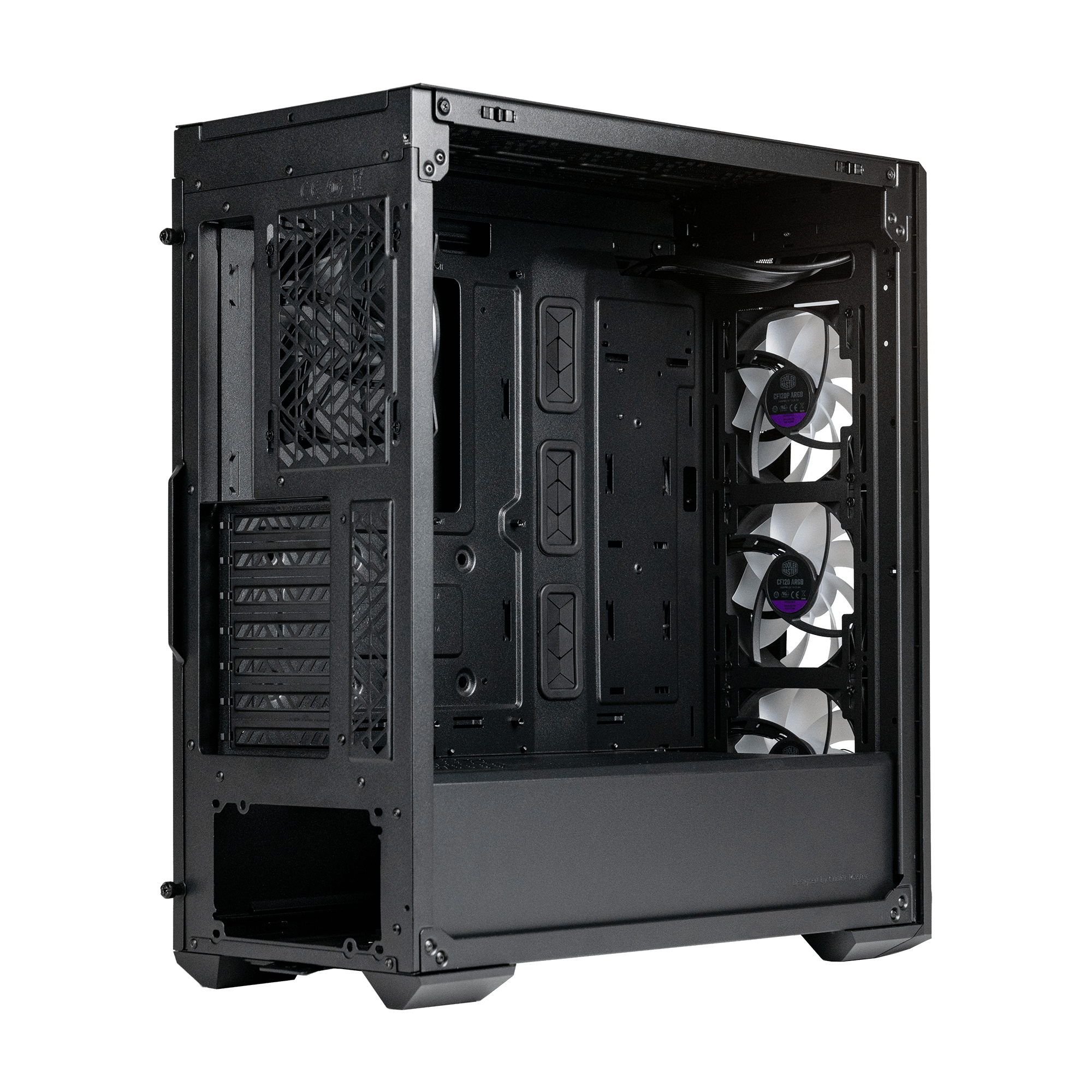

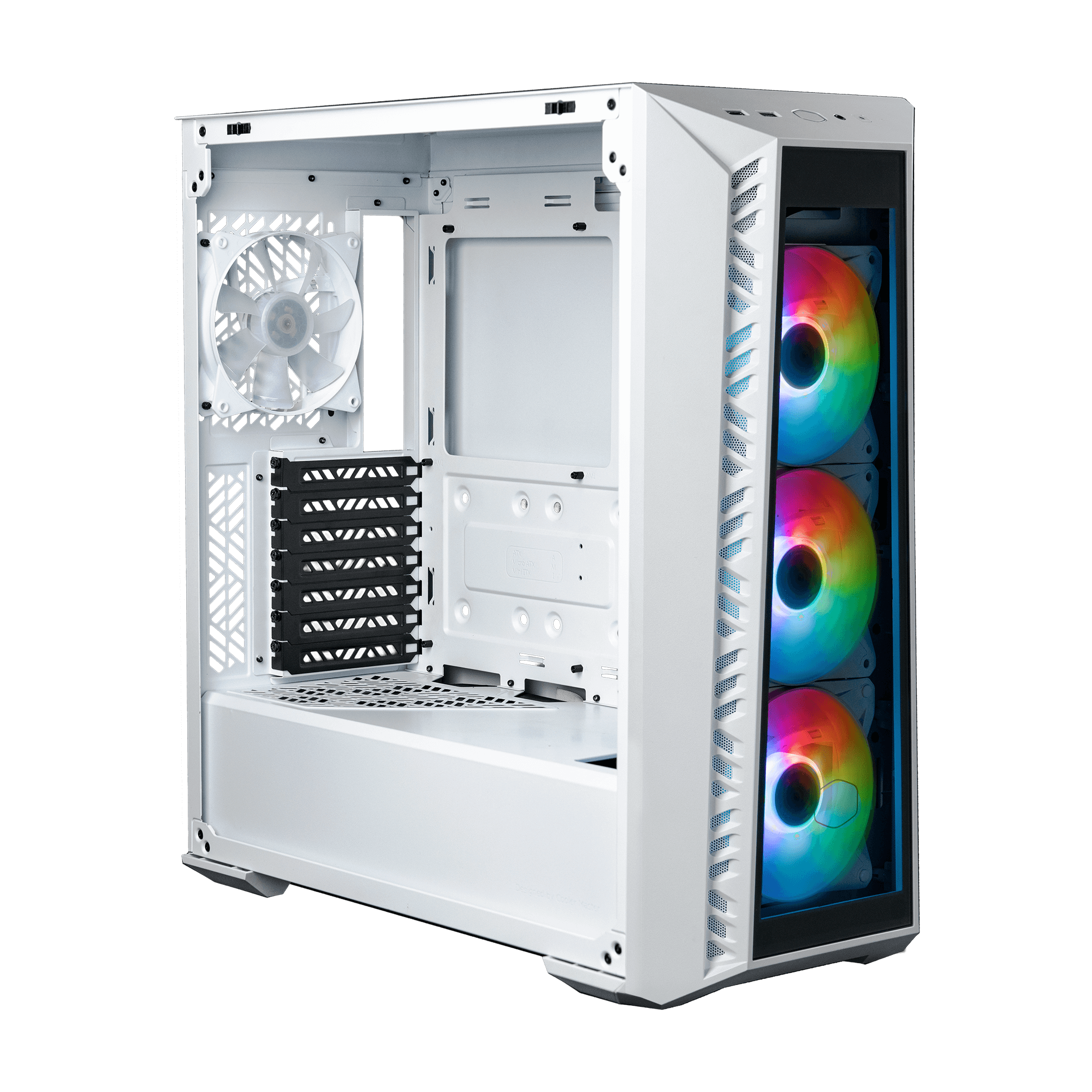

Three CF120 ARGB Fans Included

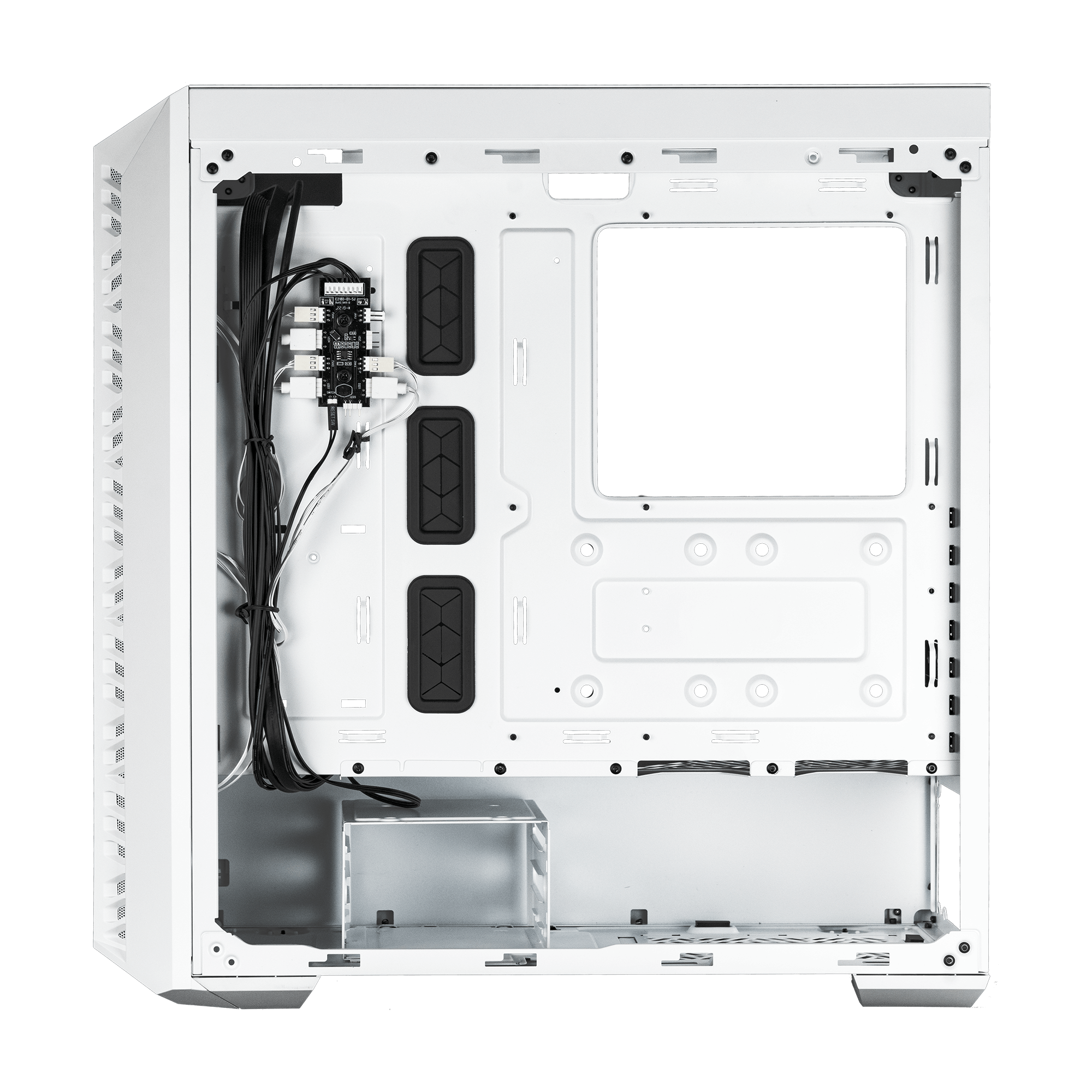

ARGB Controller Included

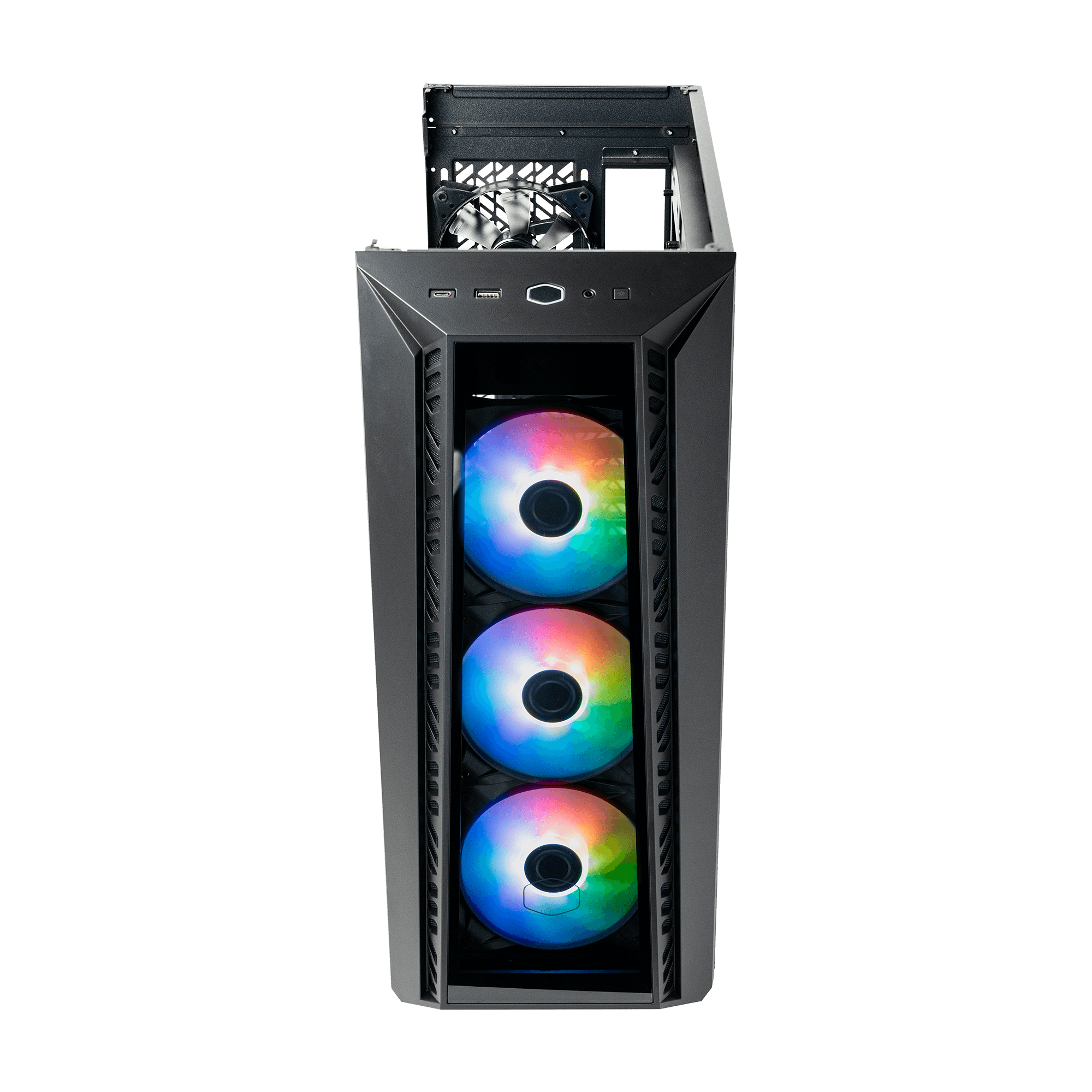

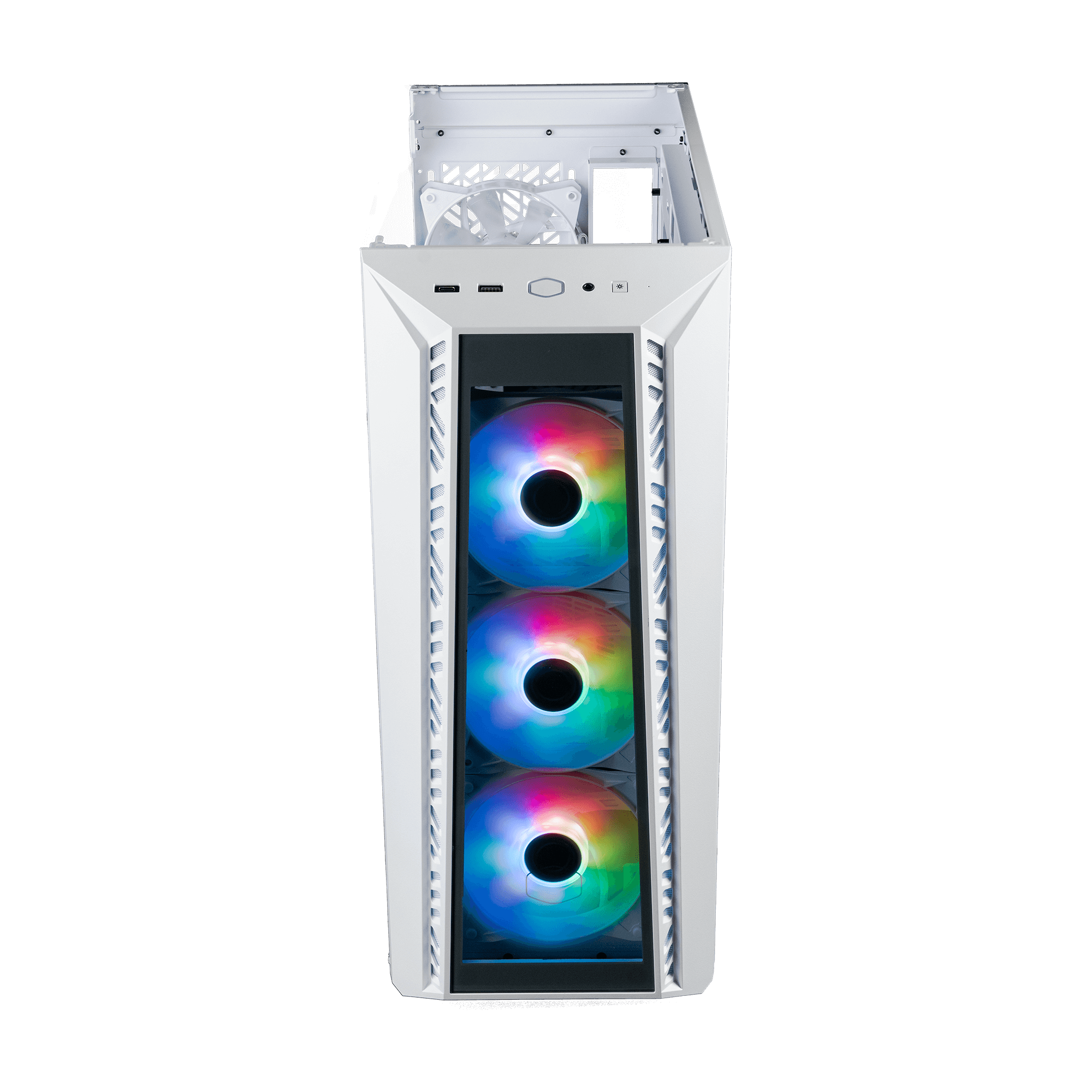

Removable Top Panel
Screwless & Tool-Free TG Side Panel
Removable HDD cage
model
Availability:
-
In Stock
Massive Cooling Compatibility
Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans—six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.
Wide Component Compatibility
Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise. Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.
Features 110 mm of cable routing clearance for a clean and clutter-free showcase.
ENCLOSED & OPEN
[ ENCLOSED DESIGN ]
Features a three-sided tempered glass panoramic structure that provides excellent visual transparency, allowing a full view of the internal setup. Compared with the Stage’s open design, its full-cover glass enclosure not only enhances the display effect (for figures, models, or water-cooling systems) but also offers dust and touch protection. It’s a practical design that balances aesthetic presentation and functional protection.
[ OPEN DESIGN ]
Features an open layout that’s ideal for displaying articulated figures that are frequently handled or posed. It’s also perfect for figures with extended parts such as long weapons or wings that go beyond the chassis frame, offering minimal spatial limitations.
MasterFrame 360 Stage LCD - LCD Screen User Manual
- Product Name MASTERFRAME 360 PANORAMA
- Product Name MASTERFRAME 360 STAGE LCD
- Product Name MASTERFRAME 360 STAGE MIRROR
- Model Number MASTERFRAME 360 PANORAMA: MF360-KINN-S00
- Model Number MASTERFRAME 360 STAGE LCD: MF360-KHNN-S02
- Model Number MASTERFRAME 360 STAGE MIRROR: MF360-KHNN-S01
- Color(s) Black
- Materials - Exterior SGCC
- Materials - Side panel (Right / Left) TG / TG
- Dimensions (L x W x H) 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)
- Volume 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)
- Motherboard Support Mini-ITX, Micro-ATX, ATX, BTF (ATX)
- Power Supply Support ATX
- PCI Expansion Slots 3.5
- Drive bay support - 3.5" Drive Bays 0
- Drive bay support - 2.5" / 3.5" Drive Bays (or SSD) 1x HDD or 2x SSD
- Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity) 1x HDD or 2x SSD
- I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G
- I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
- Fan Support - Top 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
- Fan Support - Bottom 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
- Radiator Support - Top 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
- Radiator Support - Bottom 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
- Dust Filters Mesh Only (Removable Filters)
- Other electronic components 1x PCI-e 5.0 Riser / 2x ARGB spotlight
- Maximum Dimensions for Front Collectibles Display (H x W x D) 328 x 290 x 110 mm
- DIY tank & Pump support MASTERFRAME 360 PANORAMA: Yes (with right side tank & pump bracket)
- DIY tank & Pump support MASTERFRAME 360 STAGE LCD & MIRROR: Yes (Left side)
- Toolbox Yes
- Clearances - CPU Cooler 145 mm
- Clearances - Power Supply 210 mm
- Clearances - Graphics Card 430 mm
- Cable Routing - Behind Motherboard Tray 110 mm
- Warranty 2 years
- Size Mid Tower
- Series MasterFrame Series
