Improved Design
Back-connected motherboard support
Support back-connected motherboard to frees up space in the front of the case and providing improved cable management space up to 33~35mm behind MB tray.
Powering Next generation
MasterBox 600 Lite
• Back-connected motherboard support
• Versatile Cooling Options
• FineMesh Performance Front Panel
• Room For Upgrades
• Removable HDD cage
Color
Availability:
-
Select Styles for Availability
Fan Support
140mm
SICKLEFLOW FANS
Storage
REMOVABLE HDD CAGE
Supports up to 2x3.5" HDD storage and 6× 2.5" SSD, the HDD cage is completely removable for improved access during assembly and system upgrades.
Performance
FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Cooling System
Versatile Cooling Options
Support for up to seven 120mm fans, with 360mm radiator support on the top and 420mm radiator support on the front, ensures that performance is not compromised.
Customization

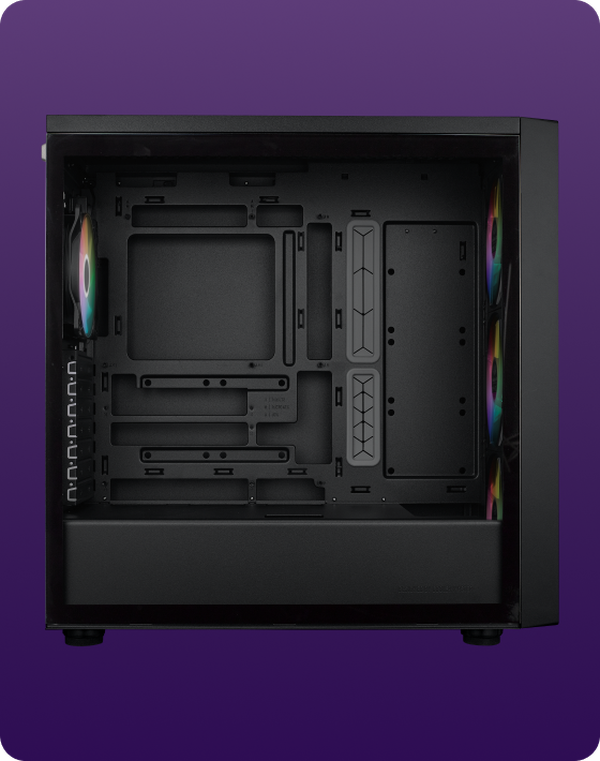

Hardware compatibility
Support for up to a 410mm graphics card, a 170mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
- Model Number MasterBox 600 Lite Black:MB600L-KGNN-S00 MasterBox 600 Lite White:MB600L-WGNN-S00
- Exterior Color Black, White
- Materials - Exterior Steel, Plastic
- Materials - Side Panel Tempered Glass
- Dimensions (L x W x H) 474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions)
- Volume 49.73L
- Motherboard Support ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management)
- Expansion Slots 7
- 3.5" Drive Bays 2
- 2.5" Drive Bays 2 (Max.6)
- I/O Panel - USB Ports 1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 1 Type C
- I/O Panel - Audio In / Out 1x 3.5mm Combo
- Fan Support - Front 3x 120/140mm
- Fan Support - Top 3x 120mm / 2x 140mm
- Fan Support - Rear 1x 120mm
- Radiator Support - Front 120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm)
- Radiator Support - Top 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear 120mm
- Clearance - CPU Cooler 170mm
- Clearance - PSU 170mm, 210mm (w/o HDD Cage)
- Clearance - GFX 360mm, 410mm (w/o front radiator)
- Cable Routing - Behind Motherboard Tray 33-35 mm
- Dust Filters Top, Bottom
- Power Supply Support ATX
- Warranty 2 years
- Size Mid Tower
- Series MasterBox Series
- Back Connector Motherboard Support Yes
