Improved Design
Back-connected motherboard support
Support back-connected motherboard to frees up space in the front of the case and providing improved cable management space up to 33~35mm behind MB tray.
Powering Next generation
MasterBox 600
• Back-connected motherboard support
• Versatile Cooling Options
• FineMesh Performance Front Panel
• Optimized airflow
• Room For Upgrades
• Removable HDD cage
Color
Availability:
-
Select Styles for Availability
Fans Included
140mm
SICKLEFLOW FANS
Storage
REMOVABLE HDD CAGE
Supports up to 2x3.5" HDD storage and 6× 2.5" SSD, the HDD cage is completely removable for improved access during assembly and system upgrades.
Performance
FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
Cooling System
OPTIMIZED AIRFLOW
3x 140mm SickeFlow fans, and a CF120 fan offer exceptional cooling power and eye-catching aesthetics.
Customization

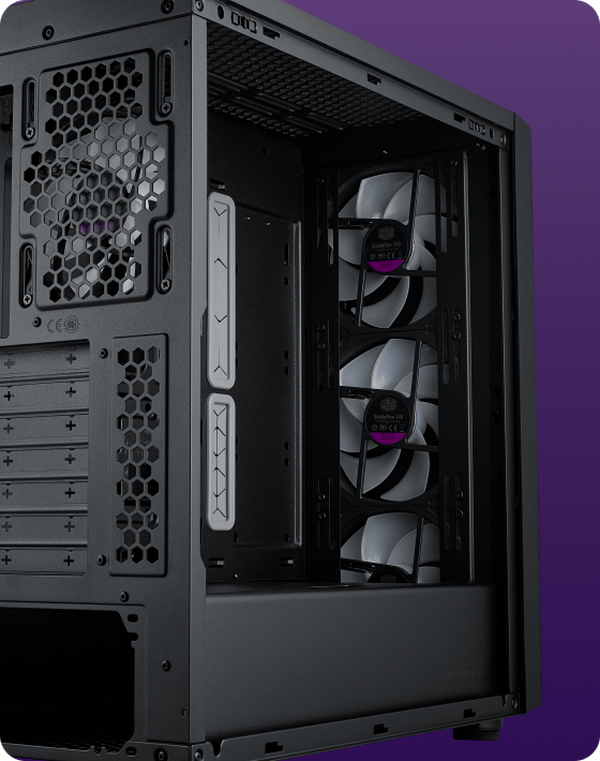

Versatile Cooling Options
Support for up to seven 120mm fans, with 360mm radiator support on the top and 420mm radiator support on the front, ensures that performance is not compromised.
Customization
Hardware compatibility
Support for up to a 410mm graphics card, a 170mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
- Model Number MasterBox 600 Black:MB600-KGNN-S00 MasterBox 600 White:MB600-WGNN-S00
- Exterior Color Black, White
- Materials - Exterior Steel, Plastic
- Materials - Side Panel Tempered Glass
- Dimensions (L x W x H) 474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions)
- Volume 49.73L
- Motherboard Support ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management)
- Expansion Slots 7
- 3.5" Drive Bays 2
- 2.5" Drive Bays 2 (Max.6)
- I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
- I/O Panel - Audio In / Out 1x 3.5mm Combo
- Included Accessories ARGB Fans Hub
- Pre-installed Fans - Front 3x 140mm SickleFlow140 ARGB PWM (650~1800 rpm)
- Pre-installed Fans - Rear 1x 120mm CF120 ARGB (650~1200 rpm)
- Fan Support - Front 3x 120/140mm
- Fan Support - Top 3x 120mm / 2x 140mm
- Fan Support - Rear 1x 120mm
- Radiator Support - Front 120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm)
- Radiator Support - Top 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear 120mm
- Clearance - CPU Cooler 170mm
- Clearance - PSU 170mm, 210mm (w/o HDD Cage)
- Clearance - GFX 360mm, 410mm (w/o front radiator)
- Cable Routing - Behind Motherboard Tray 33-35 mm
- Dust Filters Top, Bottom
- Power Supply Support ATX
- Warranty 2 years
- Size Mid Tower
- Series MasterBox Series
- Back Connector Motherboard Support Yes
