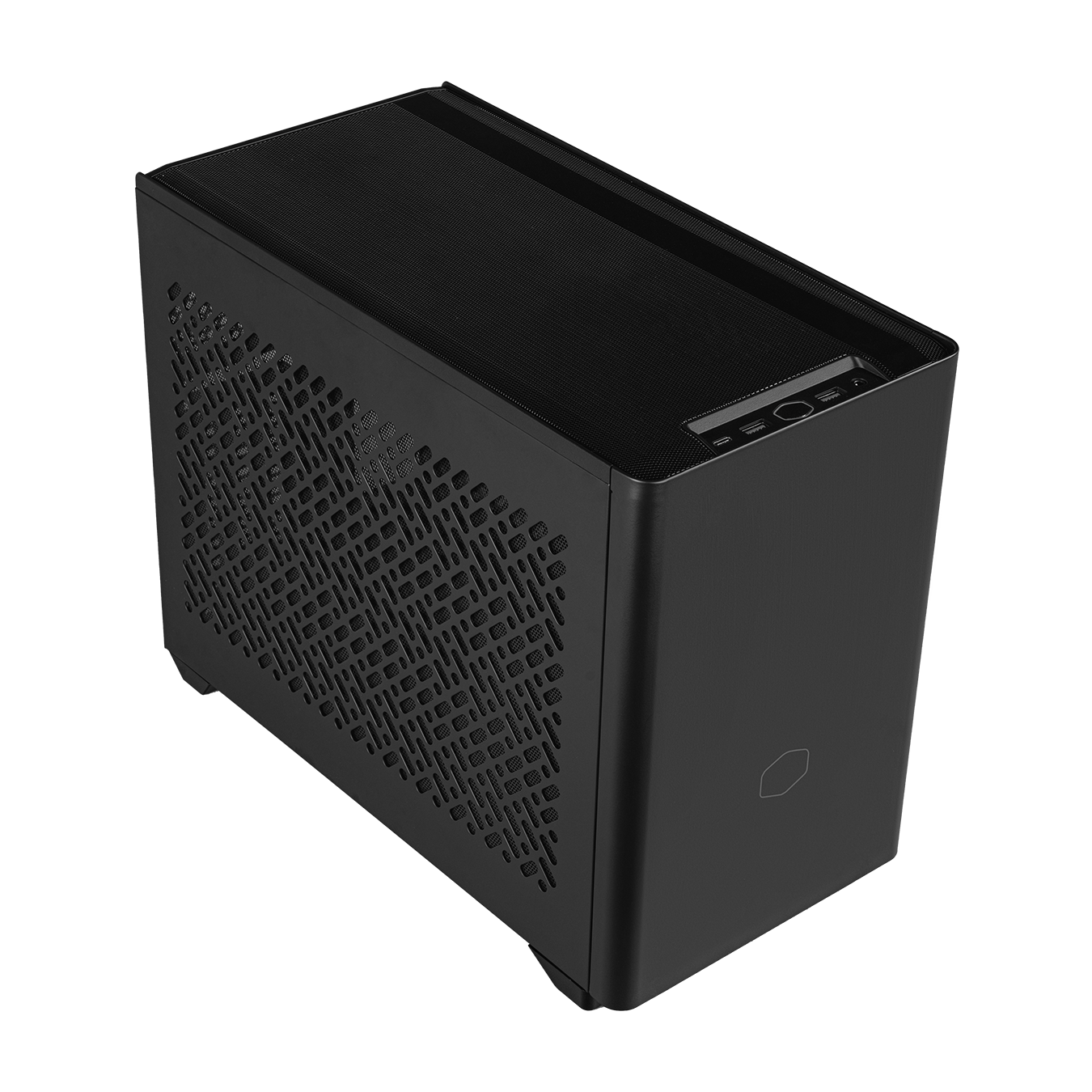

MasterBox NR200P V2 image number 2

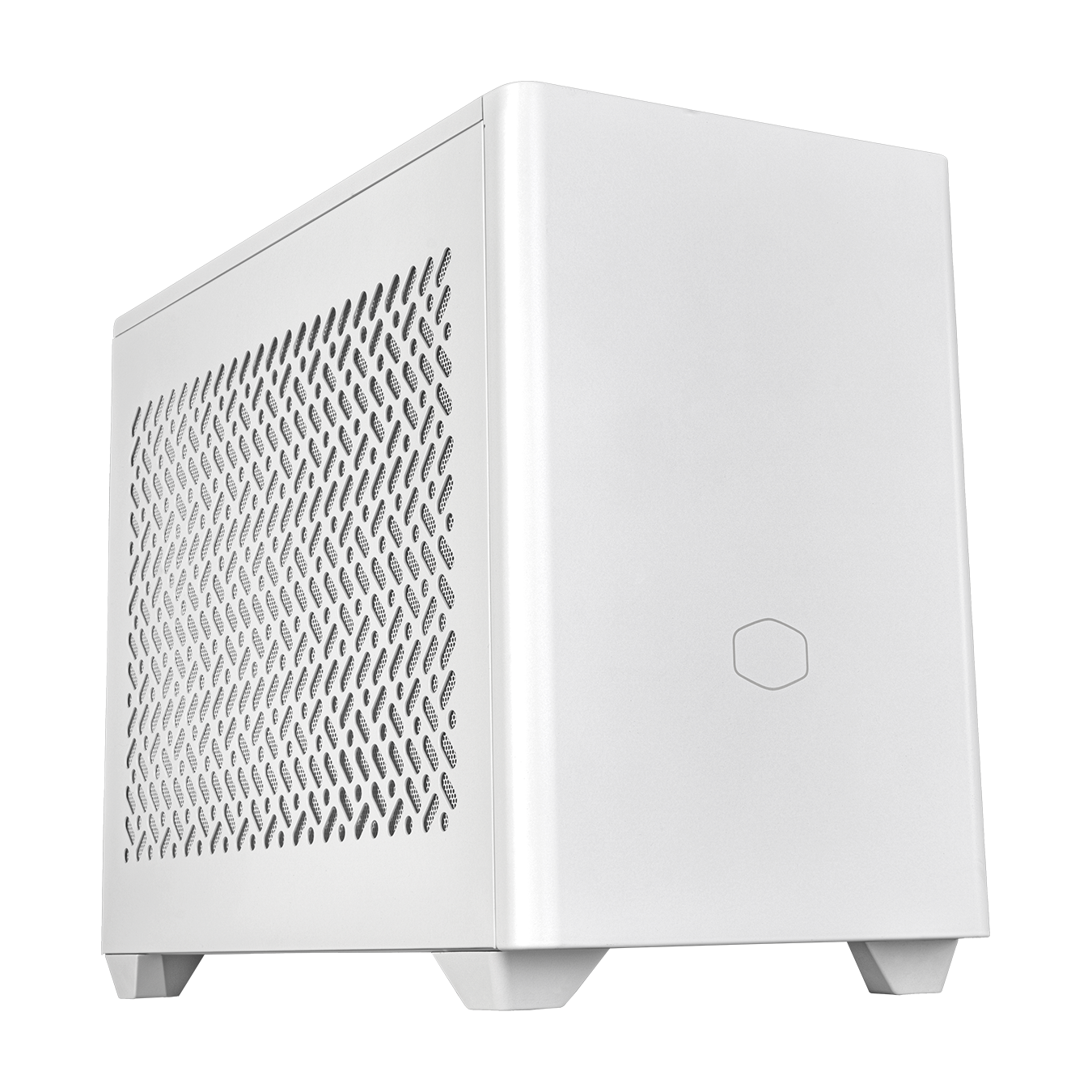

MasterBox NR200P V2 image number 3

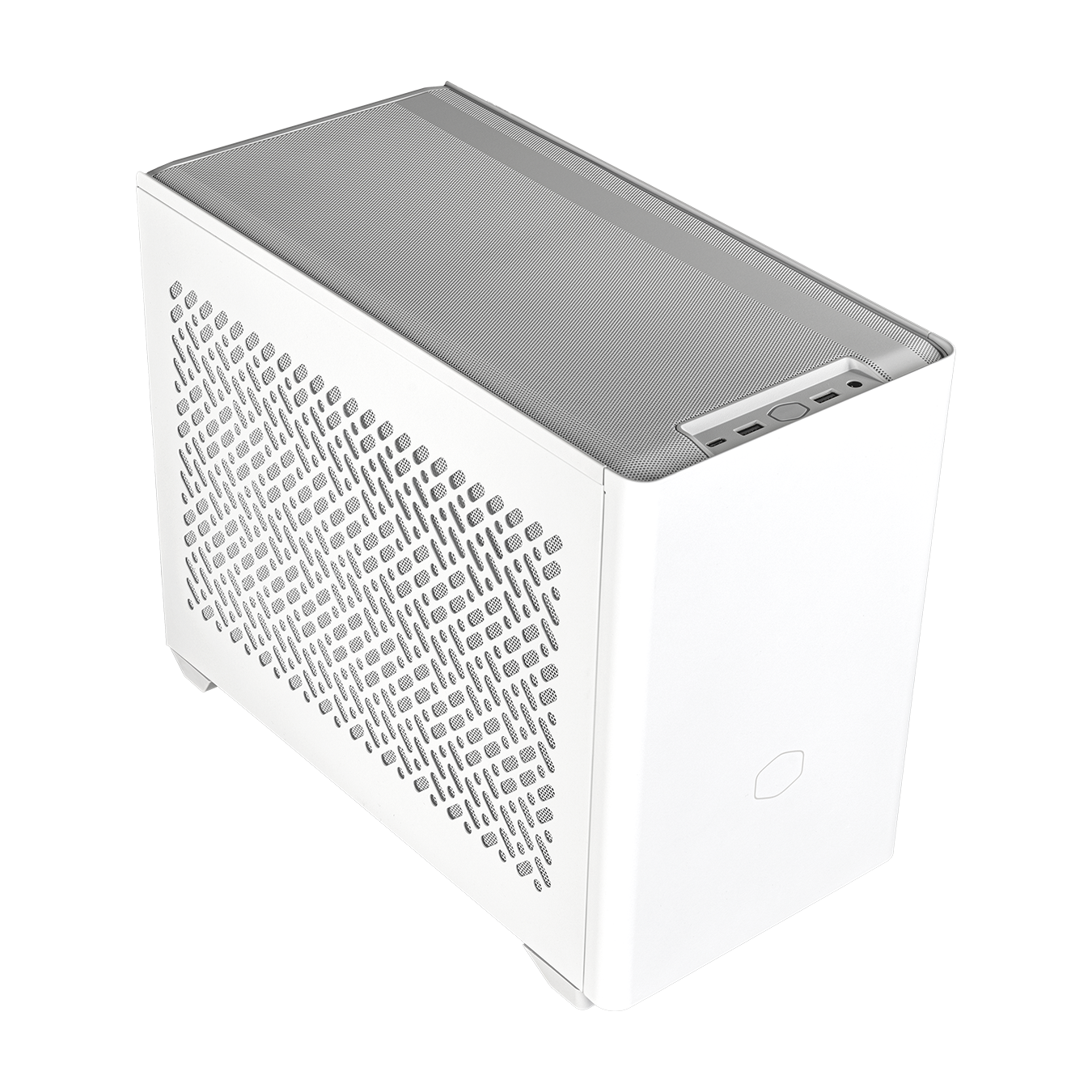

MasterBox NR200P V2 image number 4
MasterBox NR200P V2 image number 5

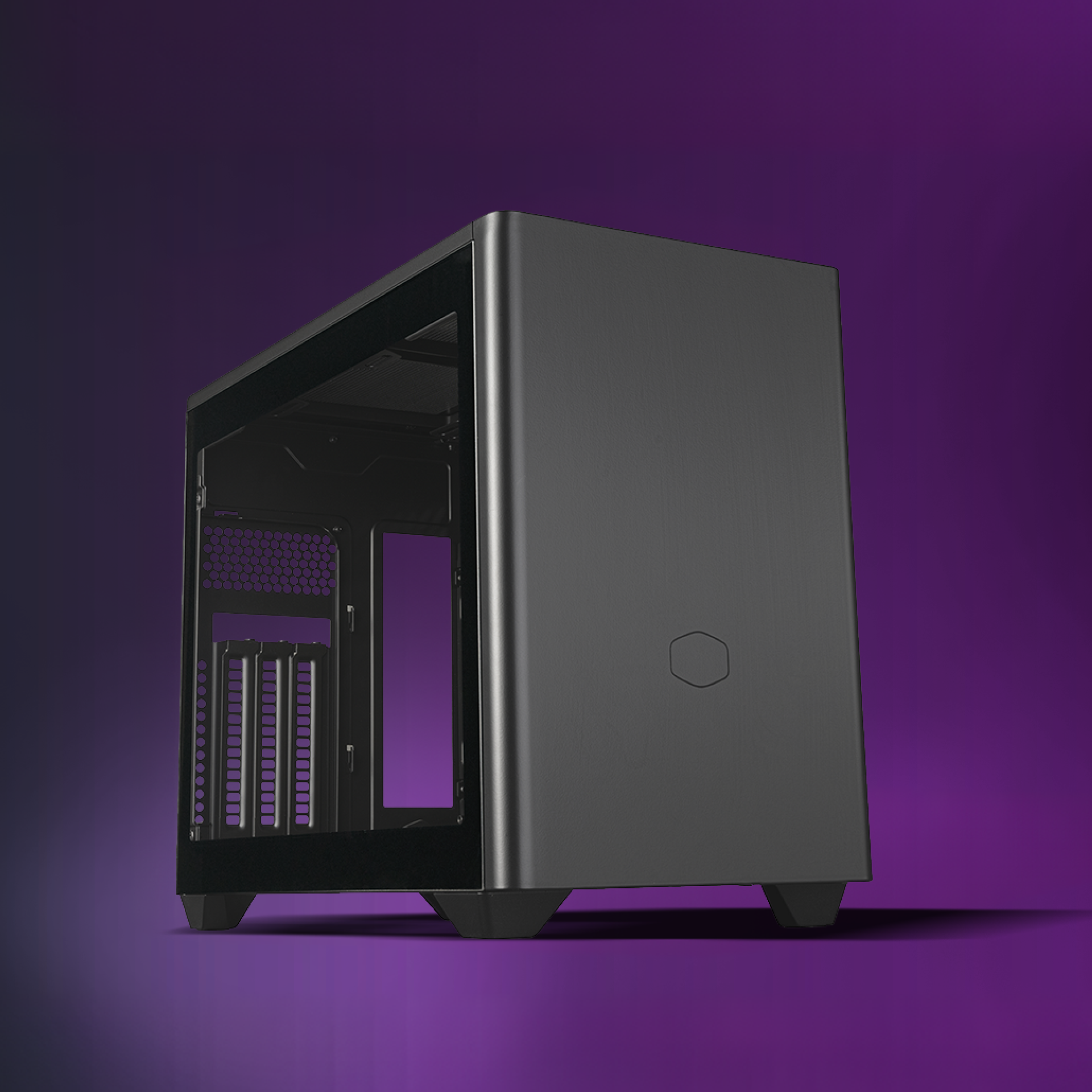

MasterBox NR200P V2 image number 6

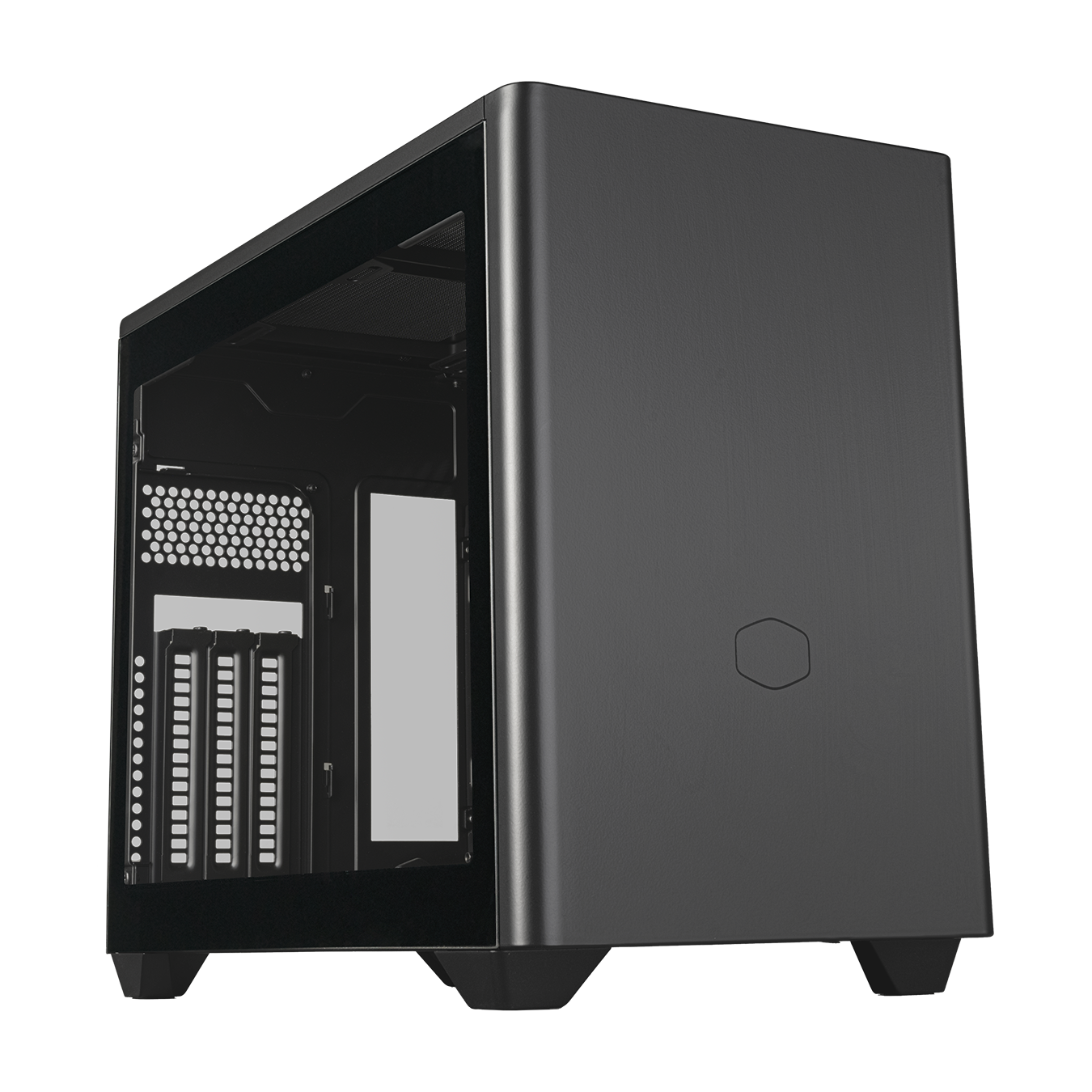

MasterBox NR200P V2 image number 7

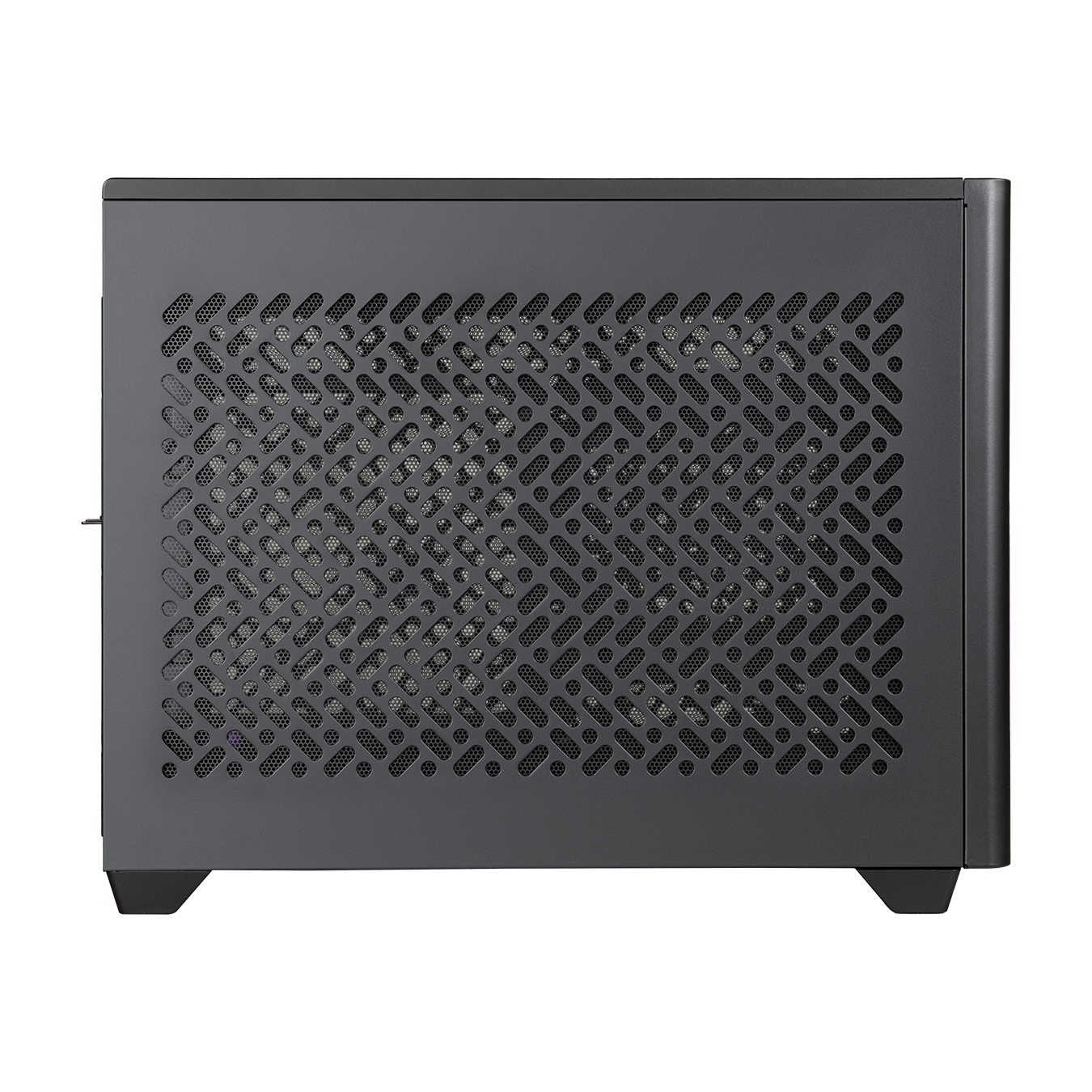

MasterBox NR200P V2 image number 8
MasterBox NR200P V2 image number 9
MasterBox NR200P V2 image number 10
MasterBox NR200P V2 image number 11
MasterBox NR200P V2 image number 12
MasterBox NR200P V2 image number 13

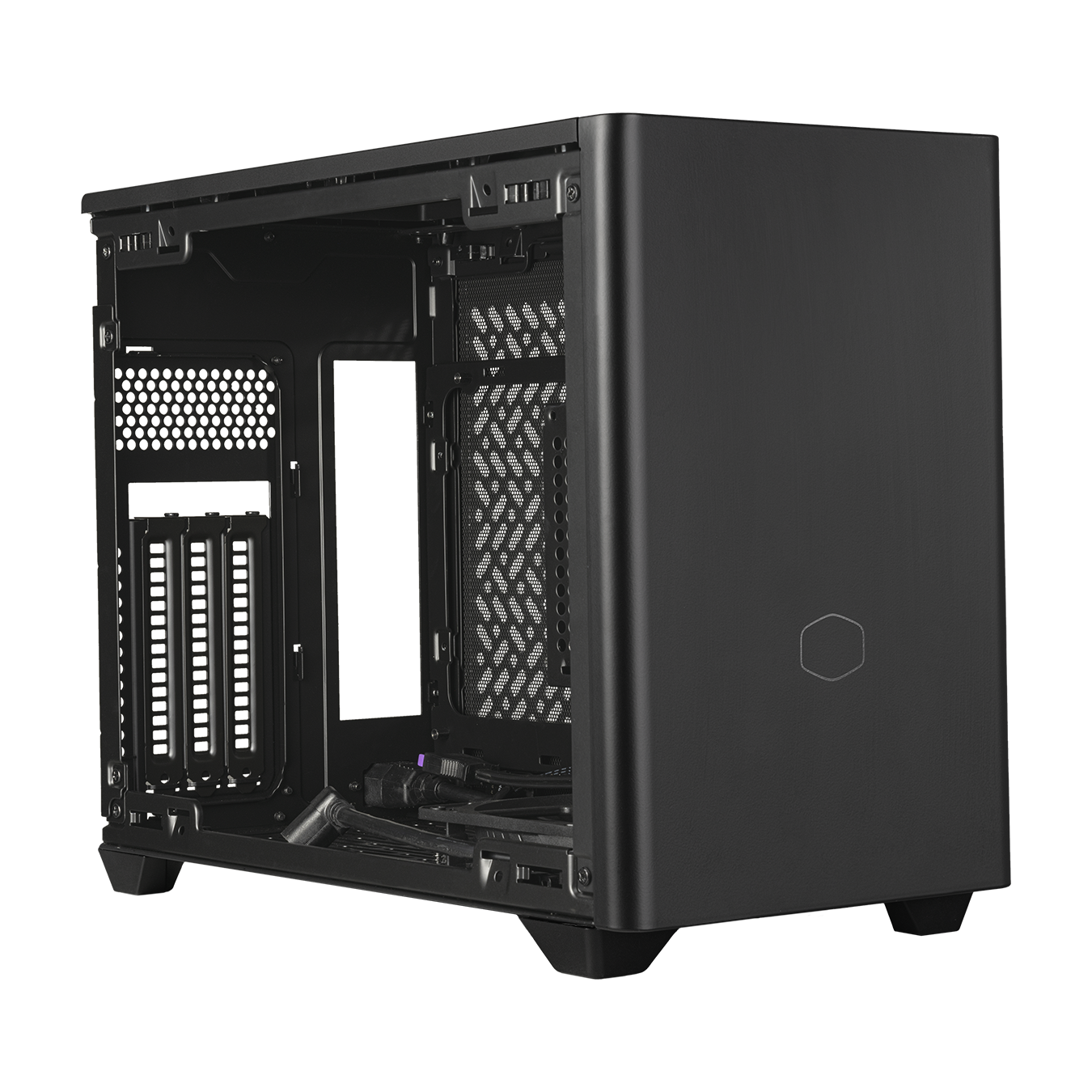

MasterBox NR200P V2 image number 14
MasterBox NR200P V2 image number 15
MasterBox NR200P V2 image number 16
MasterBox NR200P V2 image number 17
MasterBox NR200P V2 image number 18

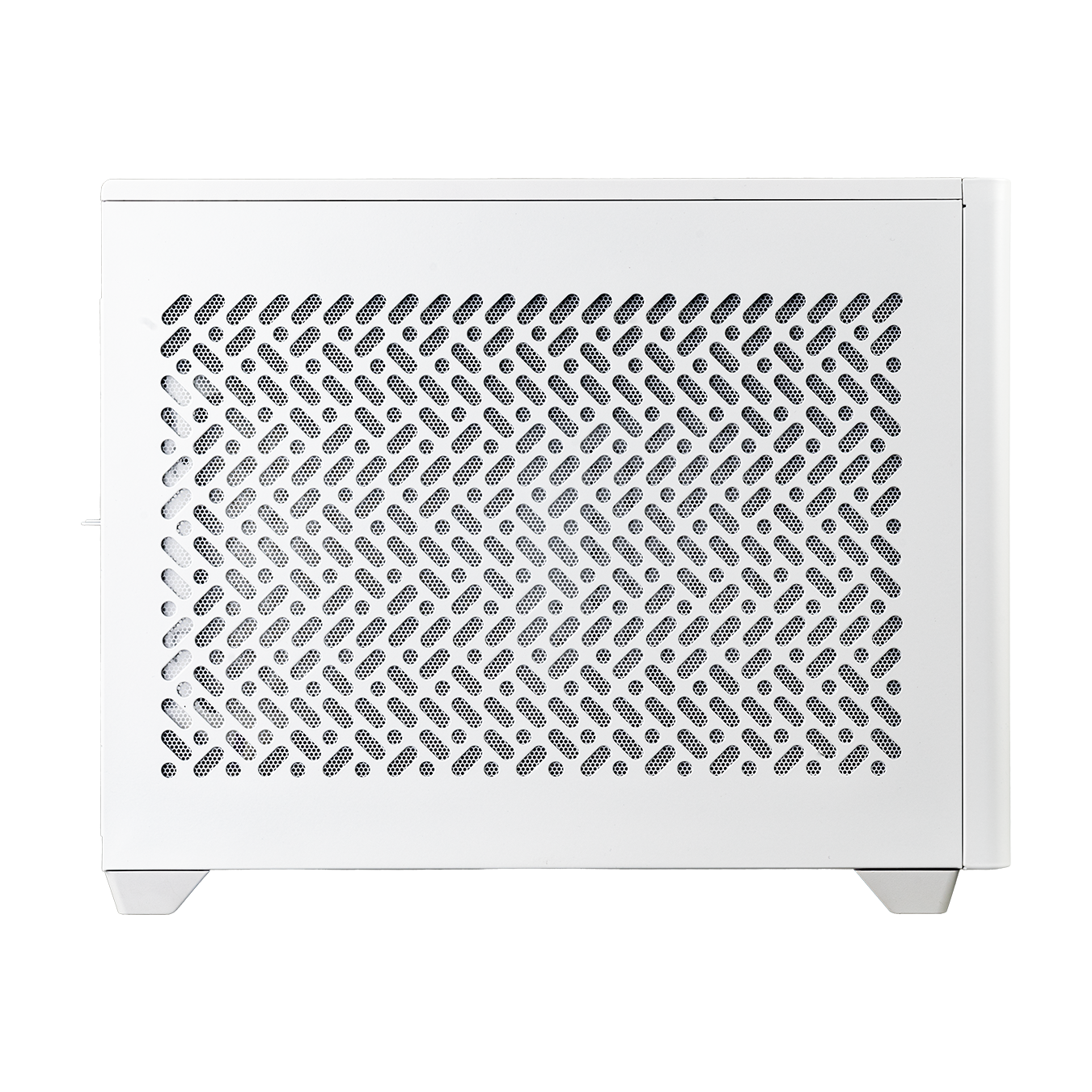

MasterBox NR200P V2 image number 19
MasterBox NR200P V2 image number 20
MasterBox NR200P V2 image number 21
MasterBox NR200P V2 image number 22
MasterBox NR200P V2 image number 23
MasterBox NR200P V2 image number 24
MasterBox NR200P V2 image number 25
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2
MasterBox NR200P V2

Big Possibilities, Small Size

MasterBox NR200P V2

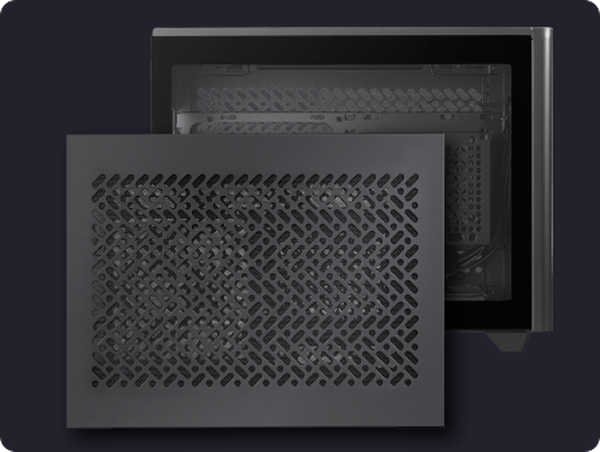

Compact yet powerful

Stay cool under pressure

Optimized GPU performance

Comprehensive GPU support

Easy, tool-free access

USB 3.2 Gen 2x2 Type C support

Refreshed NCORE style

Color
Availability:
  • Select Styles for Availability
Price reduced from € 129,00 to € 119,00
Cooling System

240-280MM

LIQUID COOLERS

18.25L

ULTRA-SLEEK DESIGN

Extra Cool

120MM

BOTTOM FAN

COMPREHENSIVE GPU SUPPORT

Includes vertical mounting options, a custom PCle 4.0 riser cable, and a support bracket for GPUs up to 356mm in length and 160mm in height.

  • Model Number MasterBox NR200P V2: NR200PV2-KCNN-S00, MasterBox NR200P V2 White: NR200PV2-WCNN-S00
  • Exterior Color Black, White / Grey
  • Materials - Exterior SGCC Steel, Mesh, ABS Plastic
  • Materials - Left Side Panel Tempered Glass x1, Steel x1
  • Dimensions (L x W x H) 372 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)
  • Volume 18.25L
  • Motherboard Support Mini-ITX, Max. size: 170 x180mm
  • Expansion Slots 3
  • 5.25" Drive Bays 0
  • 3.5" Drive Bays 1 (Max. 2, remove bottom fan)
  • 2.5" / 3.5" Drive Bays (Combo) 1
  • 2.5" Drive Bays 1 (Max. 2)
  • I/O Panel - USB Ports 2x USB 3.2 Gen 1 (USB 3.0), 1x USB 3.2 Gen 2x2 Type C
  • I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
  • Included Accessories 1x PCIe 4.0 x16 riser cable, 1x GPU Holder
  • Pre-installed Fans - Top N/A
  • Pre-installed Fans - Front N/A
  • Pre-installed Fans - Rear N/A
  • Pre-installed Fans - Bottom 1x 120mm 650~1800rpm PWM SickleFlow
  • Fan Support - Top 2x 120/140mm
  • Fan Support - Side N/A
  • Fan Support - Rear N/A
  • Fan Support - Bottom 2x 120mm (1x max 15mm, w/o 3.5" HDD at the bottom)
  • Radiator Support - Top 120 / 140 / 240 / 280mm
  • Radiator Support - Side N/A
  • Radiator Support - Rear N/A
  • Radiator Support - Bottom N/A
  • Clearance - CPU Cooler 67mm
  • Clearance - PSU 130mm
  • Clearance - GFX Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)
  • Dust Filters Bottom, Left, Right, Top Panels
  • Power Supply Support SFX, SFX-L
  • Warranty 2 years
  • Series MasterBox Series
  • Size Mini ITX
