Big Features, Small Size
MasterBox NR200P
Limited Size, Unlimited Options
Unrestricted Cooling Potential
Triple-slot GPU support and Included Vertical Riser Cable
Easy, Tool-free access
360 Degree Accessibility
Multiple motherboard support options

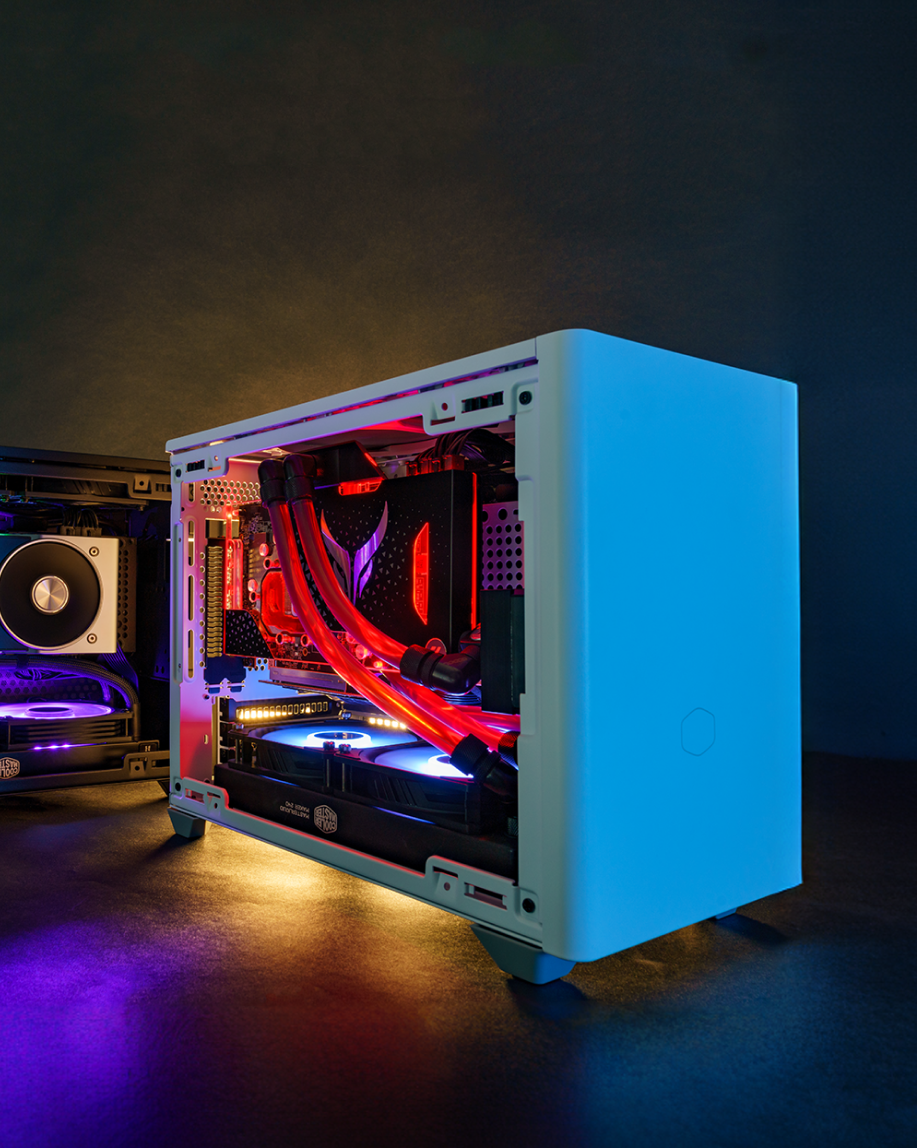

Out-of-the-box Custom Cooling Support
High quality materials
Color
Availability:
-
Select Styles for Availability
€ 99,99
Customization
LIMITED SIZE, UNLIMITED OPTIONS

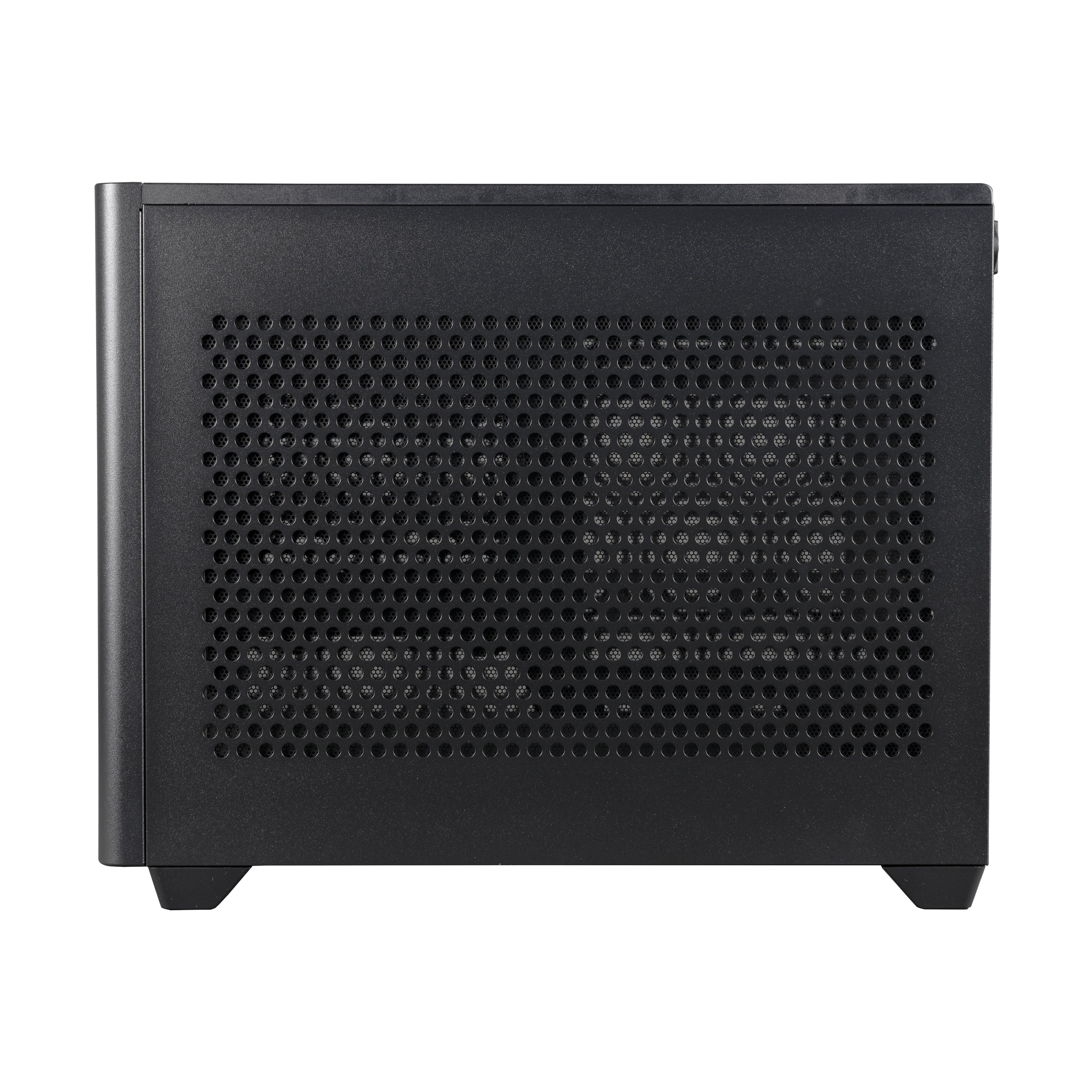

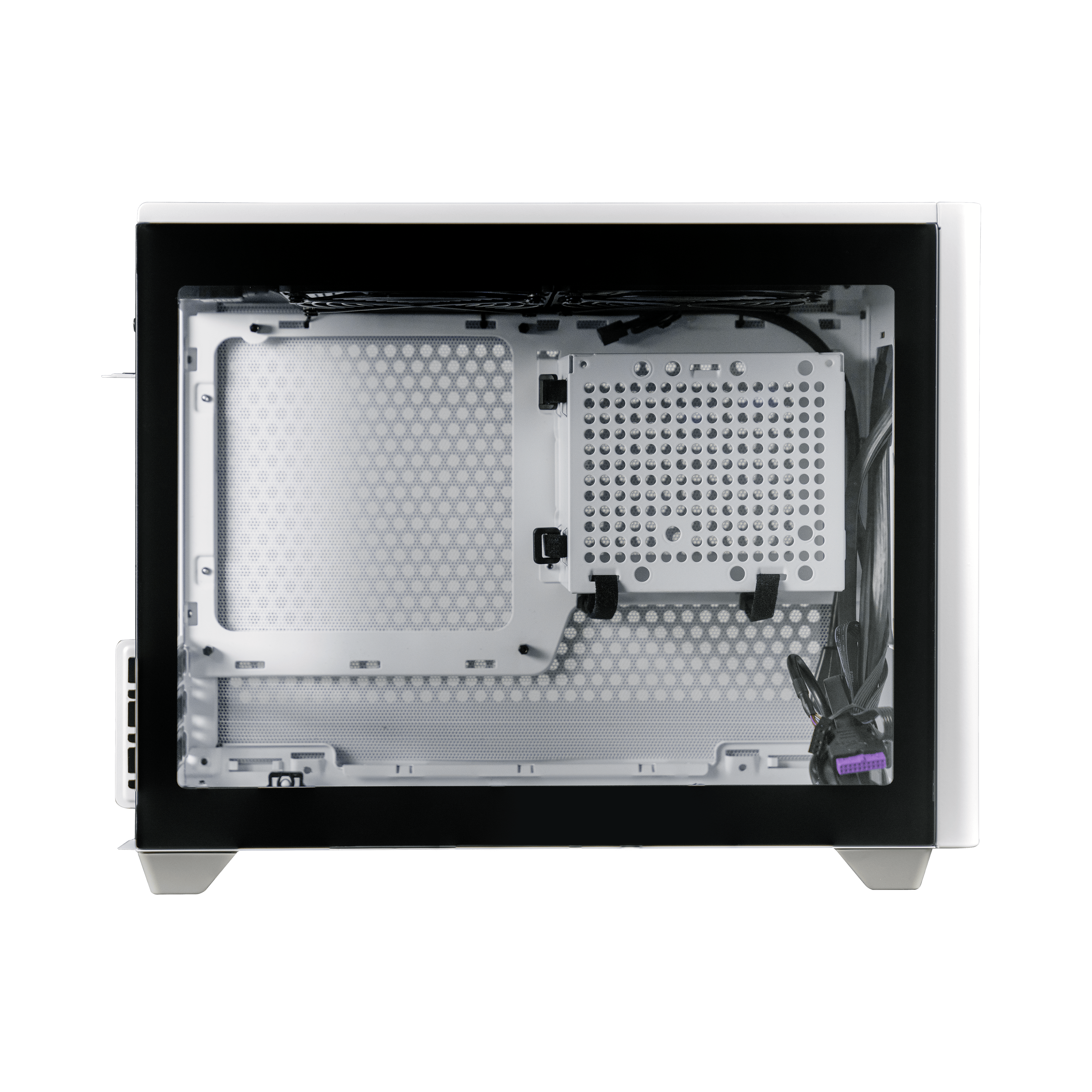

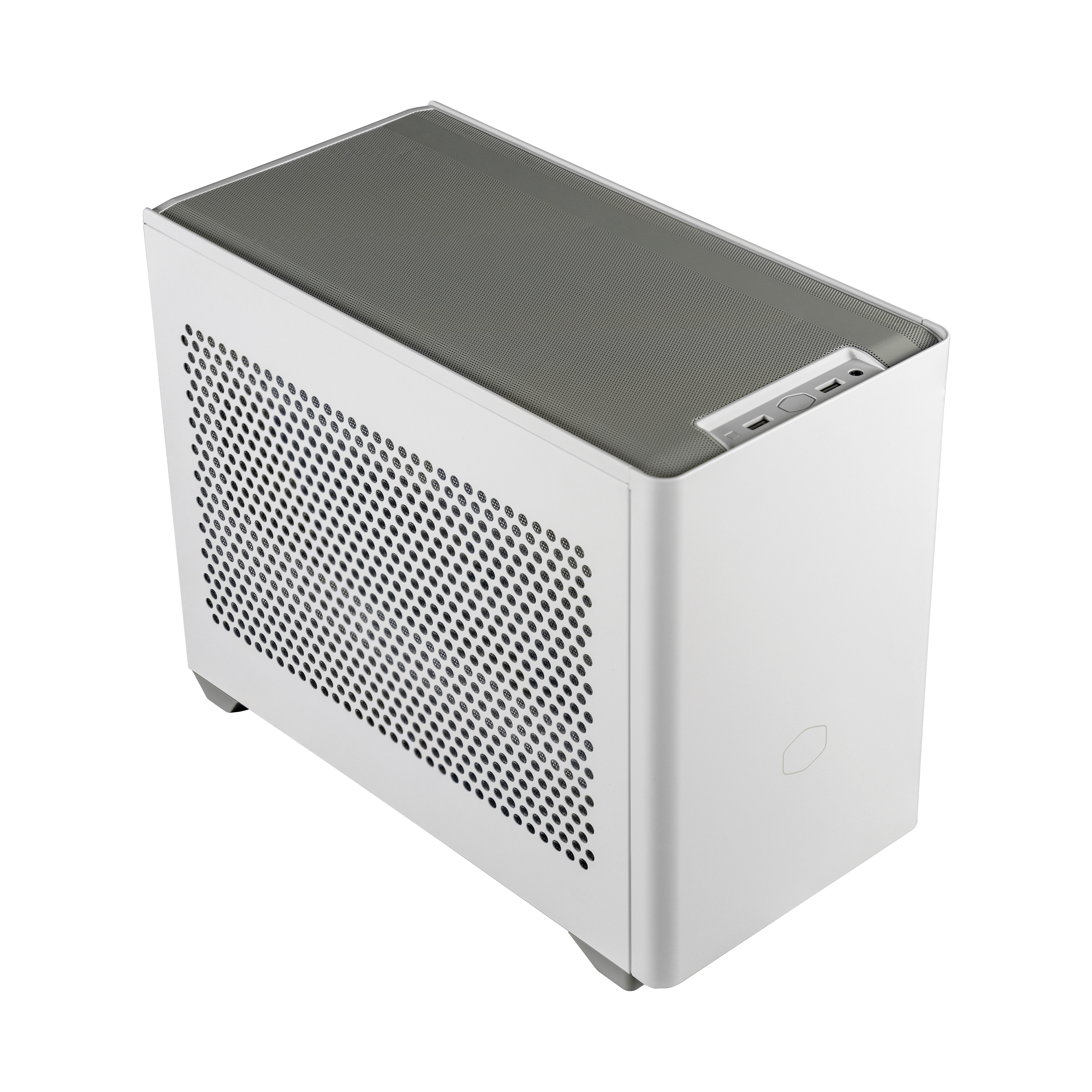

The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast.
A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.
Cooling System
UNRESTRICTED COOLING POTENTIAL
The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can't be held back.
Our Achievements
AWARDS
- Model Number MasterBox NR200P: MCB-NR200P-KGNN-S00, MasterBox NR200P White: MCB-NR200P-WGNN-S00
- Exterior Color Black, White / Grey
- Materials - Exterior SGCC Steel, Mesh, ABS Plastic
- Materials - Left Side Panel Tempered Glass x1, Steel x1
- Dimensions (L x W x H) 376 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions)
- Volume 18.25L (exlc. Protrusions)
- Motherboard Support Mini-ITX, Mini-DTX, Max. size: 244 x 226mm

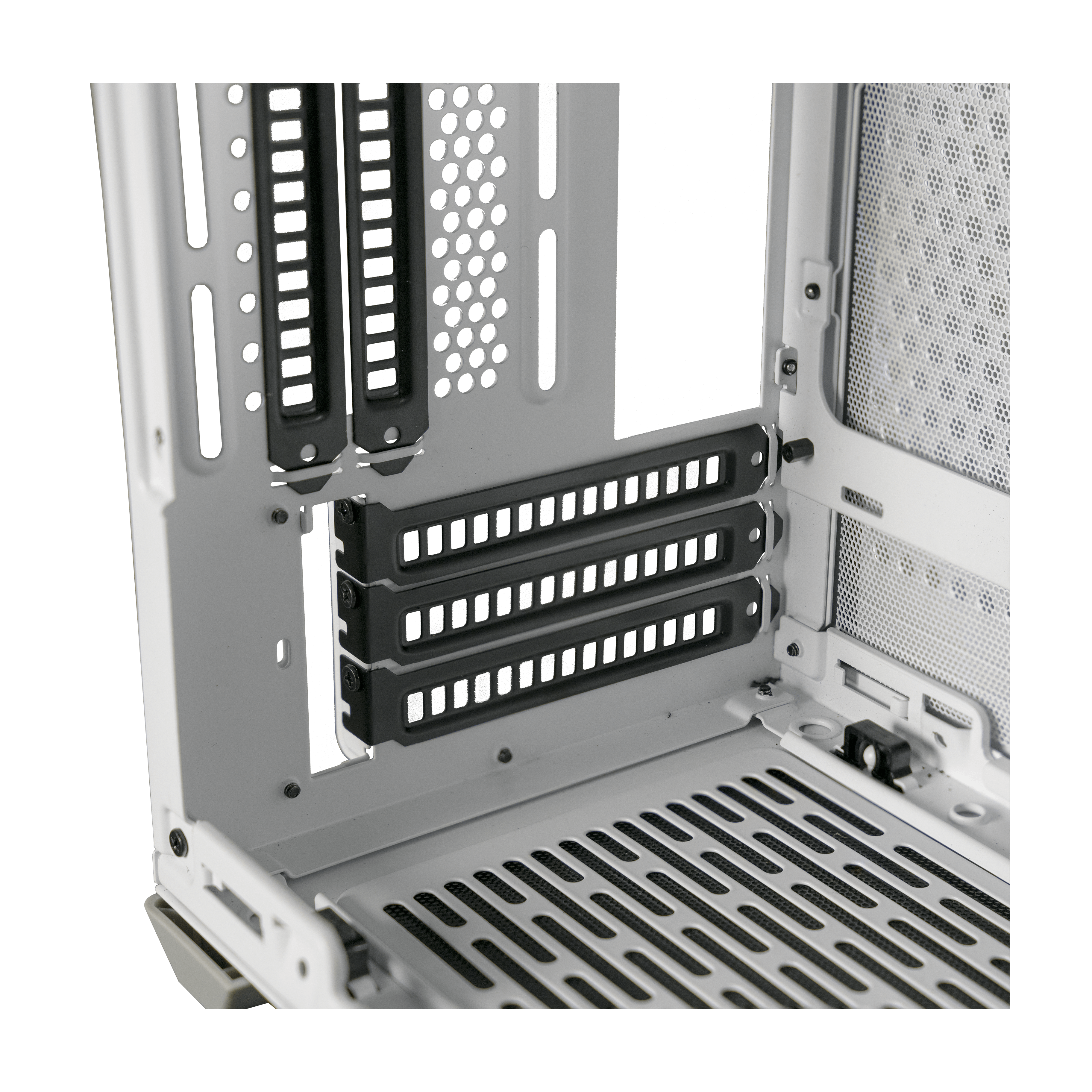

- Expansion Slots 3
- 5.25" Drive Bays 0

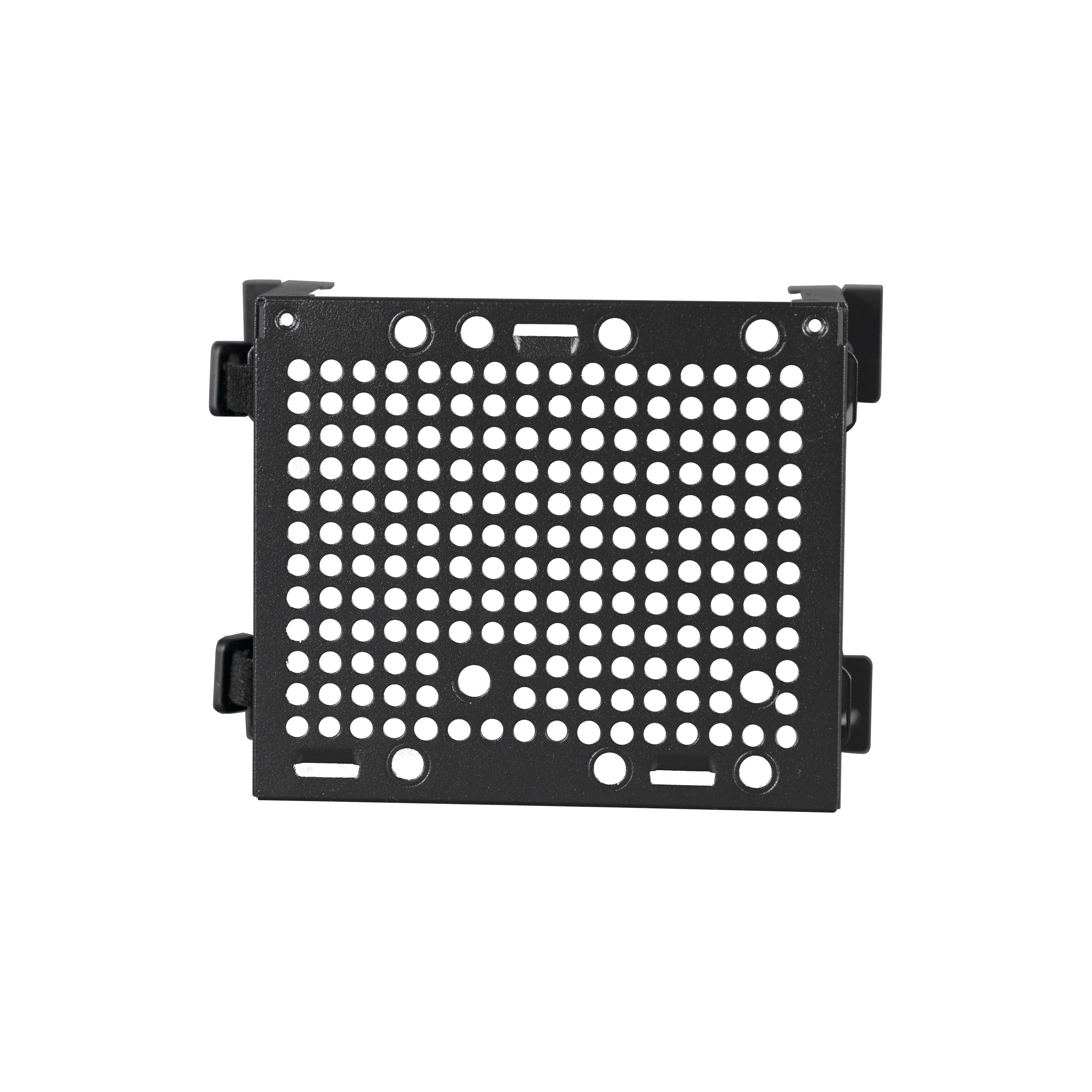

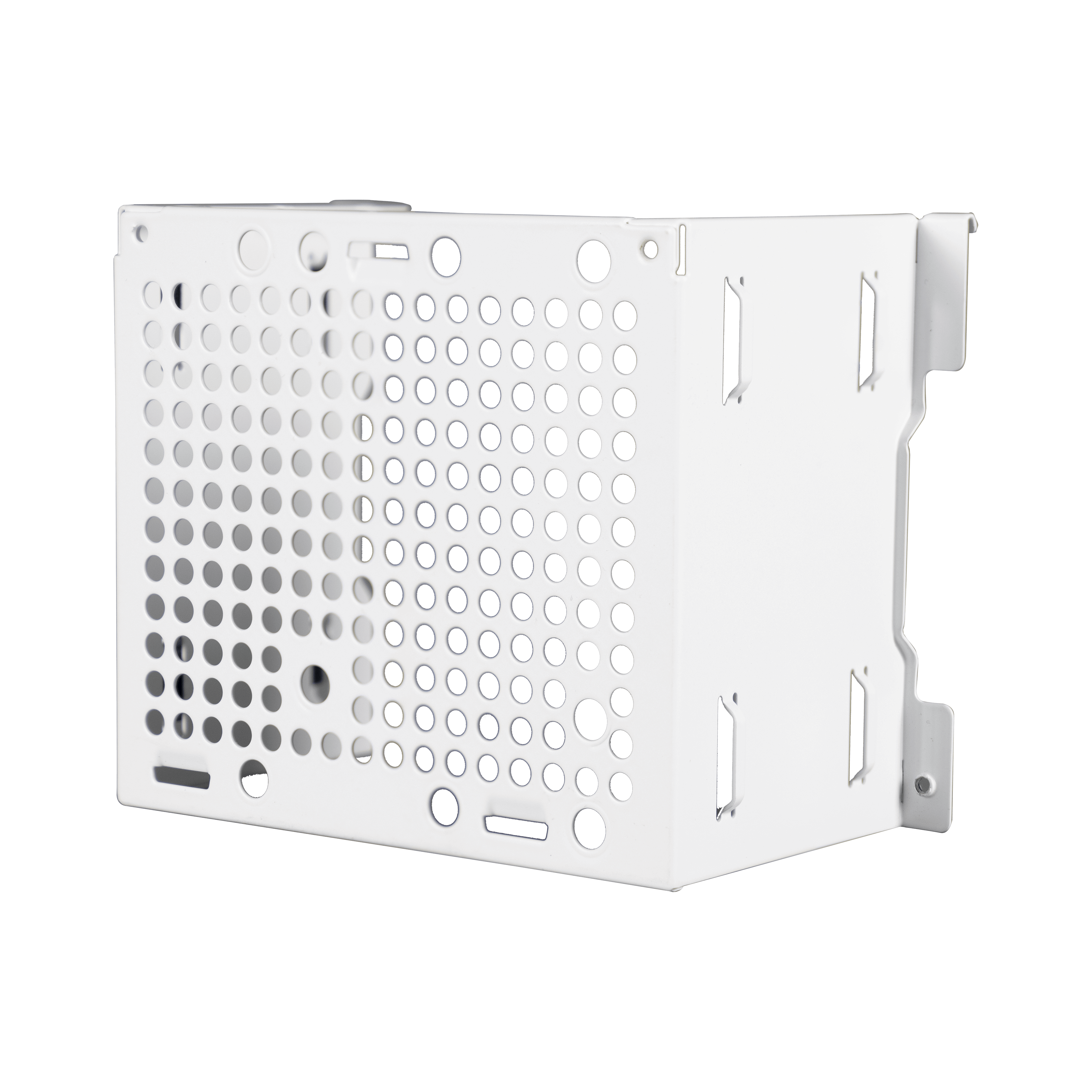

- 3.5" Drive Bays 1 (Max. 2)
- 2.5" / 3.5" Drive Bays (Combo) 1
- 2.5" Drive Bays 2 (Max. 3)
- I/O Panel - USB Ports 2x USB 3.2 Gen 1 (USB 3.0)
- I/O Panel - Audio In / Out 1x 3.5mm Headset Jack (Audio+Mic)
- Accessories 1x PCIe 3.0 x16 riser cable
- Pre-installed Fans - Top 2x 120mm 650-1800RPM PWM (SickleFlow)
- Pre-installed Fans - Front N/A
- Pre-installed Fans - Rear N/A
- Pre-installed Fans - Bottom N/A
- Fan Support - Top 2x 120mm
- Fan Support - Side 2x 120/140mm
- Fan Support - Rear 1x 92mm
- Fan Support - Bottom 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)
- Radiator Support - Top N/A
- Radiator Support - Left side 120 / 140 / 240 / 280mm (not compatible with vertical GPU installation)
- Radiator Support - Rear 92mm (Not Compatible with Vertical GPU Installation)
- Radiator Support - Bottom 120/240mm (recommended only for single slot water-cooled GPUs or vertically mounted GPUs)
- Clearance - CPU Cooler 155mm (vented steel side panel), 153mm (tempered glass side panel), 76mm (GPU in vertical position)
- Clearance - PSU 130mm
- Clearance - GFX L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

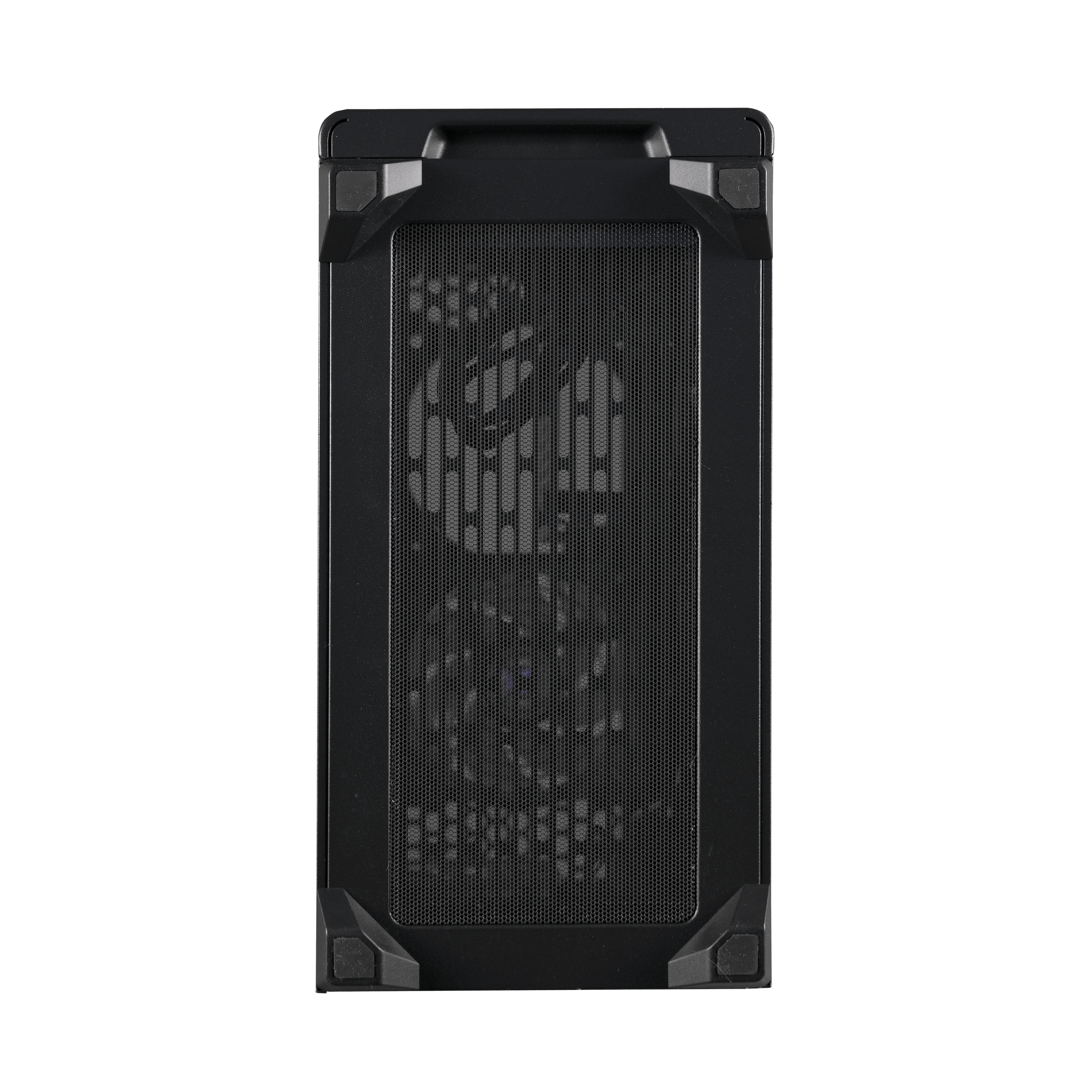

- Dust Filters Bottom, Left, Right, Top Panels
- Power Supply Support SFX, SFX-L
- Warranty 2 years
- Size Mini ITX
- Series MasterBox Series
- Note This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.
- Note Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
