Ports & Slots

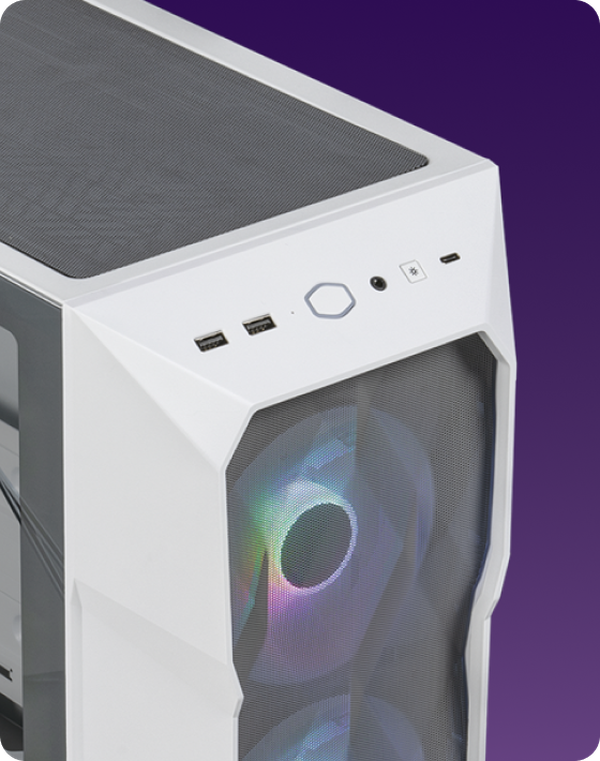

USB 3.2 GEN 2 Type C Support
USB 3.2 Gen 2 Type C port built into the 1/0 panel allows multi-purpose, streamlined data transmission.

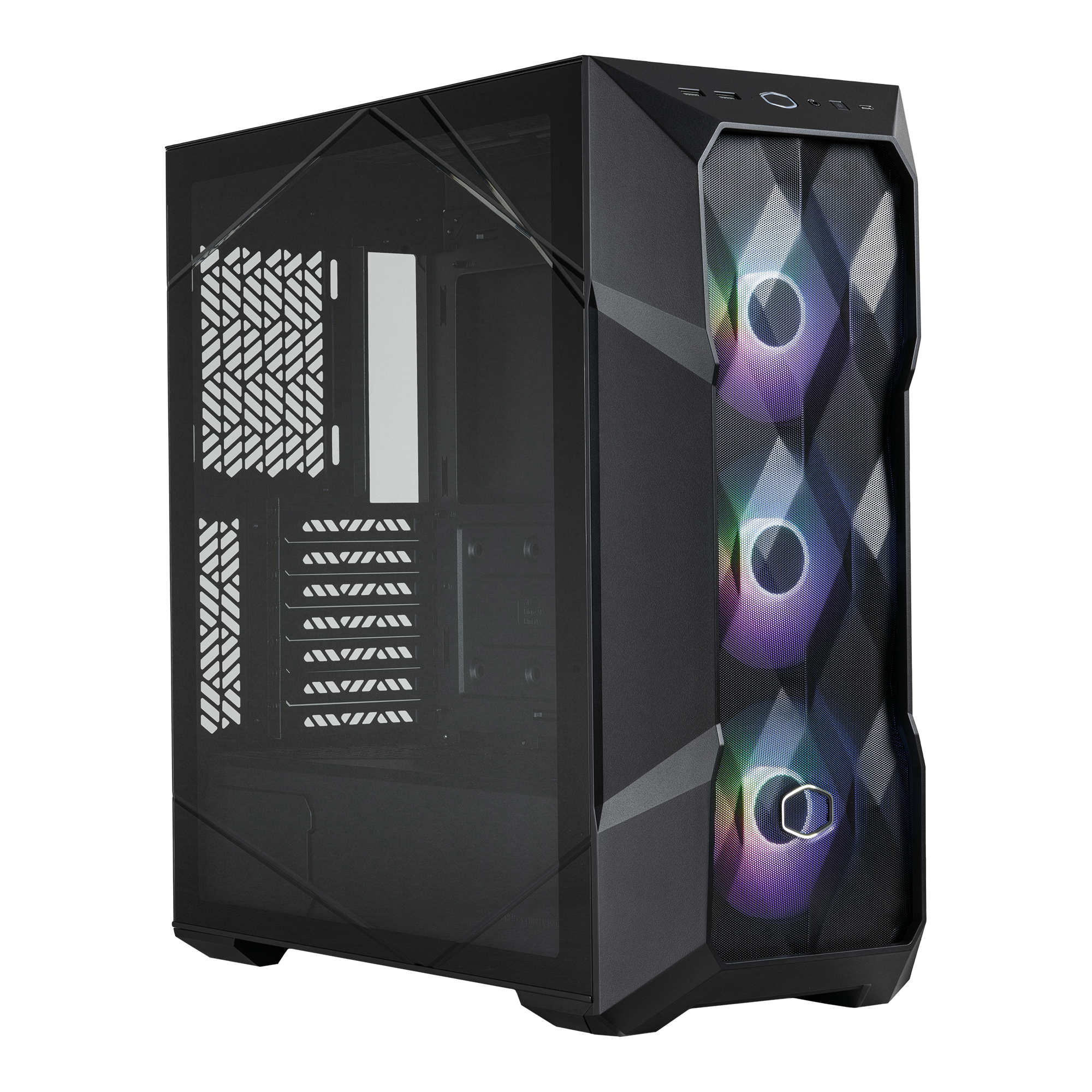

MasterBox TD500 Mesh V2

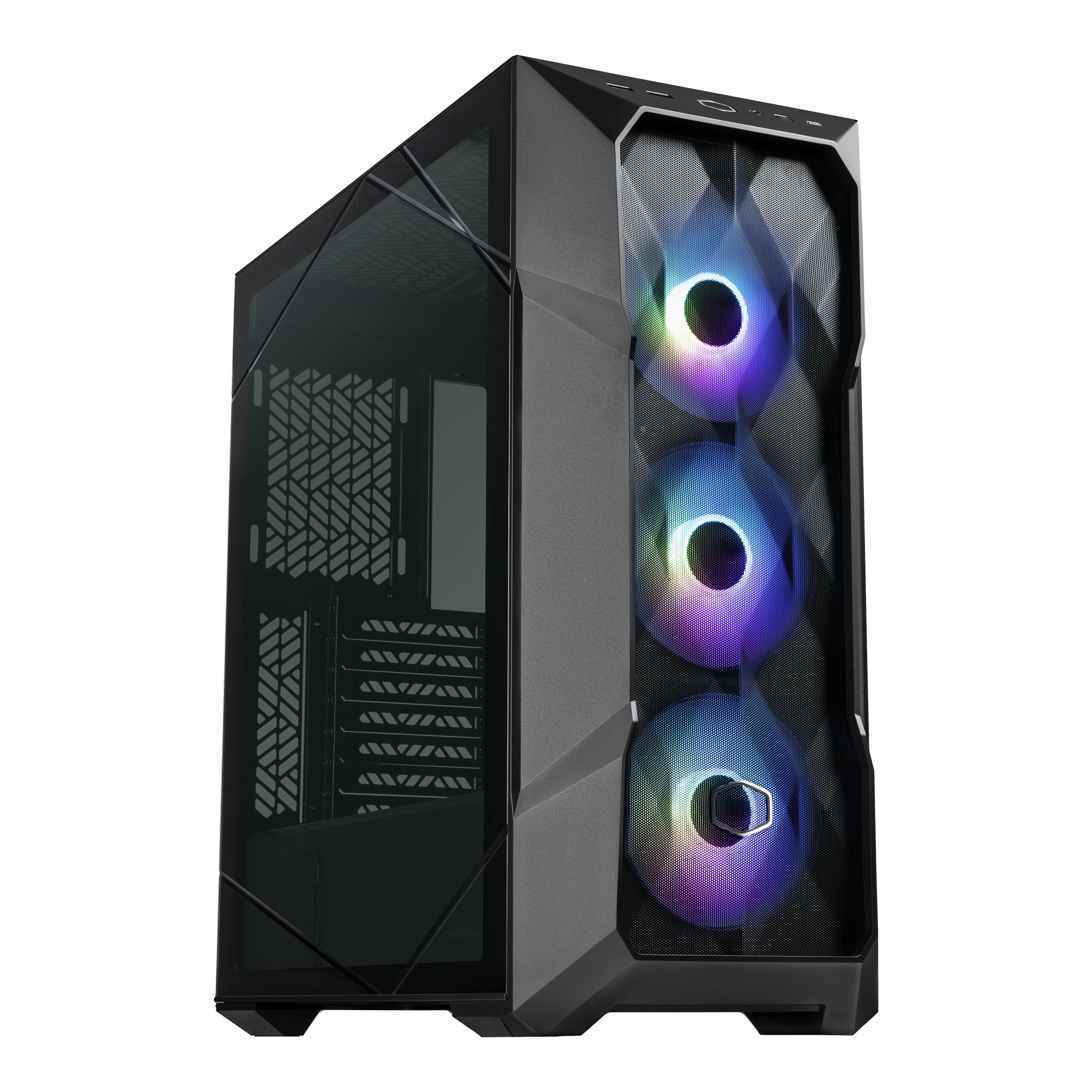

MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.
Color
Availability:
-
Select Styles for Availability
€ 109,99
Design

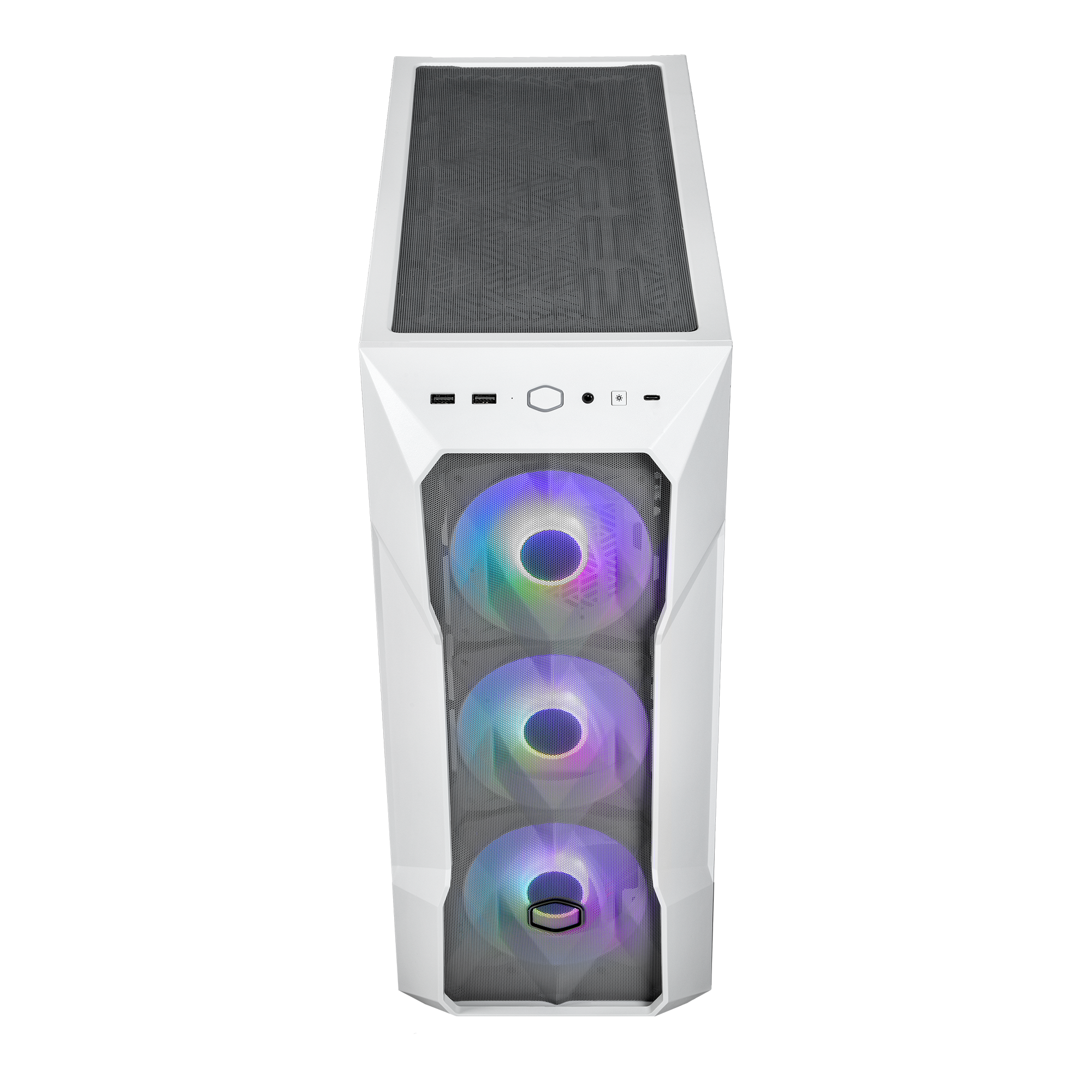

FINEMESH PERFORMANCE FRONT PANEL
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
Colors

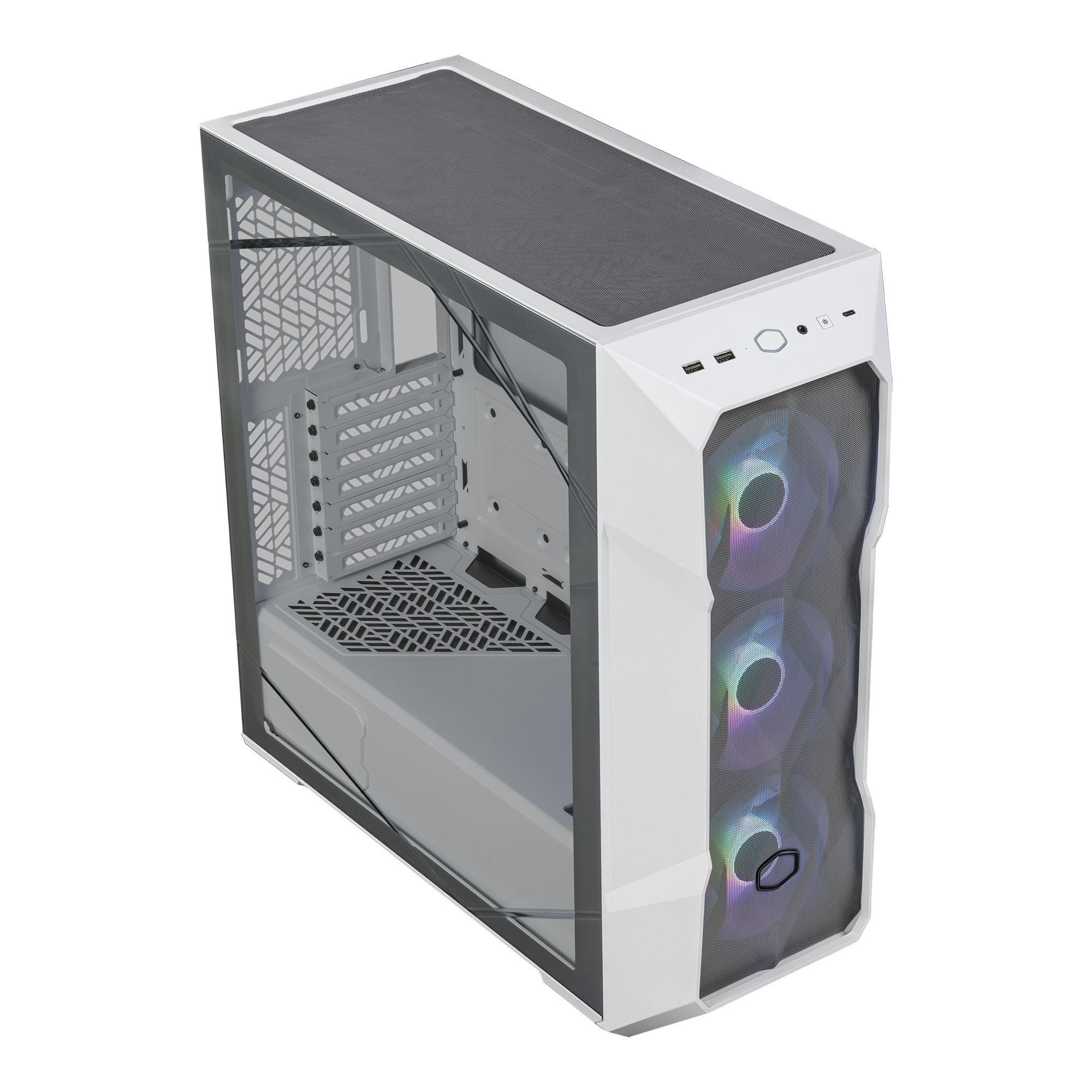

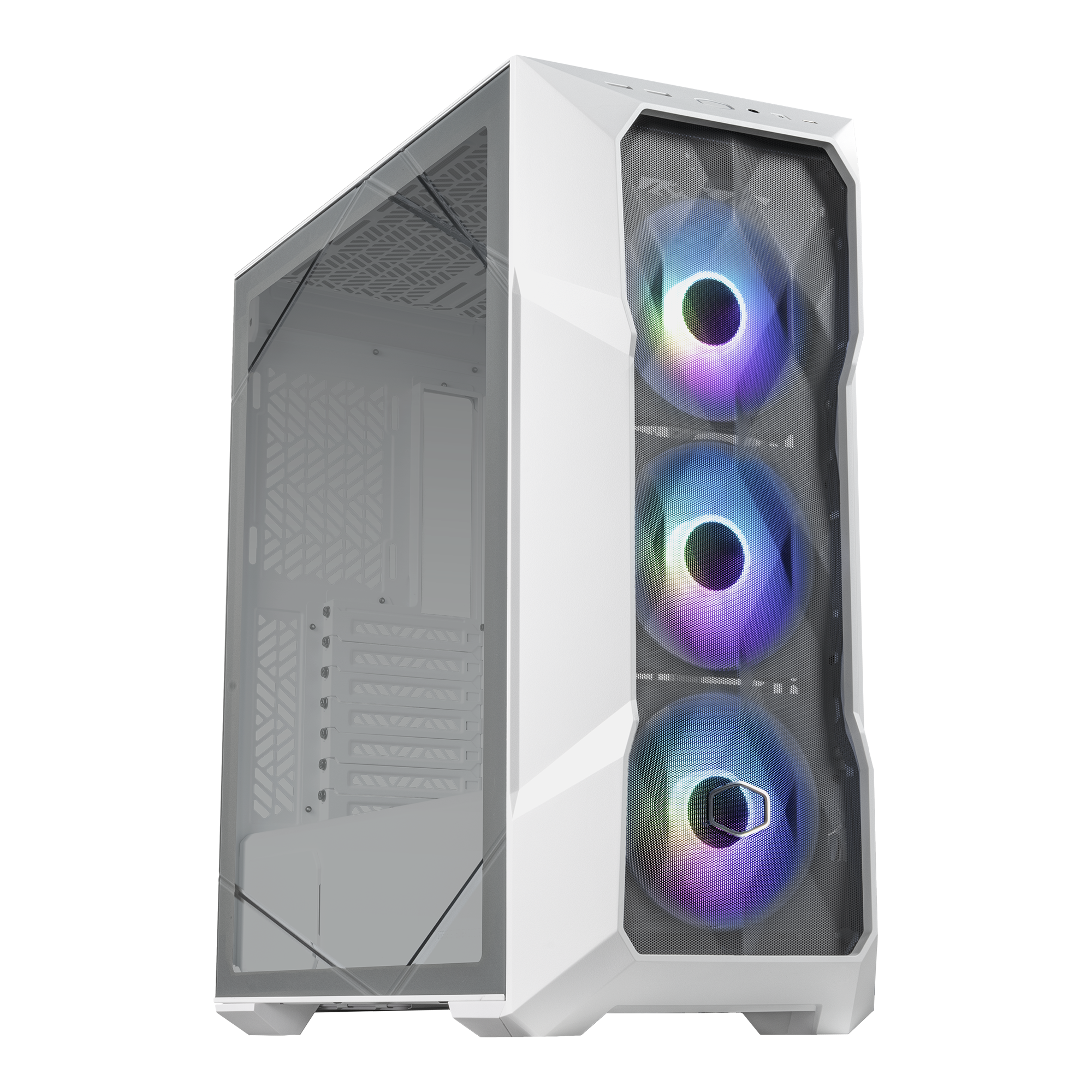

AVAILABLE IN BOTH BLACK & WHITE
Our Achievements
7 AWARDS
Fans

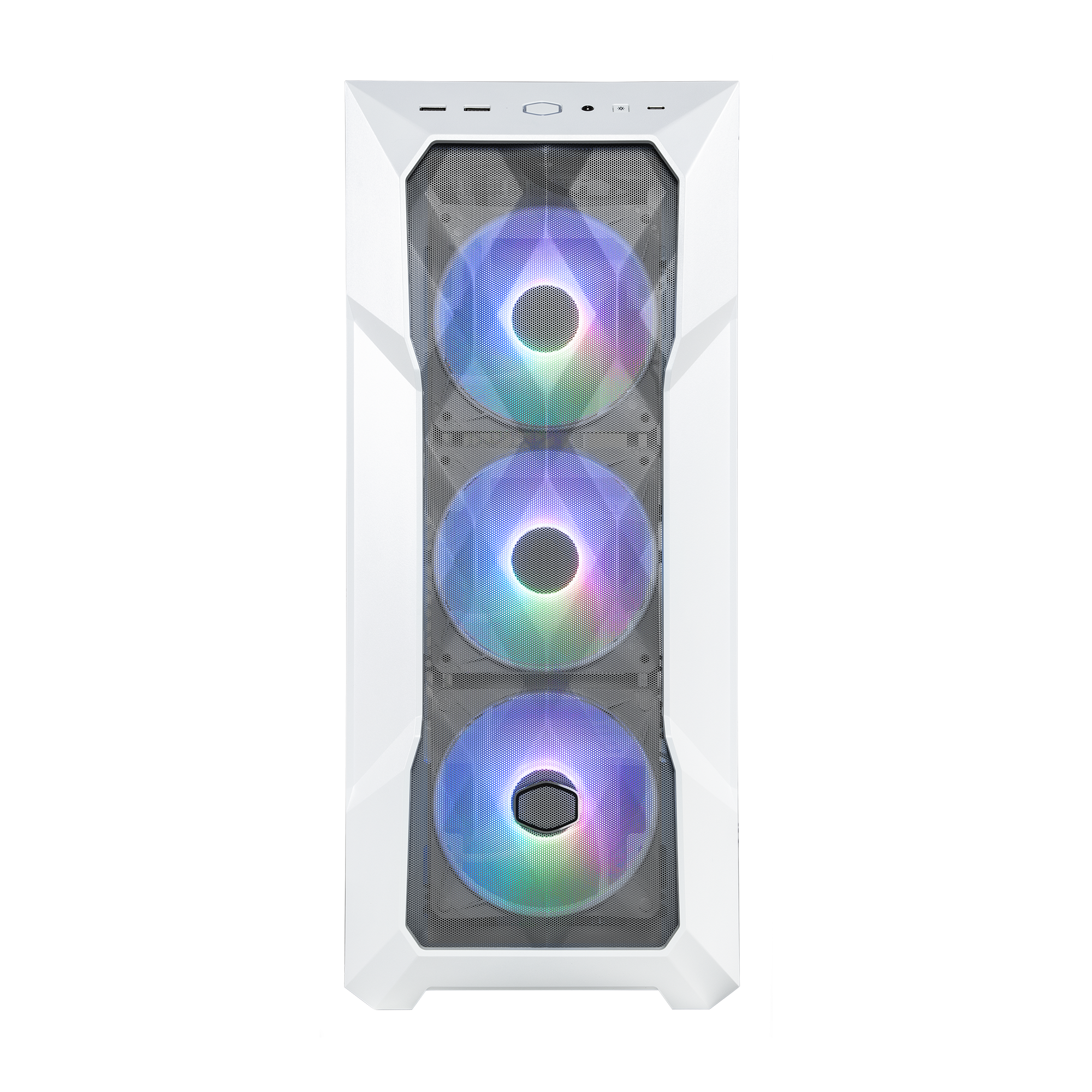

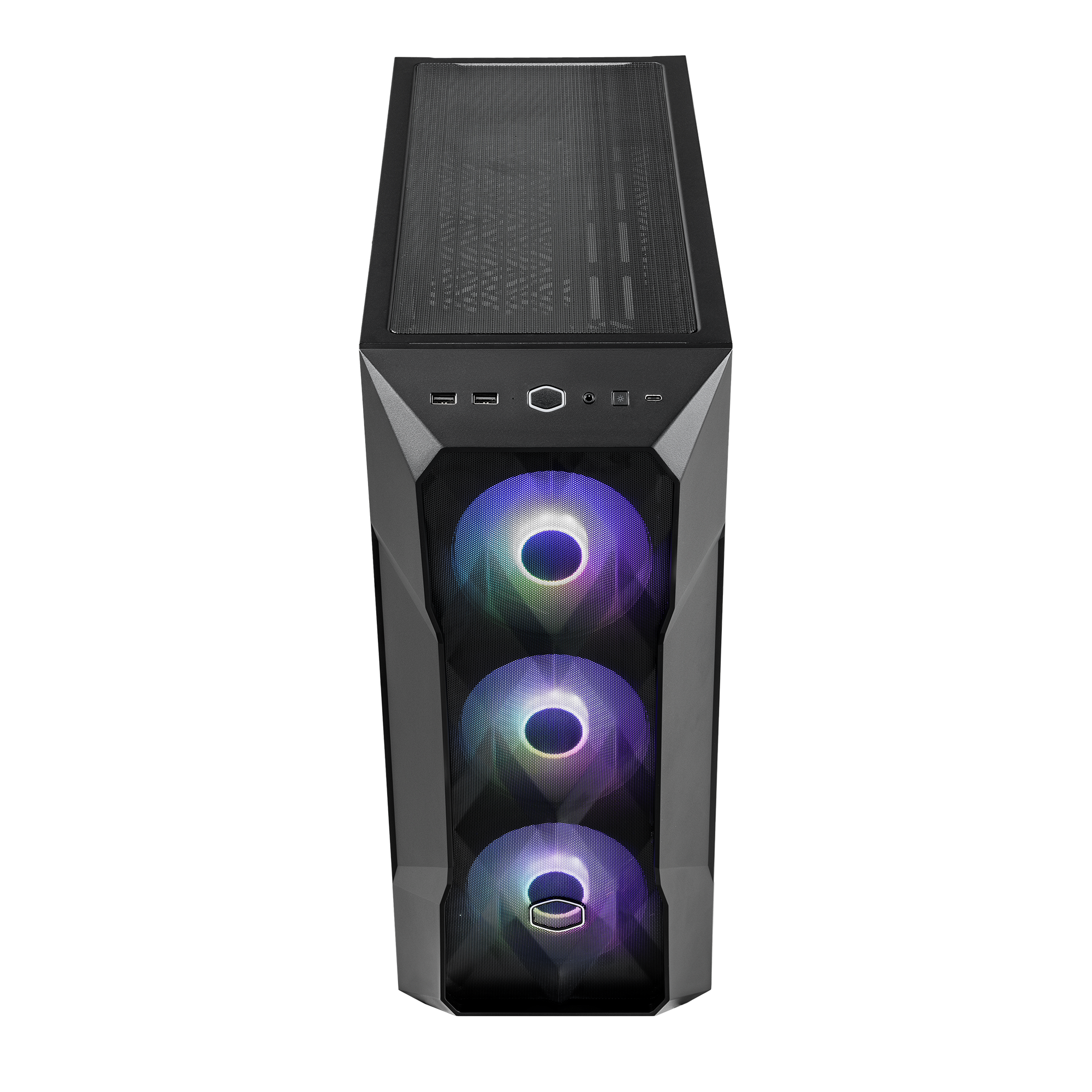

THREE CF120 ARGB FANS INCLUDED

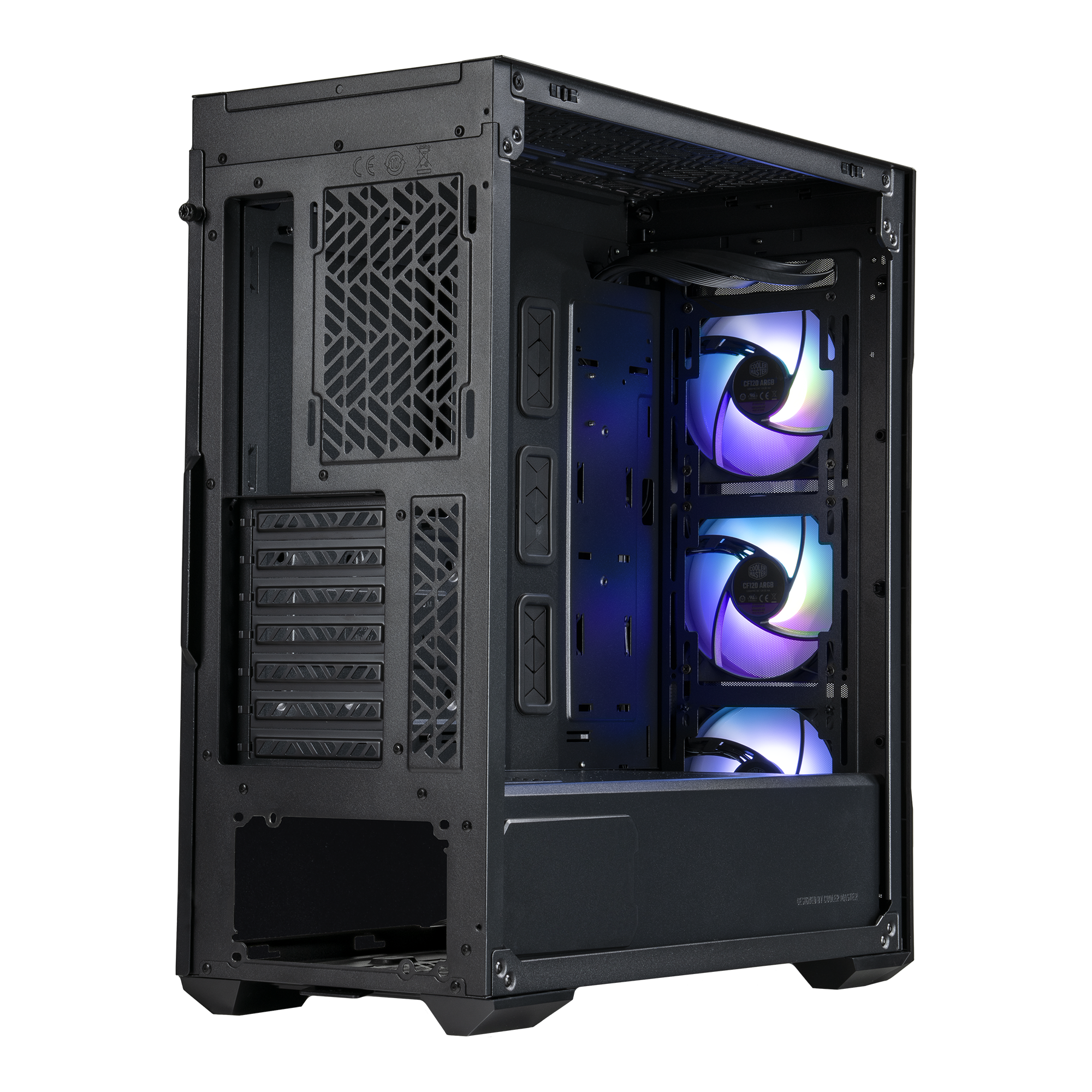

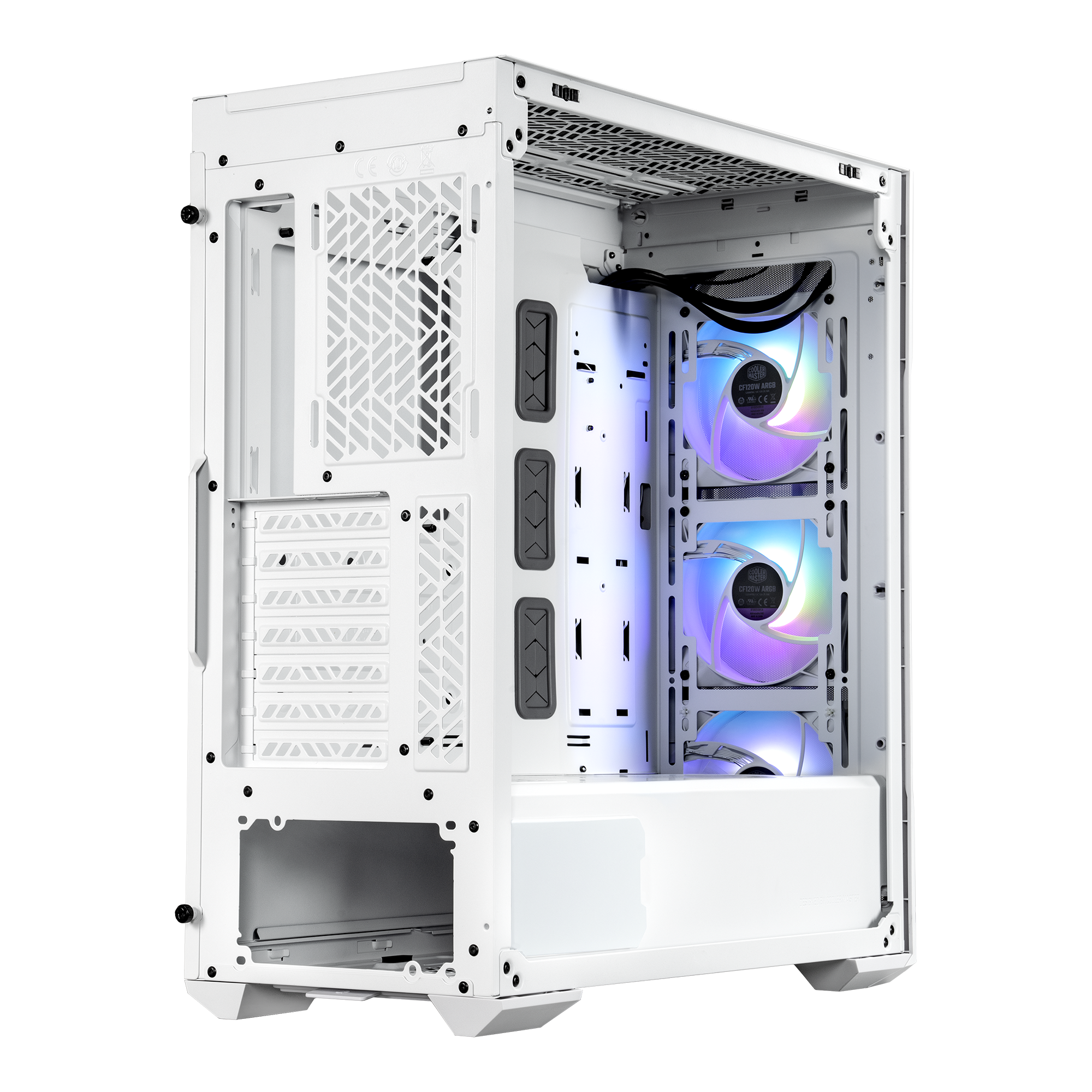

Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
REMOVABLE TOP PANEL
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.
Motherboard
Hardware Compatibility
MasterBox TD500Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".
Customization

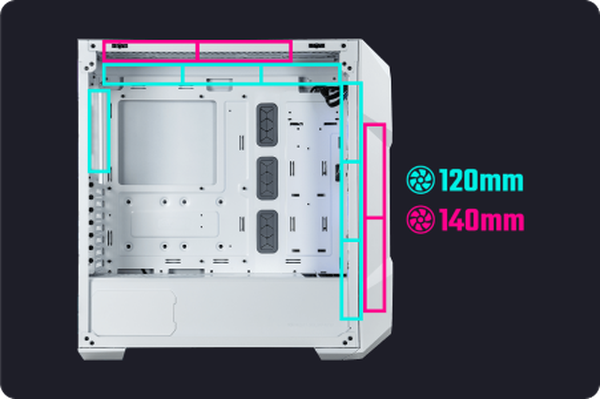

VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and 60mm front and top radiator support nsure that performance is not ompromised.

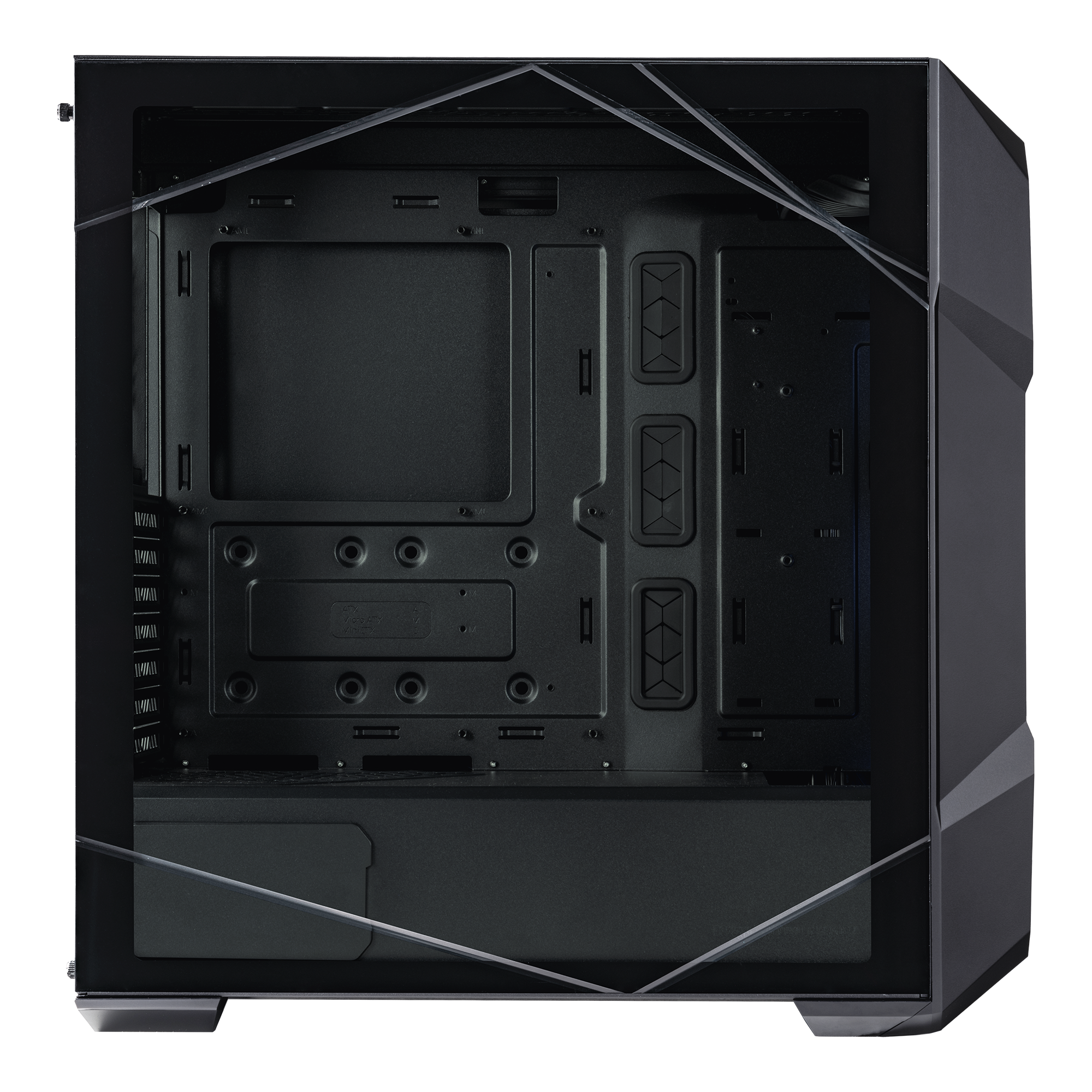

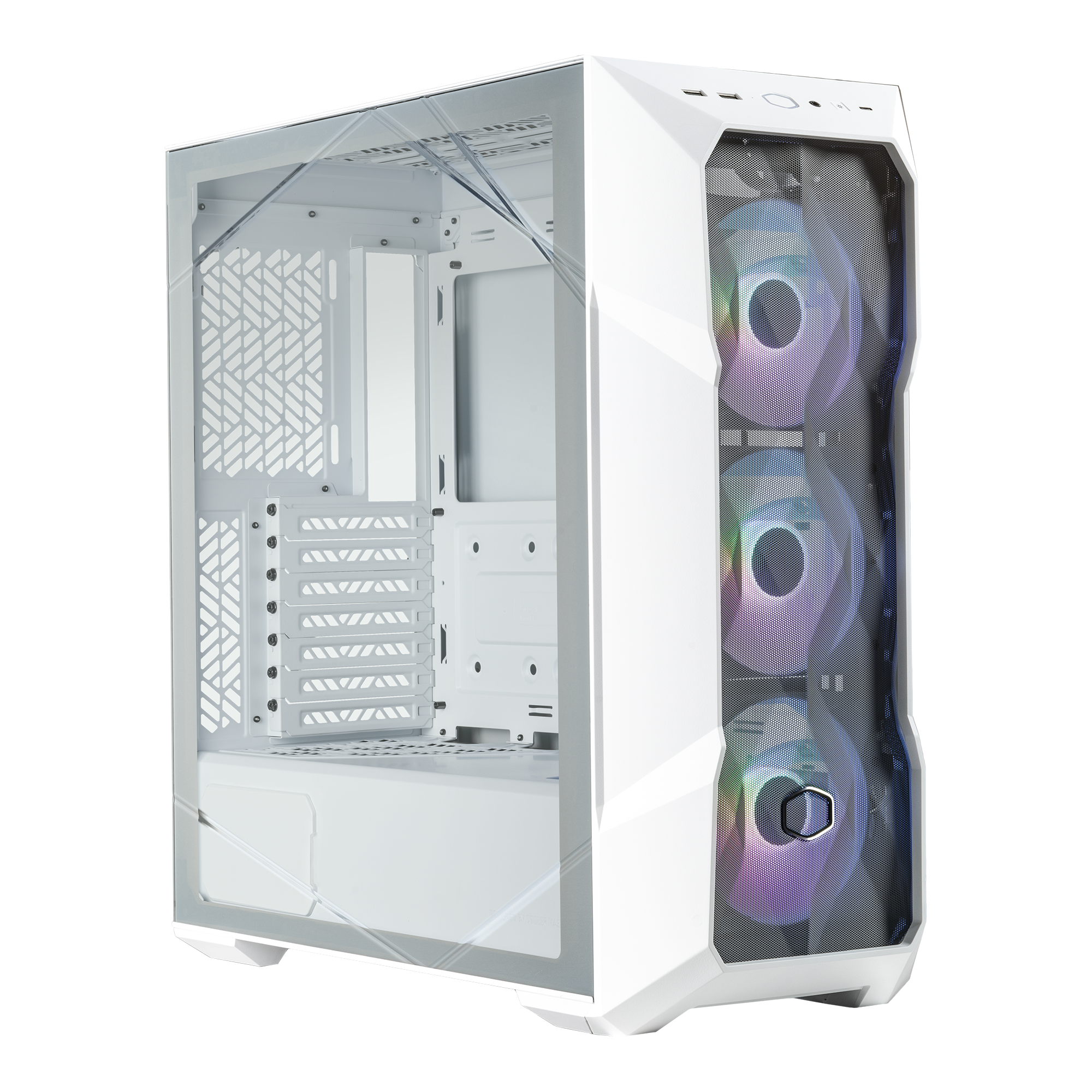

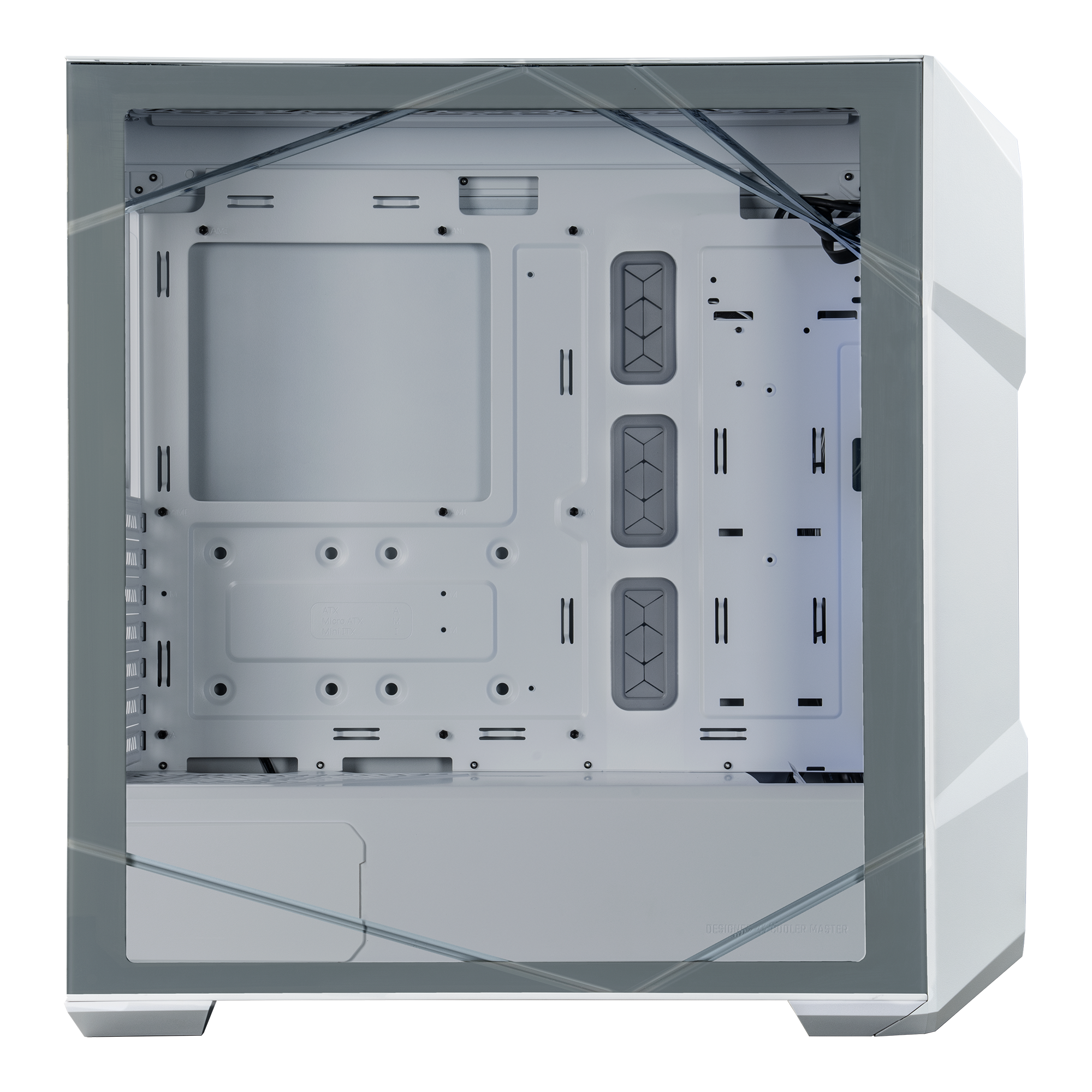

TOOL-FREE CRYSTALLINE TG SIDE PANEL
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.

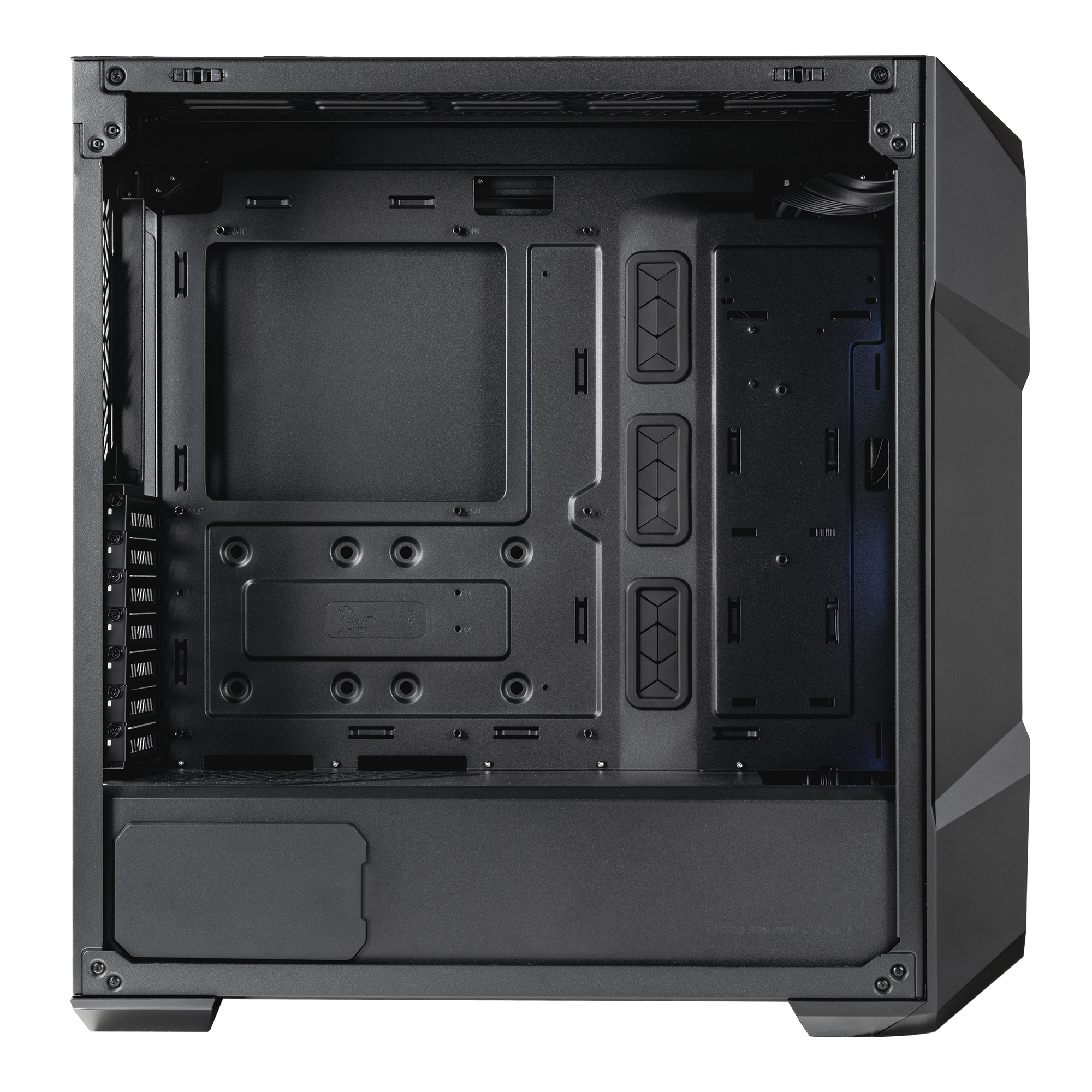

PSU SHROUD WITH REMOVABLE COVER
MasterBox TD500 Mesh V2's removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
- Model Number TD500 Mesh V2: TD500V2-KGNN-S00, TD500 Mesh V2 White: TD500V2-WGNN-S00
- Exterior Color Black, White
- Materials - Exterior Steel, Mesh, Plastic
- Materials - Left Side Panel Tempered Glass
- Dimensions (L x W x H) 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)
- Motherboard Support Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)
- Expansion Slots 7
- 3.5" Drive Bays 2
- 2.5" Drive Bays 3
- I/O Panel - USB Ports 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C
- I/O Panel - Audio In / Out 1x Audio Jack
- I/O Panel - Other 1x ARGB Fan Hub
- Pre-installed Fans - Top N/A
- Pre-installed Fans - Front 3x 120mm CF120 ARGB
- Pre-installed Fans - Rear N/A
- Fan Support - Top 3x 120mm, 2x 140mm
- Fan Support - Front 3x 120mm, 2x 140mm
- Fan Support - Rear 1x 120mm
- Radiator Support - Top 120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)
- Radiator Support - Front 120 / 140 / 240 / 280 / 360mm
- Radiator Support - Rear 120mm
- Clearance - CPU Cooler 165mm
- Clearance - PSU 200mm (Recommended up to 170mm)
- Clearance - GFX 410mm

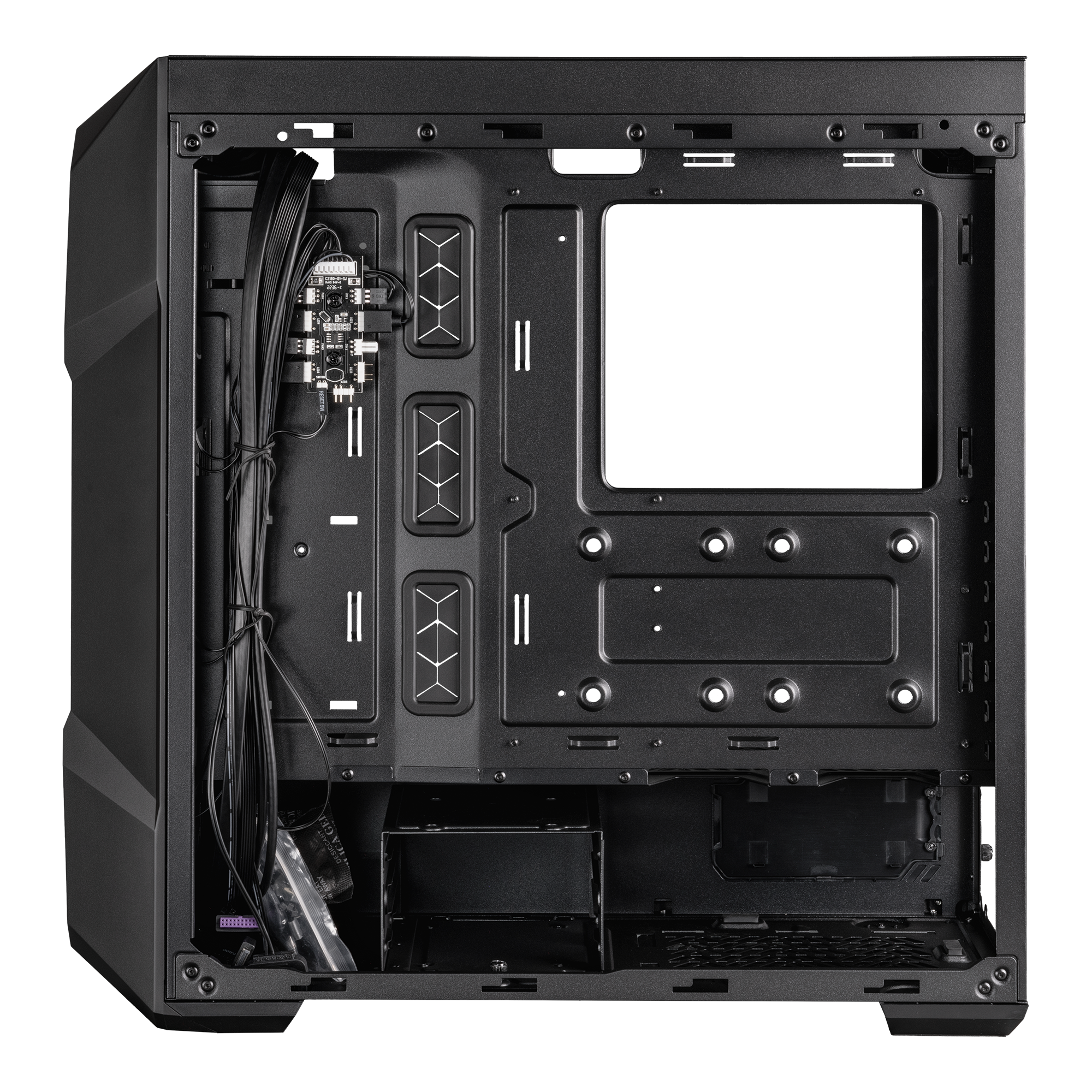

- Cable Routing - Behind Motherboard Tray 19mm / 0.74"
- Dust Filters Front, Top, Bottom
- Power Supply Support Bottom Mount, ATX
- Warranty 2 years
- Size Mid Tower
- Series MasterBox Series
- Back Connector Motherboard Support No
