360 DEGREES OF COOL

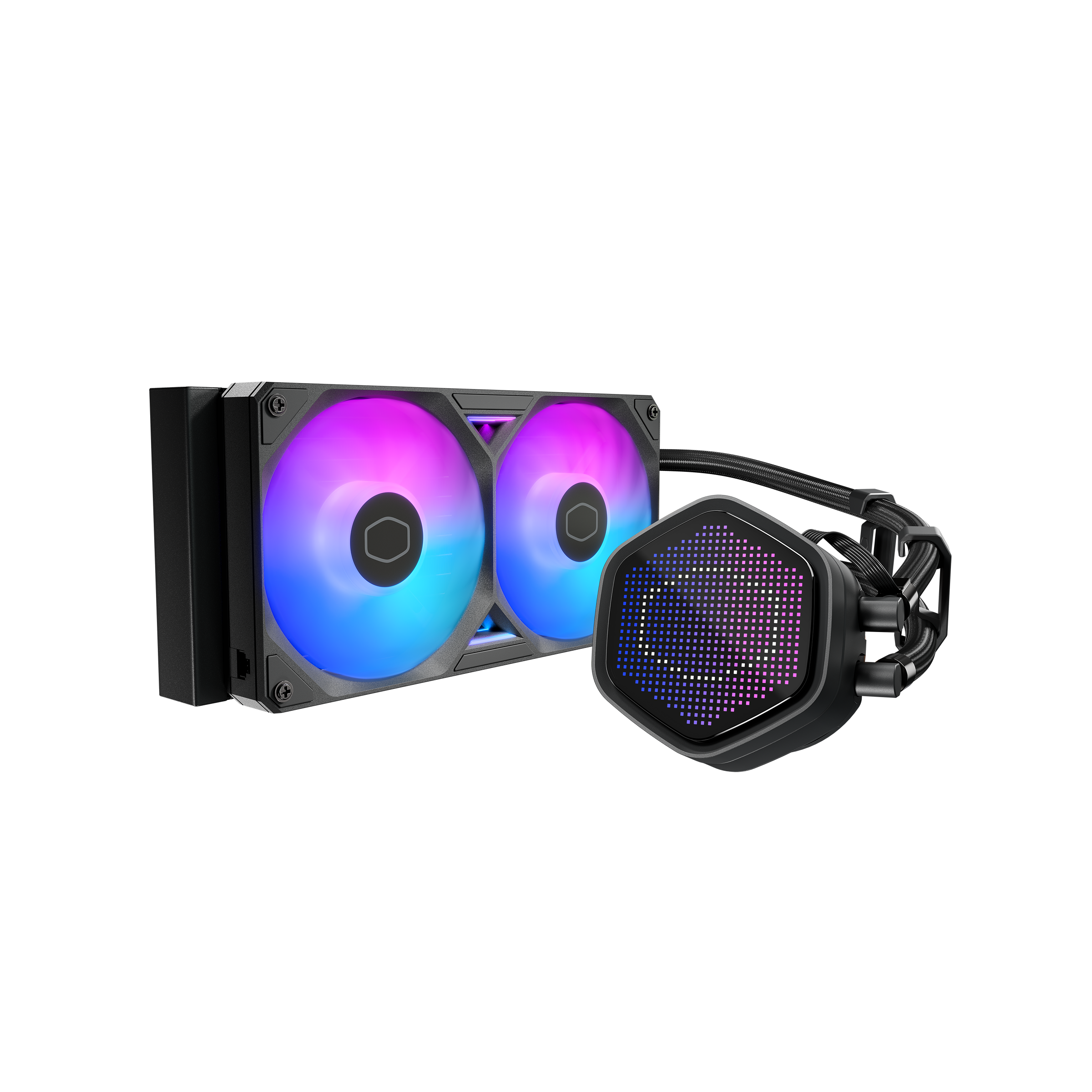

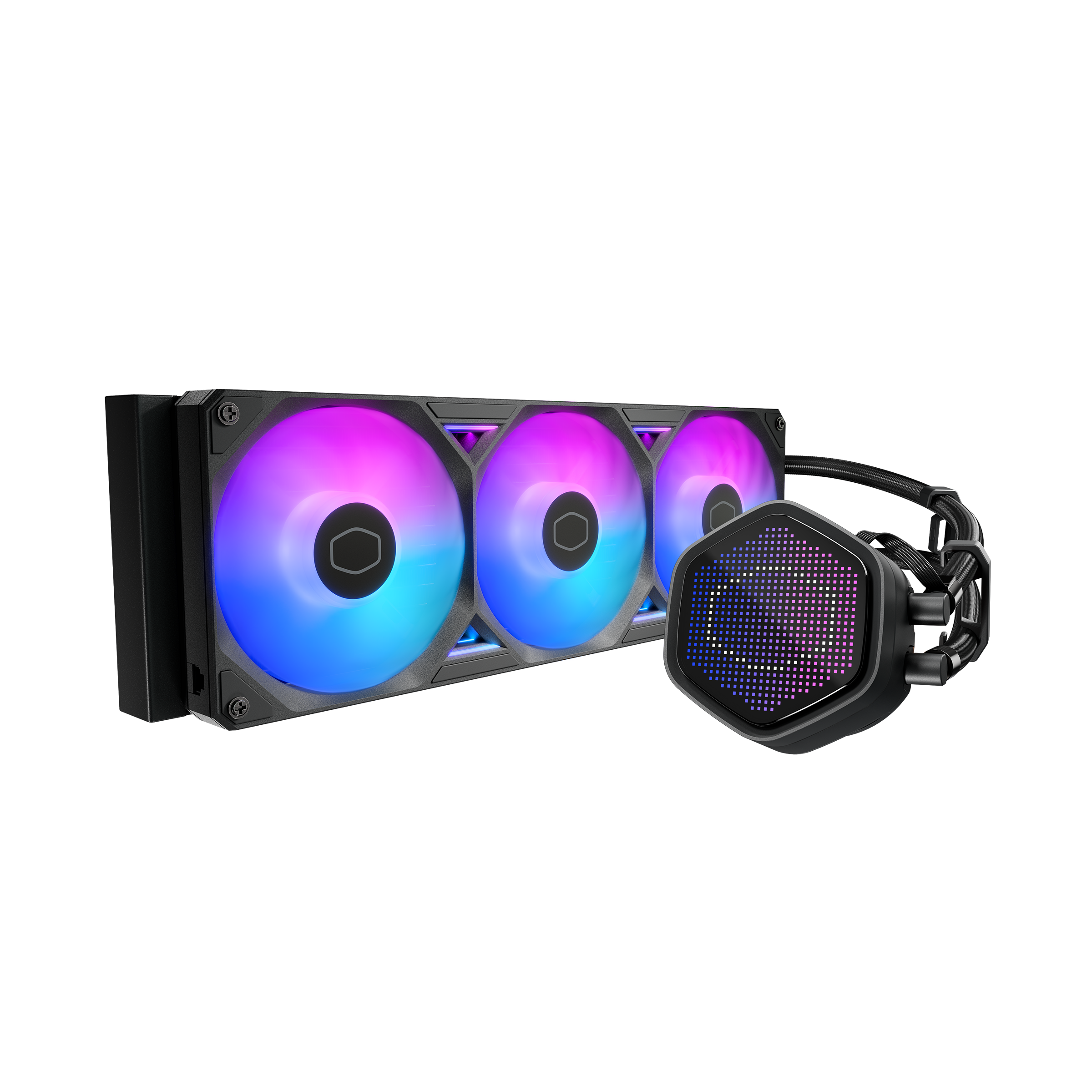

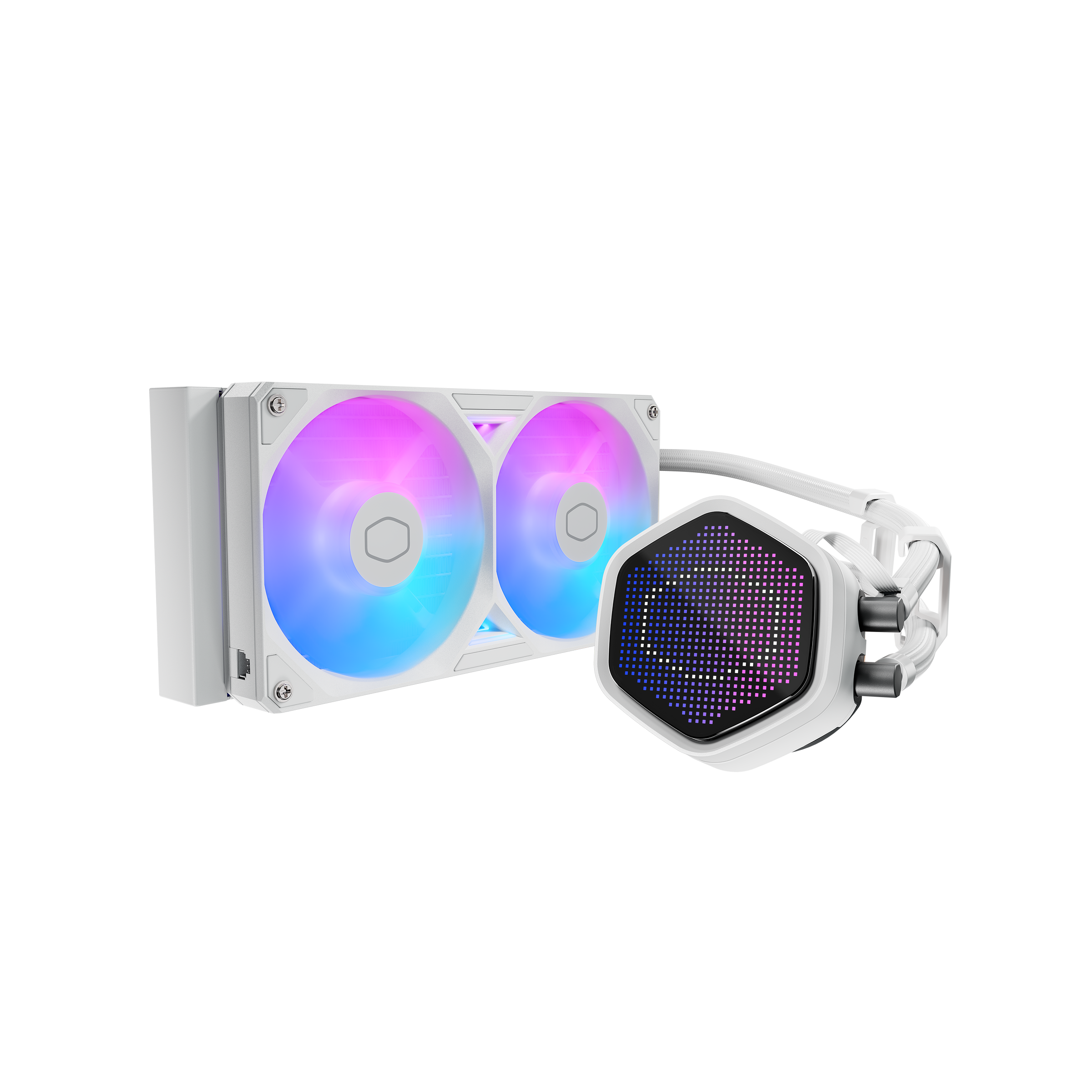

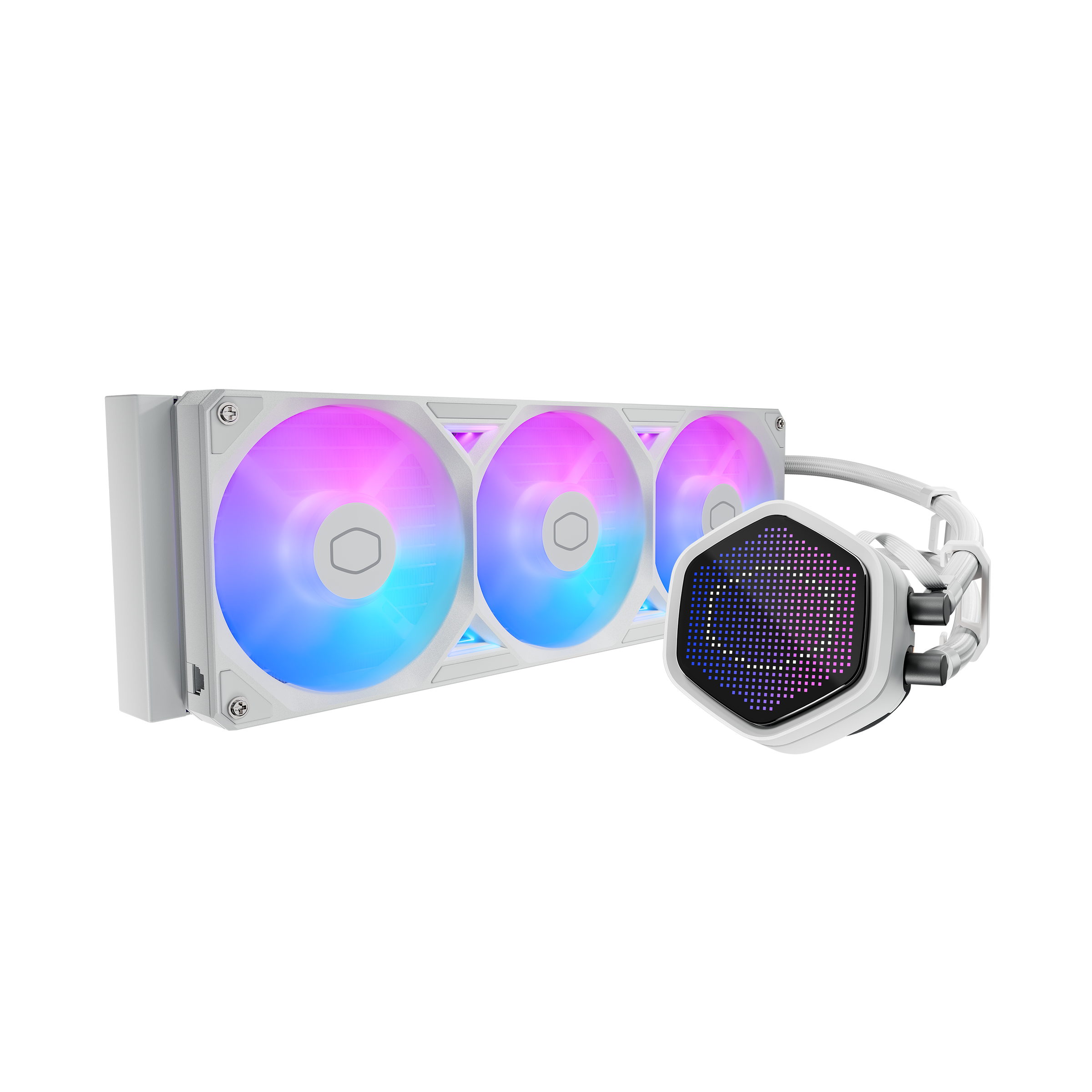

MasterLiquid Atmos II Pixel LED

⬢ Pixel panel for enhanced personalization

⬢ SickleFlow Edge ARGB fans

⬢ Ultra-low profile pump design

⬢ Quick and easy installation

type

Color

Quantity

Availability:

Select Styles for Availability

€ 149,00 - € 159,00

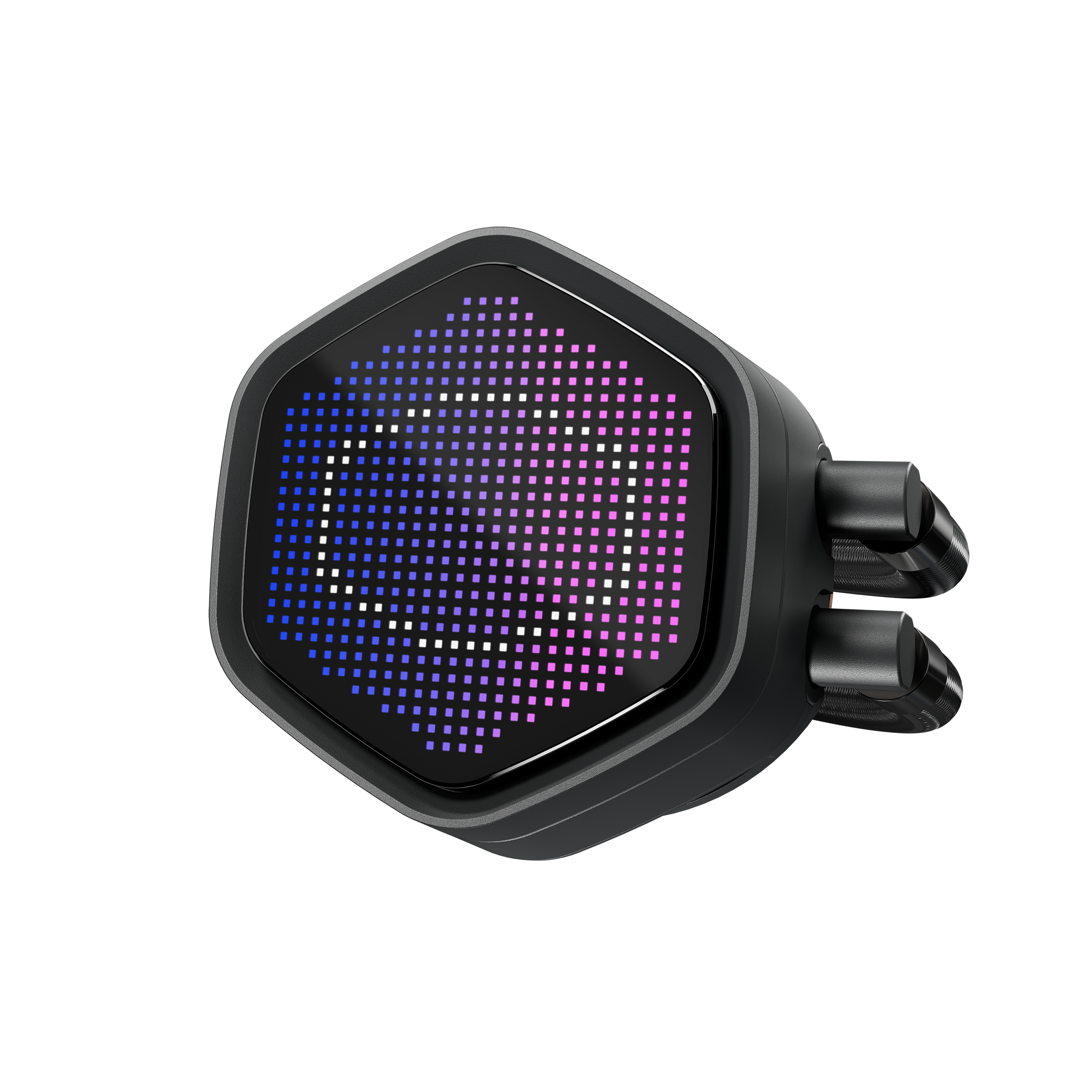

Pixel LED

The Pixel LED panel also integrates custom patterns and system information via the MasterCTRL software.

USB-C Connector

Resolution

Pixel Editor

Cooling System

DUAL CHAMBER DESIGN

Patented design

Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

DUAL CHAMBER DESIGN

Improved Quality

Fully automated production and assembly of the pump with fully recorded production history.

Tough. Reliable. Built to Endure.

Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability—designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70°C for 3,000 hours and 120 °C for 12 hours*, ensuring reliable performance under the harshest conditions.

*Tested by Cooler Master Lab using only the liquid cooling module. Results may vary by system and conditions.

ULTRA-LOW PROFILE PUMP DESIGN

The flat design allows installation in cases of different sizes while maintaining strong performance.

QUICK AND EASY INSTALLATION

A quick-mount kit ensures compatibility with mainstream processor sockets and the pre-installed fans simplify setup.

Offset Mounting Brackets for LGA 1851

Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851*, which precisely dissipate 4°C of heat from the center of the CPU.**

*Please check whether your motherboard is compatible with this offset bracket.

**Tested by Cooler Master Lab.

INCLUDED CRYOFUZE

THERMAL PASTE

TUBE CLIPS INCLUDED

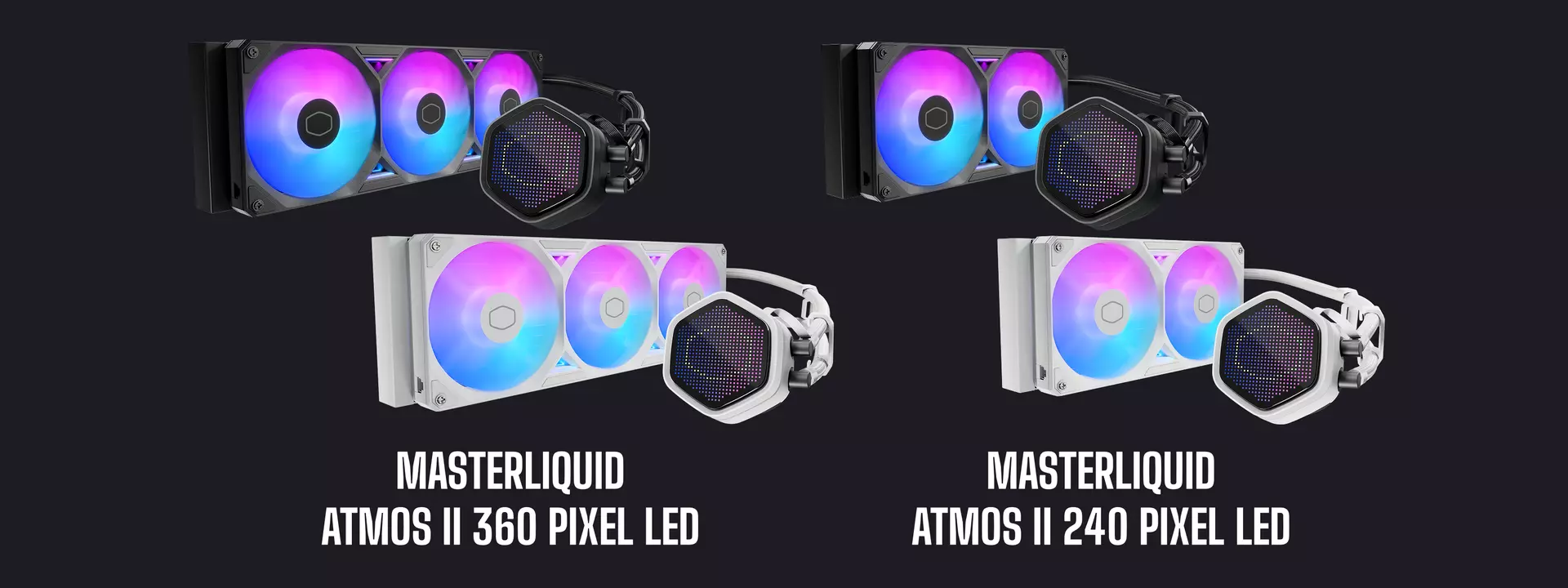

Product Number (240 Pixel LED Black) MLX-D24M-A25SZ-P1, (240 Pixel LED White) MLX-D24M-A25SZ-PW, (360 Pixel LED Black) MLX-D36M-A25SZ-P1, (360 Pixel LED White) MLX-D36M-A25SZ-PW (*SKU may vary by region)
CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU Socket AMD® AM5 / AM4
Radiator Material Aluminum
Radiator Dimensions (240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)
Radiator Dimensions (360) 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
Pump Dimensions 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump Profiles Addressable Gen2 RGB
Pump Speed 3400 ± 300 RPM
Pump MTTF >210,000 Hours
Pump Noise Level 25 dBA (Max)
Pump Rated Voltage 12 VDC
Pump Power Consumption 3.84 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Tube Length (240) 350 mm
Tube Length (360) 400 mm
Fan Dimensions (L x W x H) (240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Fan Dimensions (L x W x H) (360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
Profile Addressable Gen 2 RGB
Fan Quantity 1 PC
Fan Speed 690 ~ 2500 RPM ± 15%
Fan Airflow (240) 240.35 m³/h (141.4 CFM)
Fan Airflow (360) 322.8 m³/h (190 CFM)
Fan Air Pressure 3.61 mmH2O
Fan MTTF >160,000 Hours
Fan Noise Level (240) 36 dB(A)
Fan Noise Level (360) 38.5 dB(A)
Fan Bearing Type Loop Dynamic Bearing
Fan Connector 7-Pin PWM + ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.5 A
Fan Safety Current 0.8 A
Fan Power Consumption 6 W
Radiator Size 240
Radiator Size 360
Cooler Type Liquid Cooler
Series MasterLiquid
Pixel LED Exterior Color Black / White
Pixel LED Dimensions 85 x 79.2 x 16 mm (3.4 x 3.1 x 0.6 inch)
Pixel LED Connector USB Type-C to Motherboard 9 pin
Pixel LED Screen Resolution 28 x 26 px (556 px)
Pixel LED Screen Orientation Software-MasterCTRL adjustable
Pixel LED Rated Voltage 5 VDC
Pixel LED Rated Current 0.5 A
Pixel LED Safety Current 5.0 A
Pixel LED Power Consumption 2 W
Warranty 6 years

MasterLiquid Atmos II Pixel LED
