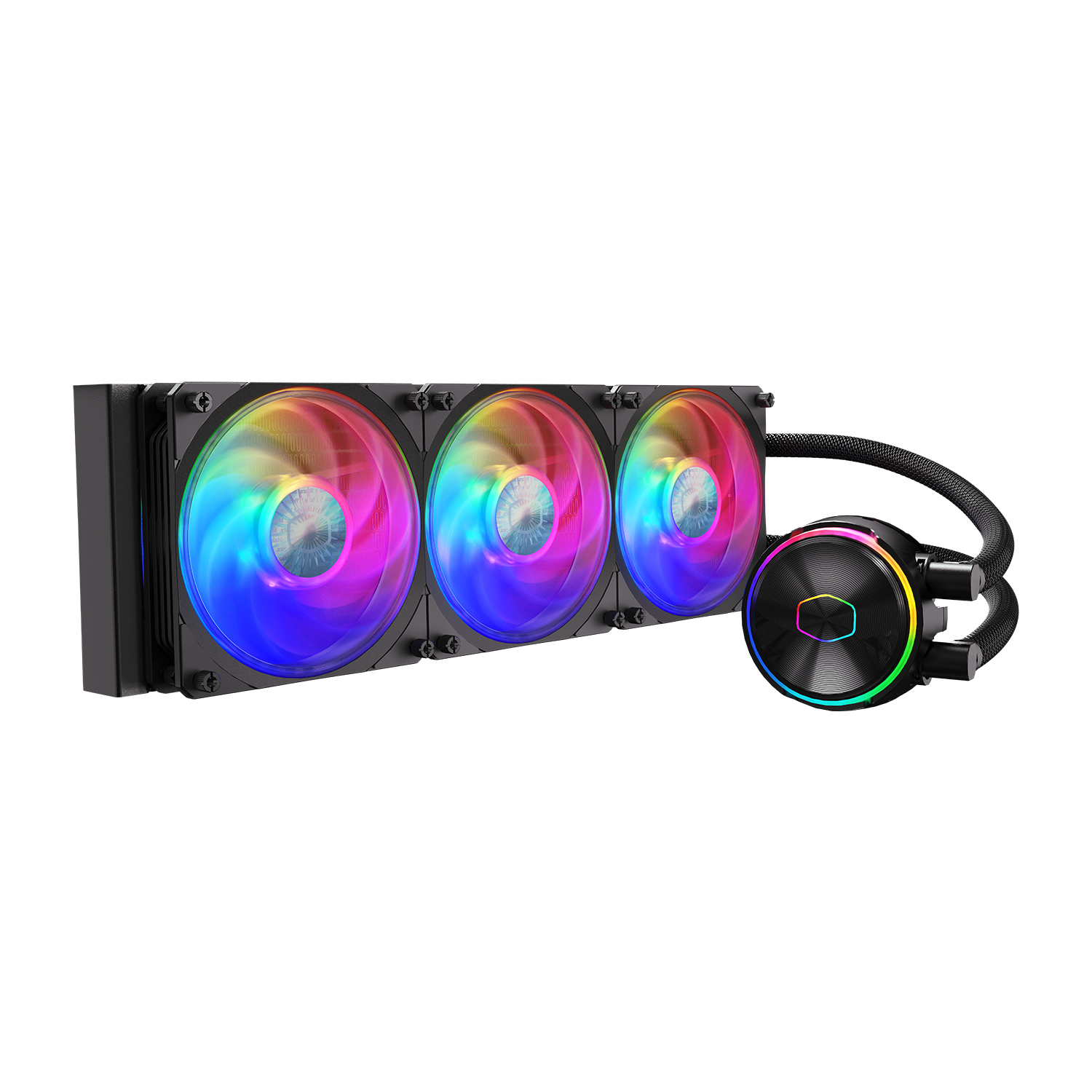

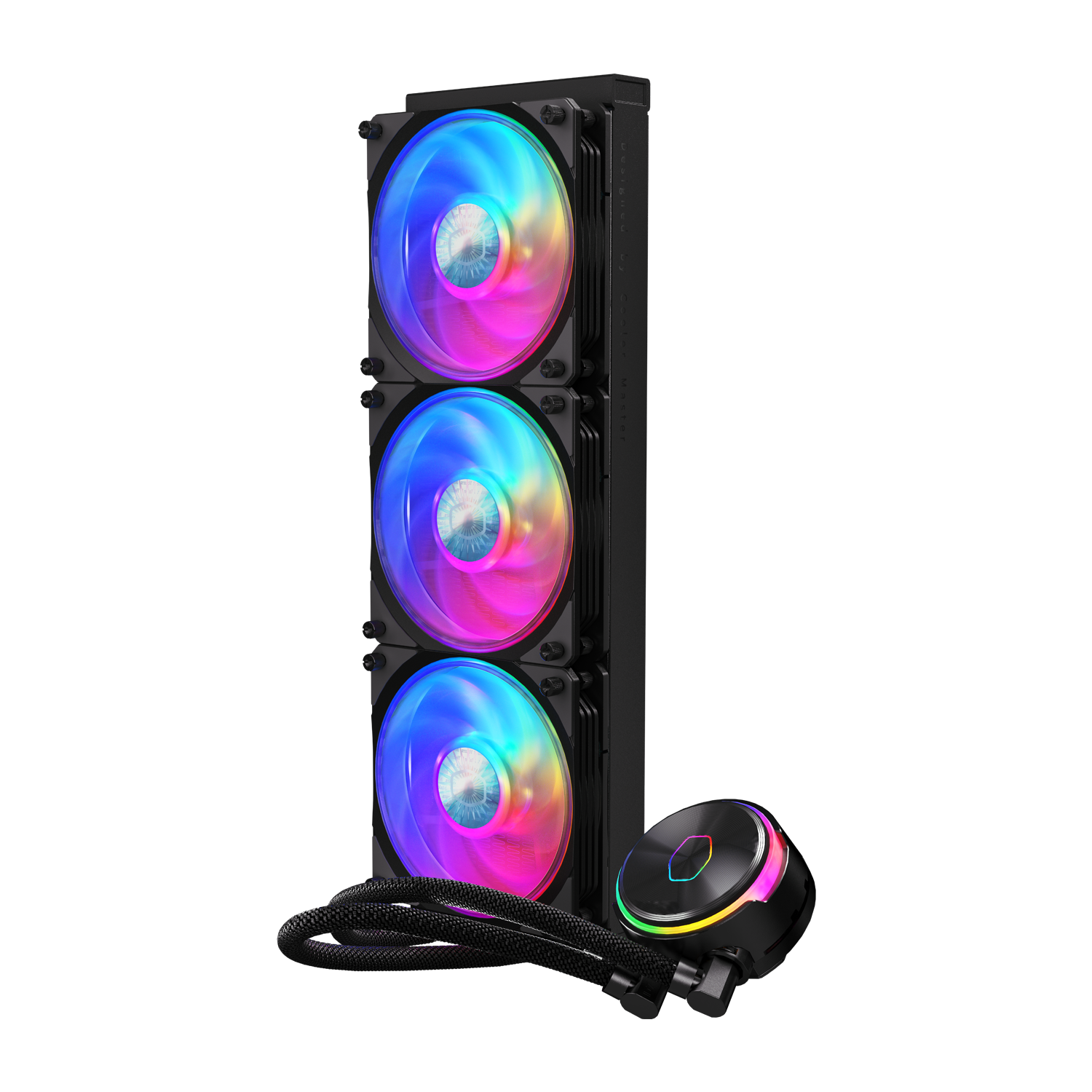

MasterLiquid PL360 Flux
MasterLiquid PL360 Flux

MasterLiquid PL360 Flux

Cooler Master’s MasterLiquidPL360 Flux is the new embodiment of enhanced performance cooling.

Color
Availability:
  • Select Styles for Availability
€ 189,99

SLIM & SLEEK RADIATOR

Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.

REDESIGNED FLUX SERIES FAN

Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.

Dual Loop ARGB Pump

Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.

ULTIMATE HEAT EXCHANGE

High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.

ADDRESSABLE GEN 2 RGB

Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software to customize individual LED colors, effects, brightness and more – all from an intuitive, convenient interface.

  • Product Number MLY-D36M-A23PZ-R1
  • Exterior Color Black
  • CPU Socket Intel® LGA 1851 / 1700 / 1200 / 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 socket
  • CPU Socket AMD® AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4 socket
  • Radiator Material Aluminum
  • Radiator Dimensions 394 x 119.6 x 27.2 mm / 15.5 x 4.7 x 1.07 inch
  • Pump Dimensions 89 x 75 x 40 mm / 3.5 x 2.95 x 1.57 inch
  • Pump MTTF >210,000 Hours
  • Pump Noise Level 15 dBA (Max)
  • Pump Connector 4-Pin
  • Pump Rated Voltage 12 VDC
  • Pump Power Consumption 6W
  • Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch
  • Fan Quantity 3 PCS
  • Fan LED Type Addressable Gen 2 RGB
  • Fan Speed 0-2300 RPM ± 10%
  • Fan Airflow 72.37 CFM (Max)
  • Fan Noise Level 32 dBA (Max)
  • Fan Pressure 2.96 mmH₂O (Max)
  • Fan Bearing Type Oil Reflow Bearing System (ORBS)
  • Fan Life Expectancy >160,000 Hours
  • Fan Power Connector 4-Pin (PWM)
  • Fan Rated Voltage 12 VDC
  • Fan Rated Current 0.15A
  • Fan Safety Current 0.3A
  • RAM Clearance N/A
  • Warranty 5 years
  • Cooler Type Liquid Cooler
  • Series MasterLiquid Pro
  • Radiator Size 360
  • Patent Number US10739084B2, US11061450B2, US10409341B2, US11320874B2, US11474574B2
  • Note Compatible with AMD AM5 although the package may not stress it.
