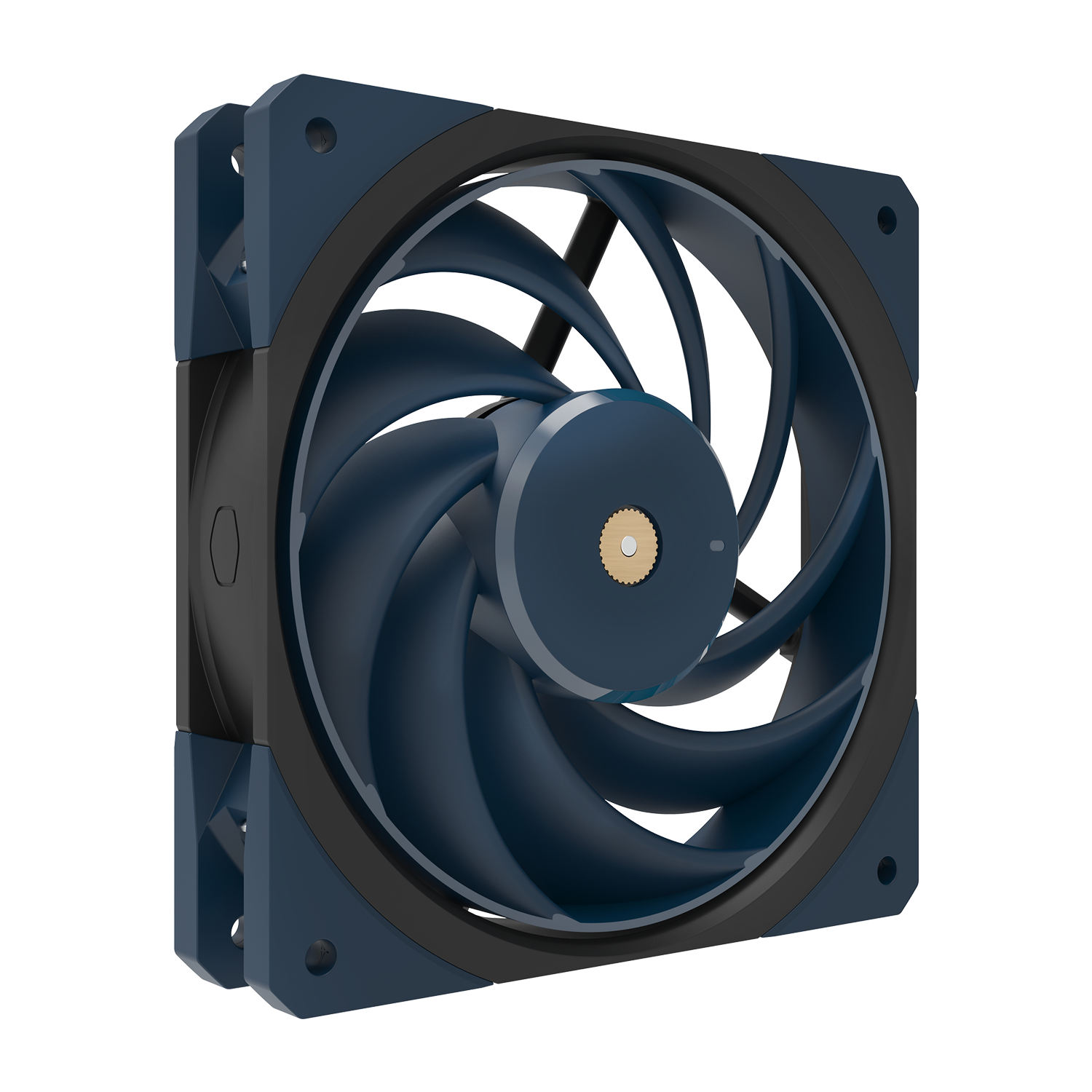

Mobius 120 OC image number 0

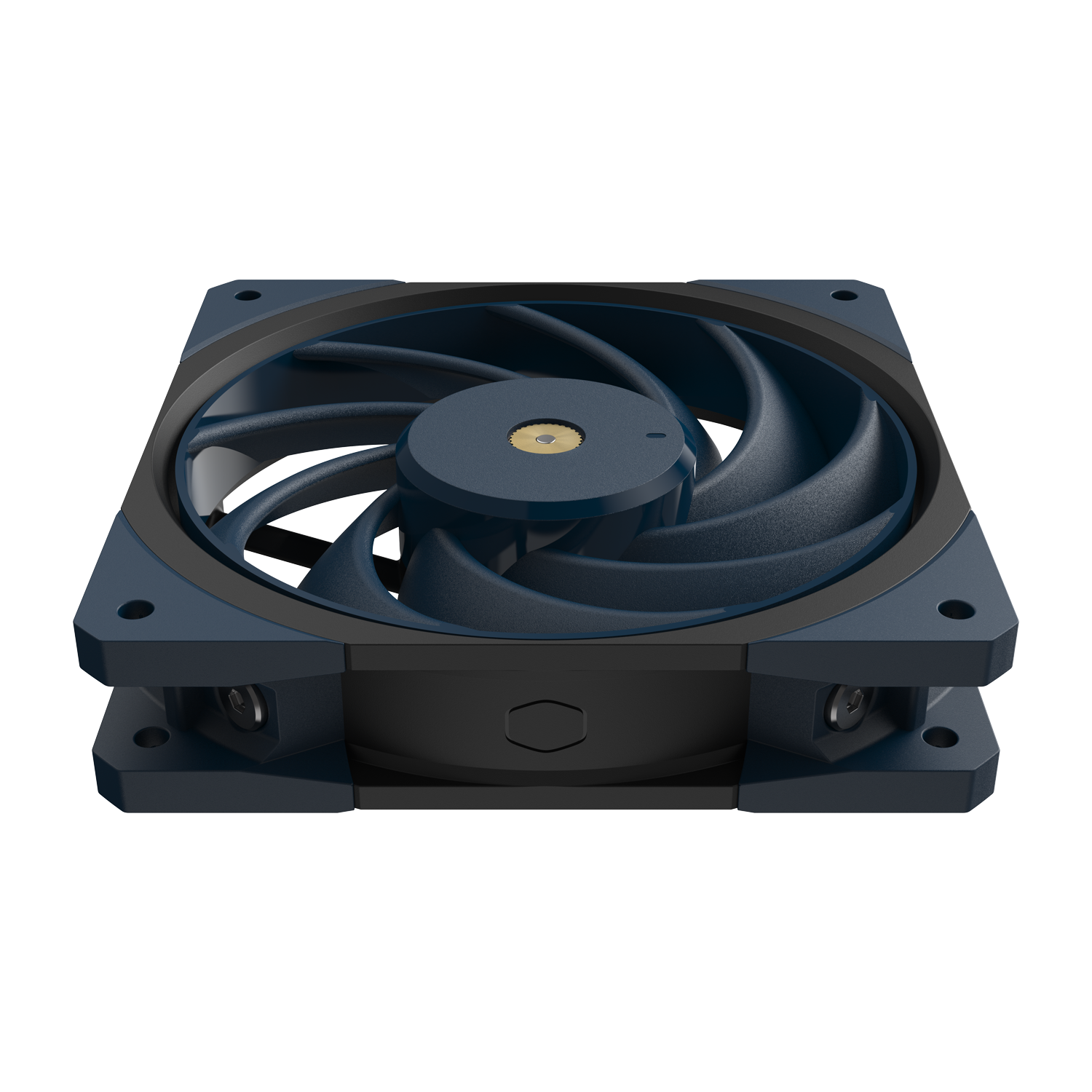

Mobius 120 OC image number 1
Mobius 120 OC
Mobius 120 OC

More Balance, More Burst

Mobius 120 OC

Ring Blade Design

Fan Speed Toggle

Metal Motor Hub

Double Ball Bearing

Lifetime Warranty

Premium Anti-Vibration Dampers

model
Availability:
  • In Stock
€ 18,00

FAN SPEED TOGGLE

Integrated fan speeds toggle built into the cable let you conveniently adjust fan speeds from 1500rpm up to 3200rpm.

DOUBLE BALL BEARING

Double Ball Bearings reduces friction to a minimum for silence and extended lifespan.

PREMIUM

ANTI-VIBRATION DAMPERS

Patented corner mount design dampen vibration and rattling while maintaining chassis stability for silent operation.

METAL MOTOR HUB

Motor hub constructed of metal for additional stability and reinforcement for extended superior fan performance.

  • Product Number MFZ-M2NN-32NPK-R1
  • Fan Dimensions (L x W x H) 120 x 120 x 27 mm / 4.7 x 4.7 x 1 inch
  • Fan Profiles Non-LED
  • Fan Speed L: 1050-1500 ± 200 RPM, M: 1050-2400 ± 250 RPM, H: 1050-3200 ± 10% RPM
  • Fan Airflow L: 40.2 CFM, M: 65.5 CFM, H: 88.1 CFM
  • Fan Noise Level L: 17.4 dBA, M: 31.1 dBA, H: 39.3 dBA
  • Fan Bearing Type Two Ball Bearing
  • Fan Pressure L: 1.19 mmH₂O, M: 2.76 mmH₂O, H: 4.75 mmH₂O
  • Fan MTTF >200,000 Hours
  • Fan Connector 4-Pin PWM (with speed control line)
  • Fan Rated Voltage 12 VDC
  • Fan Rated Current L: 0.10 A, M: 0.20 A, H: 0.35 A
  • Fan Safety Current 0.5A
  • Fan Power Consumption L: 1.20 W, M: 2.40 W, H: 4.20 W
  • Fan Weight 220g / 0.48 lbs
  • Cooler Type Case Fan
  • Series Mobius Series
