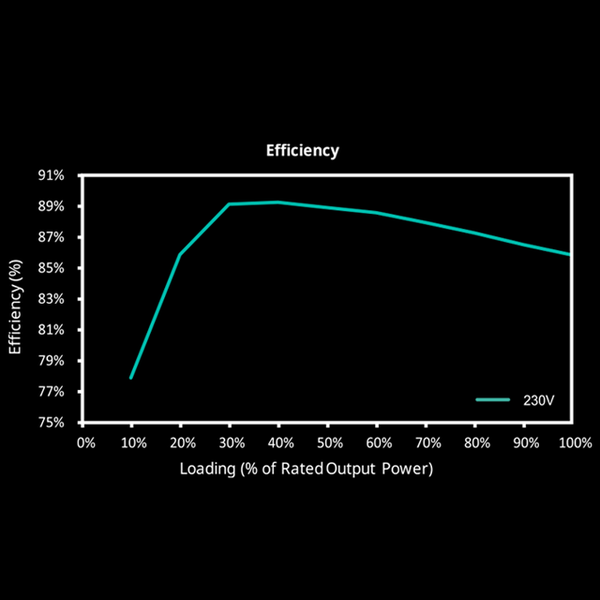

Certified Efficiency
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.
*All performance stats confirmed in 25°C ambient temperature testing.
Power Evolved

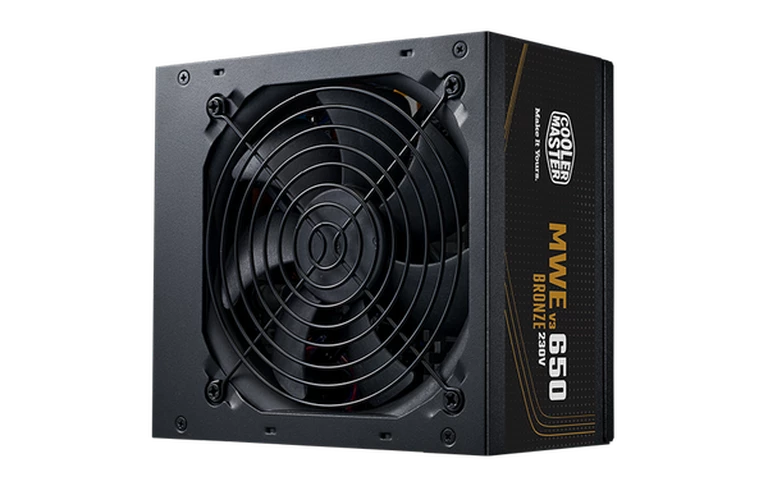

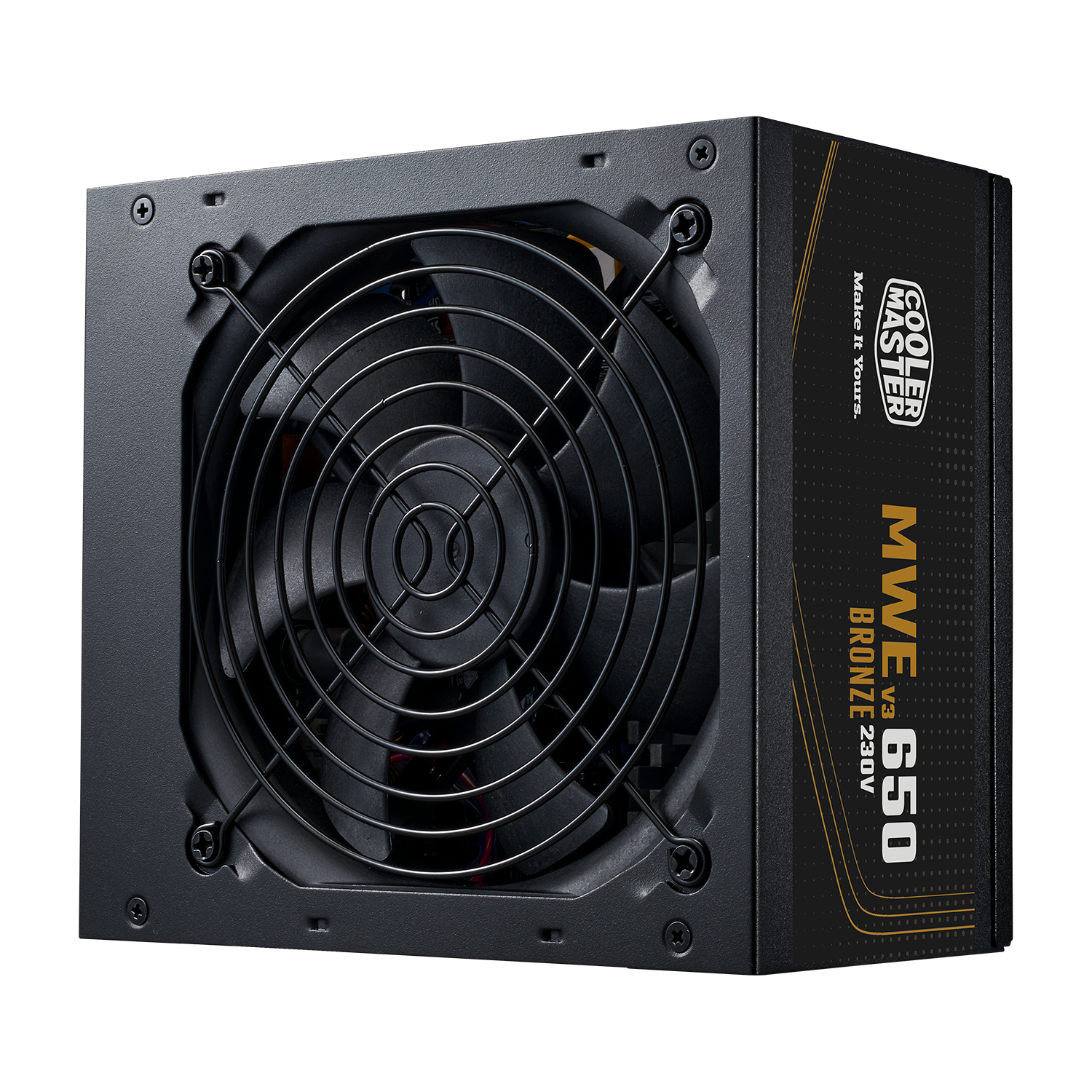

MWE Bronze 650 V3 230V
ATX 3.1 support
High temperature resilience
Quiet HDB fan
80 Plus Bronze certified efficiency
Embossed cable
5-year warranty
model
Availability:
-
In Stock
€ 69,99
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
*All performance stats confirmed in 25°C ambient temperature testing.

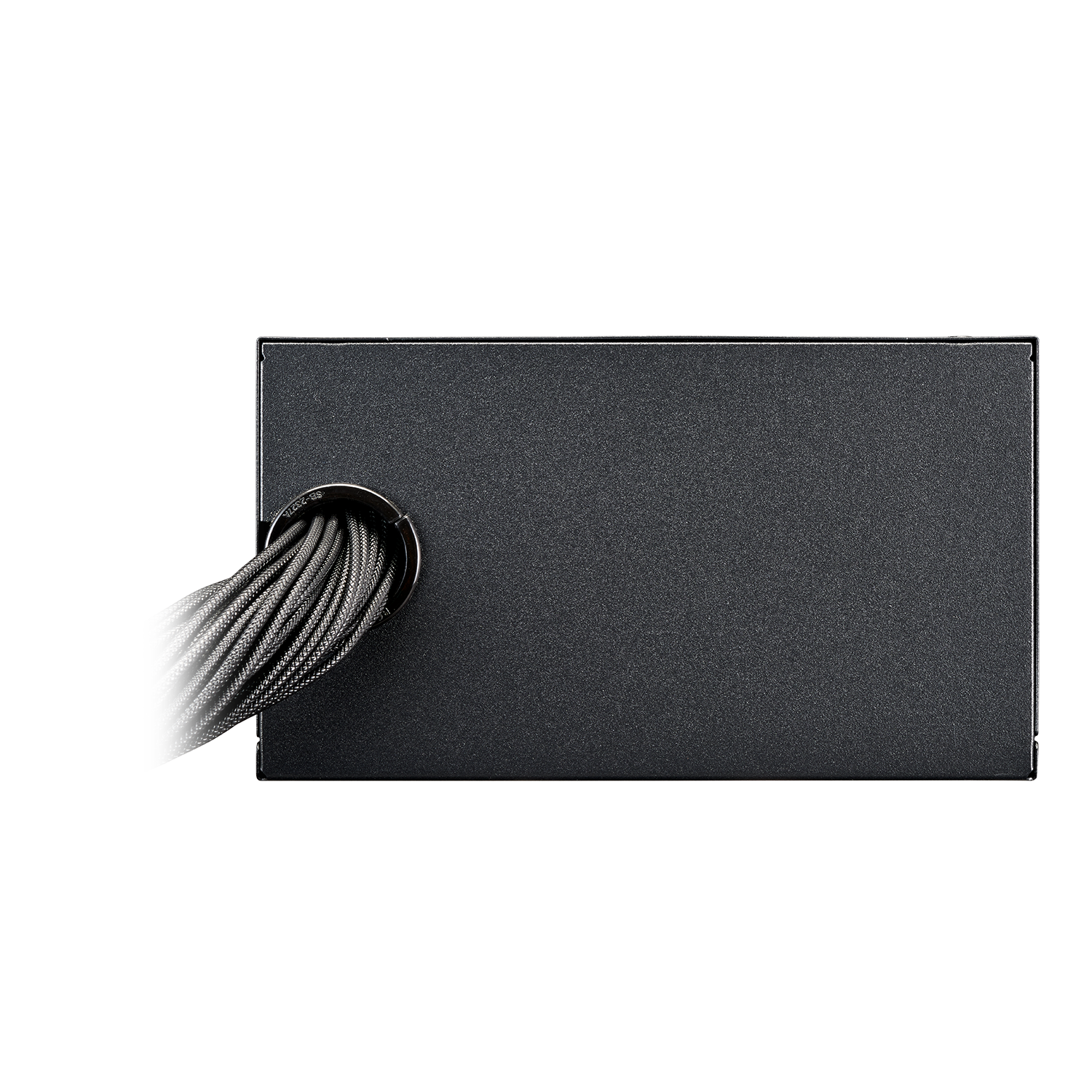

Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.

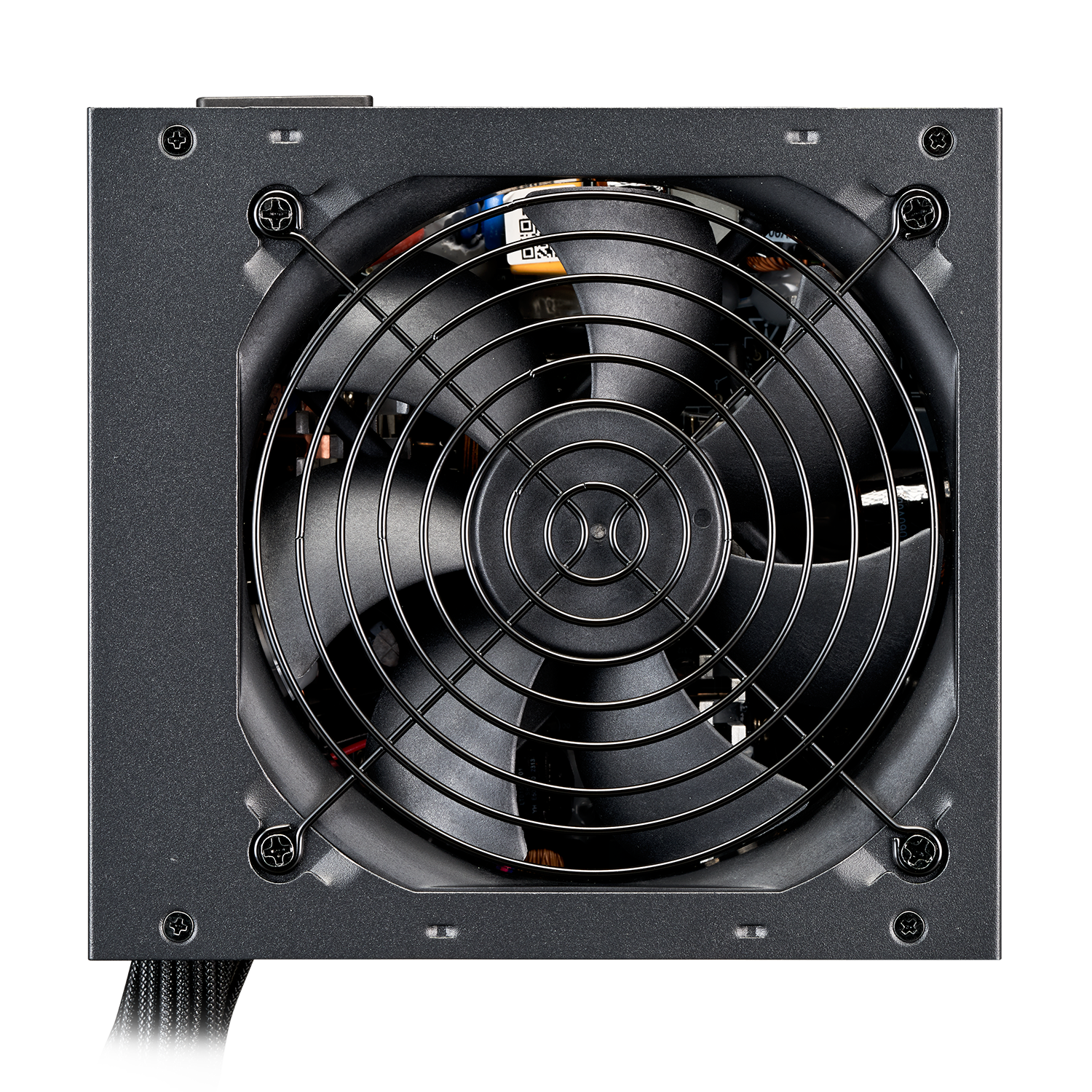

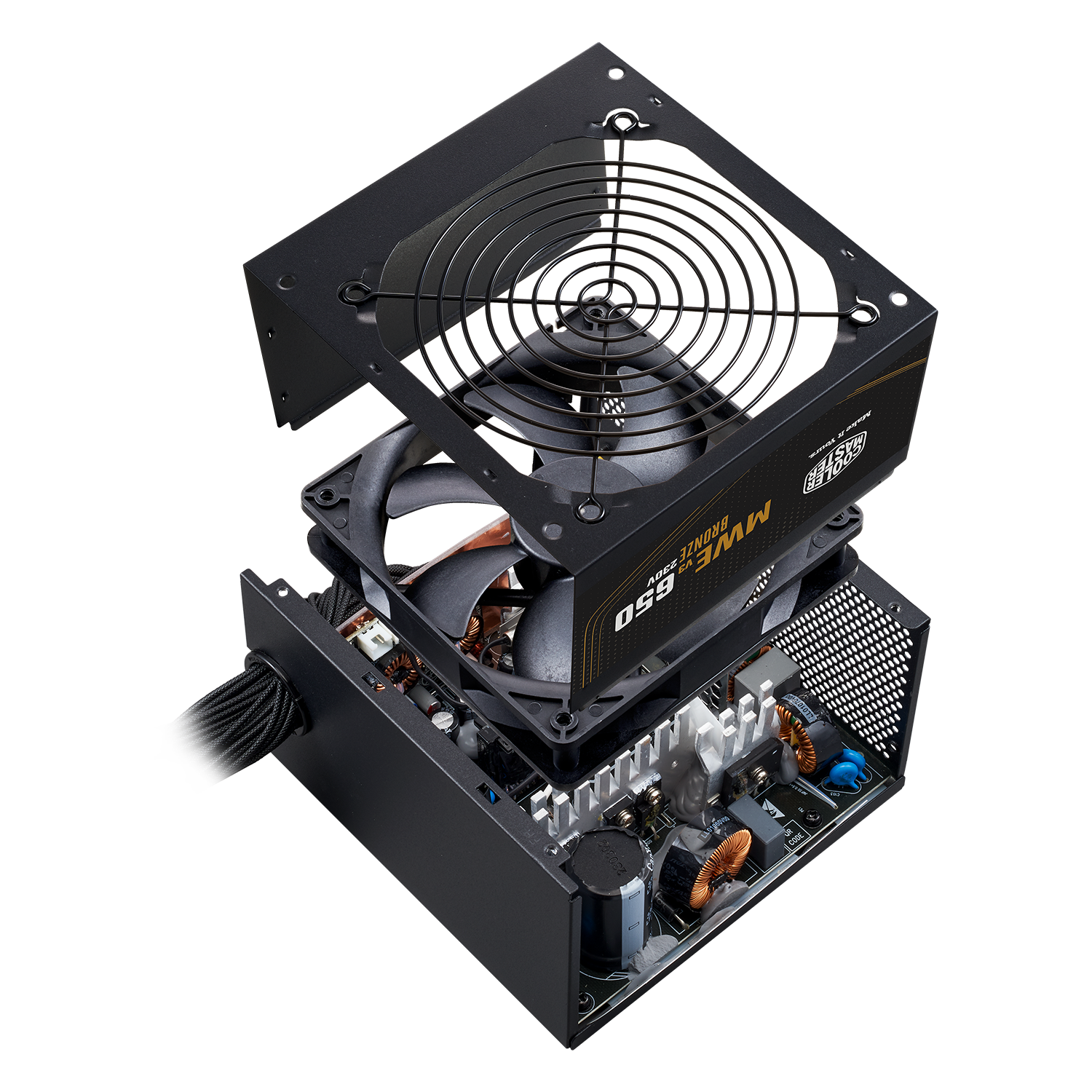

Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
*All performance stats confirmed in 25°C ambient temperature testing.
High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.
*All performance stats confirmed in 25°C ambient temperature testing.
- Model MPE-6501-ACABW-3B
- ATX Version ATX 12V Ver. 3.1
- PFC Active PFC
- Input Voltage 200-240V
- Input Current 5A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
- Fan Size 120mm
- Fan Bearing HDB
- Efficiency >88% @ Typical Load
- 80 PLUS Rating 80 PLUS Bronze EU 230V
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-40°C
- Power Good Signal 100 - 150 ms
- Hold Up Time >16ms
- MTBF >100,000 Hours
- Protections UVP / OVP / OPP / OTP / SCP
- Regulatory TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.)
- ATX 24 Pin Connectors 1
- EPS 8 Pin / 4+4 Pin Connectors 2
- SATA Connectors 6
- Peripheral 4 Pin Connectors 3
- PCI-e 6+2 Pin Connectors 4
- Warranty 5 Years
- Series MWE Bronze Series
- Category 500 to 750W
- Modular Non Modular
- 80 Plus Efficiency Bronze
- Form Factor ATX
- Watts 650W
