Level Up Your Power

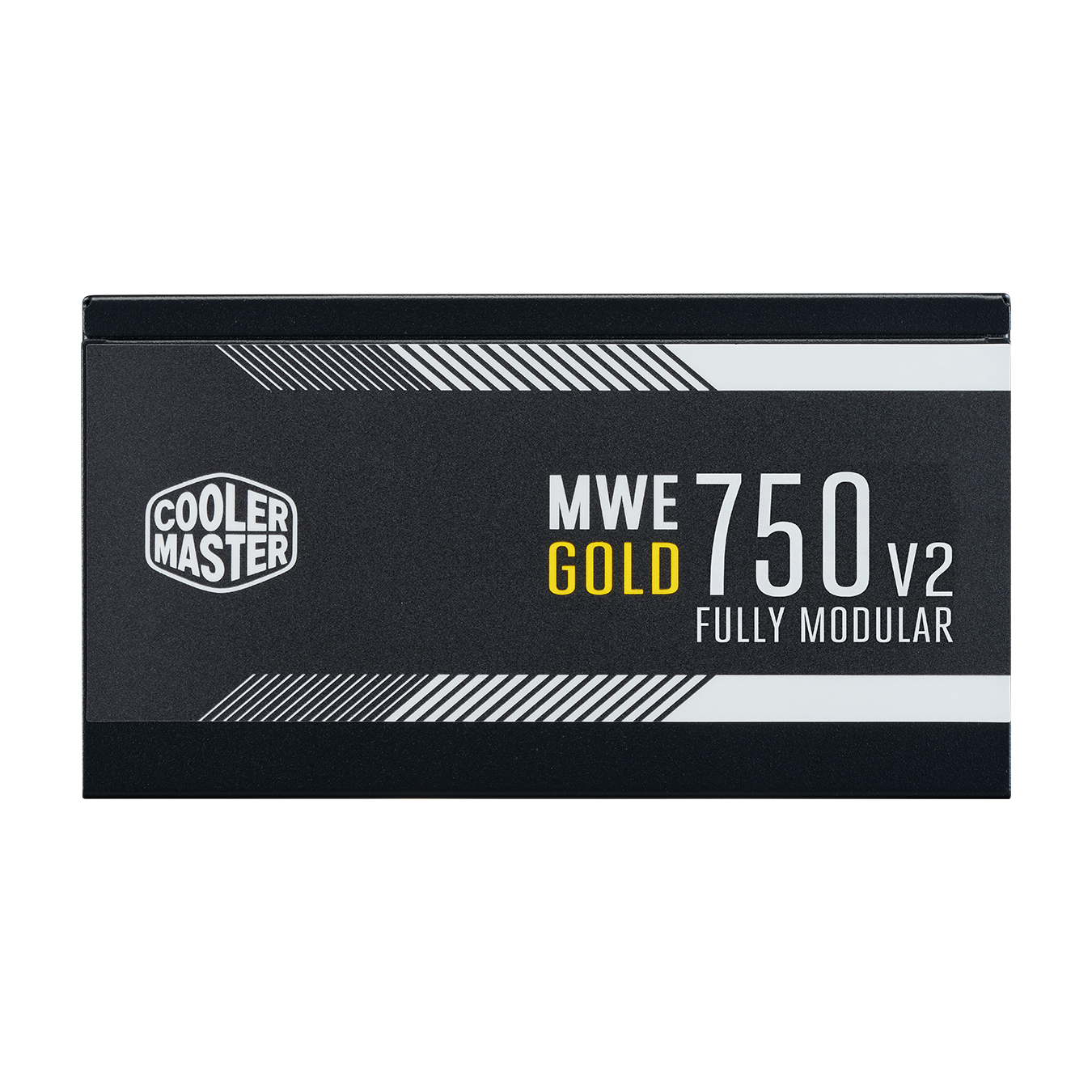

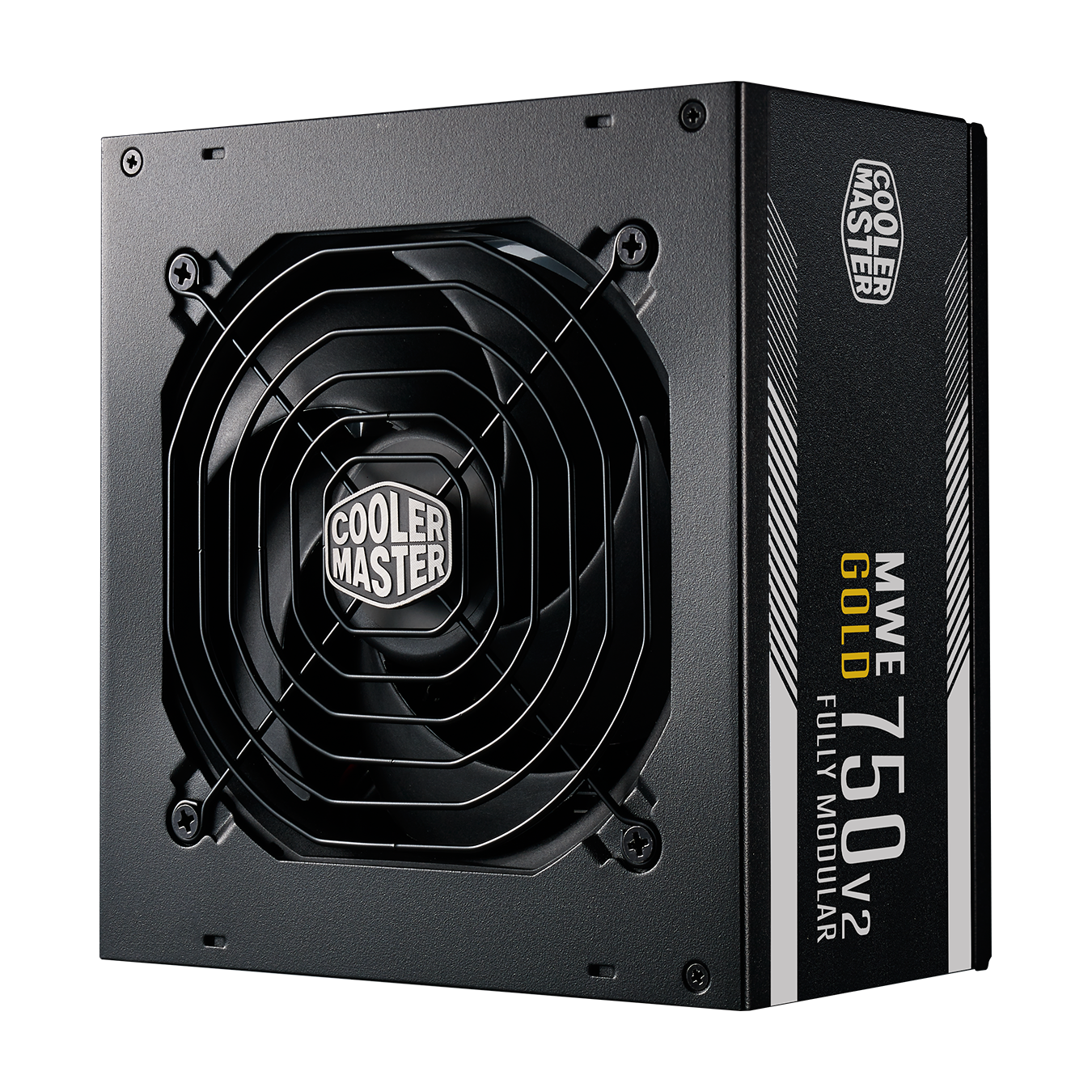

MWE Gold 750 V2 ATX 3.0
ATX 3.0 support
A 90-degree 12VHPWR adapter cable
High temperature resilience
High-quality Japanese capacitors
Fully modular cabling
5-year warranty
region
Availability:
-
Select Styles for Availability
€ 119,99
ATX 3.0 Support & a Durable 12VHPWR Adapter Cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector with higher electrical durability and three 8-pin connectors with improved safety, capable of bringing up to 600W to your GPU.
*All performance stats confirmed in 25°C ambient temperature testing.
High Temperature Resilience
A 50°C operating temperature and high quality Japanese capacitors allow for pushing your machine to the limits.
Certified Efficiency
The MWE Gold V2 ATX 3.0 Ready is certified to achieve more than 90% efficiency at typical loads.

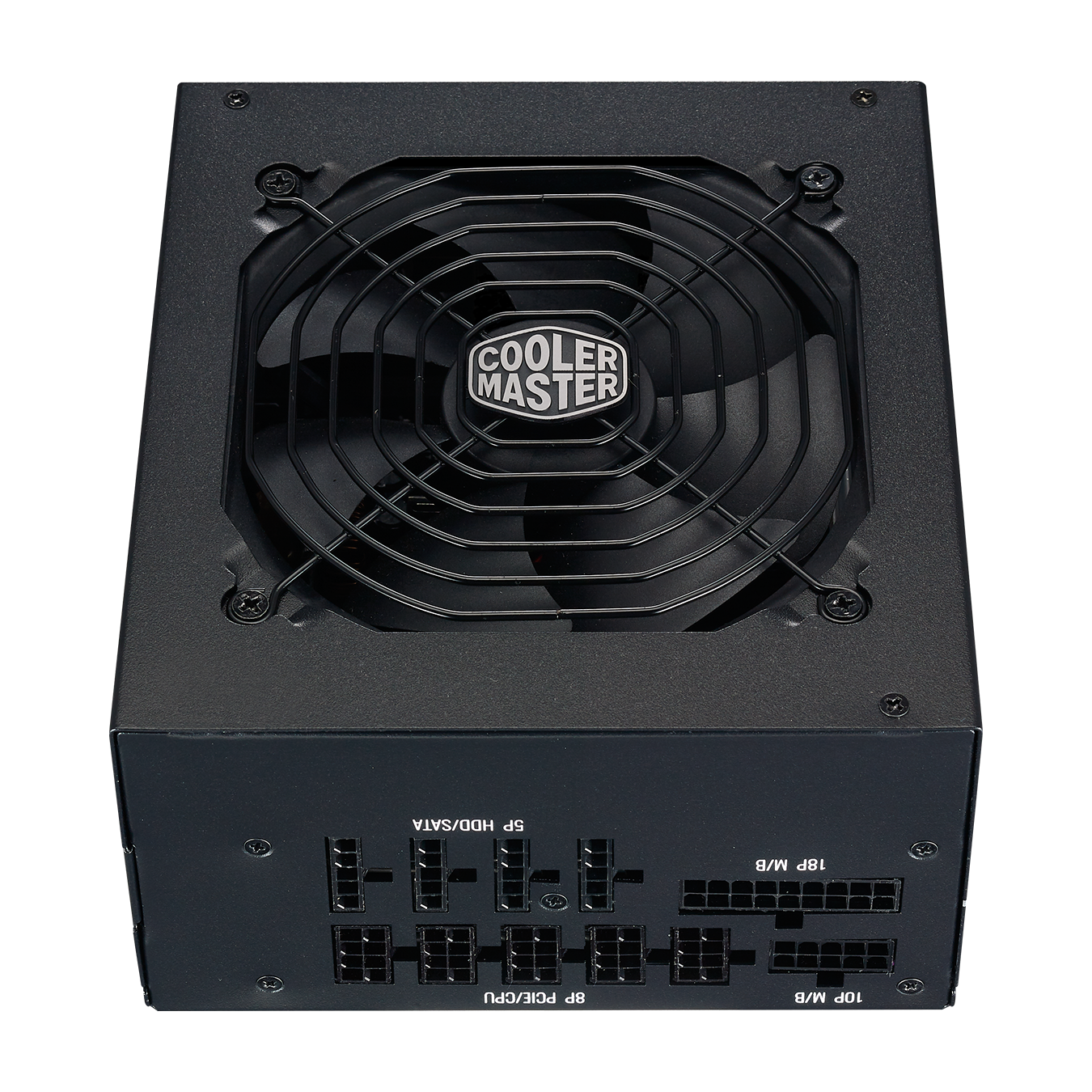

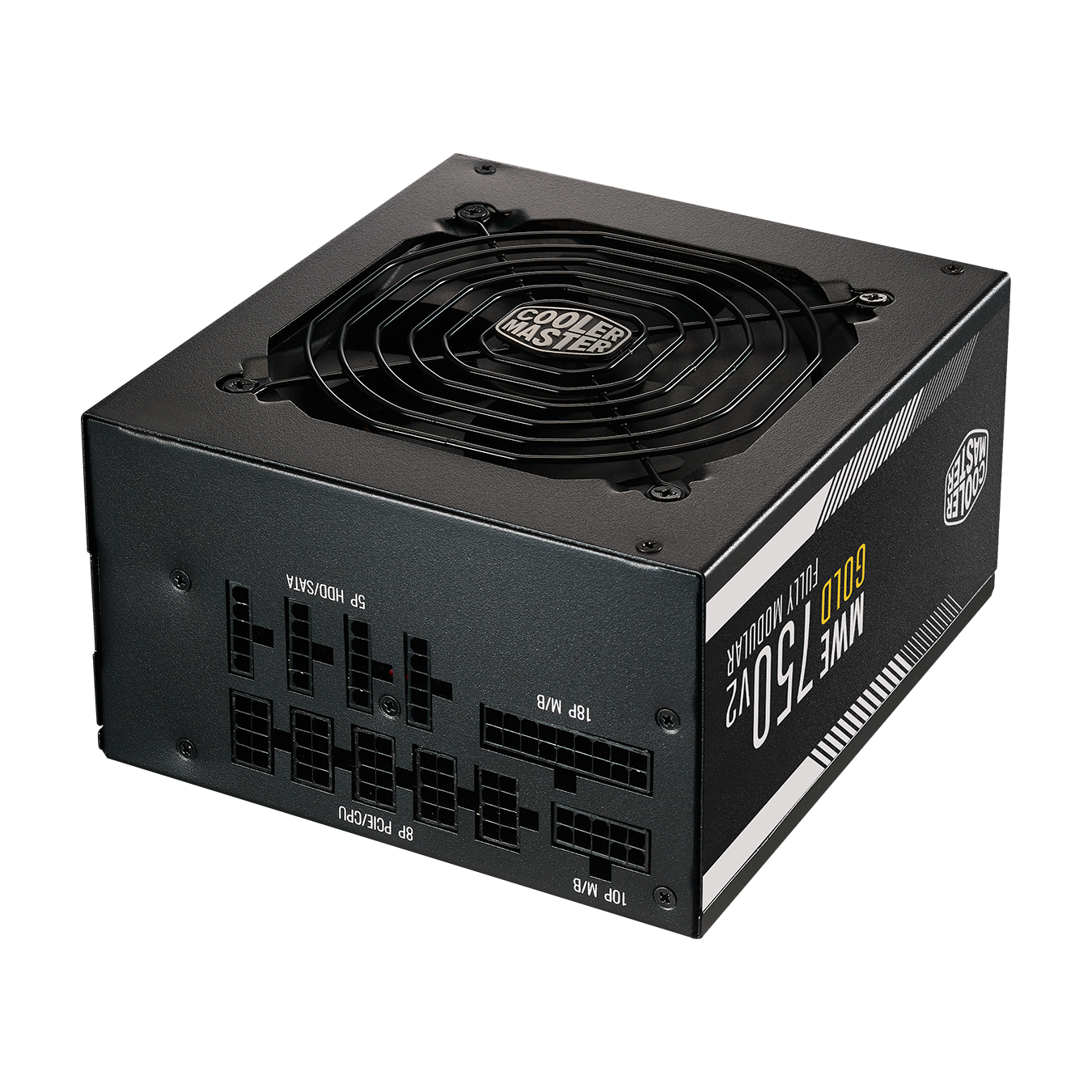

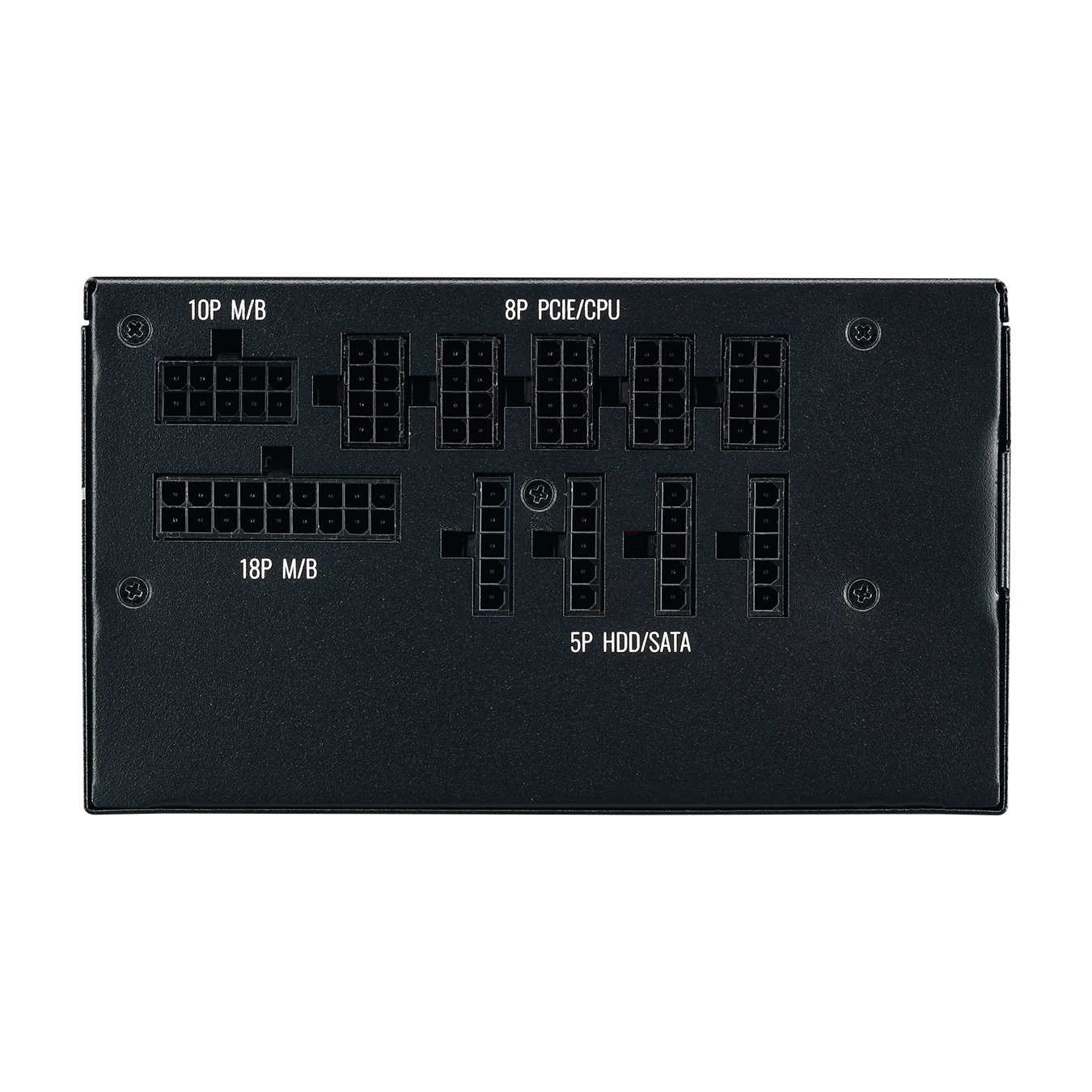

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Three 8-pin Connectors
Up to 600W of power is split between three 8-pin connectors, providing enhanced safety.

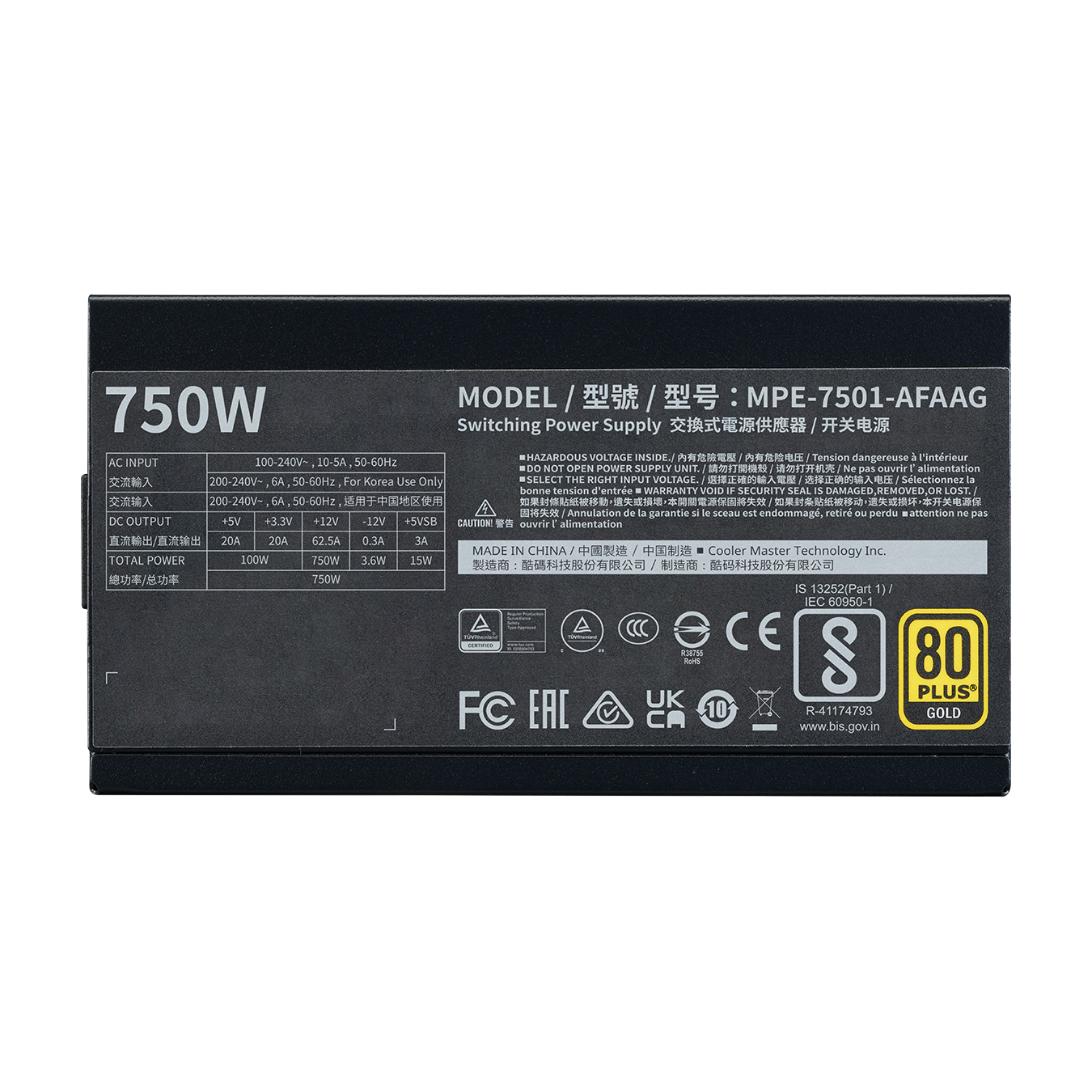

- Model MPE-7501-AFAAG-3
- ATX Version ATX 12V Ver. 3.0
- PFC Active PFC
- Input Voltage 100-240V
- Input Current 10-5A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 160 x 150 x 86 mm

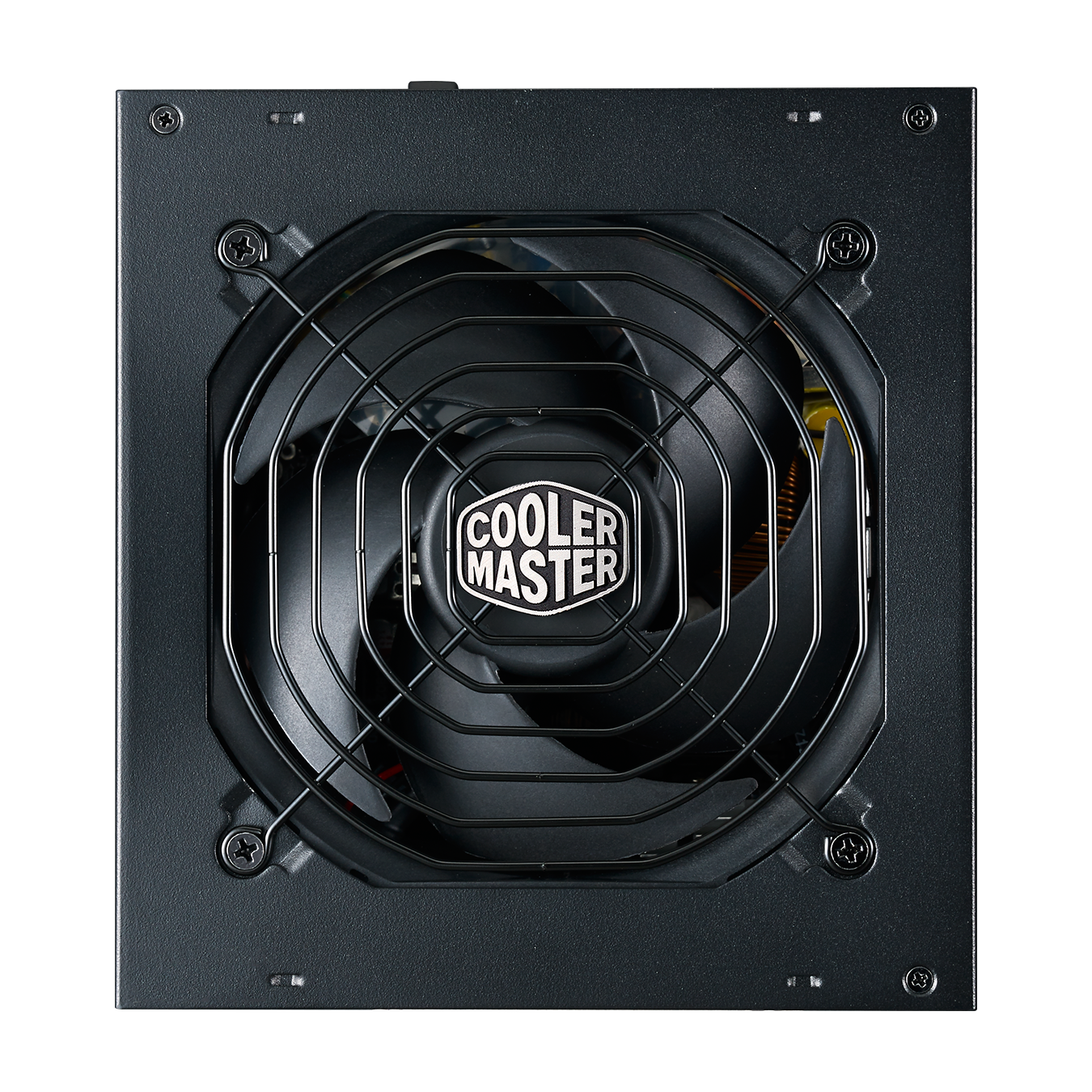

- Fan Size 120mm
- Fan Bearing HDB
- Efficiency ≥90% @ Typical Load
- 80 PLUS Rating 80 PLUS Gold
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-50°C
- Power Good Signal 100 - 150 ms
- Hold Up Time ≥ 16ms
- MTBF >100,000 Hours
- Protections UVP / OVP / OPP / OTP / SCP / OCP
- Regulatory TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA Connectors 12
- Peripheral 4 Pin Connectors 4
- PCI-e 6+2 Pin Connectors 4
- 12VHPWR Connector 1 (1 to 3)
- Category Above 750W
- Series MWE Gold Series
- Modular Fully Modular
- Form Factor ATX
- 80 Plus Efficiency Gold
- Watts 750W
