Certified Efficiency
The MWE II Gold is certified to achieve more than 90% efficiency at typical loads.
BUILT TO LAST

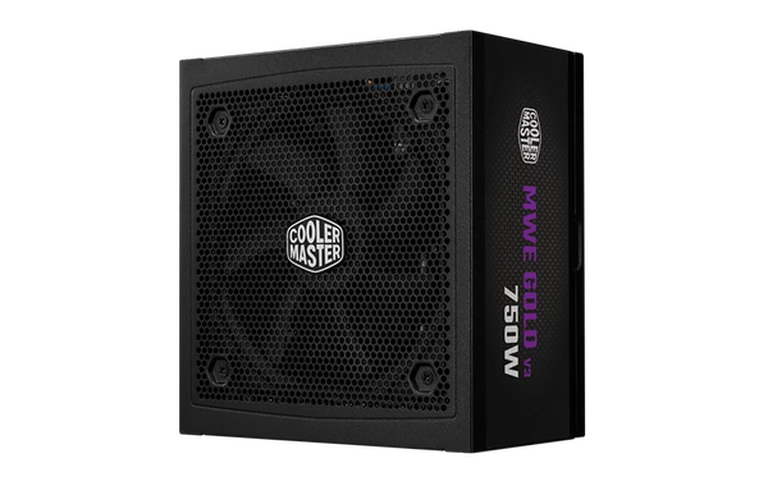

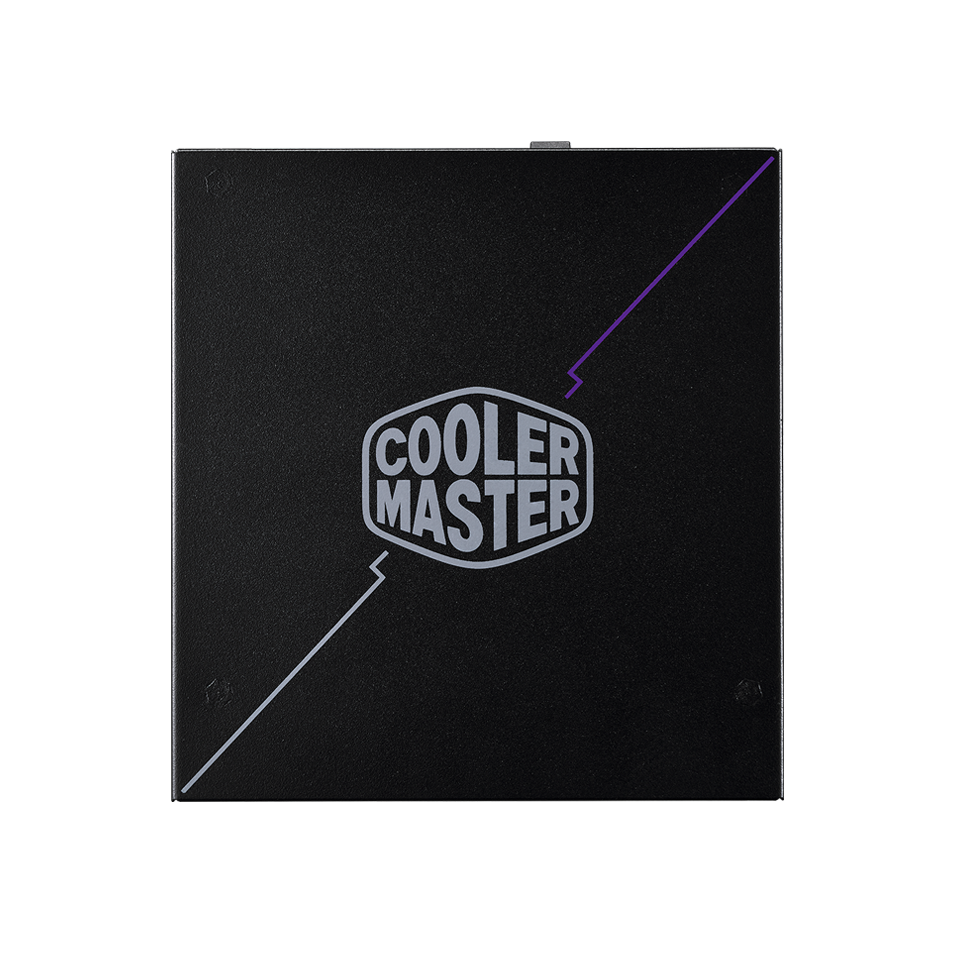

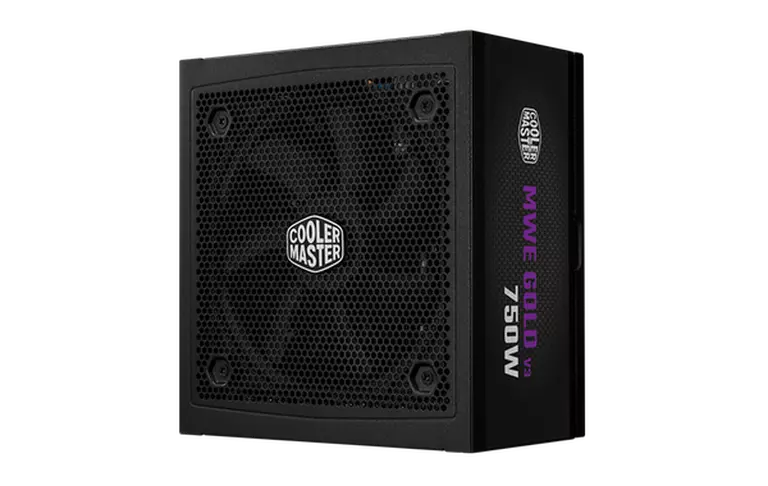

MWE Gold 750 V3 ATX 3.1
• ATX 3.1 support & a durable 12V-2x6 cable
• 80 Plus Gold certified efficiency
• Silent fan performance with a zero-RPM mode
• Separated thermal technologies
• Fully modular cabling
• 10-year warranty
region
Availability:
-
Select Styles for Availability
€ 109,99
Separated Thermal Technologies
Separated thermal technologies provide improved thermal performance and a large, high-quality Japanese capacitor features reduced ripple noise and enhanced reliability.

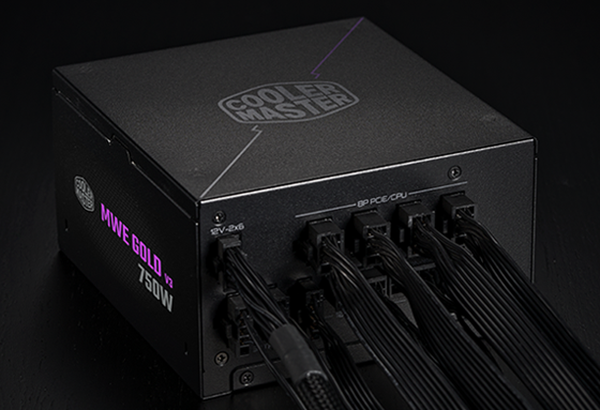

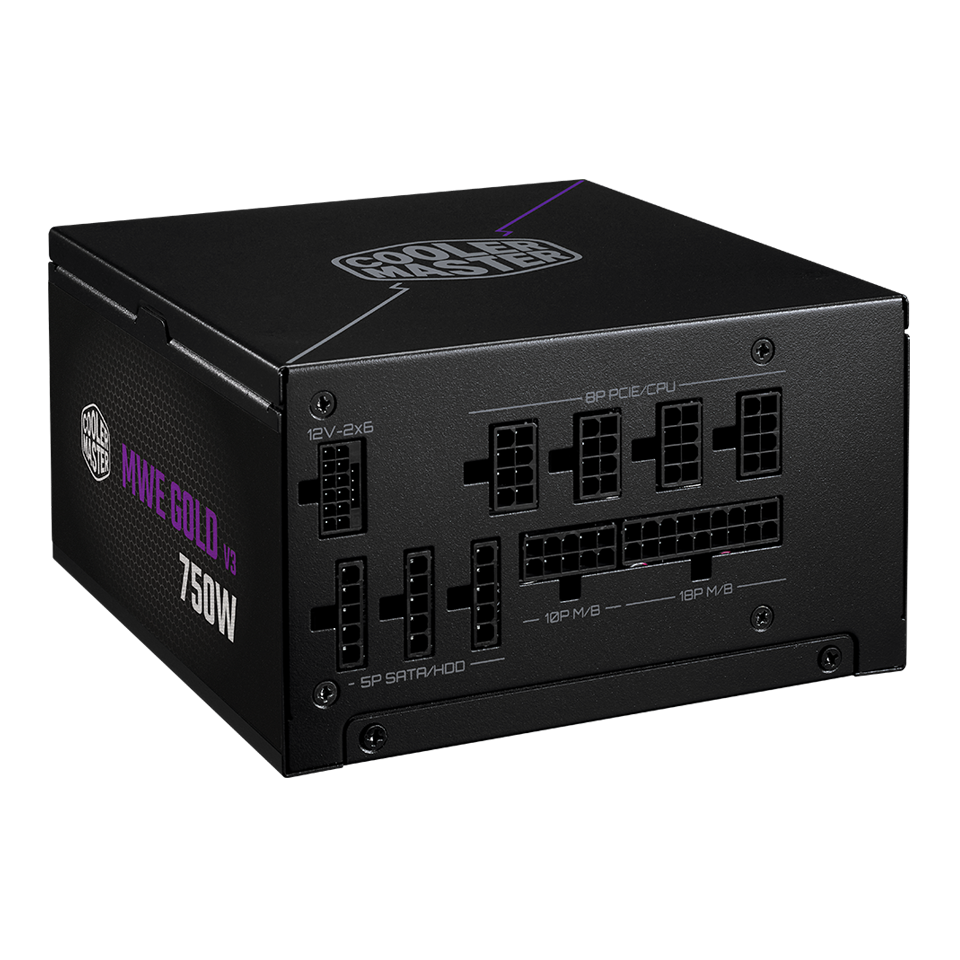

Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

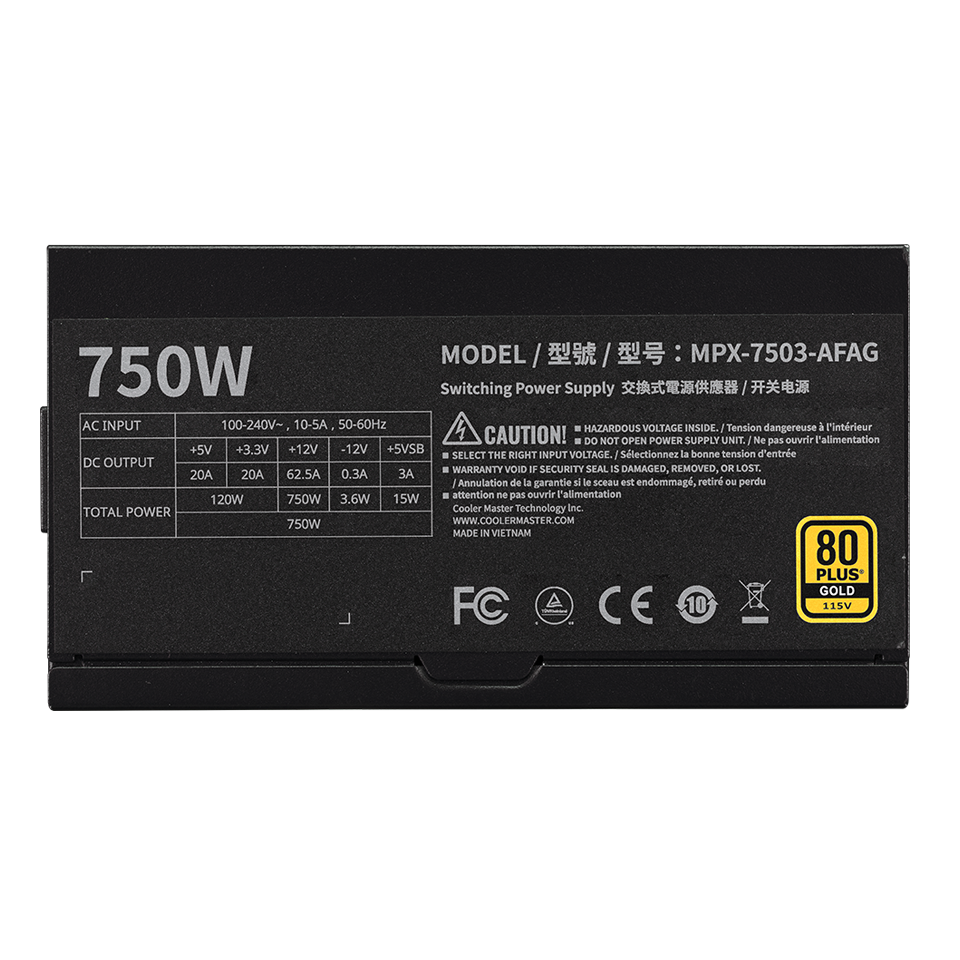

- Model MPX-7503-AFAG-2***
- ATX Version ATX 12V Ver. 3.1
- PFC Active PFC
- Input Voltage 100-240V
- Input Current 10-5A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 160 x 150 x 86 mm

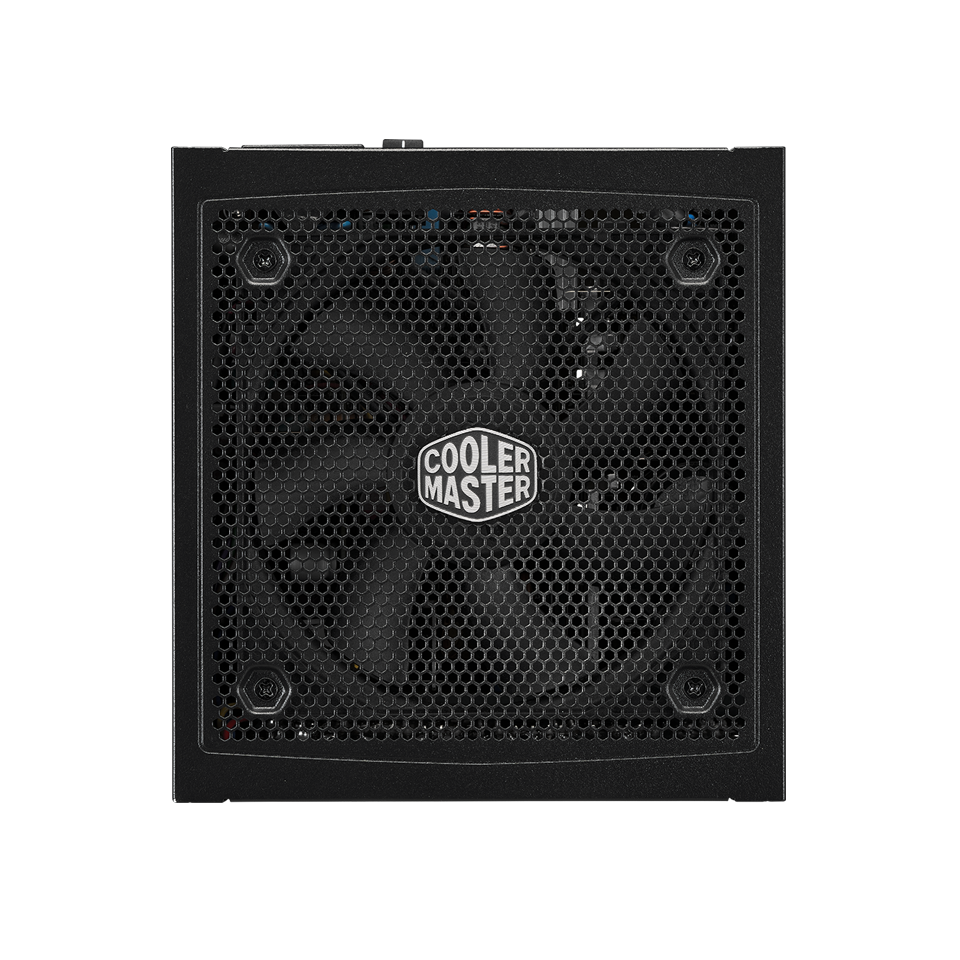

- Fan Size 120mm
- Fan Bearing HDB
- Fan Speed 2500 RPM
- Efficiency ≥90% @ Typical Load
- 80 PLUS Rating 80 PLUS Gold
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-40°C
- Power Good Signal 100 - 150 ms
- Hold Up Time ≥16ms at 80% Load
- MTBF >100,000 Hours
- Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

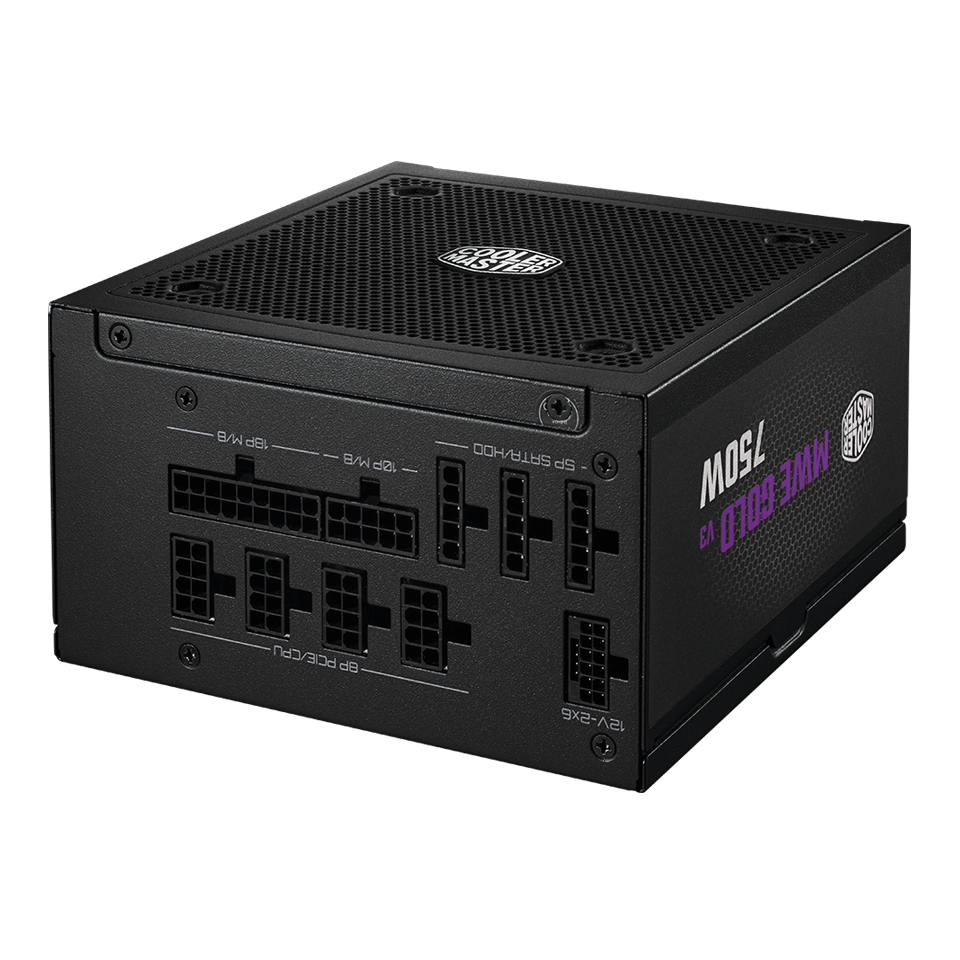

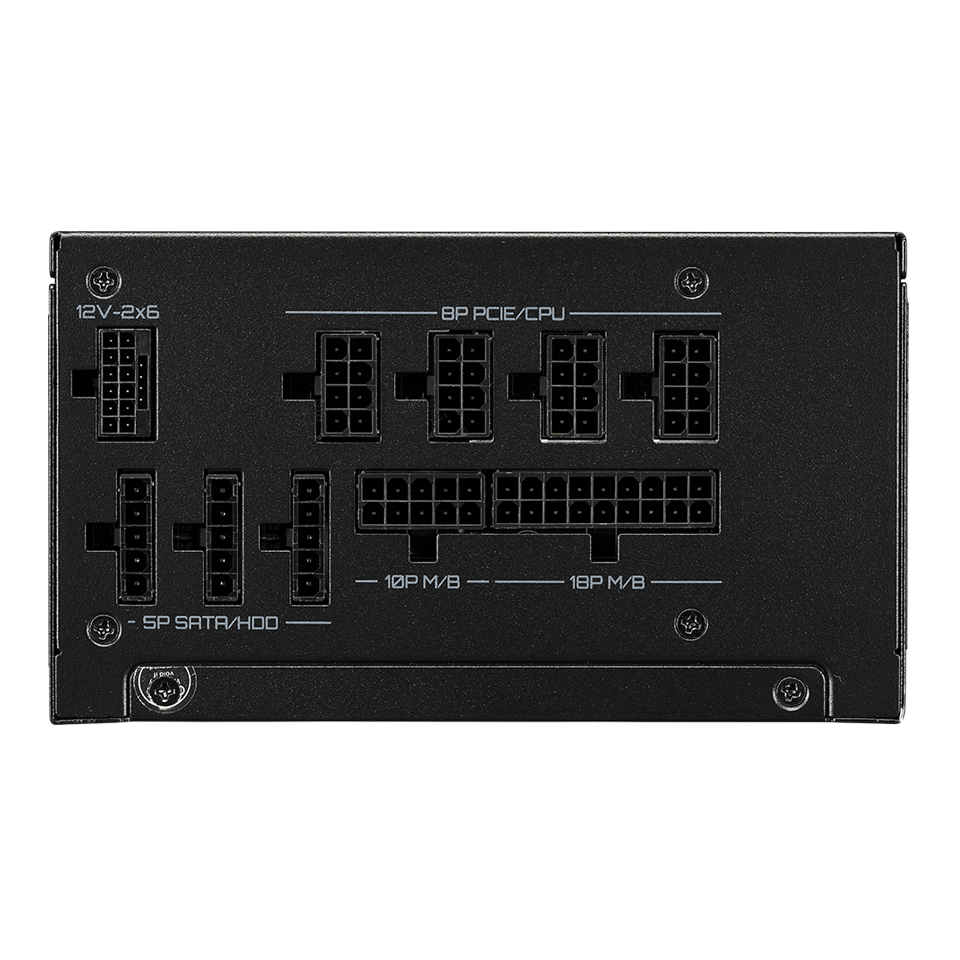

- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA & Peripheral 4 Pin Connectors 6 (SATA) / 2 (Peripheral)
- PCI-e 6+2 Pin Connectors 4
- 12V-2x6 Connectors 1
- Series MWE Gold Series
- Category Above 750W
- Modular Fully Modular
- 80 Plus Efficiency Gold
- Form Factor ATX
- Watts 750W
