Level Up Your Power

MWE Gold 850 V2 ATX 3.1

ATX 3.1 support

A 90-degree 12V-2x6 adapter cable

High temperature resilience​​

High-quality Japanese capacitors

Fully modular cabling

5-year warranty

region
Availability:
  • Select Styles for Availability
€ 149,99

High Temperature Resilience​

A 50°C operating temperature and high quality Japanese capacitors allow for pushing your machine to the limits.​

Certified Efficiency

The MWE Gold V2 ATX 3.1 is certified to achieve more than 90% efficiency at typical loads.​​

Three 8-pin Connectors

Up to 600W of power is split between three 8-pin connectors, providing enhanced safety.

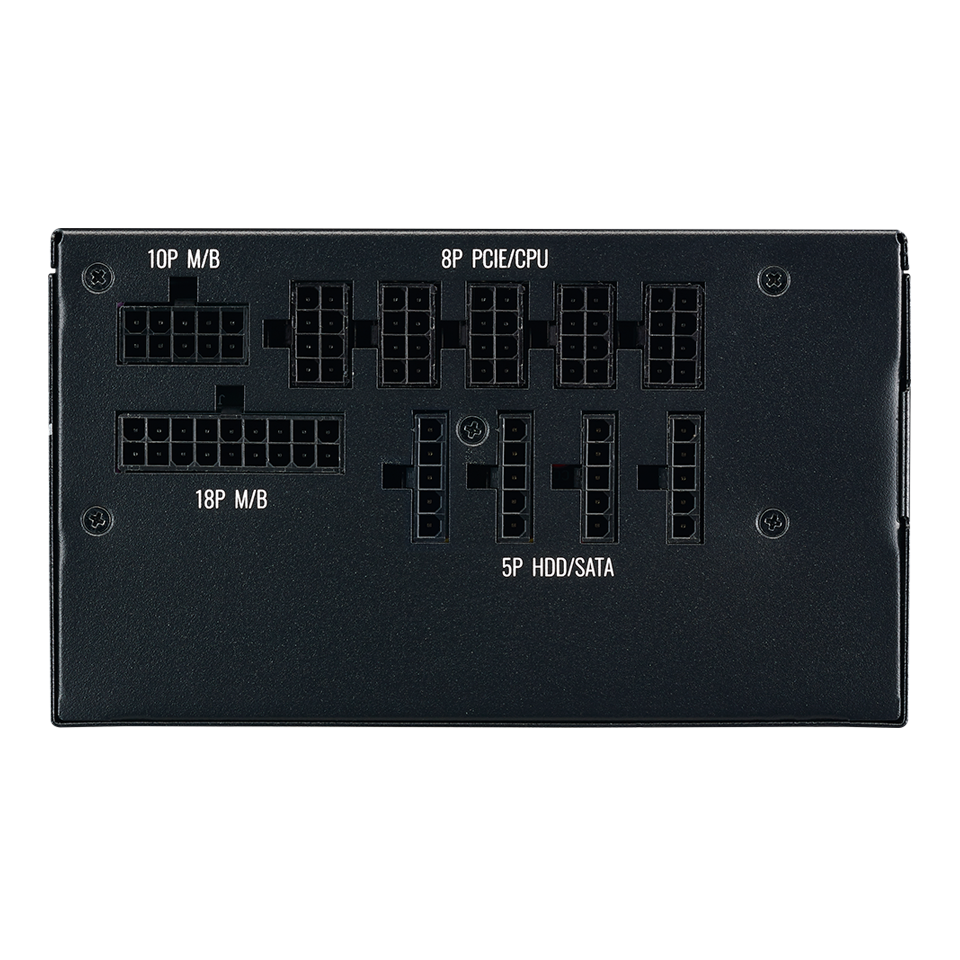

Fully Modular Cabling

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

  • Model MPE-8501-AFAAG-3E**
  • ATX Version ATX 12V Ver. 3.1
  • PFC Active PFC
  • Input Voltage 100-240V
  • Input Current 12-6A
  • Input Frequency 50-60Hz
  • Dimensions (L x W x H) 160 x 150 x 86 mm
  • Fan Size 120mm
  • Fan Bearing HDB
  • Efficiency ≥90% @ Typical Load
  • 80 PLUS Rating 80 PLUS Gold
  • ErP 2014 Lot 3 Yes
  • Operating Temperature 0-50°C
  • Power Good Signal 100 - 150 ms
  • Hold Up Time ≥ 16ms
  • MTBF >100,000 Hours
  • Protections UVP / OVP / OPP / OTP / SCP / OCP
  • Regulatory TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors 1
  • EPS 8 Pin Connector 1
  • SATA Connectors 12
  • Peripheral 4 Pin Connectors 4
  • PCI-e 6+2 Pin Connectors 4
  • 12V-2x6 Connectors 1 (1 to 3)
  • Category Above 750W
  • Series MWE Gold Series
  • Modular Fully Modular
  • Form Factor ATX
  • 80 Plus Efficiency Gold
  • Watts 850W
