Max Performance, Minimalist Design

NCORE 100 MAX

Cooler Master’s NCORE 100 MAX is the ultimate solution for going big on performance in the minimal amount of desktop space

Color
Availability:
  • Select Styles for Availability
€ 296,00 - € 399,99

CUSTOM AIO COOLING

The NCORE 100 Max leverage decades of expertise in thermal solutions and features a custom 120mm AIO Water Cooler supporting the latest Intel and AMD CPUs.

GPU

HIGH-END GPU COMPATIBILITY

Includes support for high performance, triple-slot GPUs up to 336mm in length and 140mm in height, with four included 6+2 pin power cables and a vertical mount design.

Performance

TAILOR-MADE POWER SOLUTION

Cooler Master's V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.

Design

ULTRA-SMALL FOOTPRINT

The NCORE 100 MAX is super compact, with a footprint about the size of a small booklet.

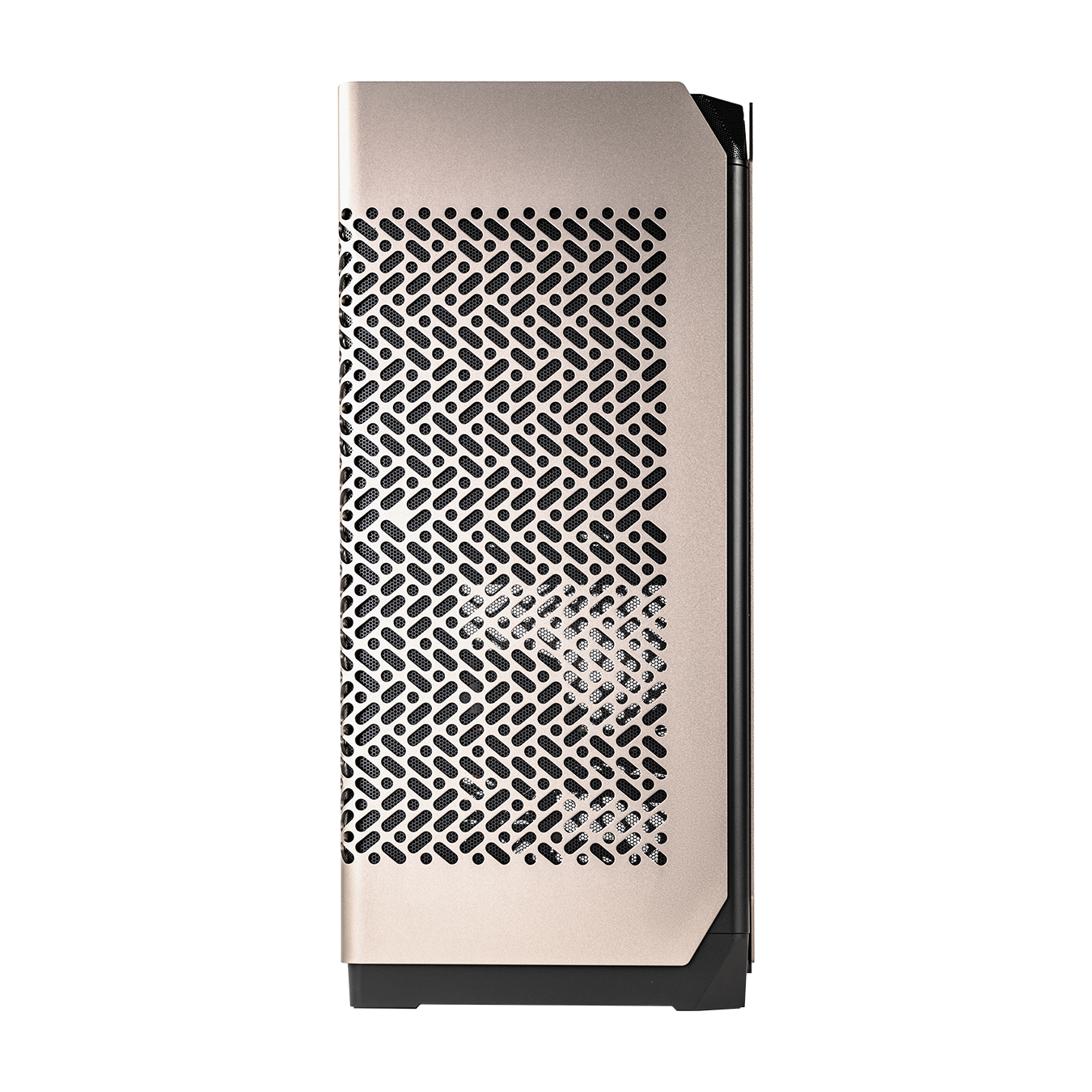

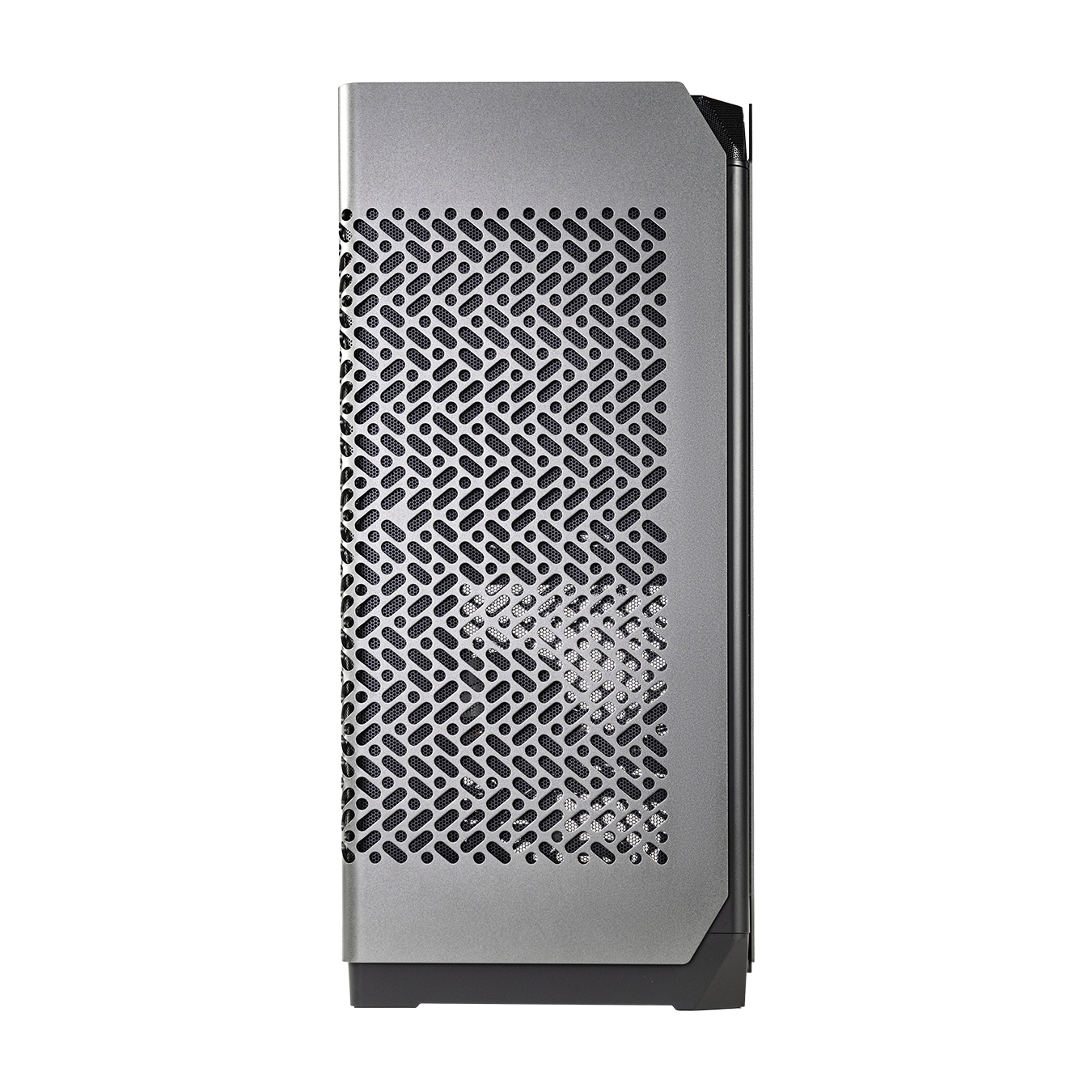

PREMIUM ALUMINUM PANEL

An anodized aluminum shell makes the NCORE 100 MAX stand out as a desktop work of art.

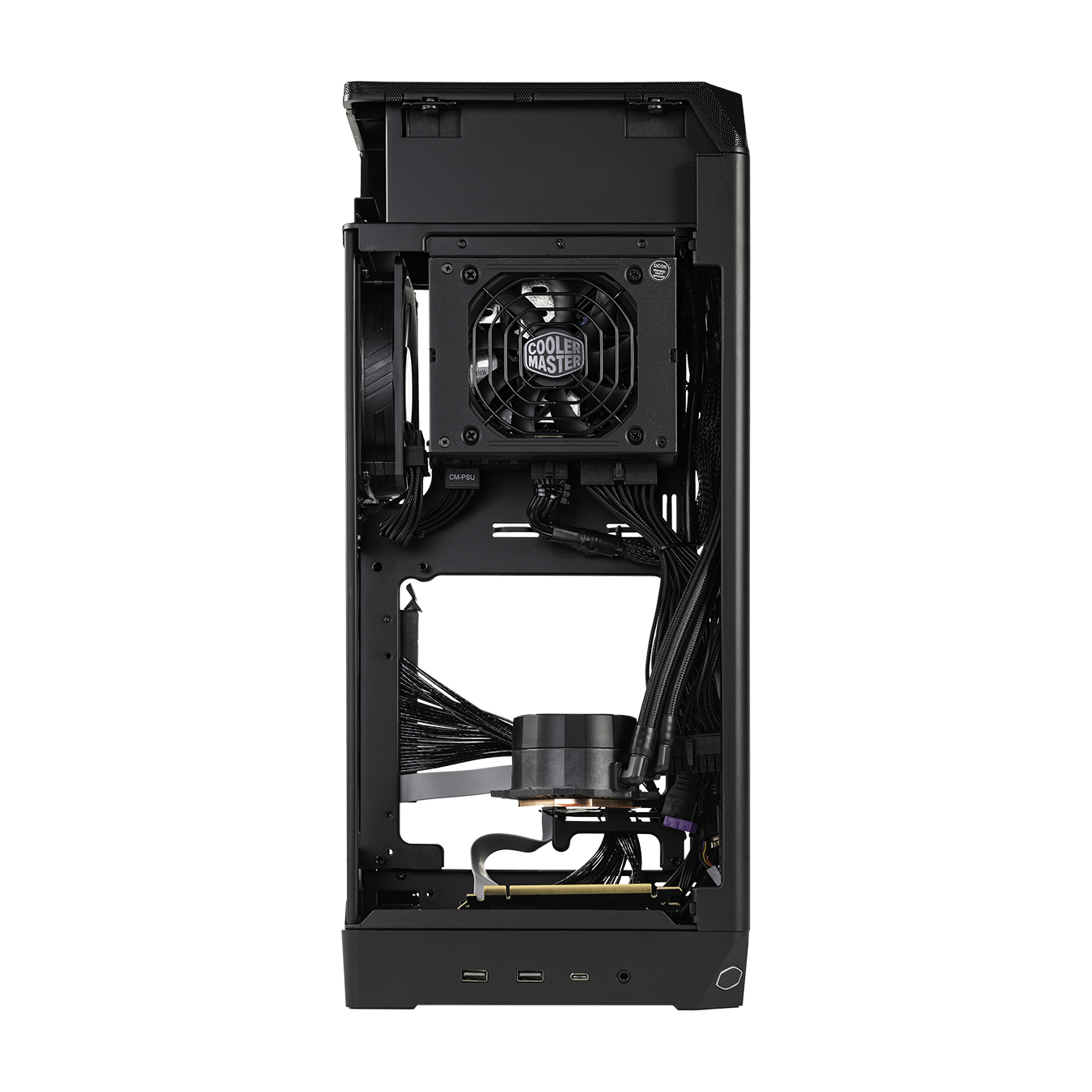

PRE-ROUTED CABLES

Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.

AIRFLOW

The NCORE 100 MAX layout has been meticulously

designed to offer the most efficient thermal layout.

This layout pulls in air from the standing sides of

the case, which are its largest surfaces.

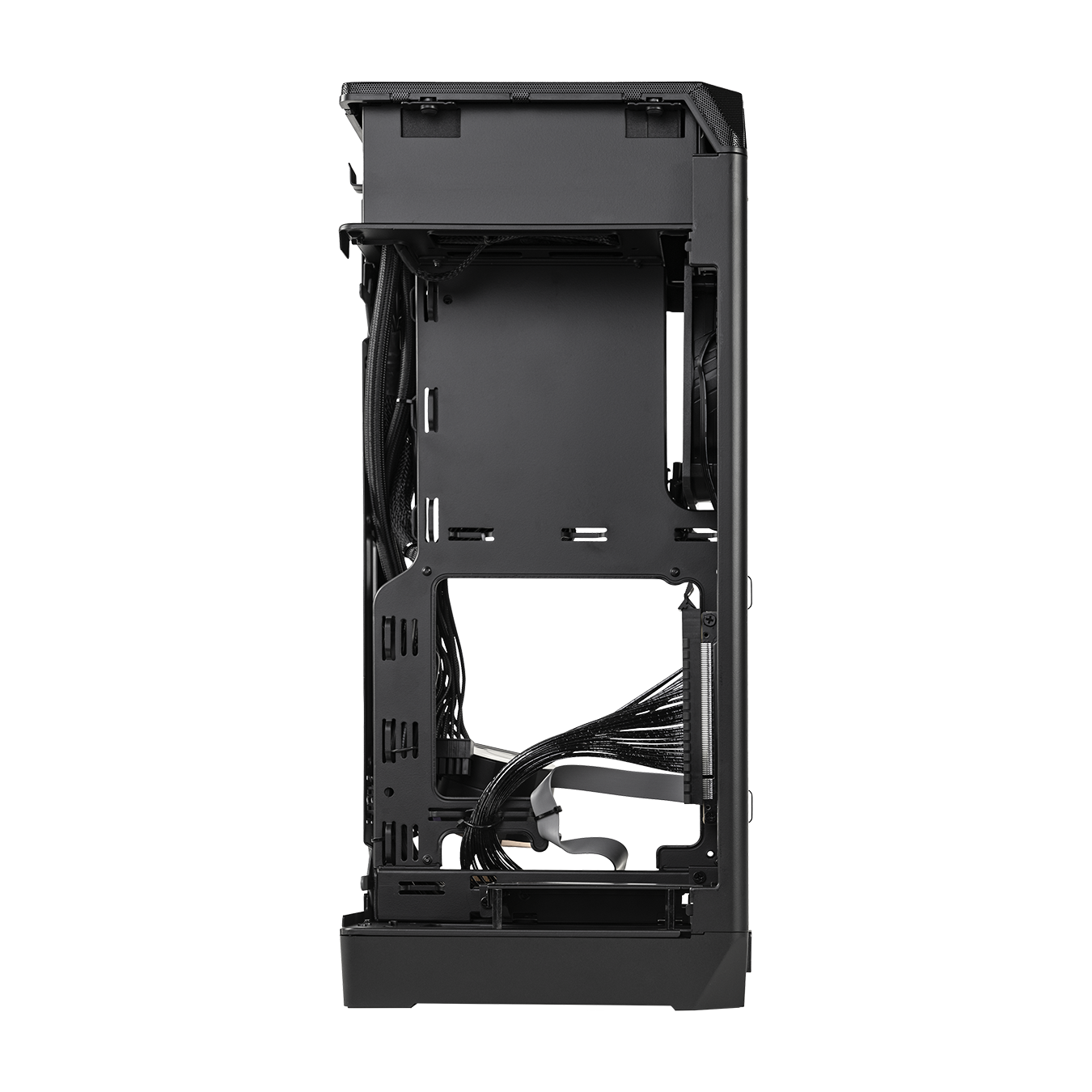

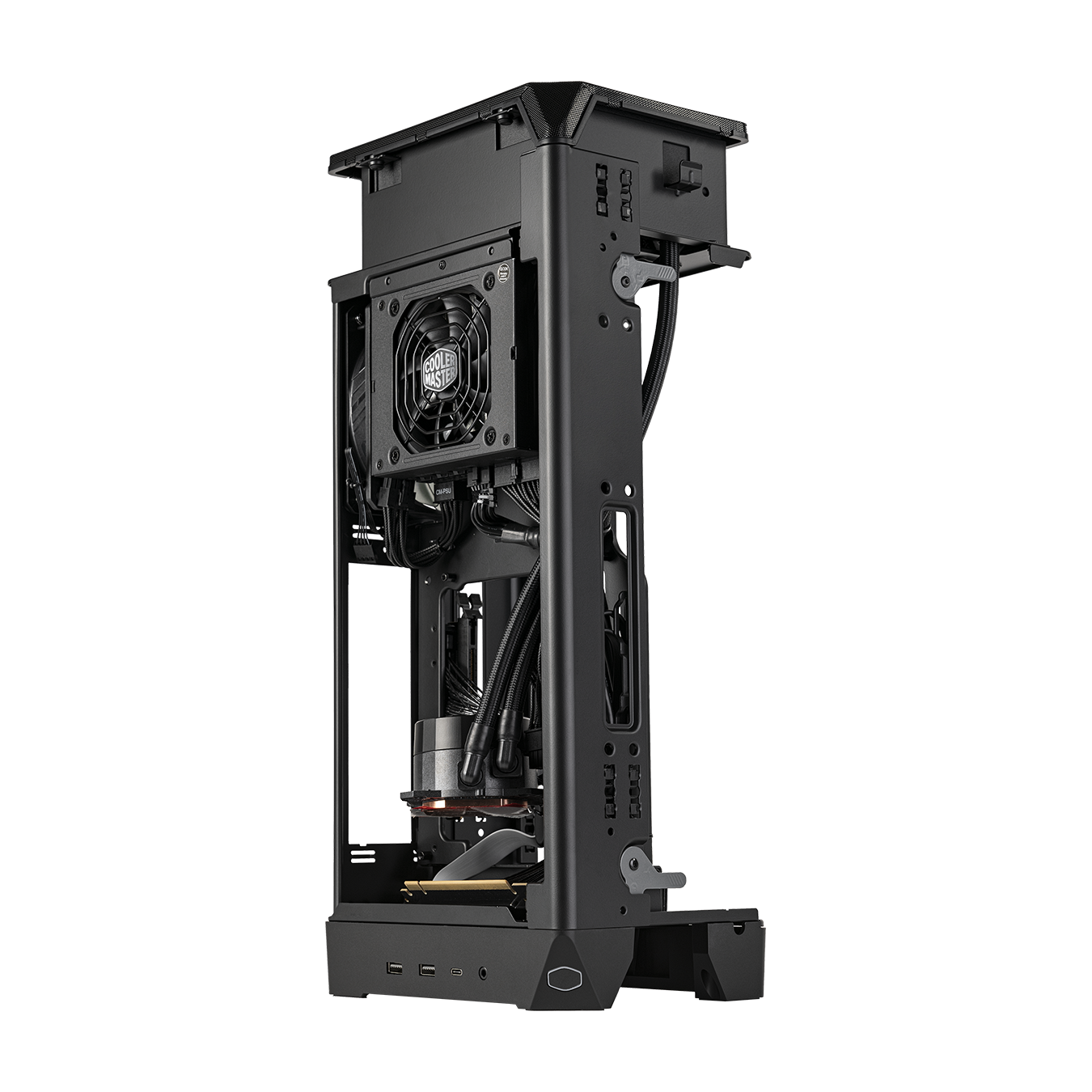

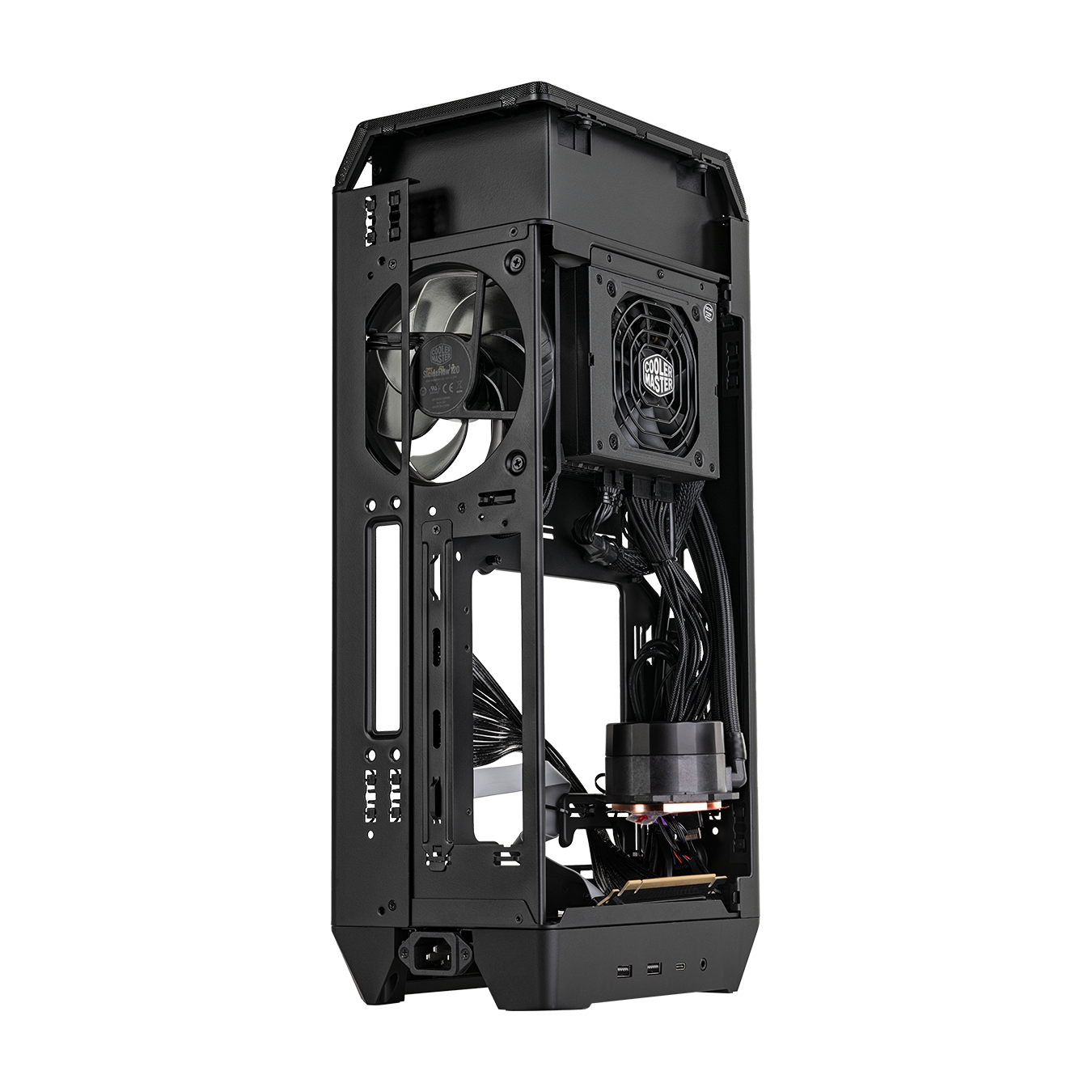

OPEN FRAME DESIGN

Eliminating three surfaces usually included in a standard case to let

you approach installation from numerous angles. Even and cable cover

features tool-less removal, for the utmost in accessibility.

Tech Specs

SPECIFICATIONS & DOWNLOADS

  • Product Number NCORE 100 MAX: NR100-MNNN85-SL0, NR100-MNNN85-SL1
  • Product Number NCORE 100 MAX Bronze Edition: NR100-ZNNN85-SL0, NR100-ZNNN85-SL1

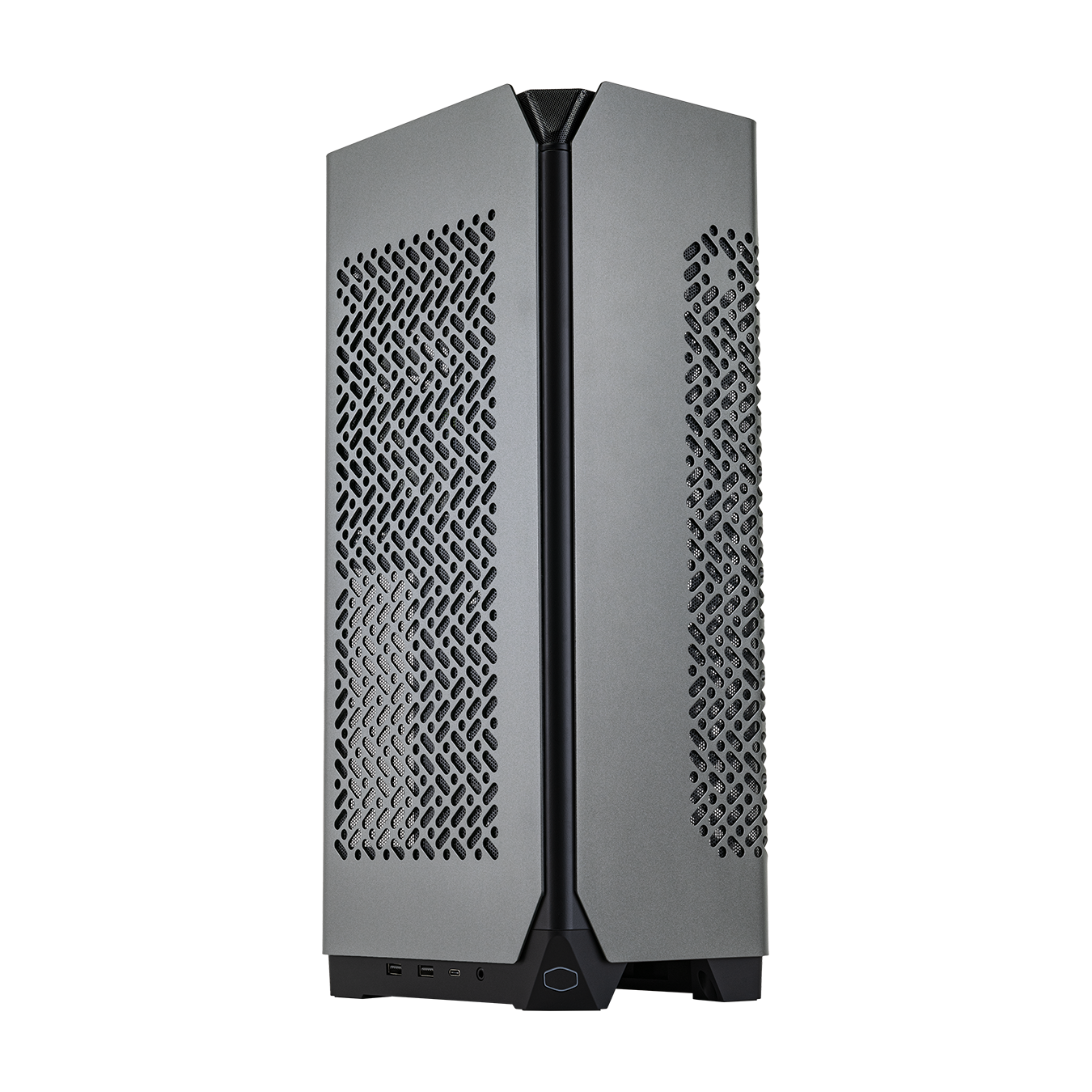

  • Exterior Color NCORE 100 MAX: Dark grey

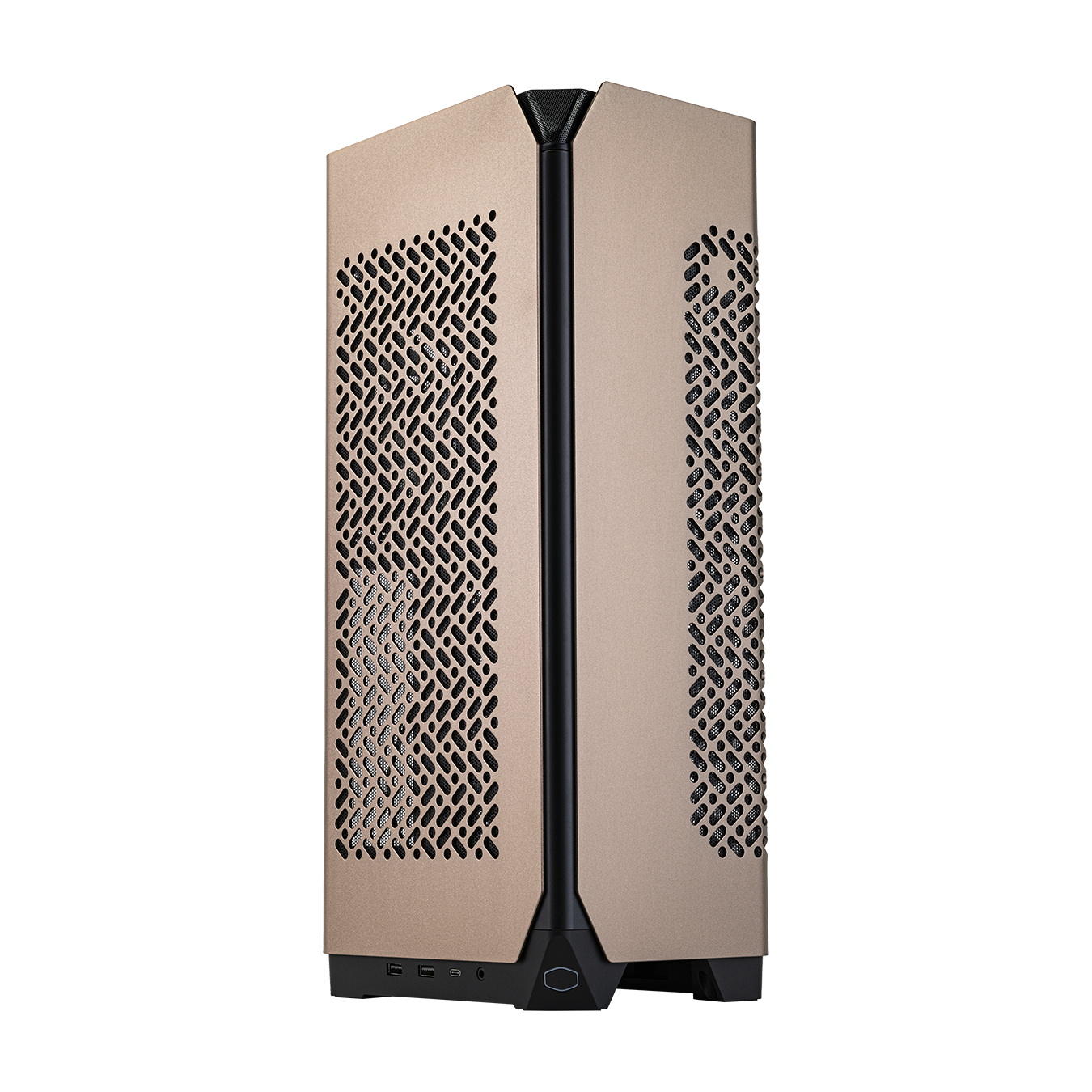

  • Exterior Color NCORE 100 MAX Bronze Edition: Bronze
  • Materials - Exterior Steel, Plastic, Aluminum
  • Materials - Side Panel Aluminum
  • Dimensions (L x W x H) Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions)
  • Dimensions (L x W x H) Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions)
  • Dimensions (L x W x H) 155mm x 212mm x 457mm (Excl. Protrusions)
  • Dimensions (L x W x H) 172mm x 212mm x 457mm (Excl. Protrusions)
  • Volume 15.80L (Normal mode)
  • Volume 17.54L (Expansion mode)
  • Motherboard Support ITX
  • Expansion Slots 3x PCIe Slot Mounting
  • Drive Bays - 2.5" SSD 1

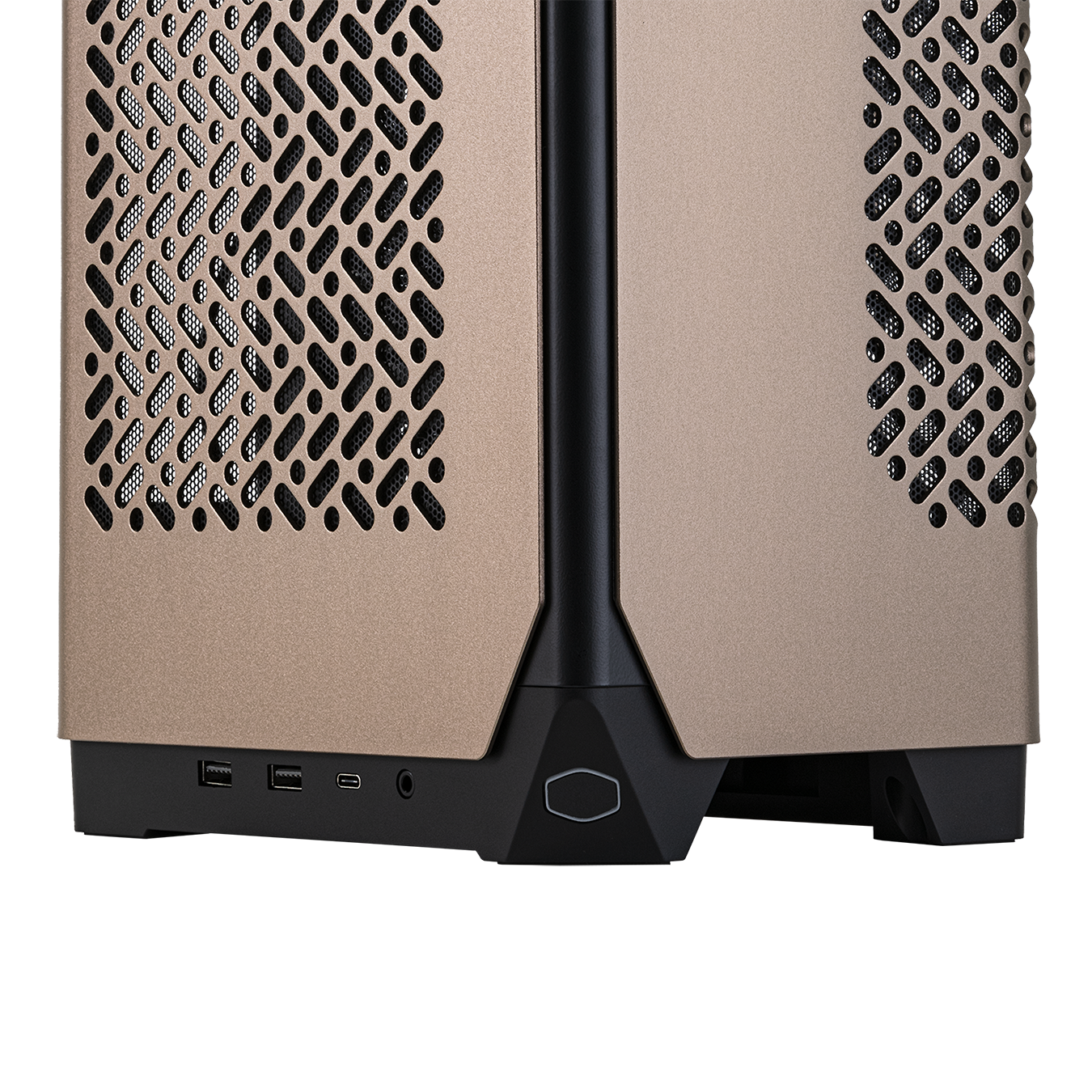

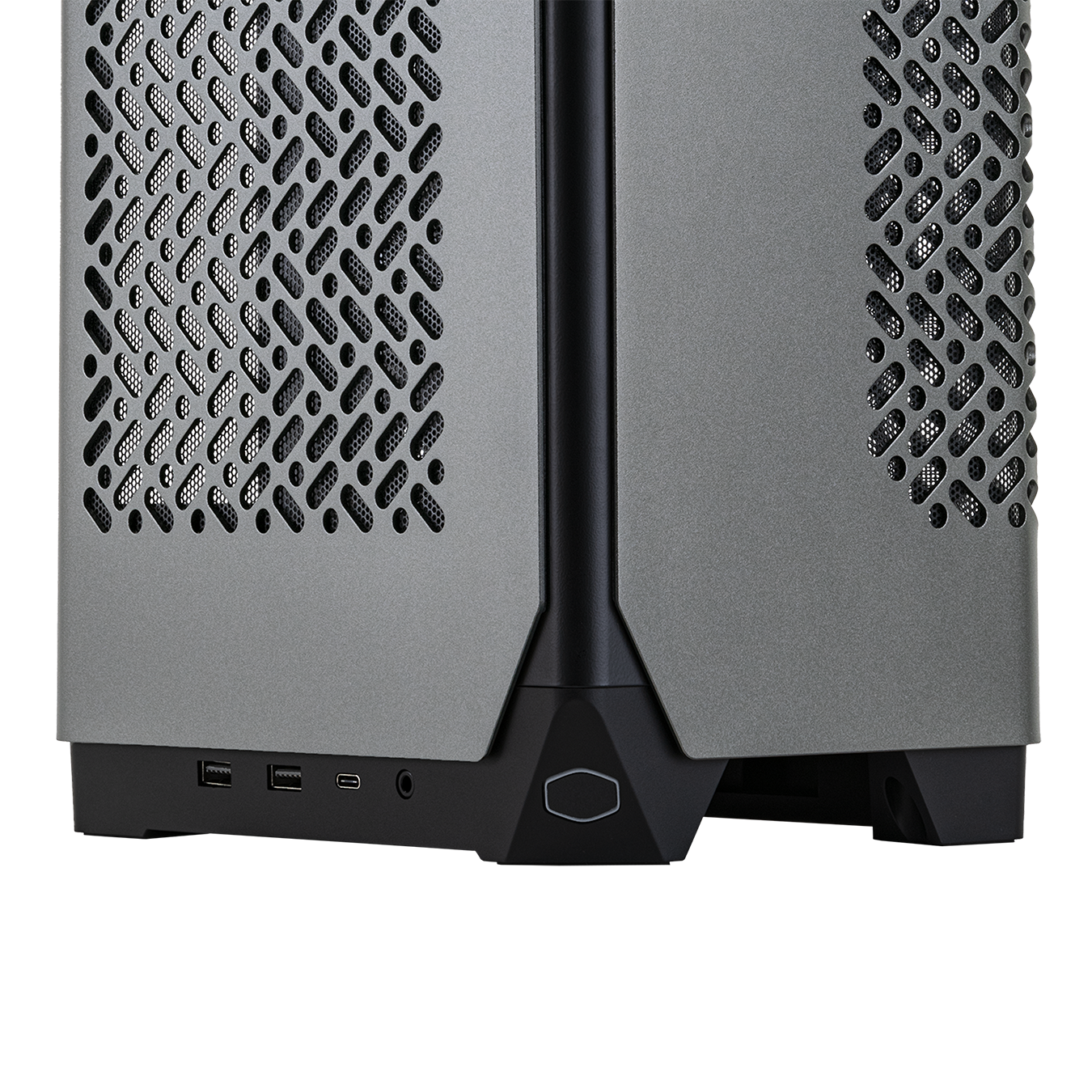

  • I/O Panel 2x USB 3.2 Gen1 Type A
  • I/O Panel 1x USB 3.2 Gen2 x 2 Type C
  • I/O Panel 1x Audio Combo (Audio In / Out 3.5mm)
  • Pre-Installed Accessories 1x 240mm PCIe 4.0 x16
  • Pre-Installed CPU Cooling Solution 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
  • Pre-installed Power Supply Unit V SFX Gold 850W ATX 3.0
  • Pre-installed Fan(s) - Rear 120mm SickleFlow PWM Fan x1 (Max. 1800RPM)
  • Clearances - CPU Cooler 48mm
  • Clearances - Power Supply 100mm
  • Clearances - RAM 48mm
  • Clearances - Graphics Card 337mm x 62mm x 180mm (Normal, 3.0 Slot thick)
  • Clearances - Graphics Card 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick)
  • Clearances - Graphics Card (Maximum space including GPU power connector)
  • Cable Routing - Behind MB Tray 11mm
  • Dust Filters Side panels
  • Power Supply Support SFX
  • Warranty 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
  • Size Mini ITX
