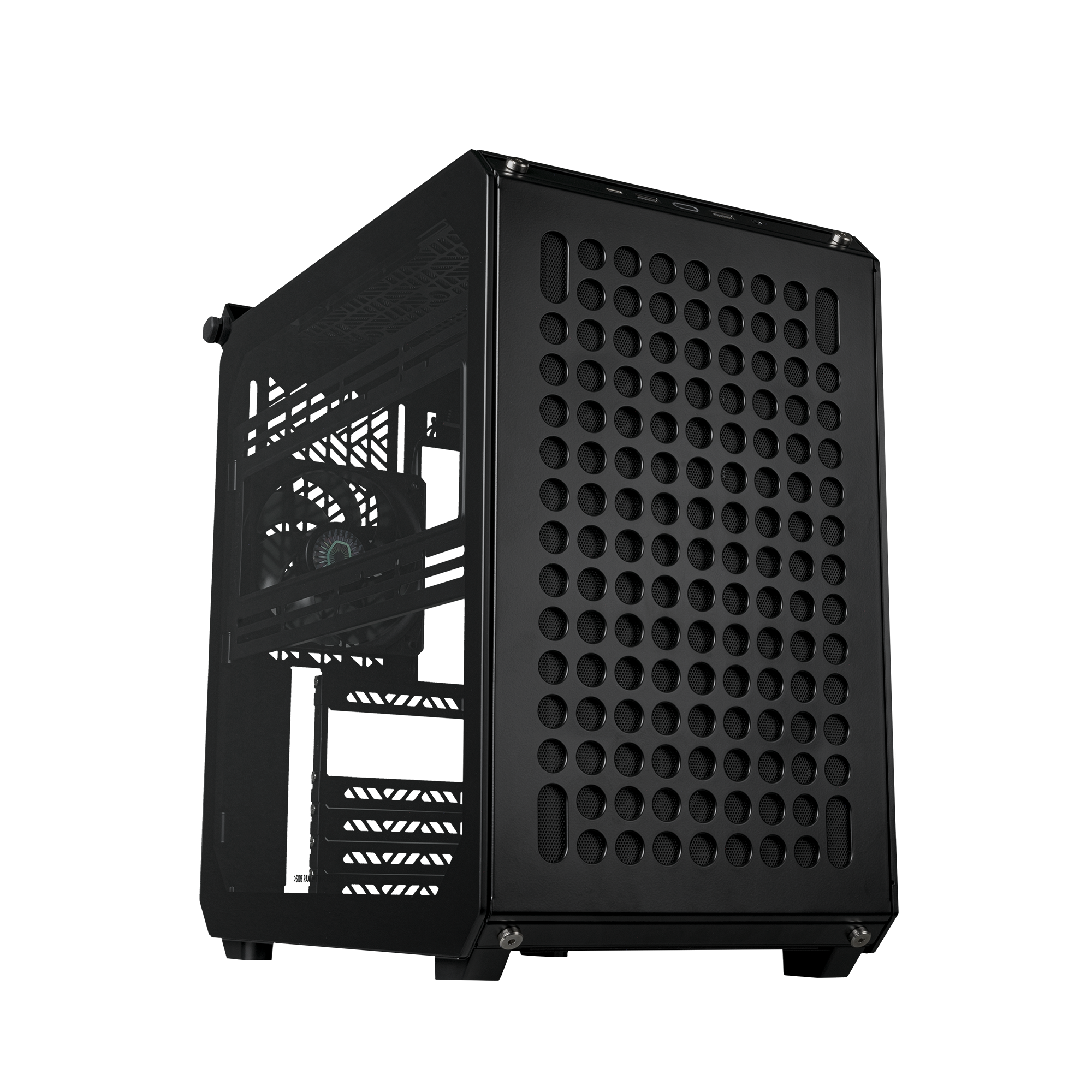

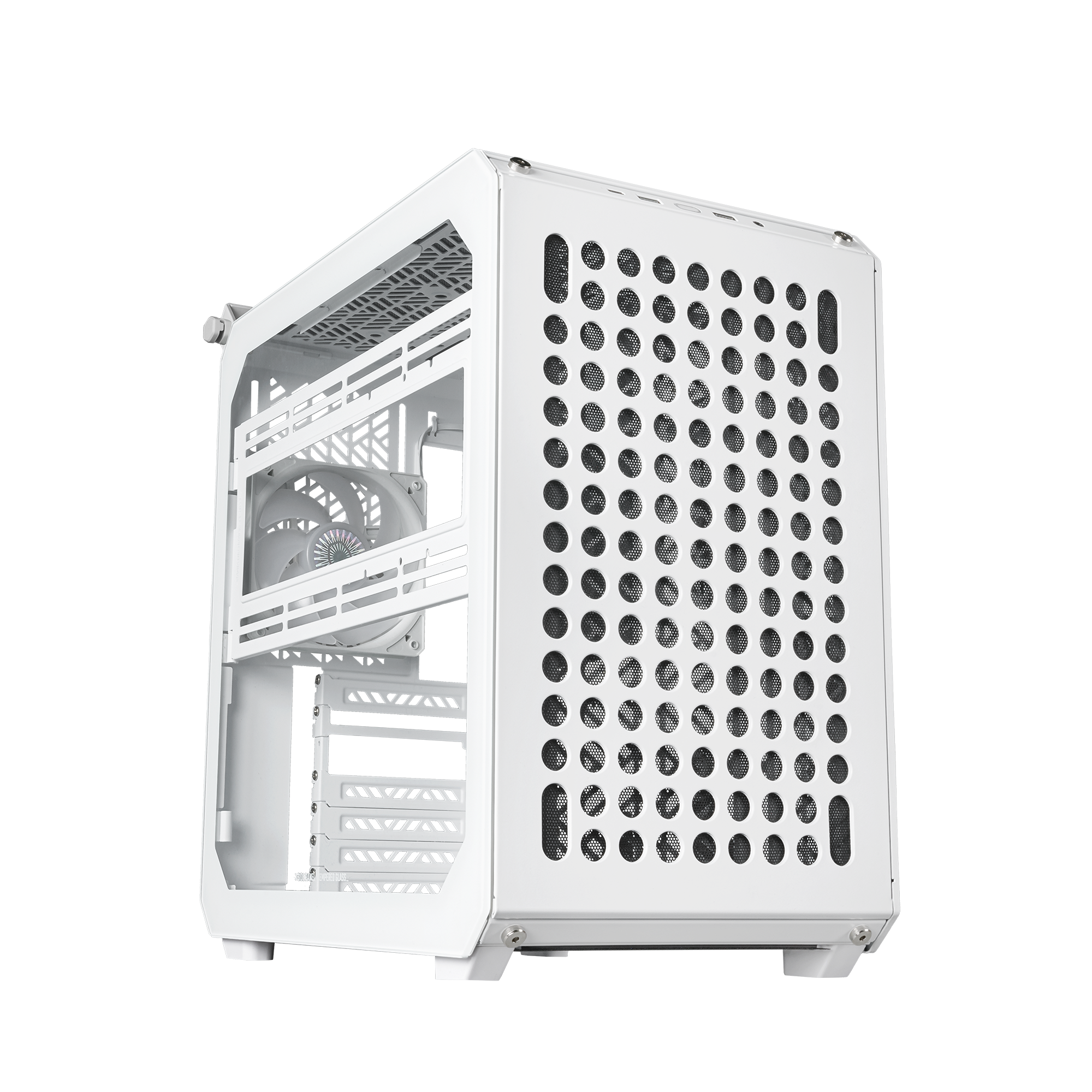

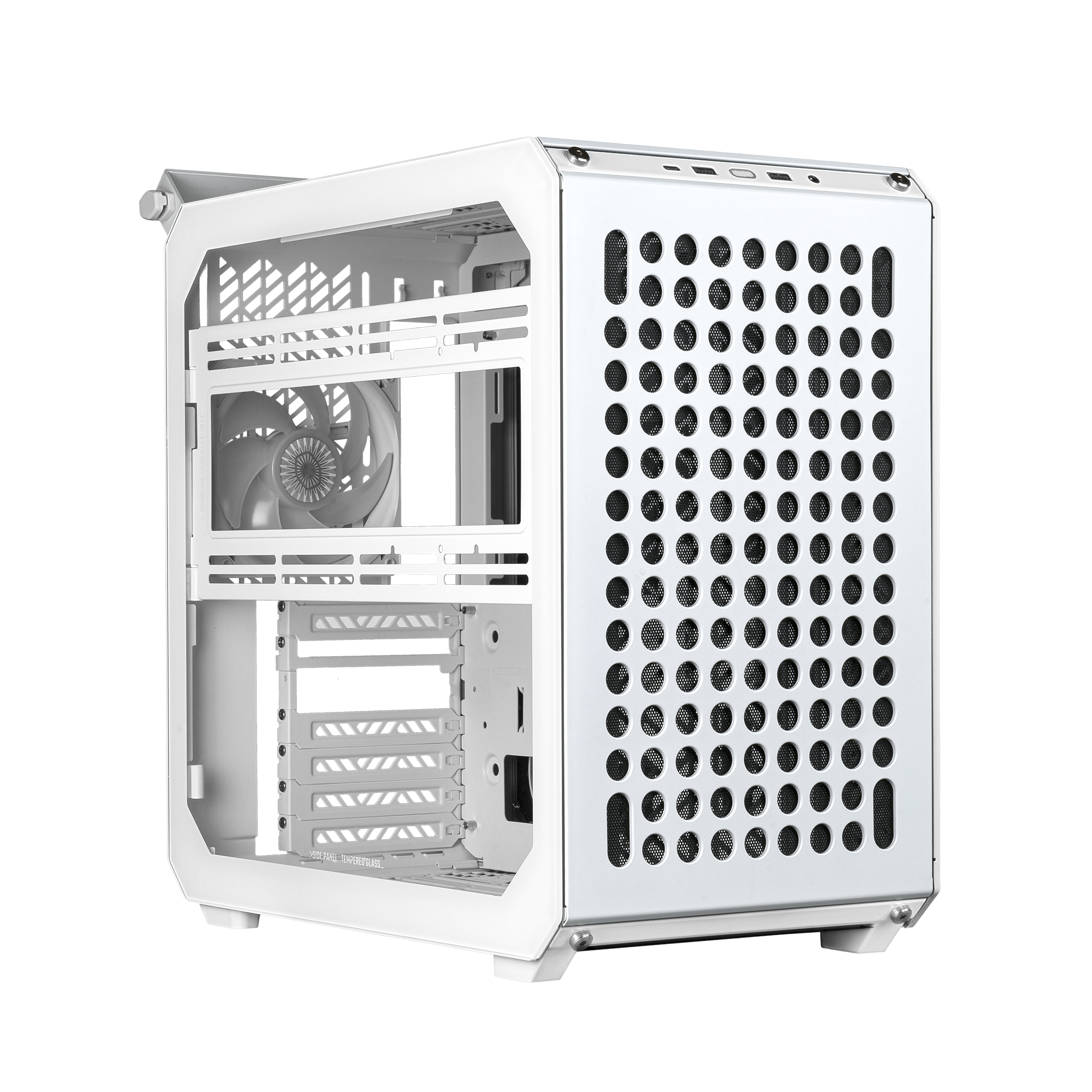

QUBE 500 Flatpack Black & White Edition
Flatpack assembly
Fully modular design
Built-in vertical GPU mount
Full-sized specs, pint-sized body
Highly customizable
Accessory ecosystem
Color
Availability:
-
Select Styles for Availability
€ 99,99
Fully Modular
Features modular panels that simplify and streamline the usual case
prep process. Every panel is separately removable for easy maintenance.
Flatpack Assembly
Besides the clear eco-benefits, we believe flat-packing will provide a fun and satisfying build experience.
Welcome to the future of PC DIY.

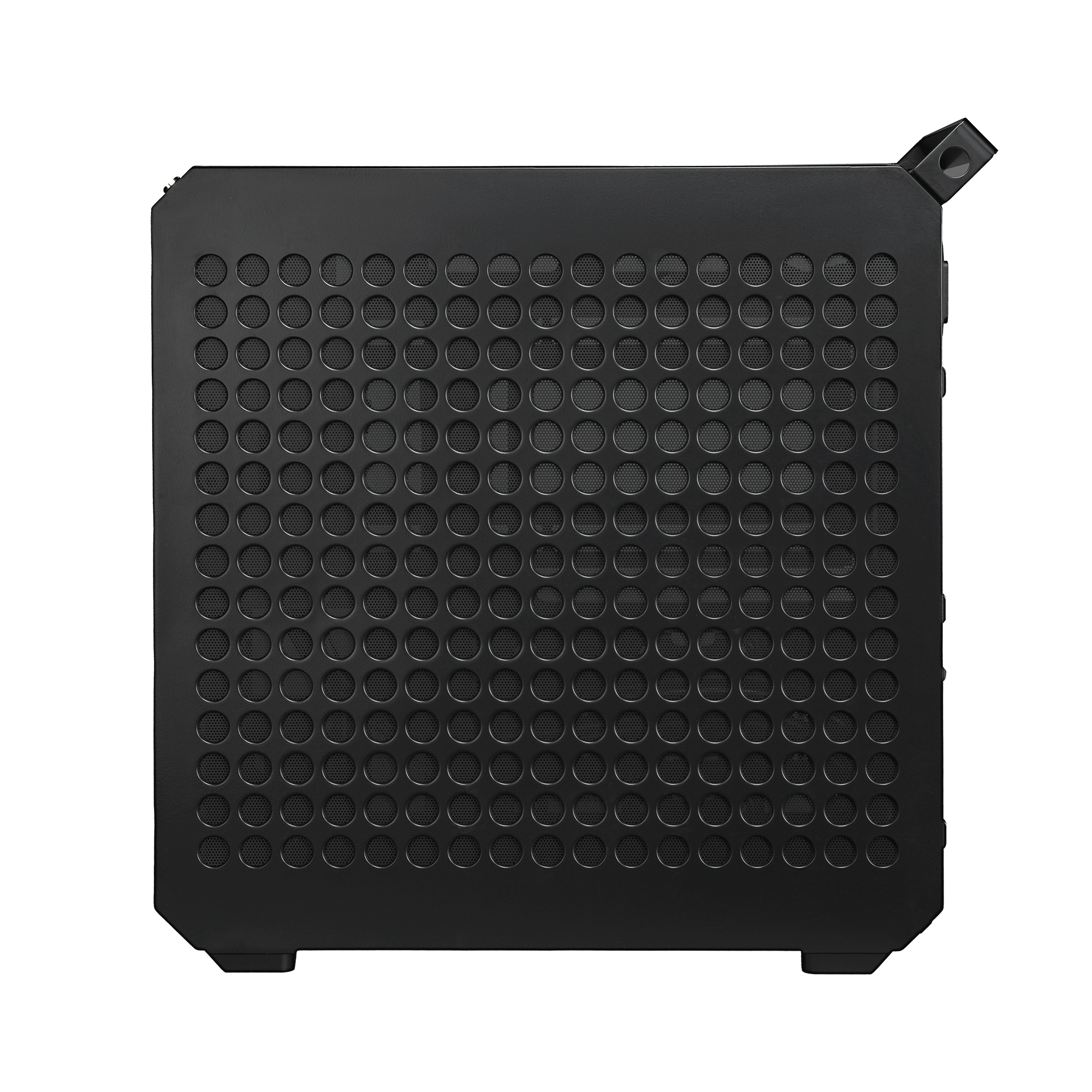

Swappable Side Panels
The symmetric design allows you to switch the steel panel and the glass panel with each other for a non-transparent build.
Highly Customizable
An unprecedented level of customizability allows for full creative expression.
Mult-color Macaron edition
Color your way
Fully express yourself with the multi-color Macaron edition. It includes two sets of extra panels, an extra handlebar, and two accessory hooks (only available on Macaron edition models). Mix and match the modular panels to create a case that is truly your own.
Side radiator bracket
Extra Airflow
The side radiator mount has two positions, allowing you to install a 280mm radiator or provide your GPU with extra airflow.
GPU Bracket
Built-in vertical
Vertically mount your GPU with the included bracket. You can even adjust the distance from the side panel to maintain good airflow.
Accessories
Accessory ecosystem
The Qube 500 comes with a living accessory ecosystem. A Gem mini cable manager and accessory hook are included (only available on Macaron edition models), and we have prepared some 3D-printable files for you to create your own accessories.
- Model Number QUBE 500 Flatpack: Q500-KGNN-S00, QUBE 500 Flatpack White: Q500-WGNN-S00
- Exterior Color Black, White
- Materials - Exterior Steel, Plastic, TG
- Materials - Left Side Panel Grey TG + Steel
- Dimensions (L x W x H) 406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions)
- Volume 33.44L (excl. Protrusions)
- Motherboard Support ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)
- Expansion Slots 7
- 3.5" Drive Bays 4
- 2.5" Drive Bays 3

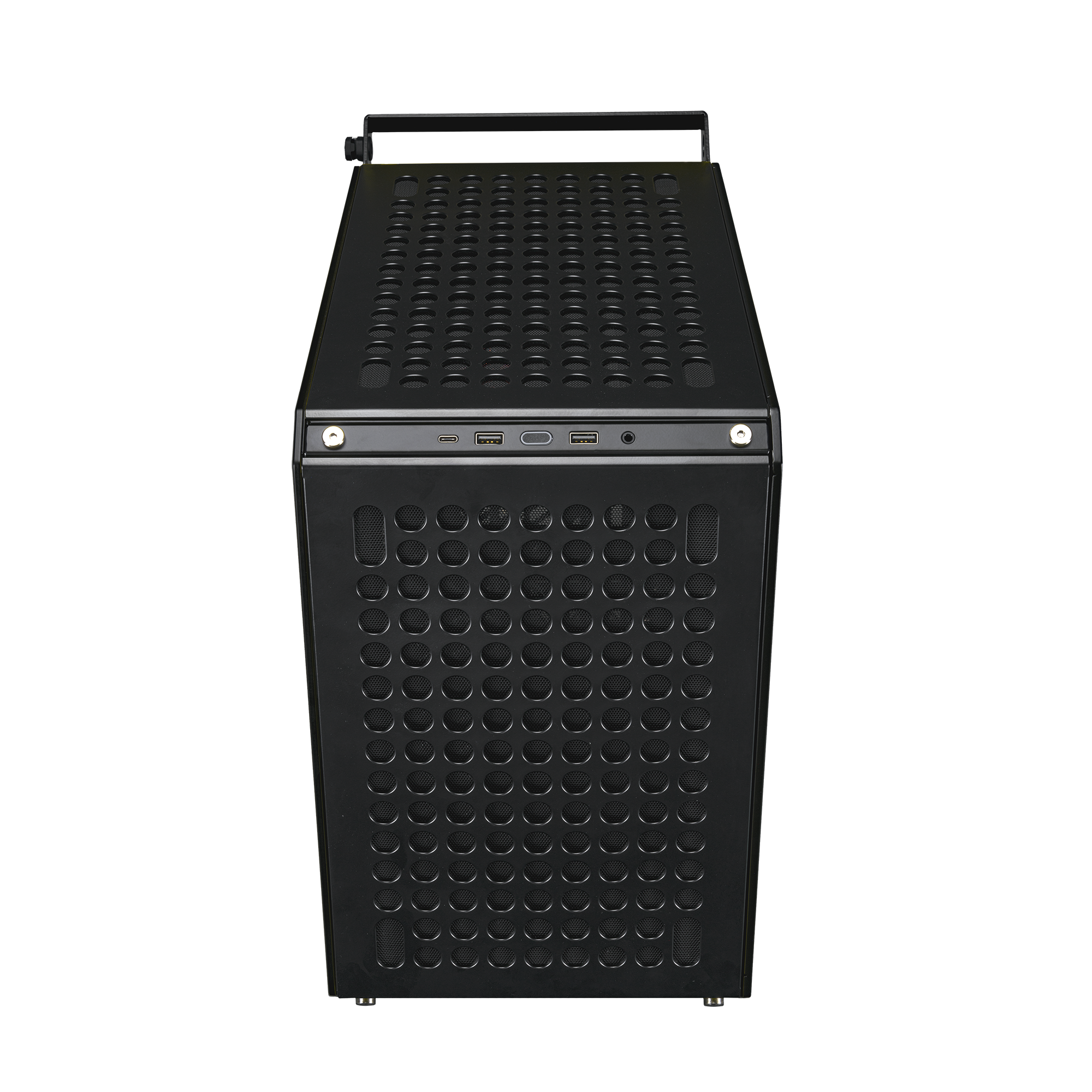

- I/O Panel - USB Ports 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
- I/O Panel - Audio In / Out 1x 3.5mm Combo
- Pre-installed Fans - Rear QUBE 500 Flatpack: 1x 120mm (1800 RPM) SF Black PWM, QUBE 500 Flatpack White: 1x 120mm (1800 RPM) SF White PWM
- Fan Support - Front 1x 120/140mm (x2 if PSU is mounted in bottom)
- Fan Support - Top 2x 120/140mm
- Fan Support - Rear 1x 120mm
- Fan Support - Bottom 2x 120/140mm
- Fan Support - Left side 2x 120/140mm
- Radiator Support - Front 120/140 mm (240/280mm w/ PSU in bottom)
- Radiator Support - Top 120 / 140 / 240 / 280mm (280mm can be used within 53mm thickness)
- Radiator Support - Rear 120mm
- Radiator Support - Bottom 120 / 140 / 240 / 280mm
- Radiator Support - Left side 120 / 140 / 240 / 280mm
- Clearance - CPU Cooler 164mm-172mm (Remove the water cooling bracket)
- Clearance - PSU 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space)
- Clearance - GFX 365mm

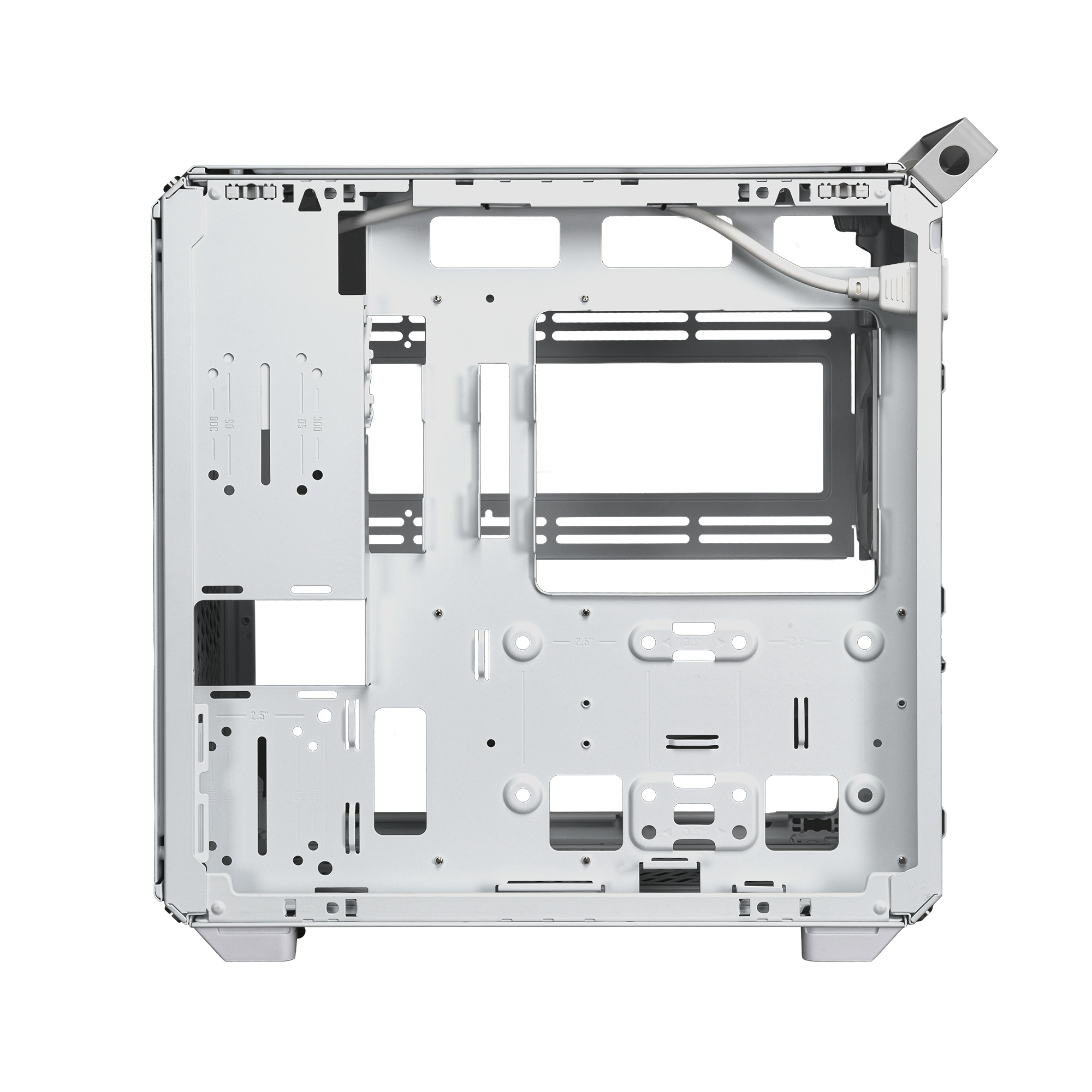

- Cable Routing - Behind Motherboard Tray 29-32mm
- Handle QUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1
- Gem Mini QUBE 500 Flatpack: Black x 1, QUBE 500 Flatpack White: Grey x 1
- Dust Filters Front, Top, Bottom, Right side
- Power Supply Support SFX / SFX-L / ATX
- Warranty 2 years
- Size Mid Tower
- Series QUBE Series
- Back Connector Motherboard Support No
- Note -
