The First ATX 'MAX', Easy Premium Builds

TD500 MAX

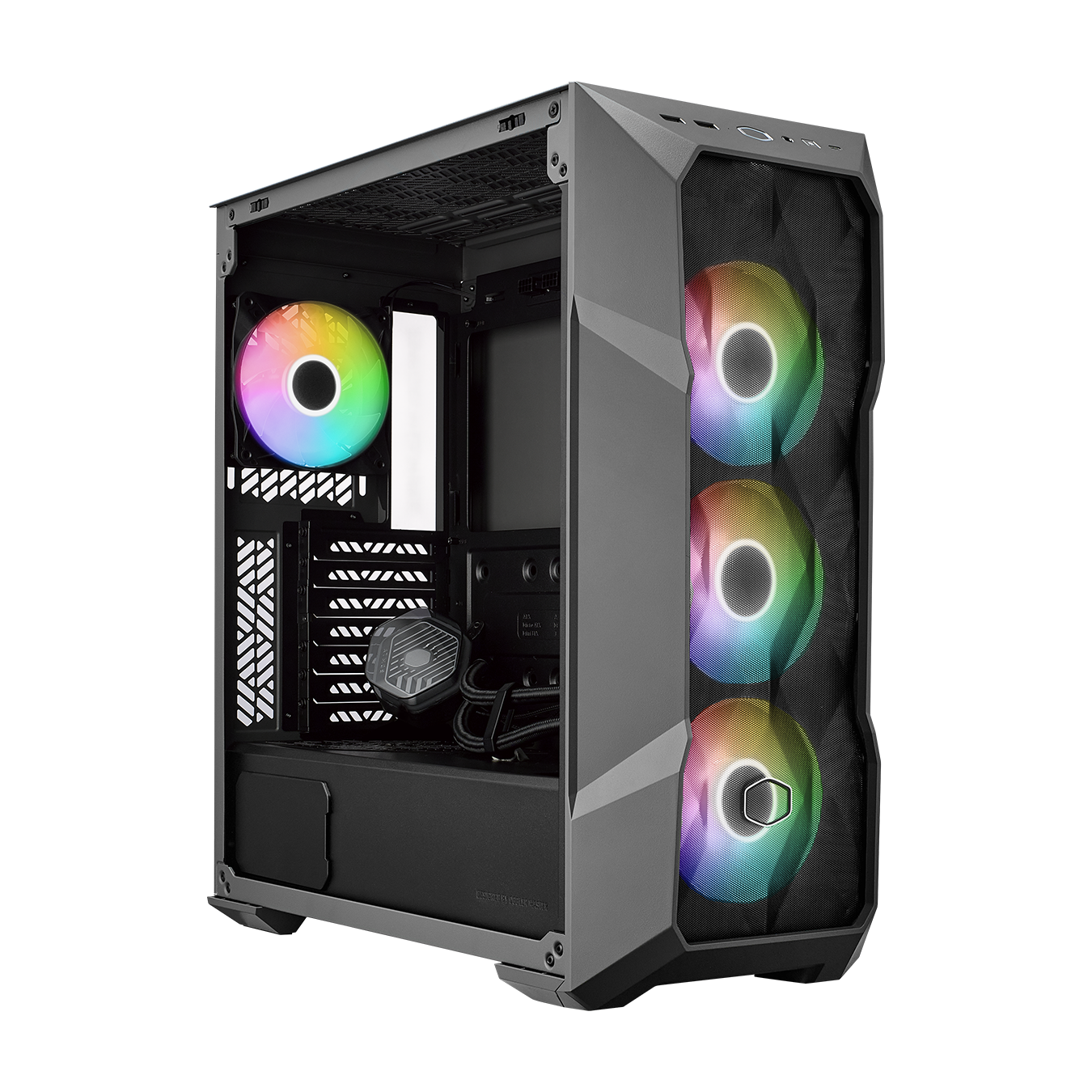

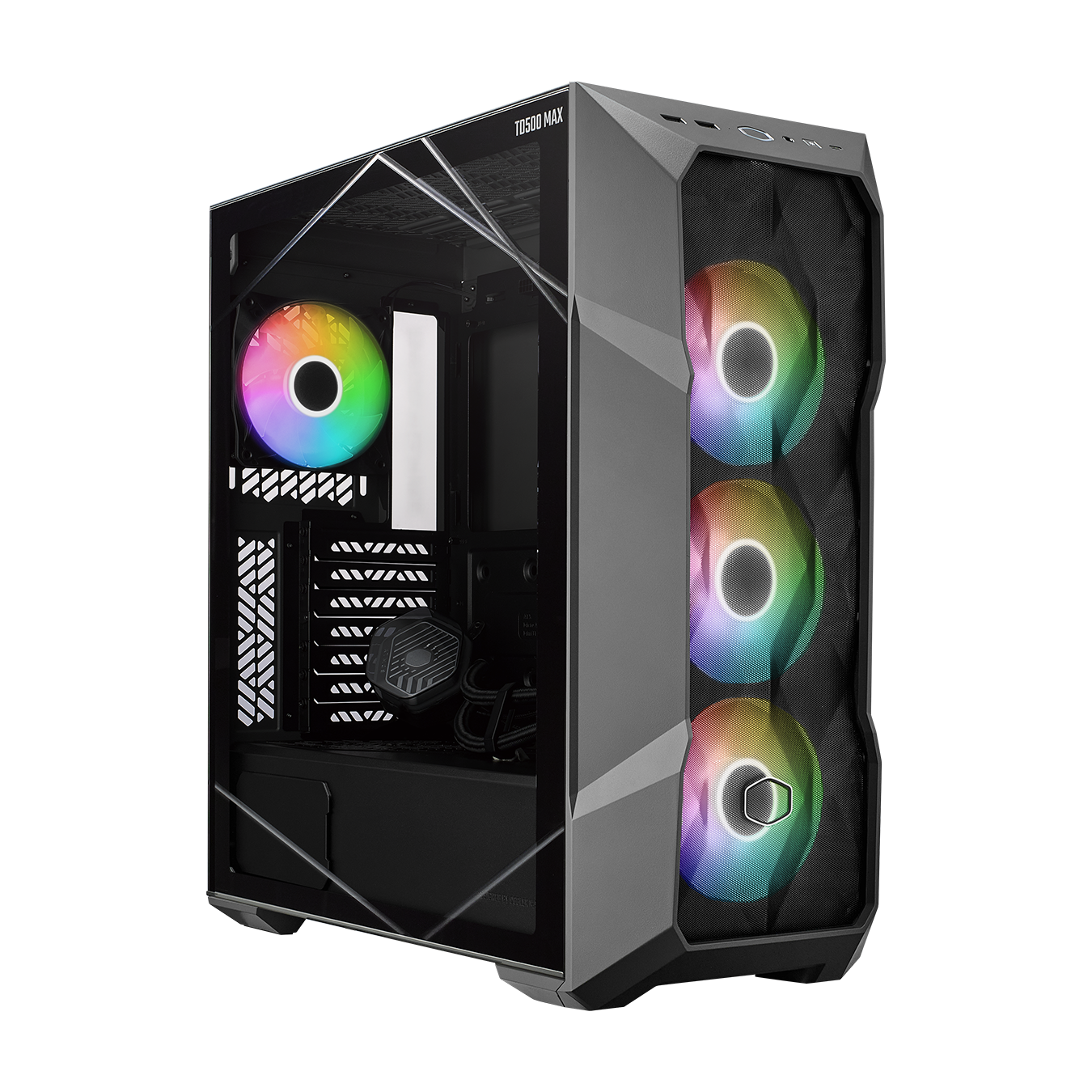

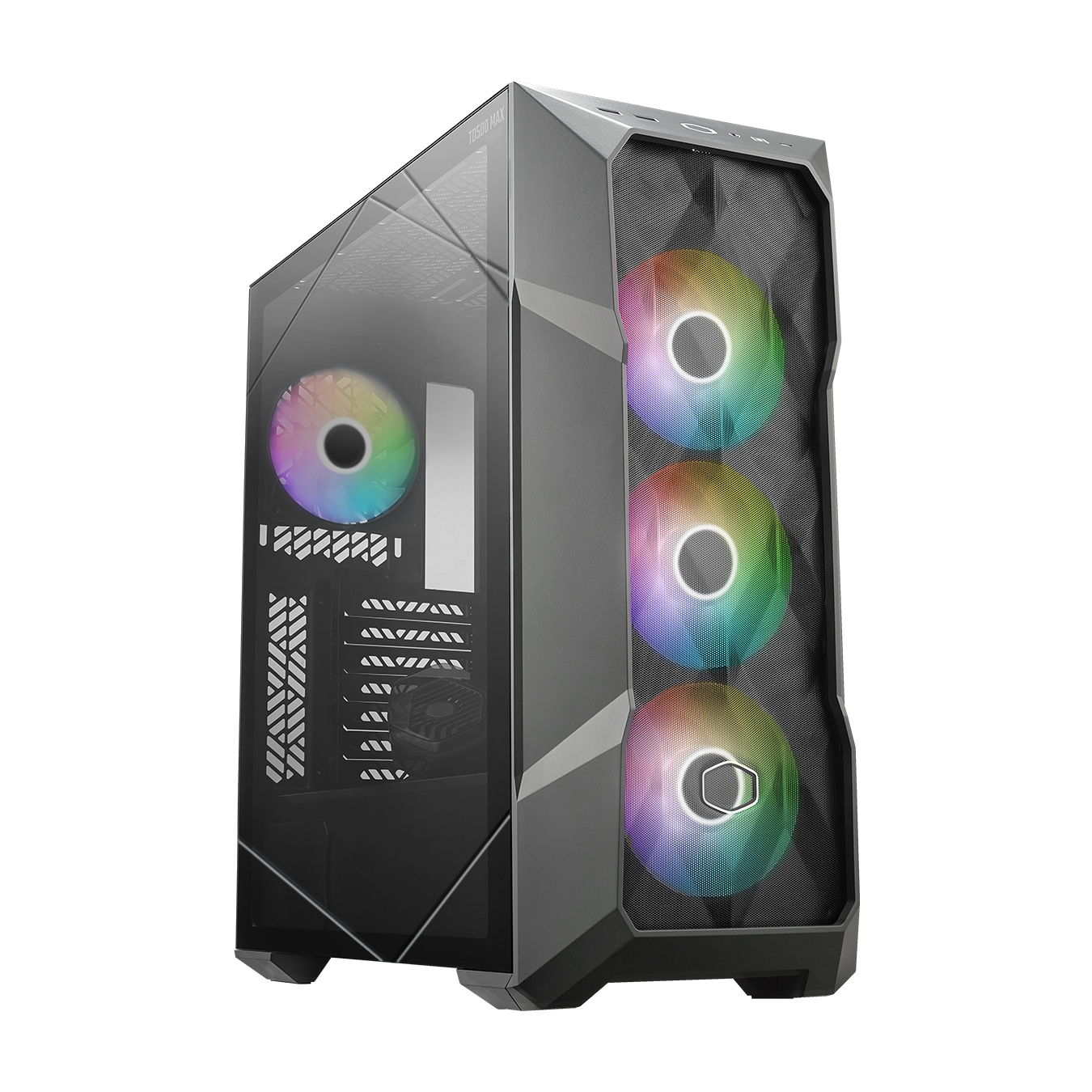

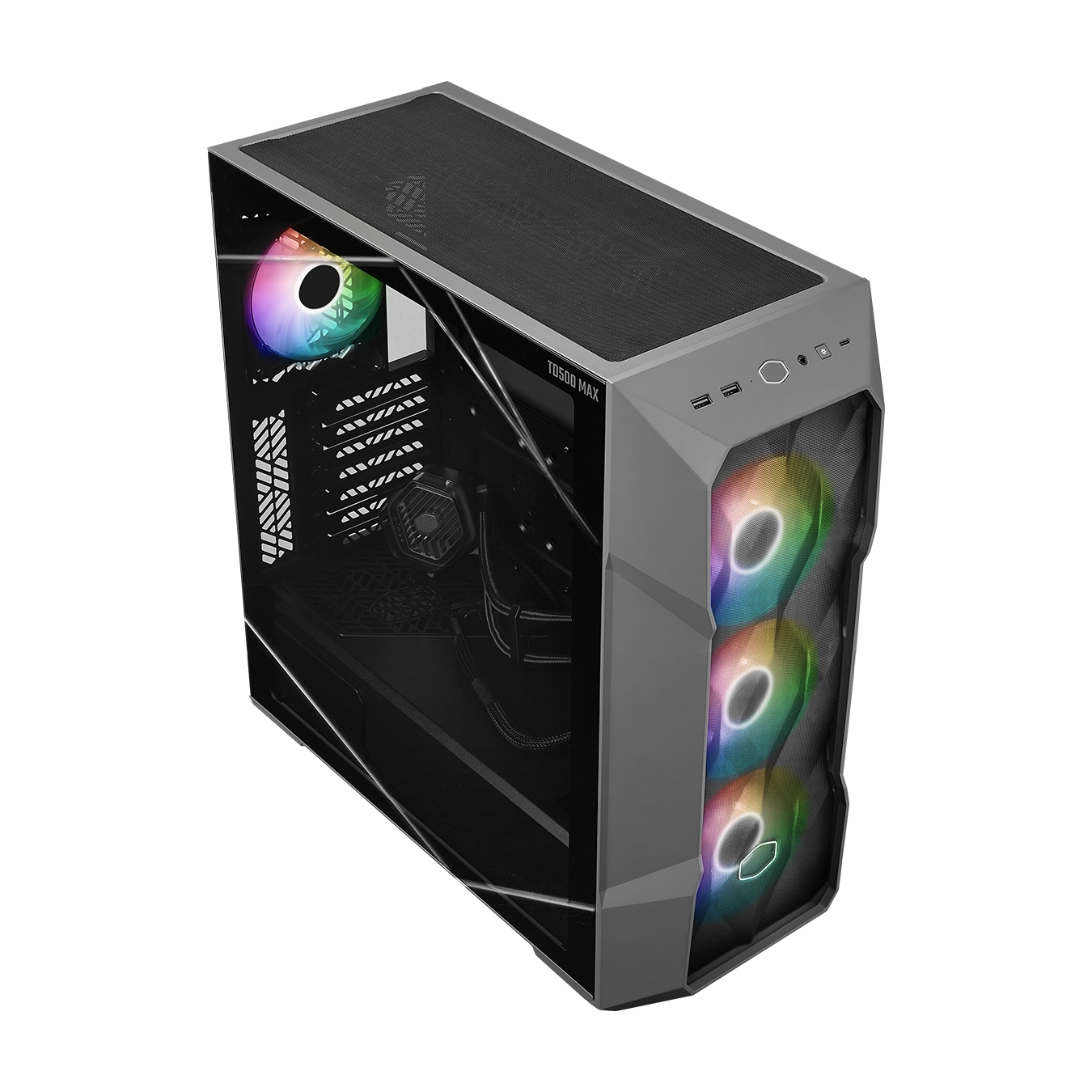

Cooler Master presents the TD500 MAX, the next revolutionary step in our MAX line up.

model
Availability:
  • In Stock
Price reduced from € 399,99 to € 299,99
Customization

RECALL USERS' PASSION FOR PC DIY

The TD500 MAX, Cooler Master's first AT case in the MAX series, features a preinstalled customized AlO cooler, GXII Gold 850W ATX 3.0 PSU, patented 2-stage cable connectors, and a screw storage pad. It aims to revive users' passion for PC building while reducing the challenges faced putting together high-end PCs.

Our Achievements

2 AWARDS

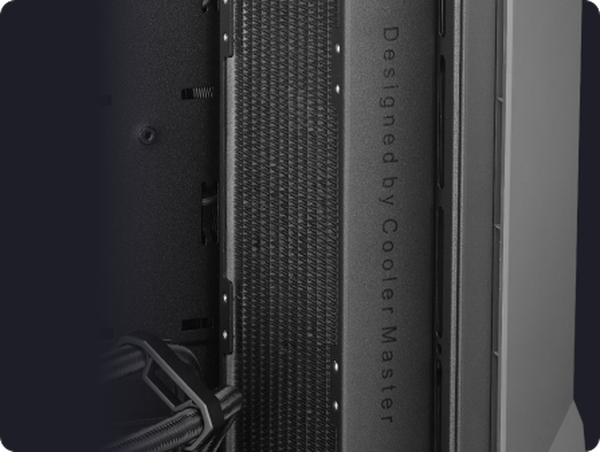

Cooling System

38MM

THICKER RADIATOR

Storage Design

OUR EXCLUSIVE DESIGN IS BEVOND EASY

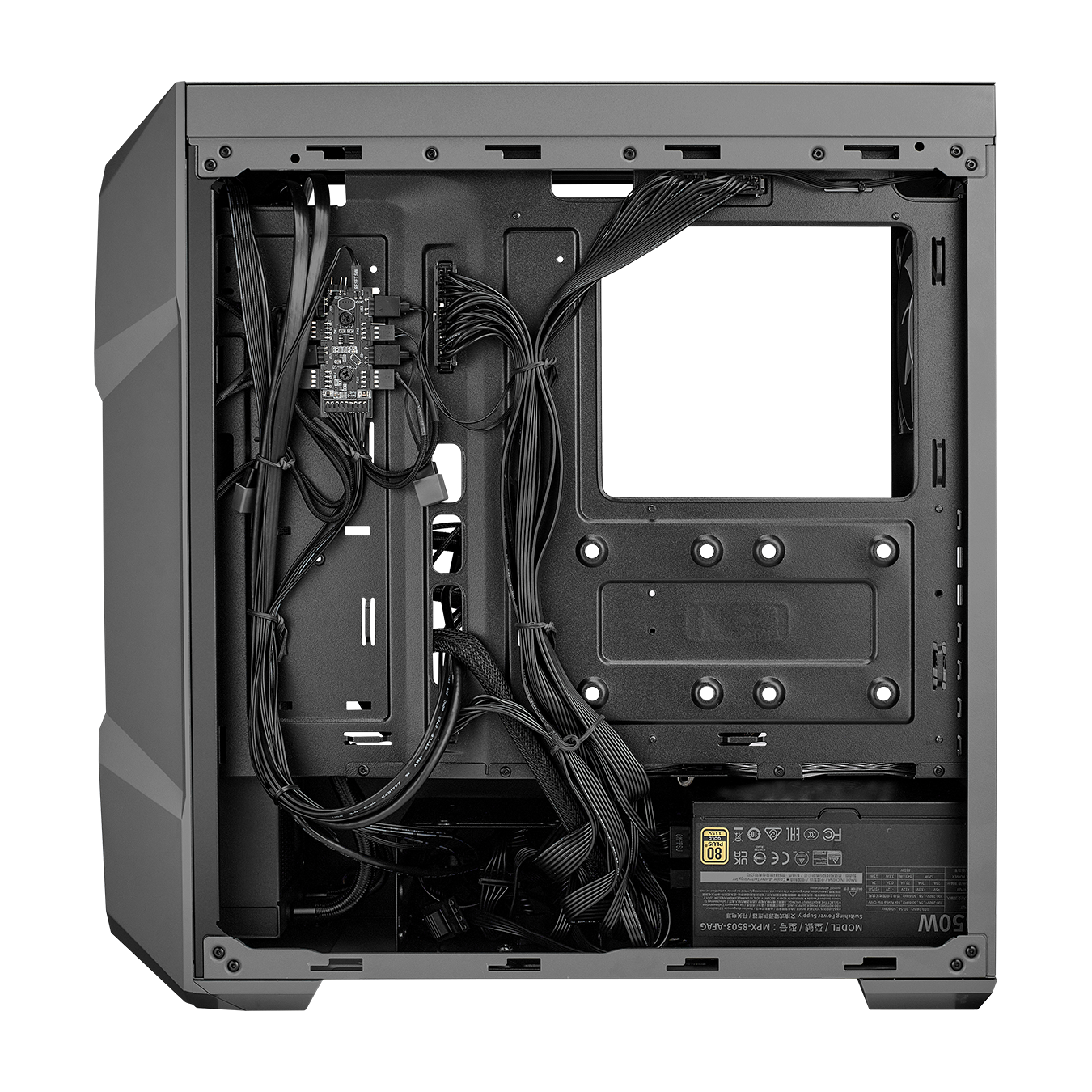

The TD500 MAX streamlines PC building by pre-connecting the GXII

PSU with 2-stage Cable Connectors and providing a screw storage

pad under the PSU Cover. This allows quick and elegant builds, with

the added convenience of replacing the motherboard without opening

the back panel.

Fans

ENDLESS FRESH AIR

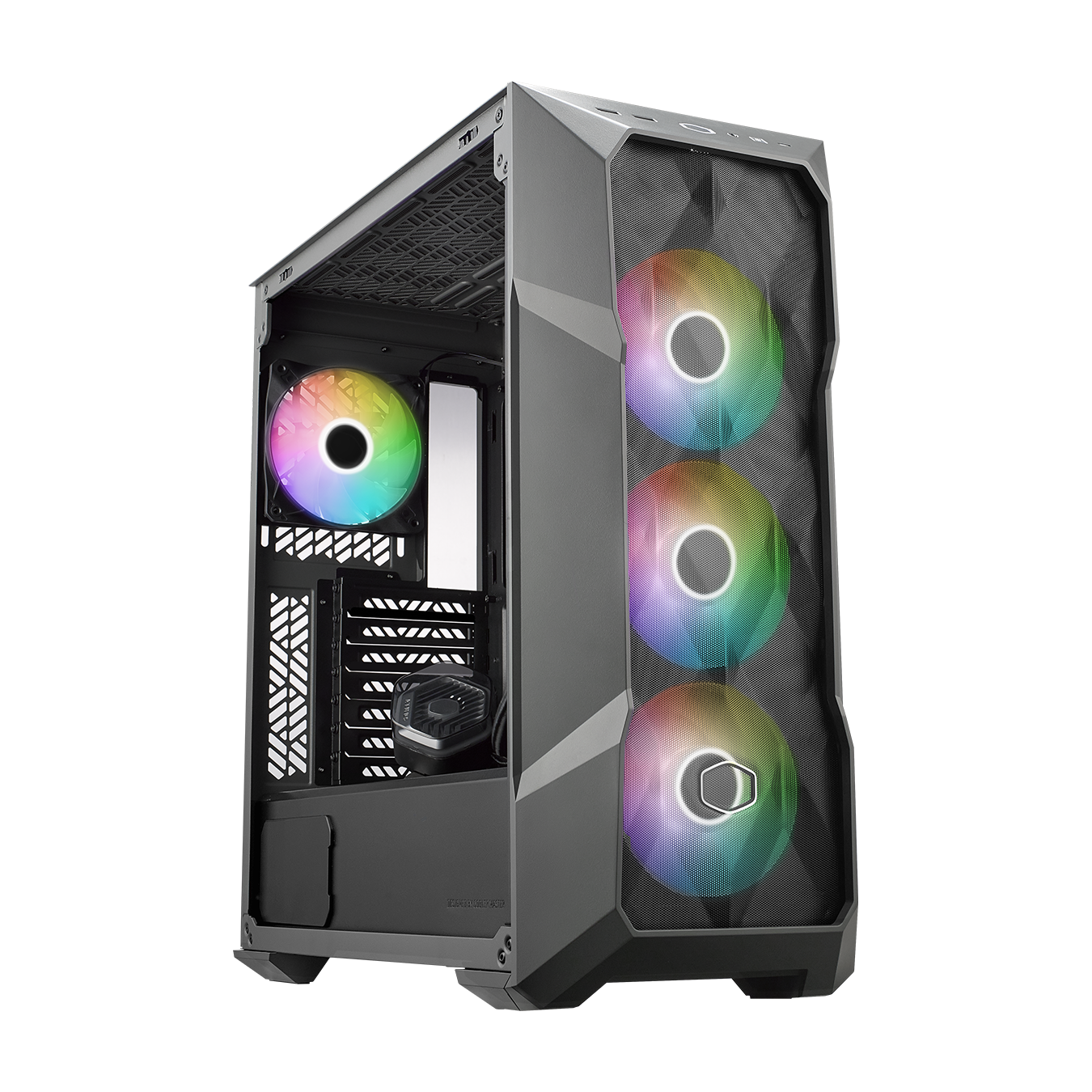

Cooler Master integrated flagship Mobius 120P ARGB fans in the

premium 360 Atmos AlO cooler, offering users an even higher-

performance cooling solution

3.6 MMH20

HIGH-AIRFLOW

Fans

75.6FM

HIGH-AIR PRESSURE

Design

A FLEXIBLE DESIGN FOR FUTURE NEEDS

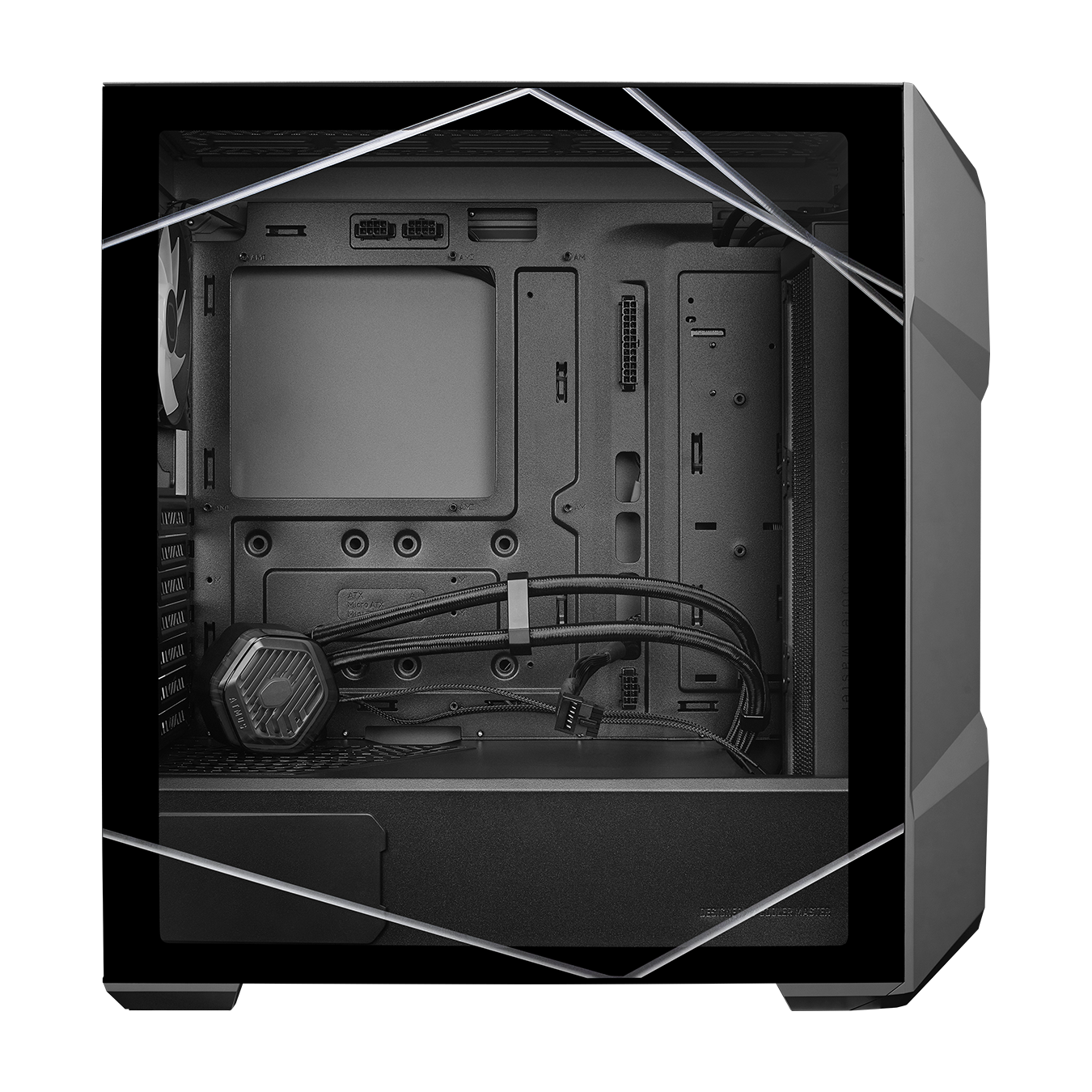

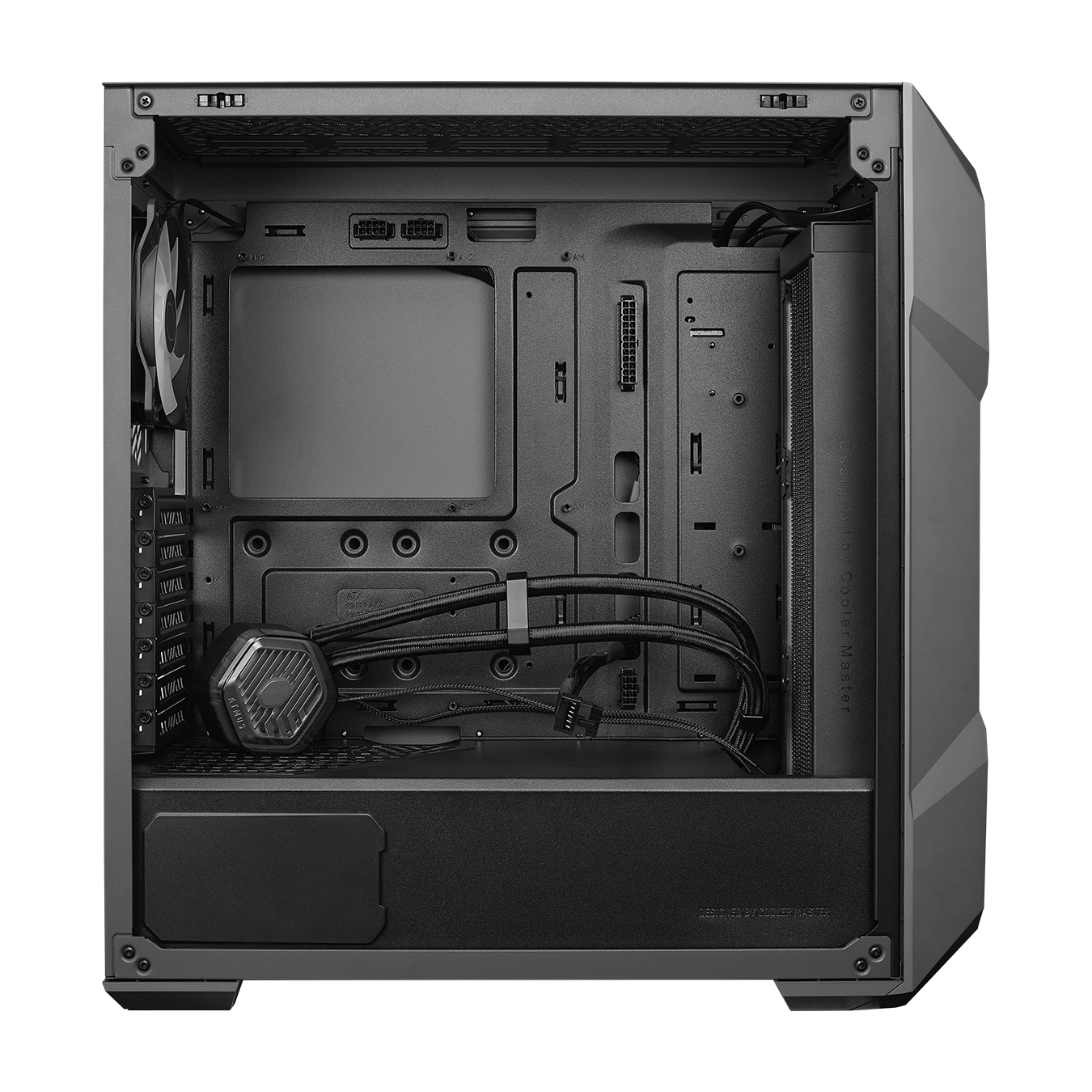

Despite its integrated design, the TD500 MAX is designed for future

upgrades. It supports PSUs up to 200mm when an AlO cooler is front-

installed, accommodates GPUs up to 380mm, and allows for the

addition of three fans on the top if needed.

  • Product Number TD500V2-MGNN85-SL0 / TD500V2-MGNN85-SL1
  • Exterior Color Gun metal
  • Materials - Exterior Steel, Plastic, Tempered Glass
  • Materials - Left Side Panel Tempered Glass
  • Dimensions (L x W x H) 499 x 210 x 500mm (incl. Protrusions)
  • Dimensions (L x W x H) 482 x 210 x 477mm (excl. Protrusions)
  • Volume 48L
  • Motherboard Support Mini-ITX, Micro-ATX, ATX
  • Expansion Slots 7
  • Drive Bays - 5.25" ODD 0
  • Drive Bays - 3.5" HDD 2
  • Drive Bays - 2.5" SSD 3
  • I/O Panel - USB Ports 2x USB 3.2 Gen 1 + 1x USB 3.2 Gen 2x2 type C
  • I/O Panel - Audio In / Out 1x Audio combo
  • Included Accessories ARGB Hub
  • Pre-installed Radiator ML360 Atmos MAX ver.
  • Pre-installed Power Supply Unit GX II Gold 850W ATX3.0 MAX ver. , *1x extra PCI-e 6+2 Pin cable could be requested for free from local Customer Service
  • Pre-installed Fan(s) - Front 3 x 120mm (AIO Mobius120P ARGB fan)
  • Pre-installed Fan(s) - Top N/A
  • Pre-installed Fan(s) - Rear 1 x CF120 ARGB fan
  • Fan Support - Front 3 x 120mm / 2 x 140mm
  • Fan Support - Top 3 x 120mm / 2 x 140mm
  • Fan Support - Rear 1 x 120mm
  • Radiator Support - Front 360mm / 240mm
  • Radiator Support - Top 360mm / 240mm
  • Radiator Support - Rear 120mm
  • Clearances - CPU Cooler 165mm
  • Clearances - Power Supply 200mm (Pre-installed PSU Length 160mm)
  • Clearances - Graphics Card 380mm (with pre-installed AIO on front)
  • Cable Routing - Behind MB Tray 19mm
  • Dust Filters Top, Bottom
  • Warranty 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
  • Size ATX
