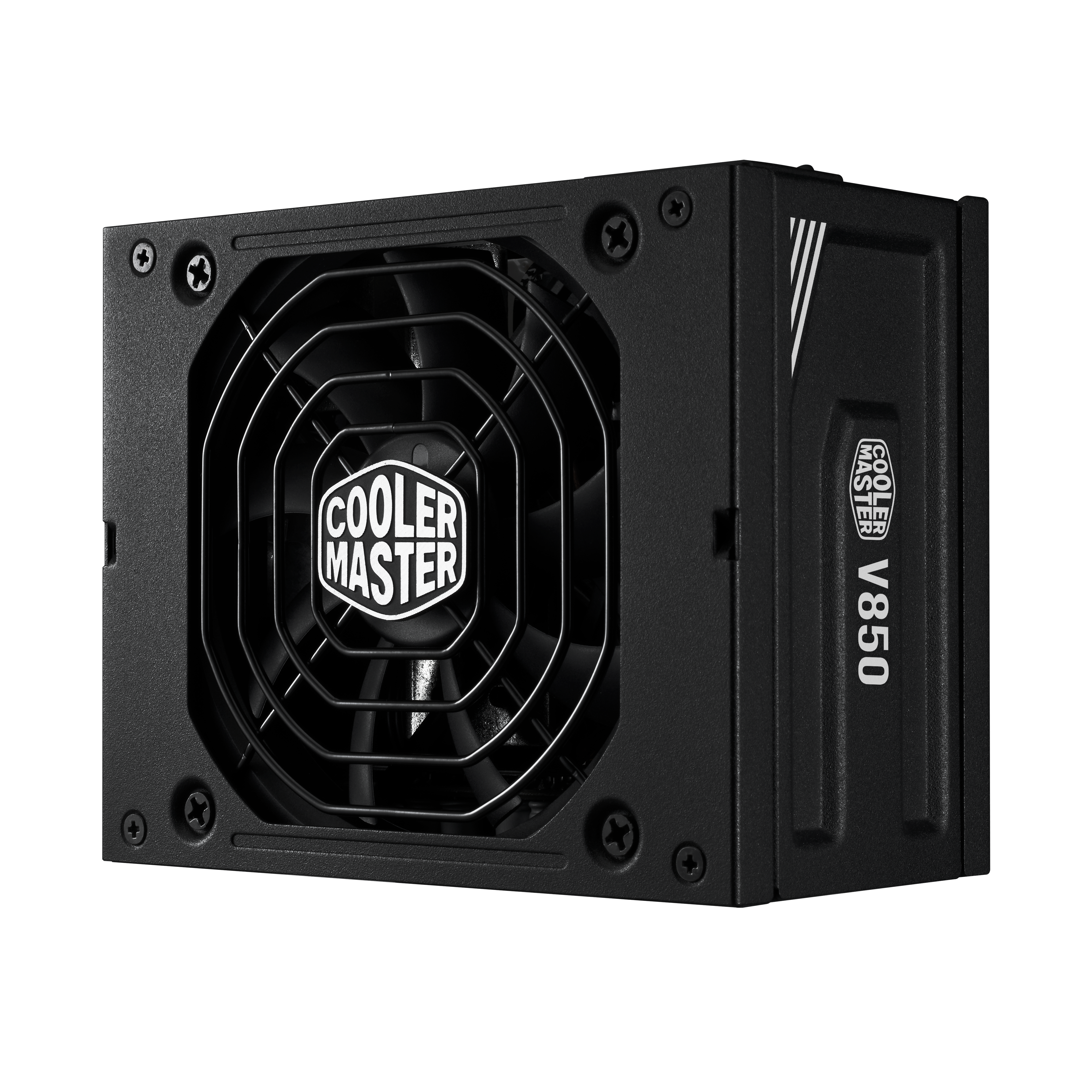

V SFX Gold 850 ATX 3.1 image number 0
V SFX Gold 850 ATX 3.1 image number 1

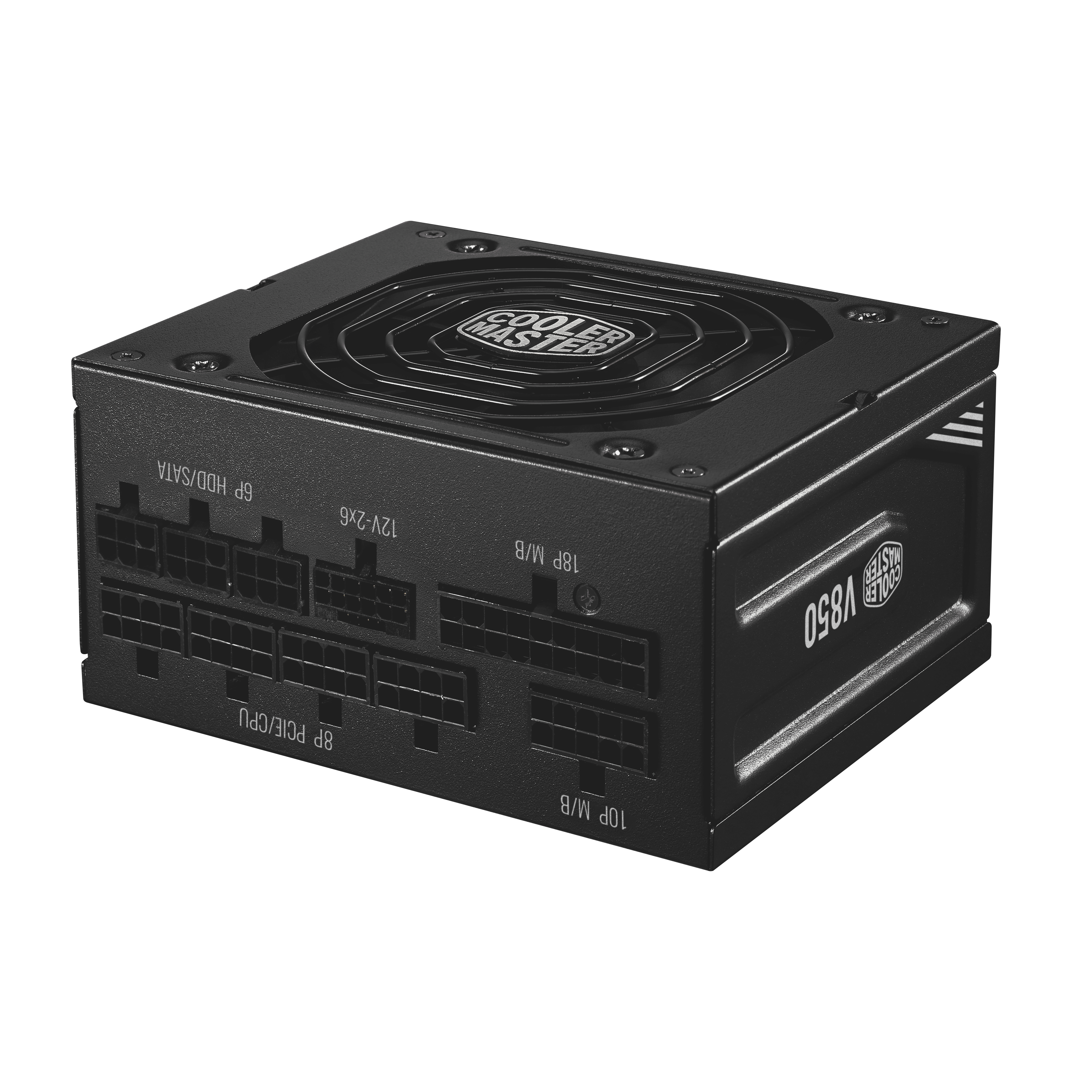

V SFX Gold 850 ATX 3.1 image number 2

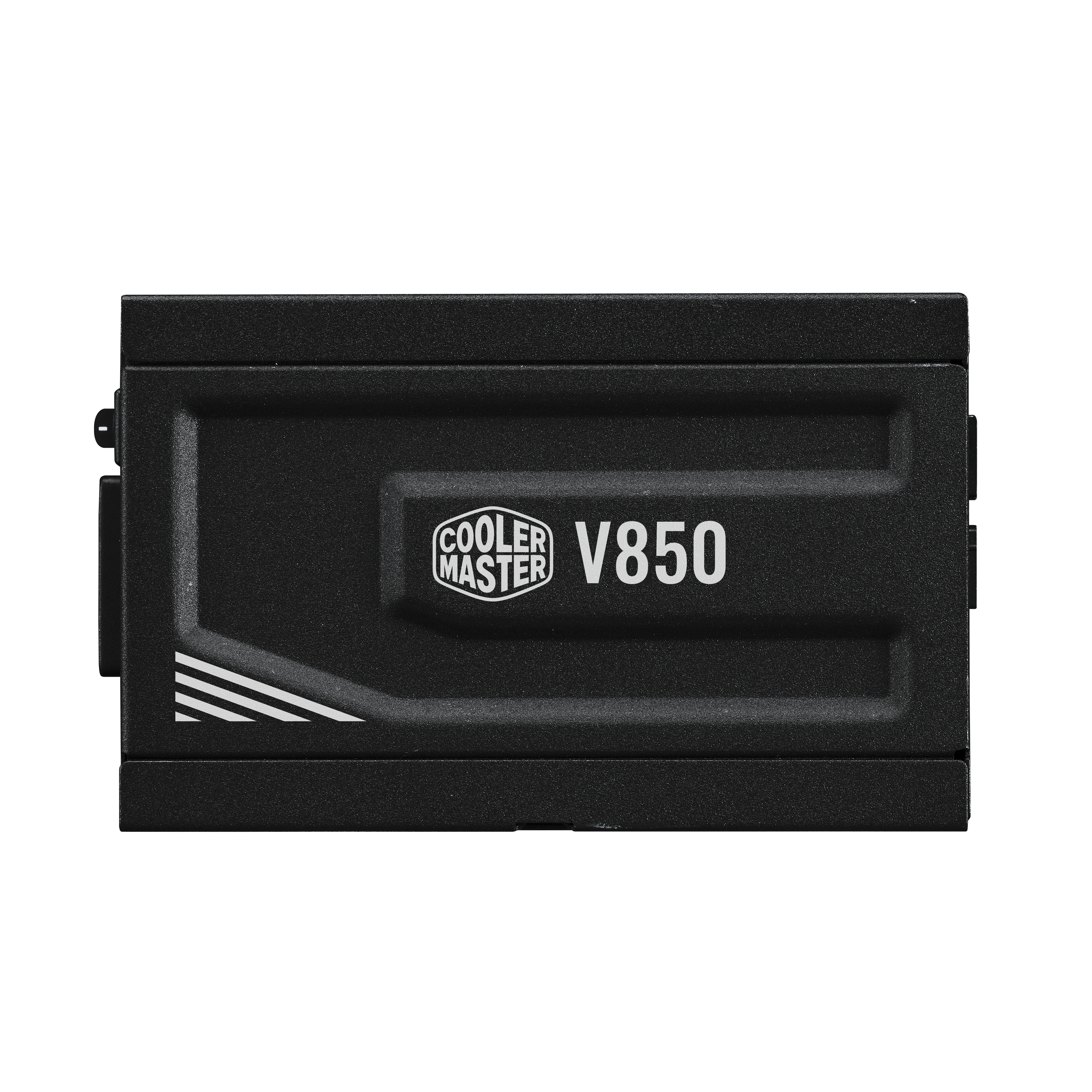

V SFX Gold 850 ATX 3.1 image number 3

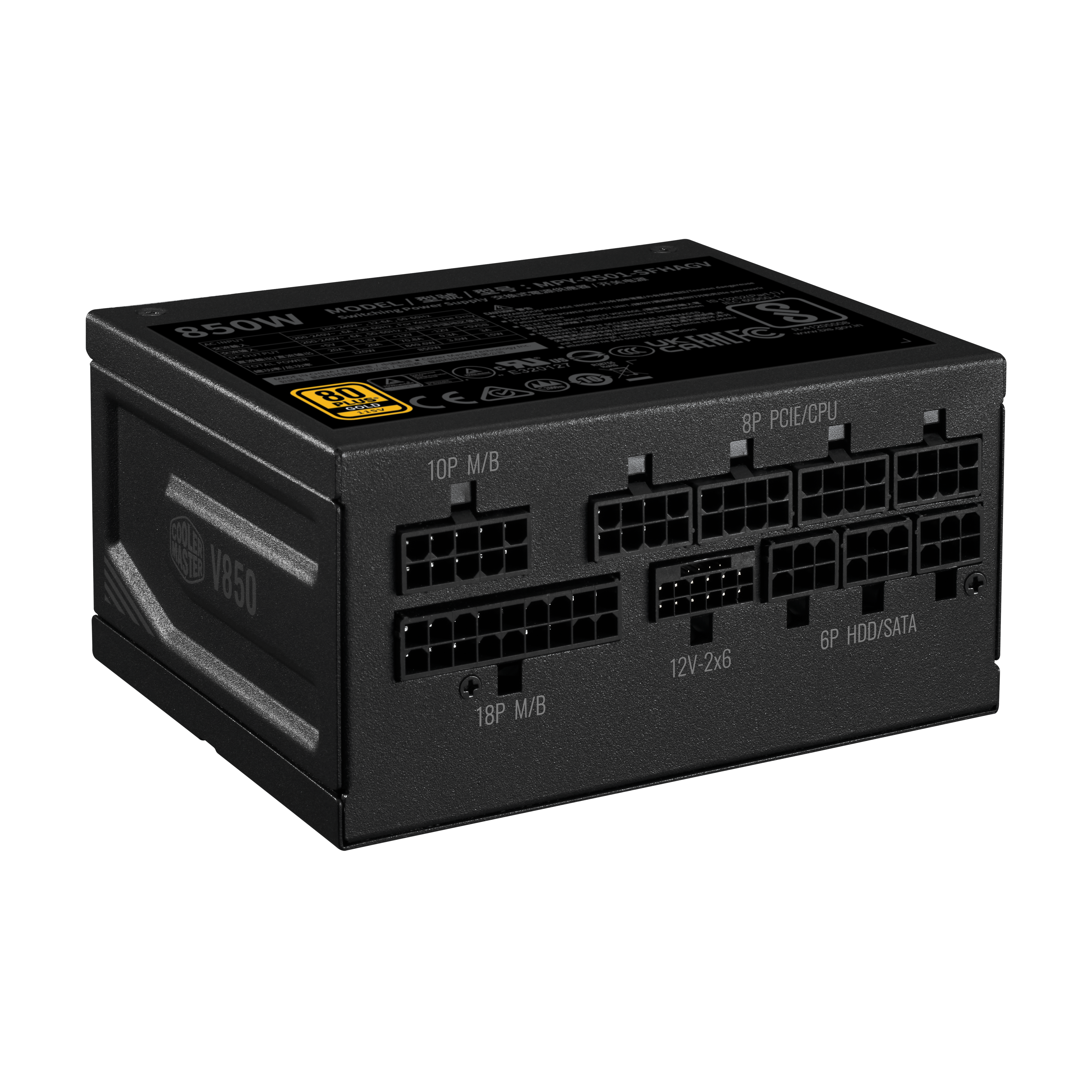

V SFX Gold 850 ATX 3.1 image number 4
V SFX Gold 850 ATX 3.1 image number 5
V SFX Gold 850 ATX 3.1 image number 6
V SFX Gold 850 ATX 3.1 image number 7
V SFX Gold 850 ATX 3.1
V SFX Gold 850 ATX 3.1
V SFX Gold 850 ATX 3.1
V SFX Gold 850 ATX 3.1
V SFX Gold 850 ATX 3.1
V SFX Gold 850 ATX 3.1
V SFX Gold 850 ATX 3.1
V SFX Gold 850 ATX 3.1

Small But Mighty

V SFX Gold 850 ATX 3.1

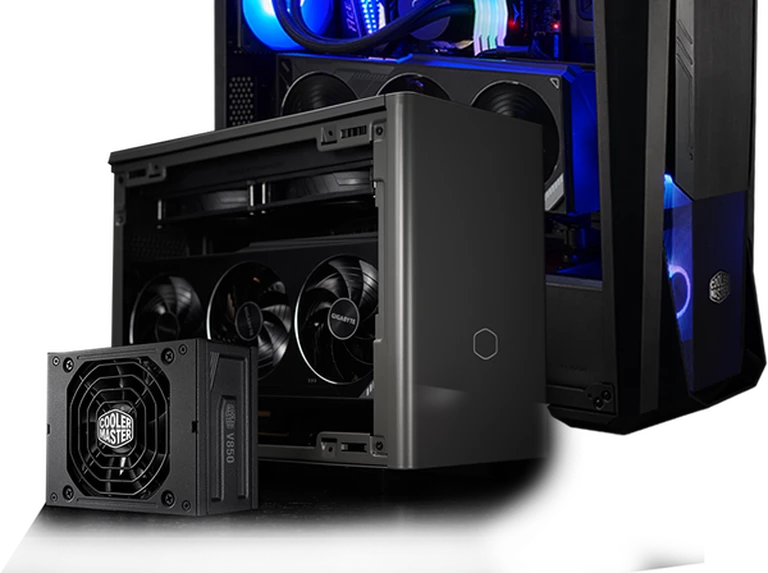

• Flexible compatibility

• ATX 3.1 support & a 90-degree 12V-2x6 cable

• 80 PLUS Gold certified

• Fully modular cabling

• 100% Japanese capacitors

• 10-year Warranty

region
Availability:
  • Select Styles for Availability
€ 149,99 - € 162,99

ATX 3.1 support & a durable 90-degree 12V-2x6 cable

Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.

80 PLUS Gold certified

The V SFX Gold is certified to achieve more

than 90% efficiency at typical loads.

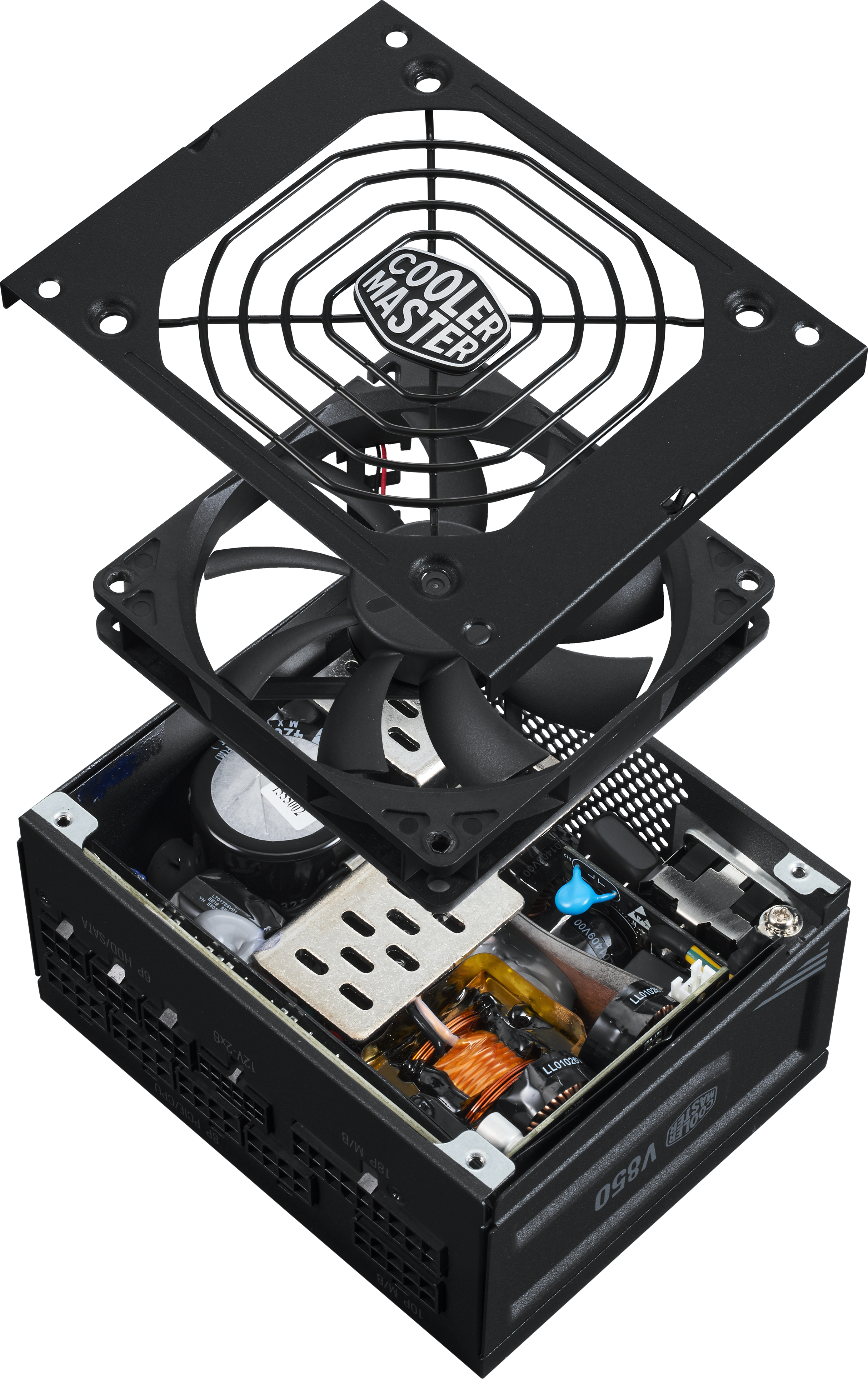

100% Japanese capacitors

Large, high-quality Japanese capacitors feature improved efficiency

and reduced ripple noise.

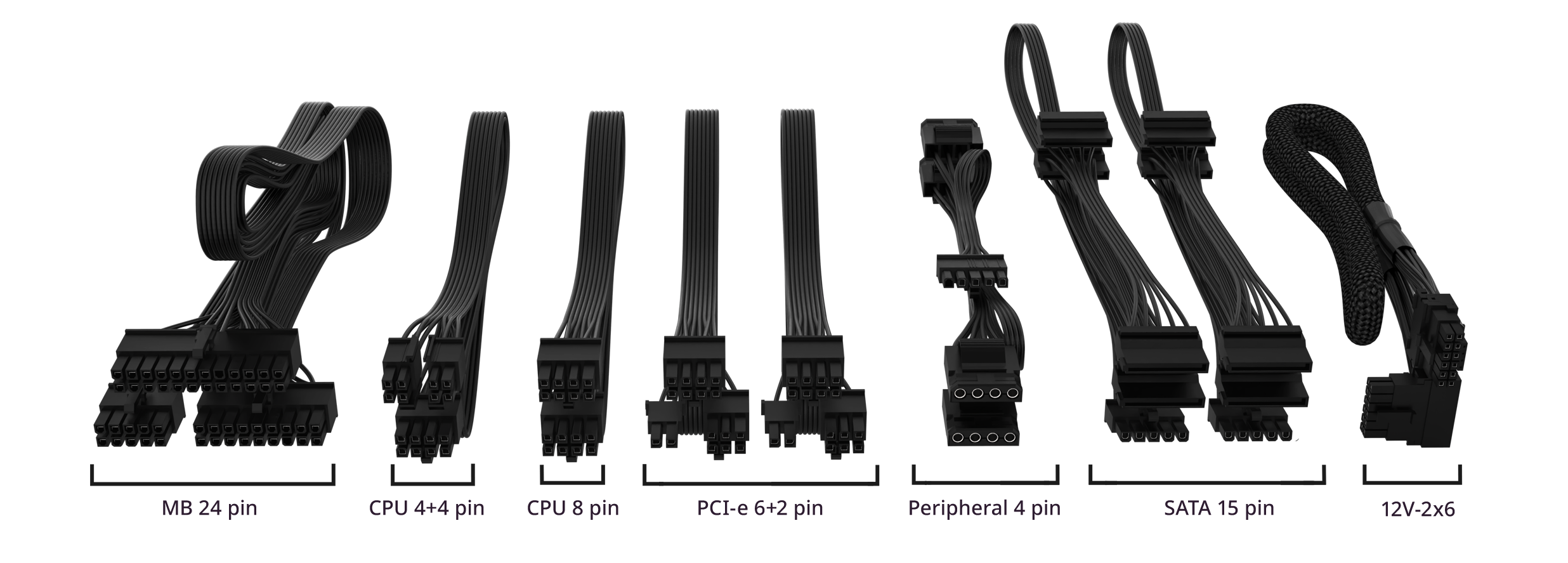

Fully modular cabling

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

  • Model MPY-8501-SFHAGV-3E**
  • ATX Version ATX 3.1 & SFX 12V Ver. 3.42
  • PFC Active PFC
  • Input Voltage 100-240V
  • Input Current 12-6A
  • Input Frequency 50-60Hz
  • Dimensions (L x W x H) 100 x 125 x 63.5 mm
  • Fan Size 92mm
  • Fan Bearing FDB
  • Efficiency 90% @ Typical Load
  • 80 PLUS Rating 80 PLUS Gold
  • ErP 2014 Lot 3 Yes
  • Operating Temperature 0-50°C
  • Power Good Signal 100 - 500 ms
  • Hold Up Time 16ms
  • MTBF >100,000 Hours
  • Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors 1
  • EPS 8 Pin Connector 1
  • SATA Connectors 8
  • Peripheral 4 Pin Connectors 4
  • PCI-e 6+2 Pin Connectors 4
  • 12V-2x6 Connectors 1
  • Series V SFX Series
  • 80 Plus Efficiency Gold
  • Modular Fully Modular
  • Form Factor SFX
  • Watts 850W
