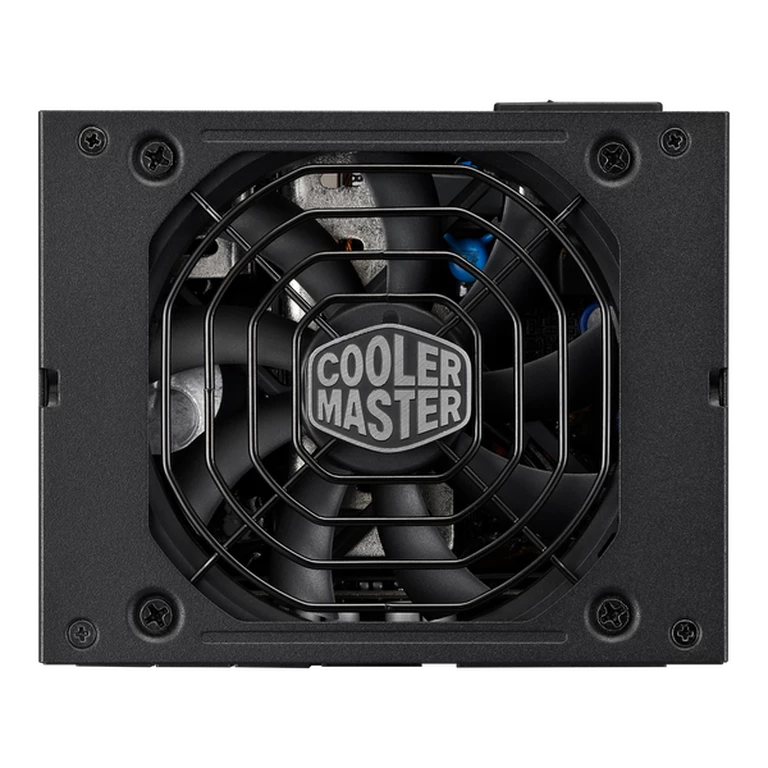

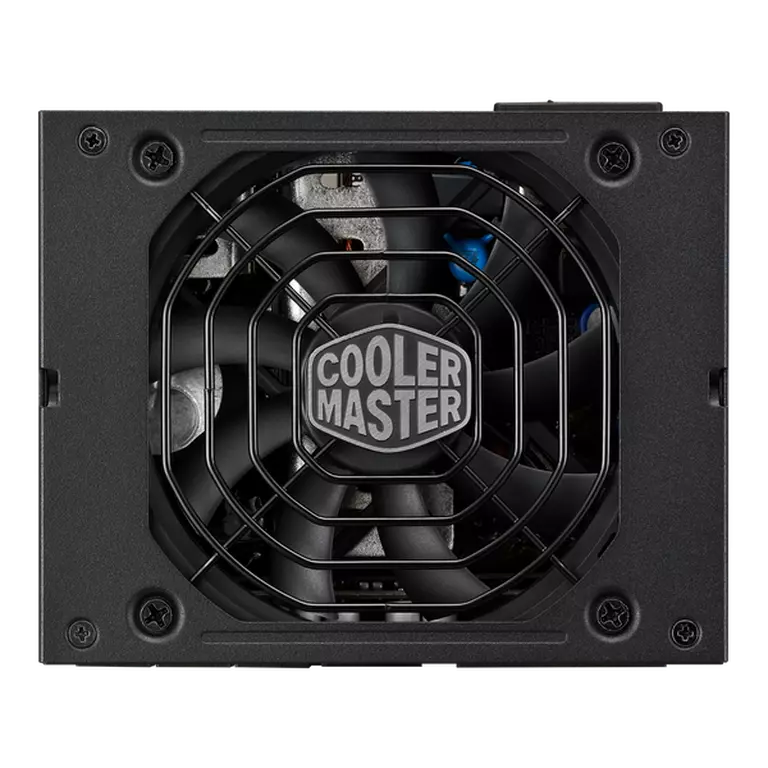

SMALL BUT MIGHTY
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
Small But Mighty

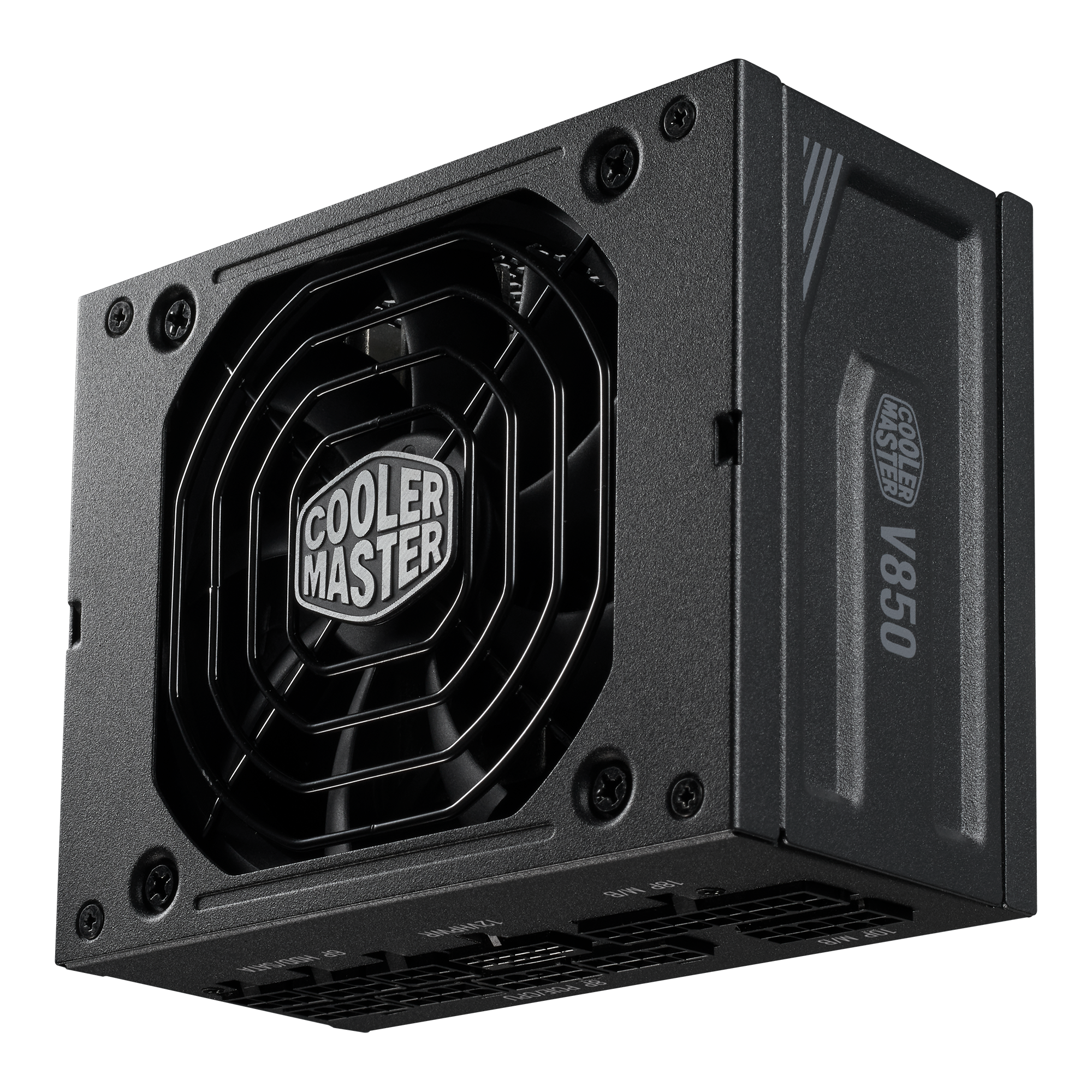

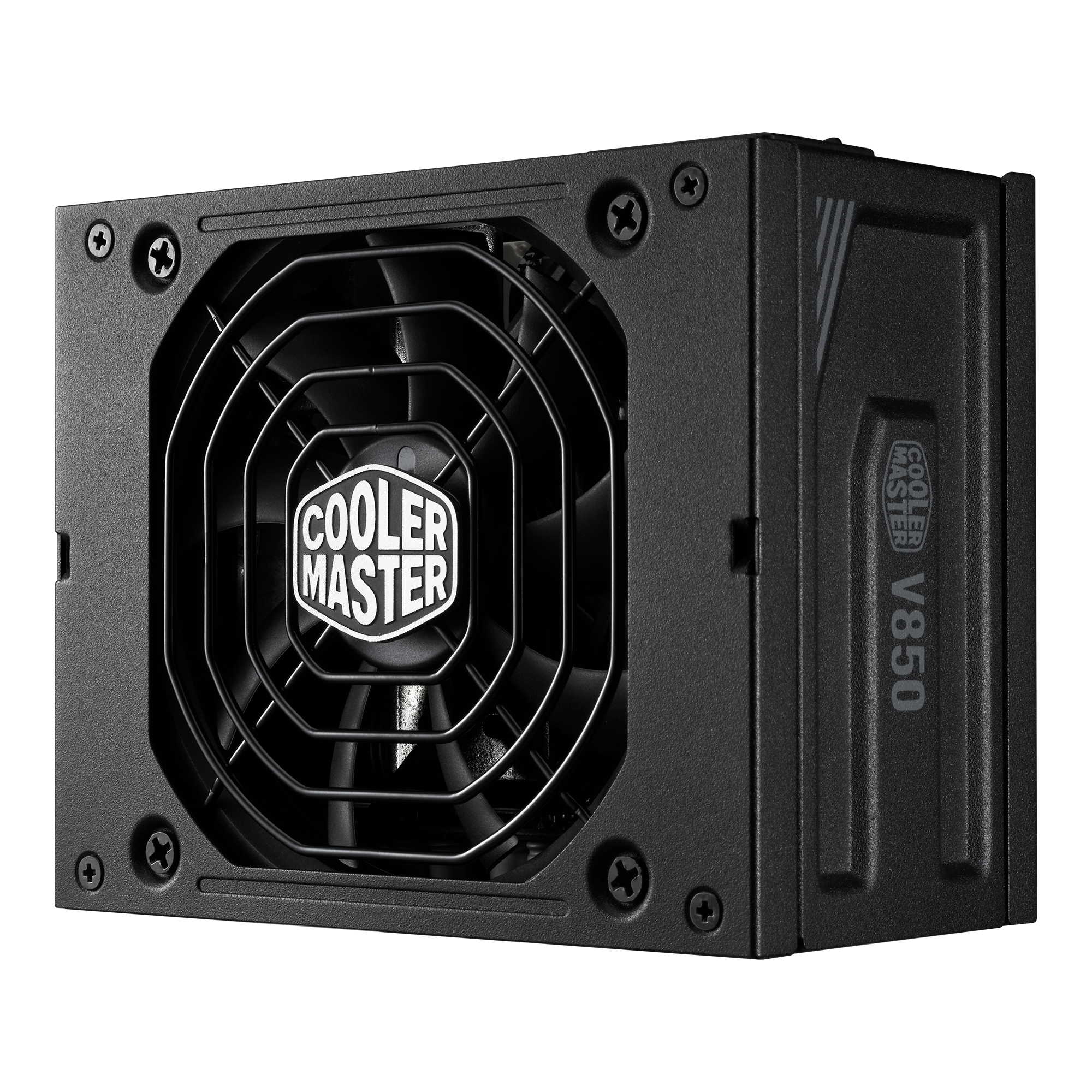

V SFX Gold 850 ATX 3.0
• Flexible compatibility
• ATX 3.0 support & a 90-degree 12VHPWR cable
• 80 PLUS Gold certified
• Fully modular cabling
• High-quality Japanese capacitors
• 10-year Warranty
model
Availability:
-
In Stock
€ 149,99

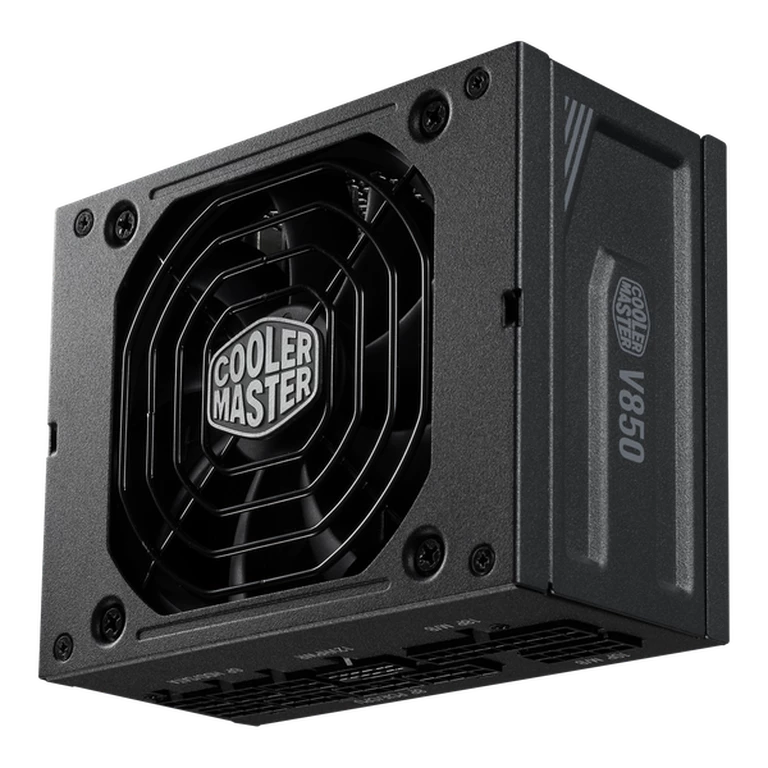

FLEXIBLE COMPATIBILITY
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
80 PLUS GOLD CERTIFIED
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.

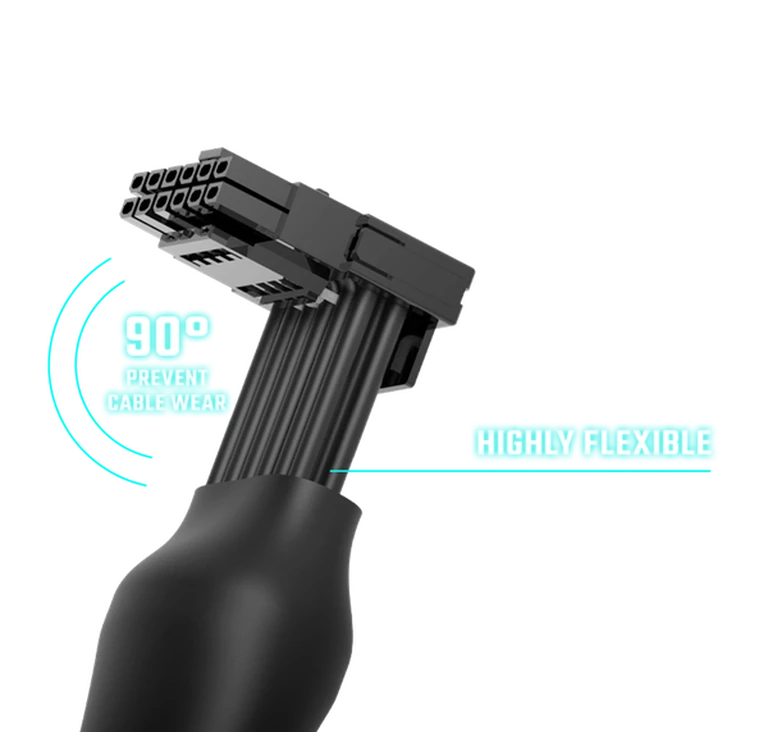

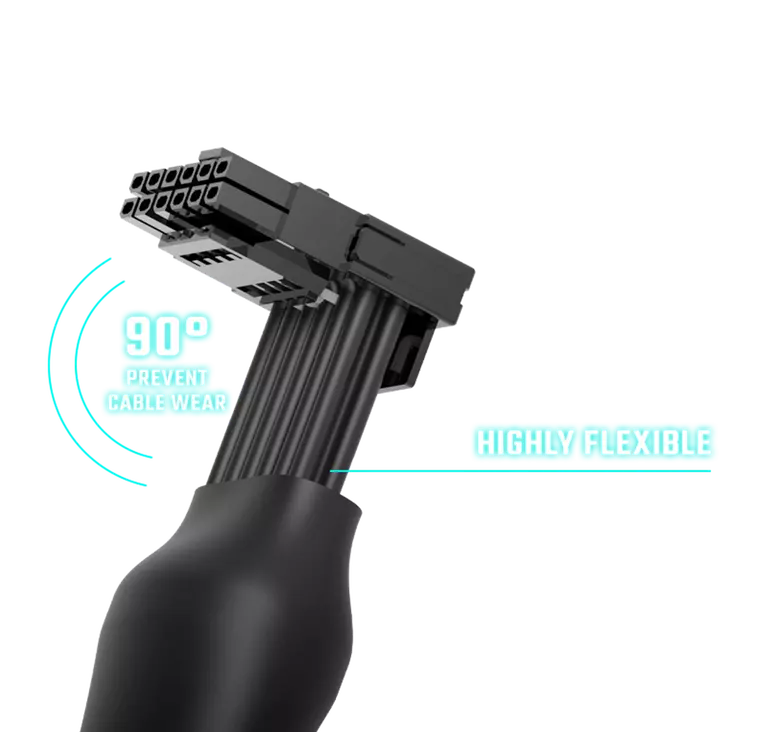

90-DEGREE 12VHPWR CABLE

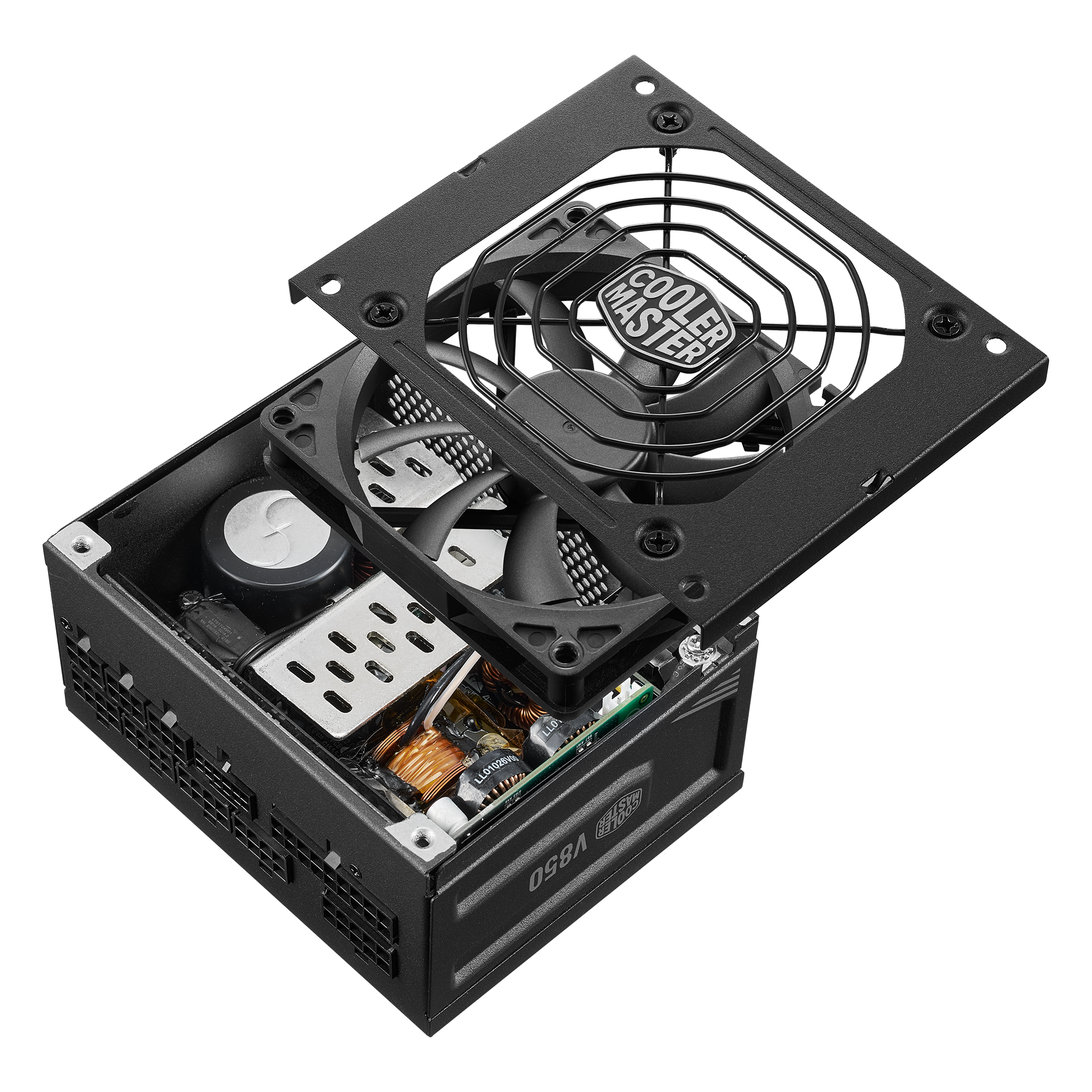

HIGH-QUALITY JAPANESE CAPACITORS
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.

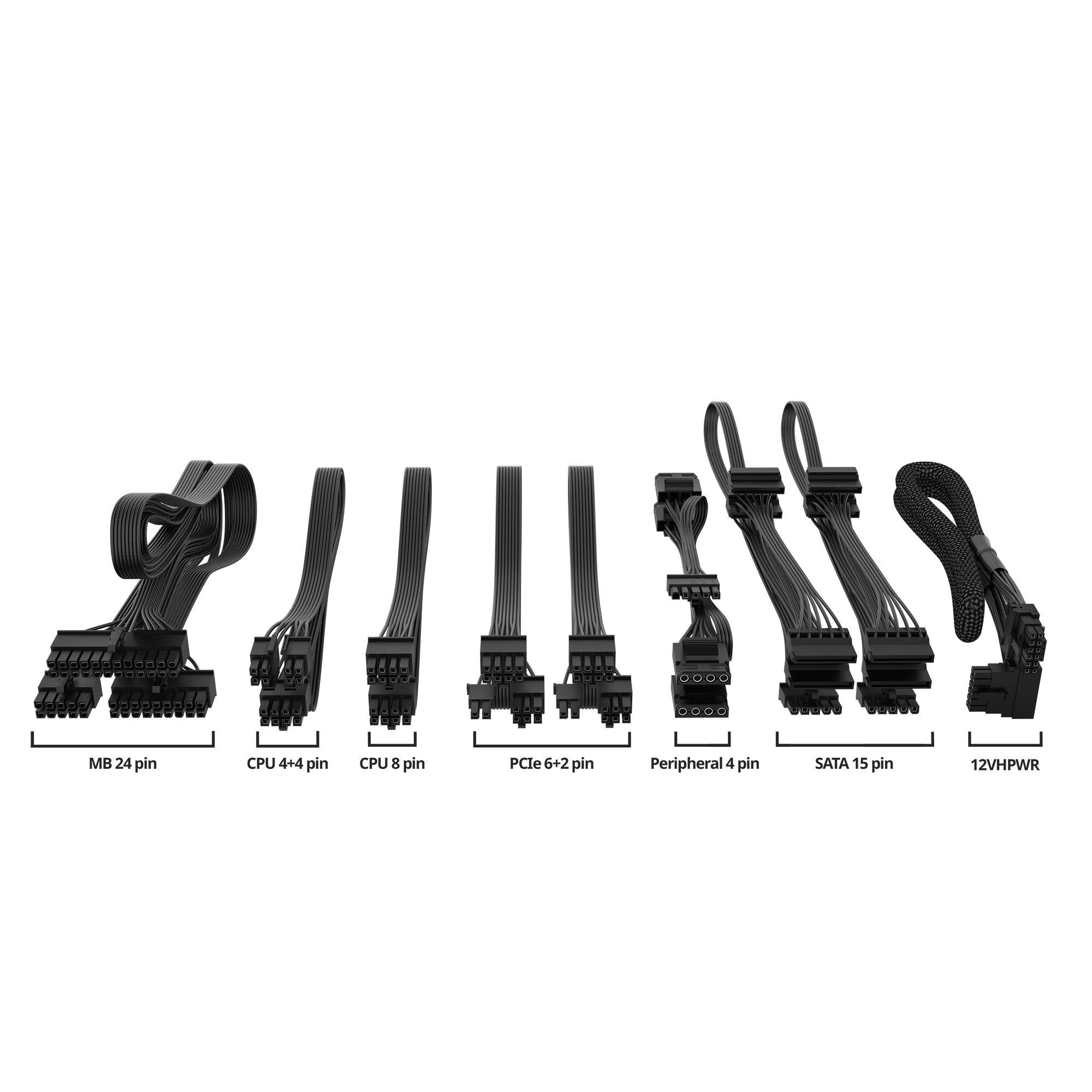

FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
PSU CALCULATOR
Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.
- Model MPY-8501-SFHAGV-3**
- ATX Version SFX 12V Ver. 3.42

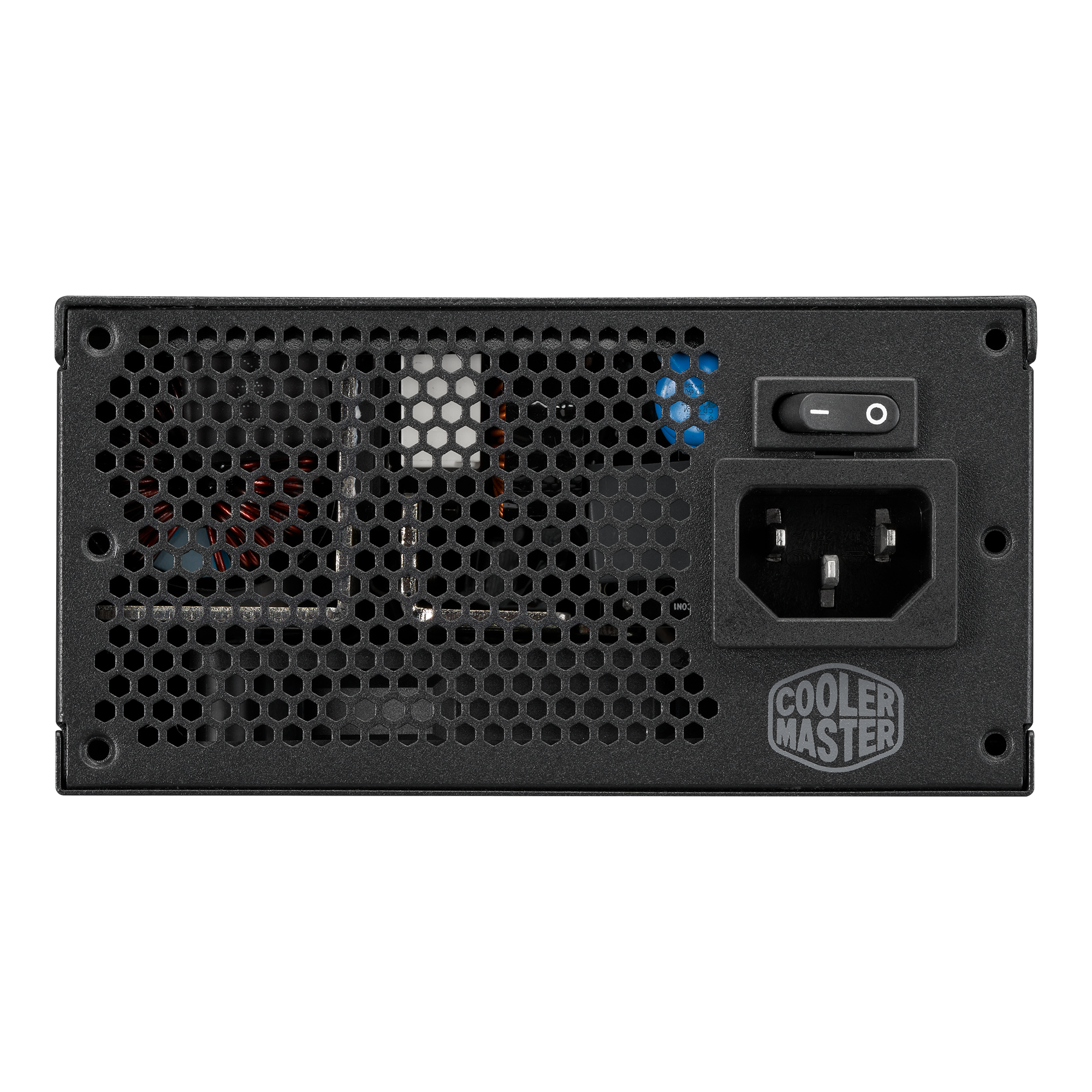

- PFC Active PFC
- Input Voltage 100-240V
- Input Current 12-6A
- Input Frequency 50-60Hz
- Dimensions (L x W x H) 100 x 125 x 63.5 mm

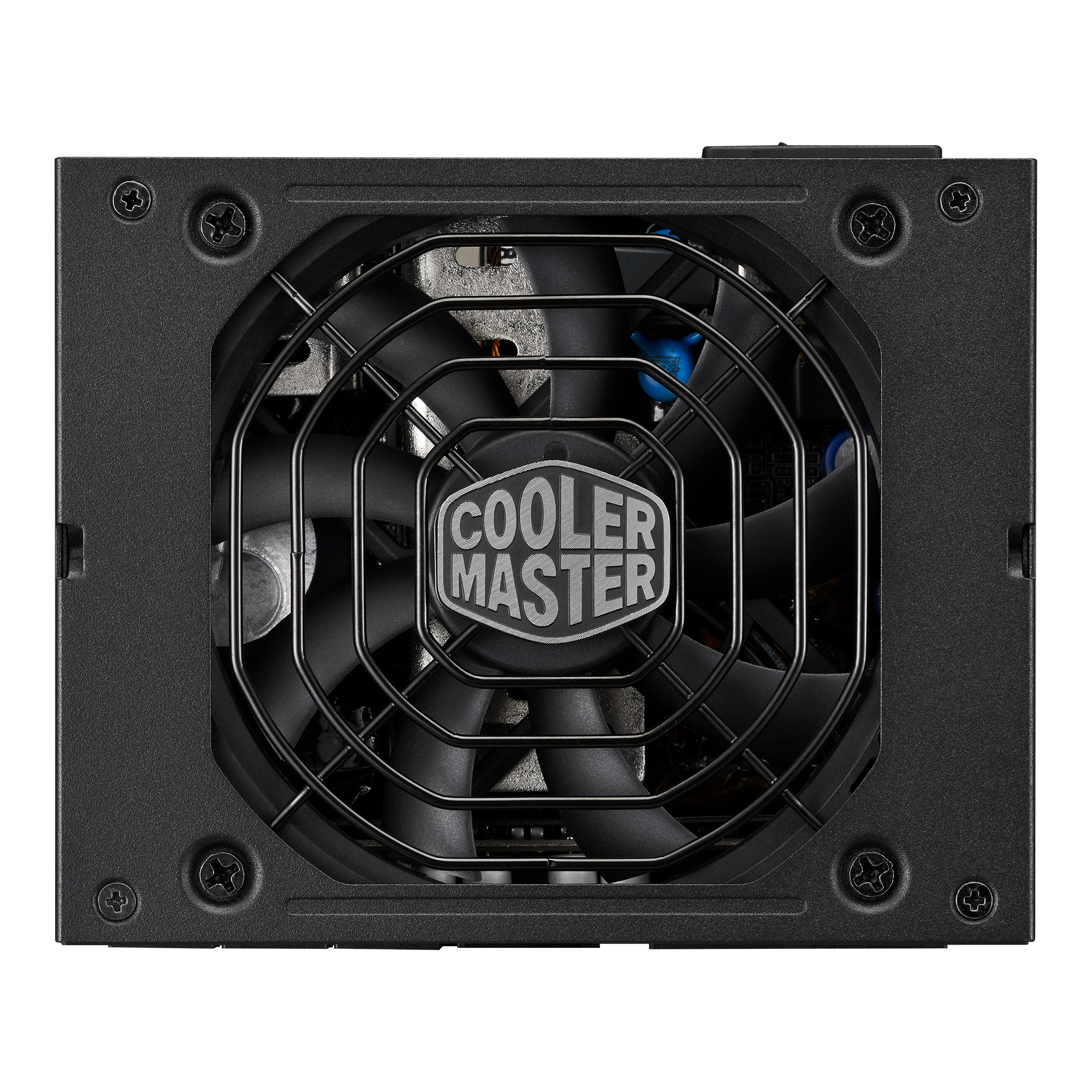

- Fan Size 92mm
- Fan Bearing FDB
- Efficiency 90% @ Typical Load
- 80 PLUS Rating 80 PLUS Gold
- ErP 2014 Lot 3 Yes
- Operating Temperature 0-50°C
- Power Good Signal 100 - 500 ms
- Hold Up Time 16ms
- MTBF >100,000 Hours
- Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA

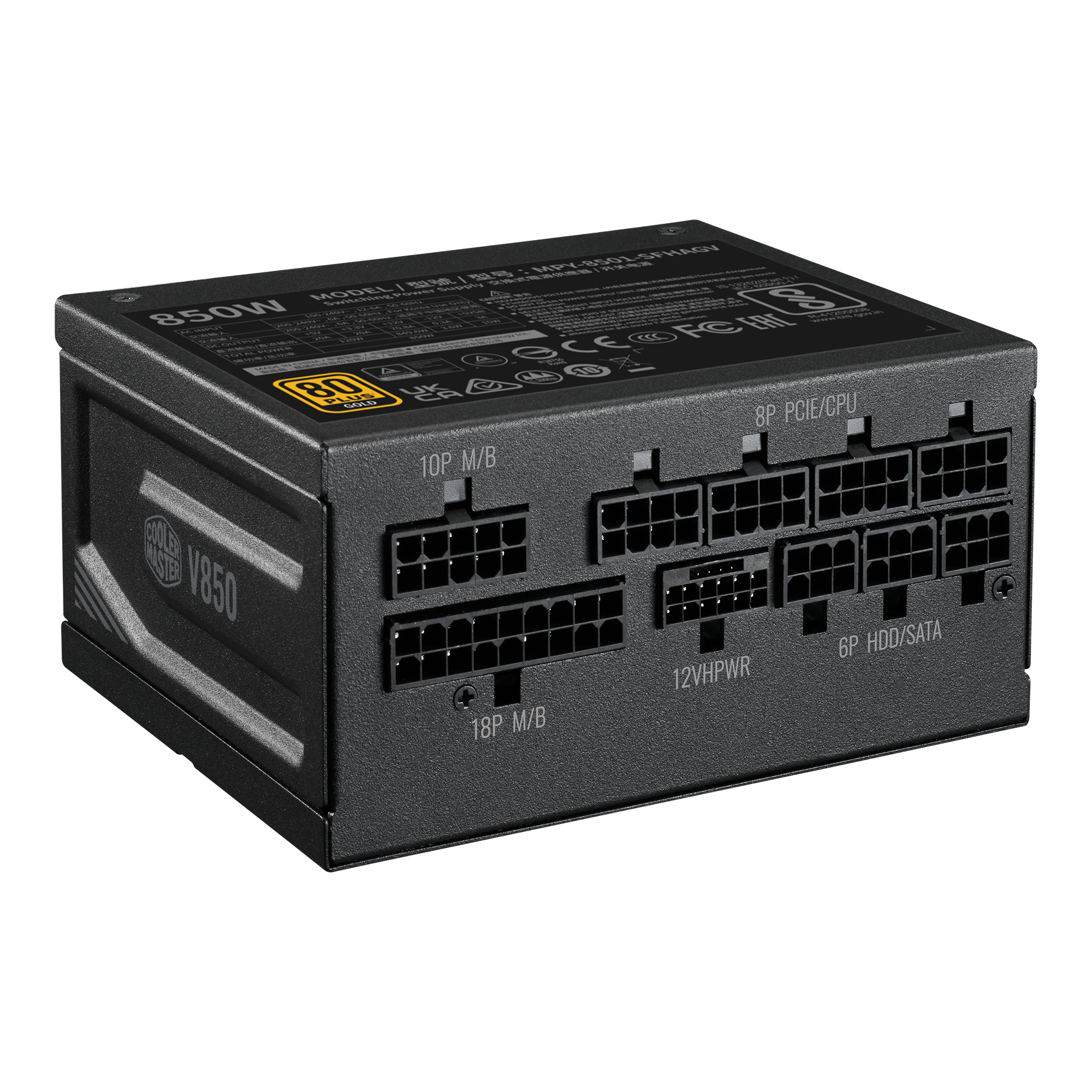

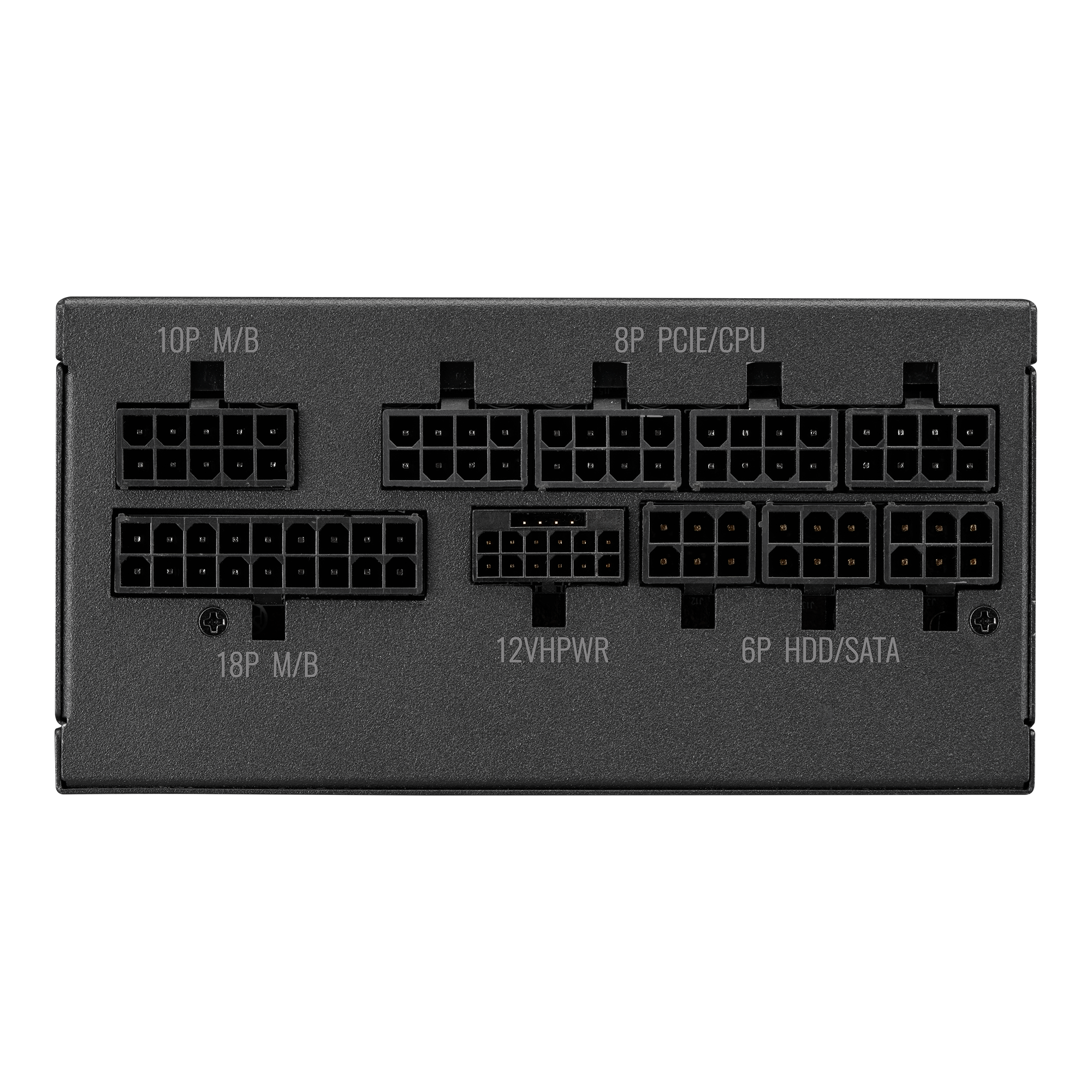

- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- EPS 8 Pin Connector 1
- SATA Connectors 8
- Peripheral 4 Pin Connectors 4
- PCI-e 6+2 Pin Connectors 4
- 12VHPWR Connector 1
- Series V SFX Series
- 80 Plus Efficiency Gold
- Modular Fully Modular
- Category Above 750W
- Form Factor SFX
- Watts 850W
- ATX Version ATX 3.0
- ETA Rating Gold
- LAMBDA Rating Standard+
