An SFX Revolution

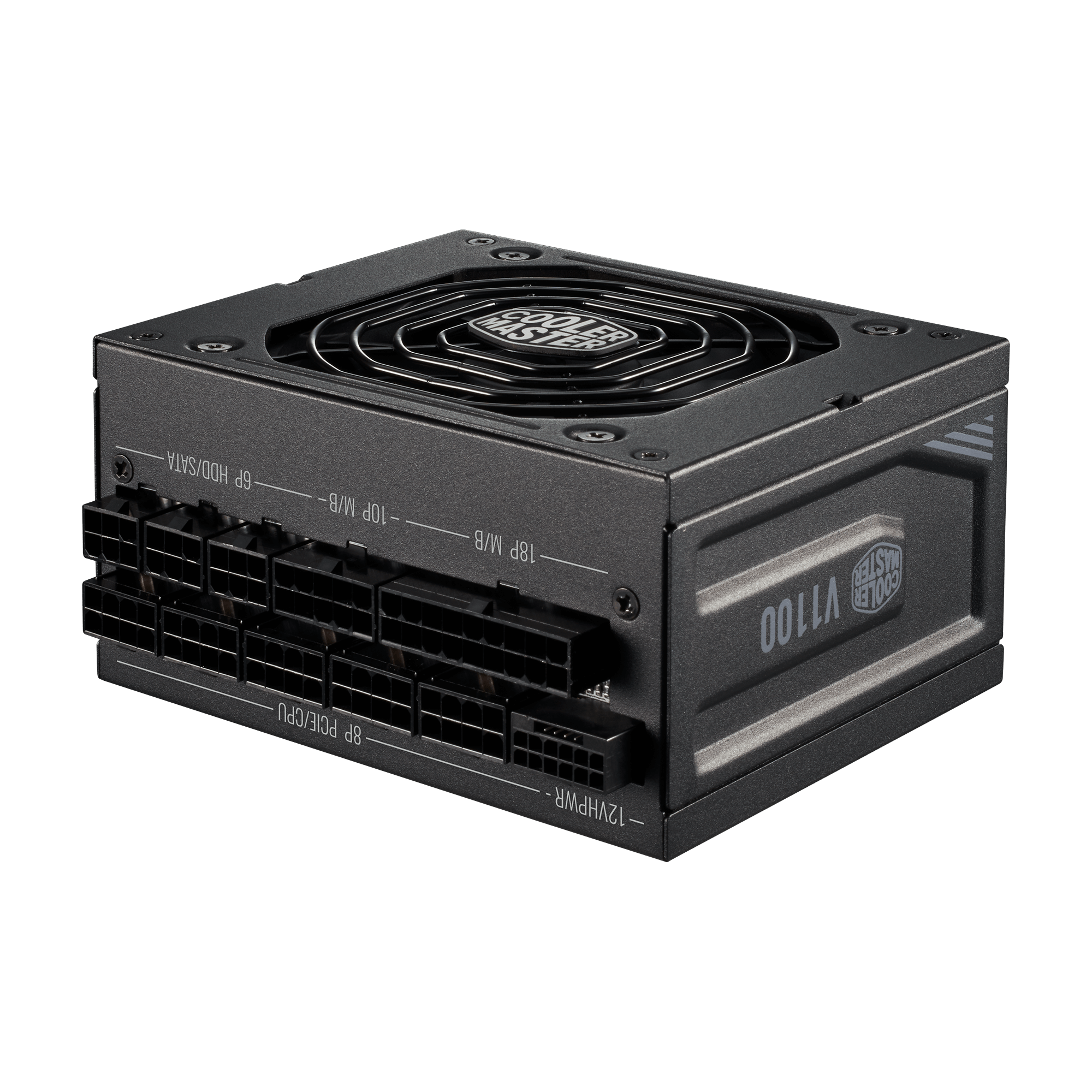

V SFX Platinum 1100

• High power density

• ATX 3.0 support & a 90-degree 12VHPWR cable

• Advanced thermal performance

• 80 Plus Platinum efficiency

• Fully modular cabling

• 10-year warranty

region
Availability:
  • Select Styles for Availability
€ 379,99
MINI BUT MIGHTY

MINI BUT MIGHTY

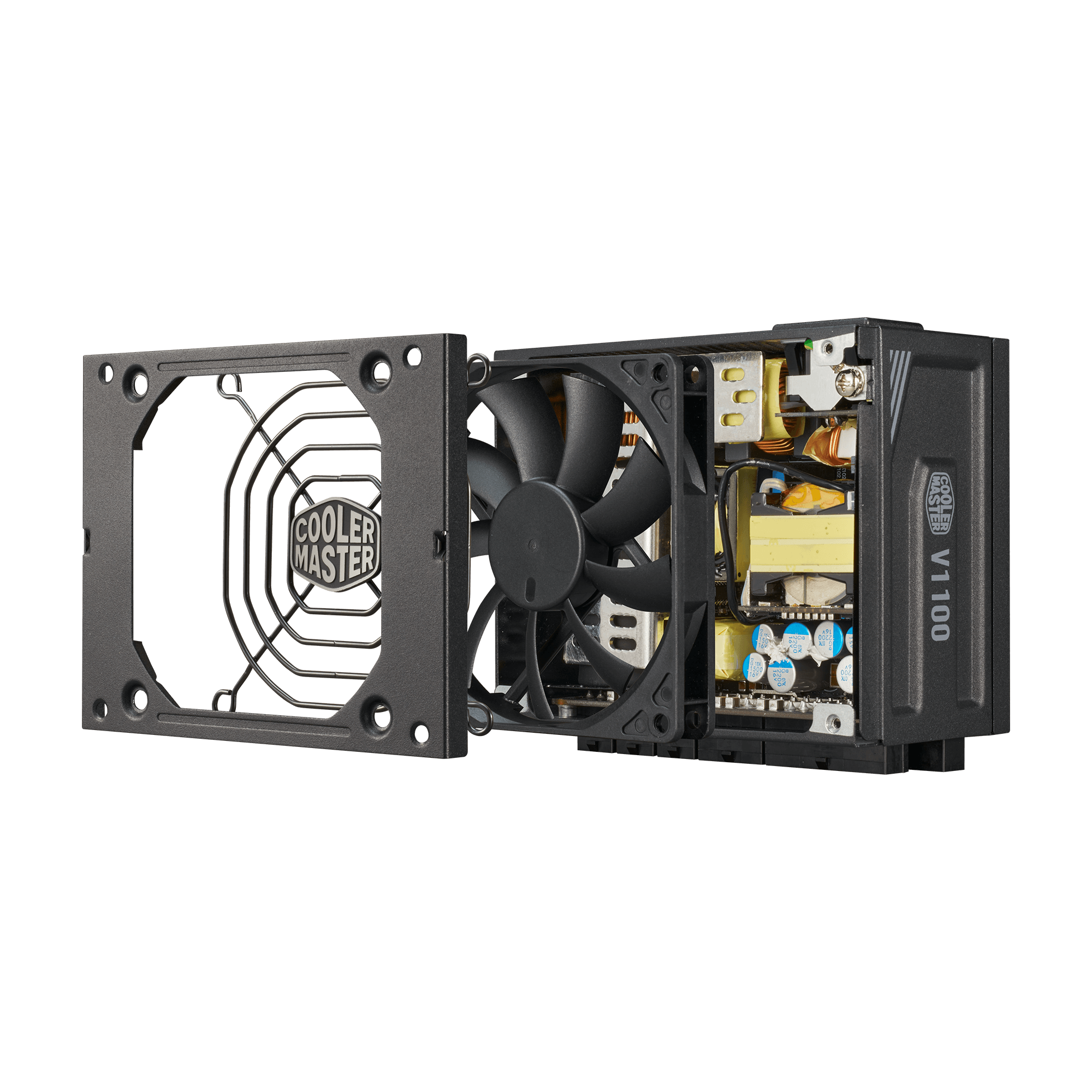

Flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure on the full-bridge LLC, and advanced manufacturing processes enhance overall miniaturization.

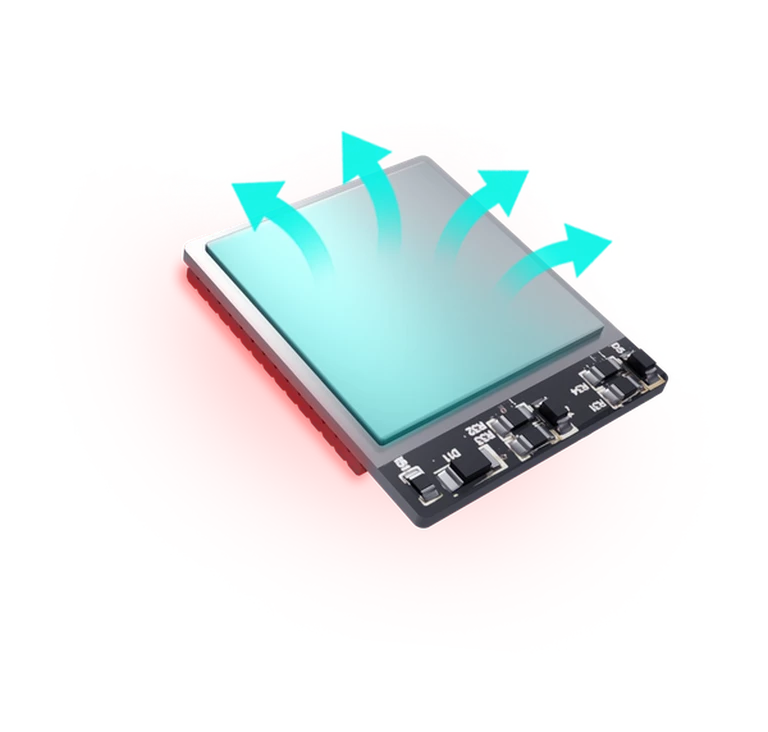

ENHANCED DISSIPATION

ENHANCED DISSIPATION

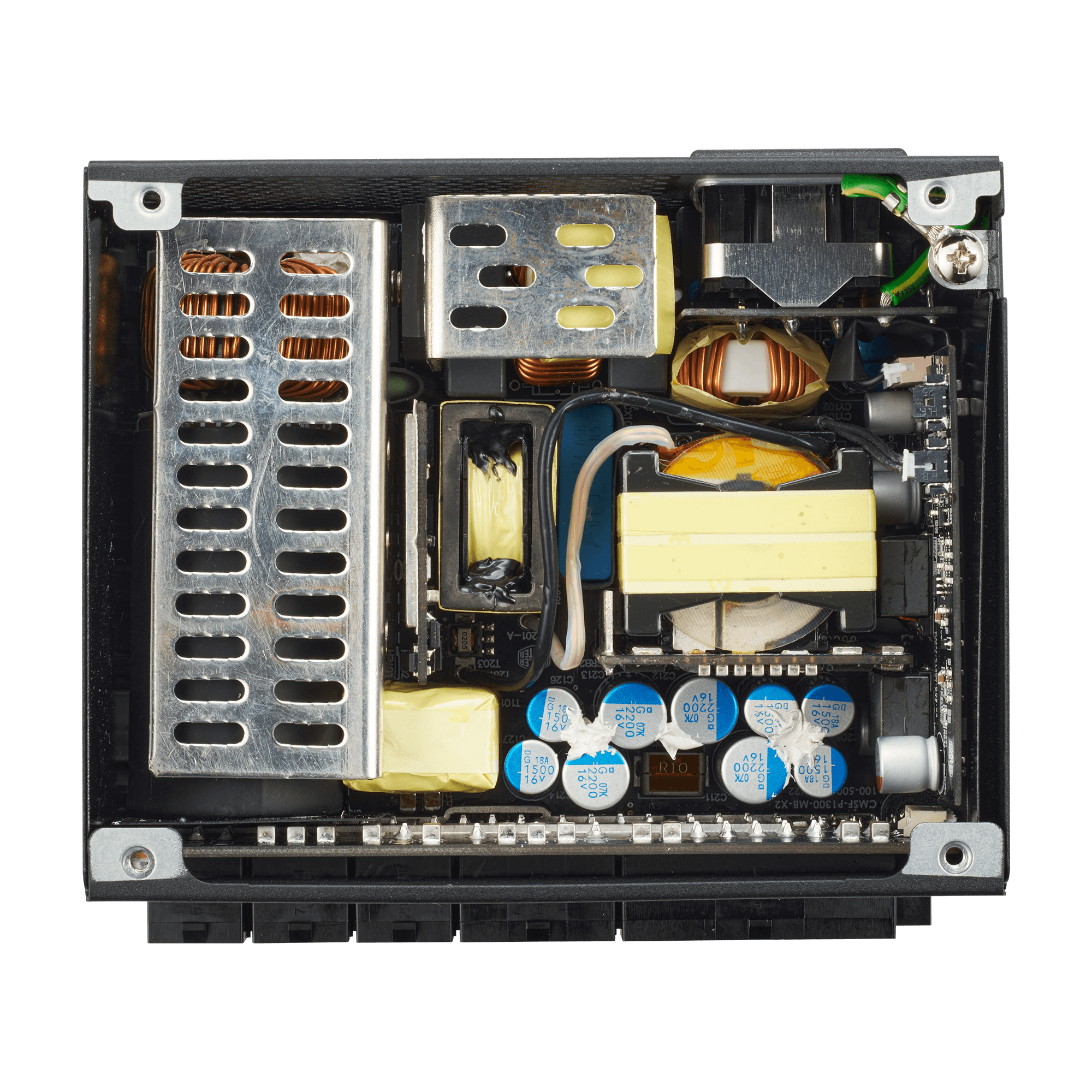

The transformer, rectifier, full-bridge LLC, and EMI-inhibiting amorphous metal materials are fully integrated for advanced performance and heat dissipation.

ATX 3.0 support

12VHPWR CABLE

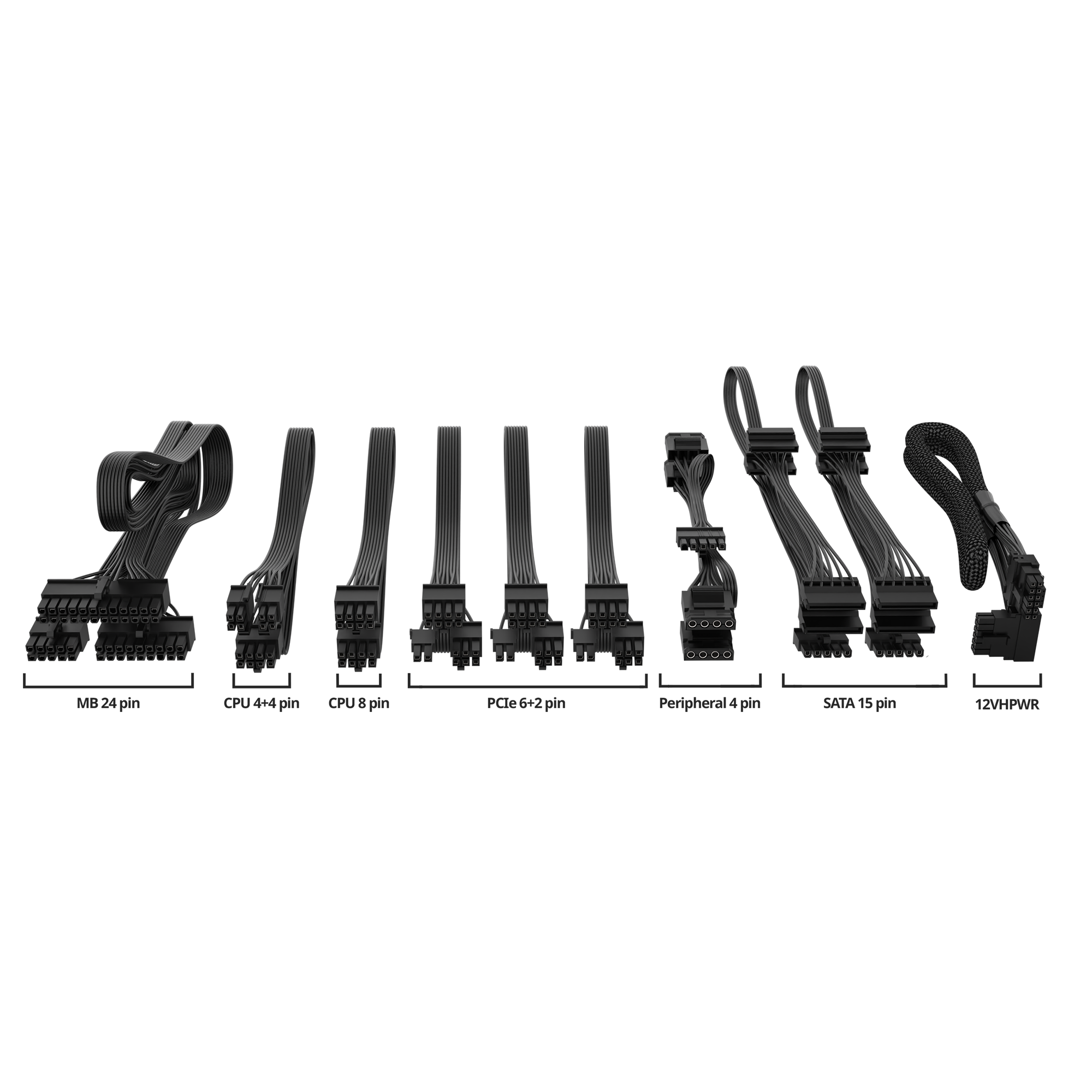

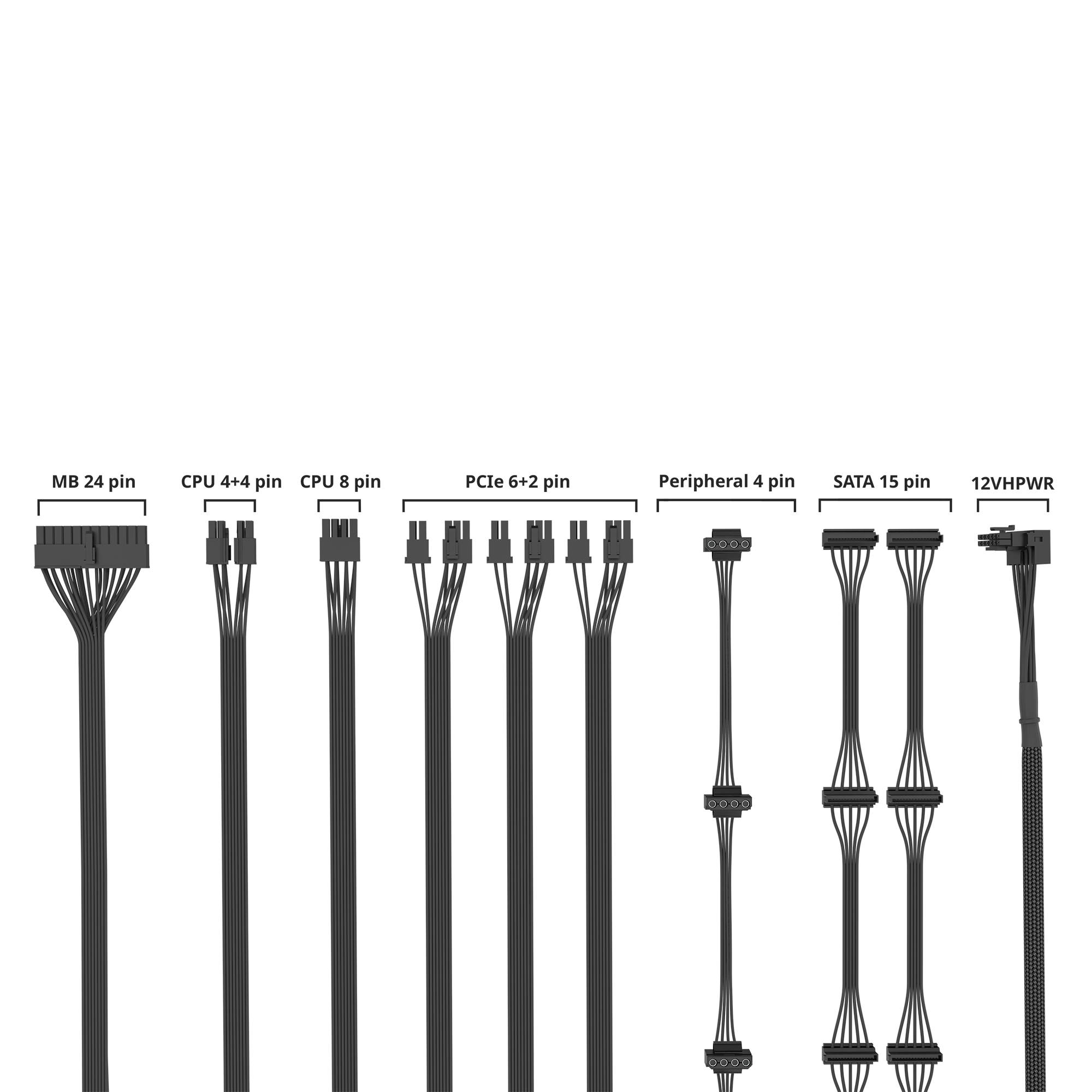

FULLY MODULAR CABLING

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

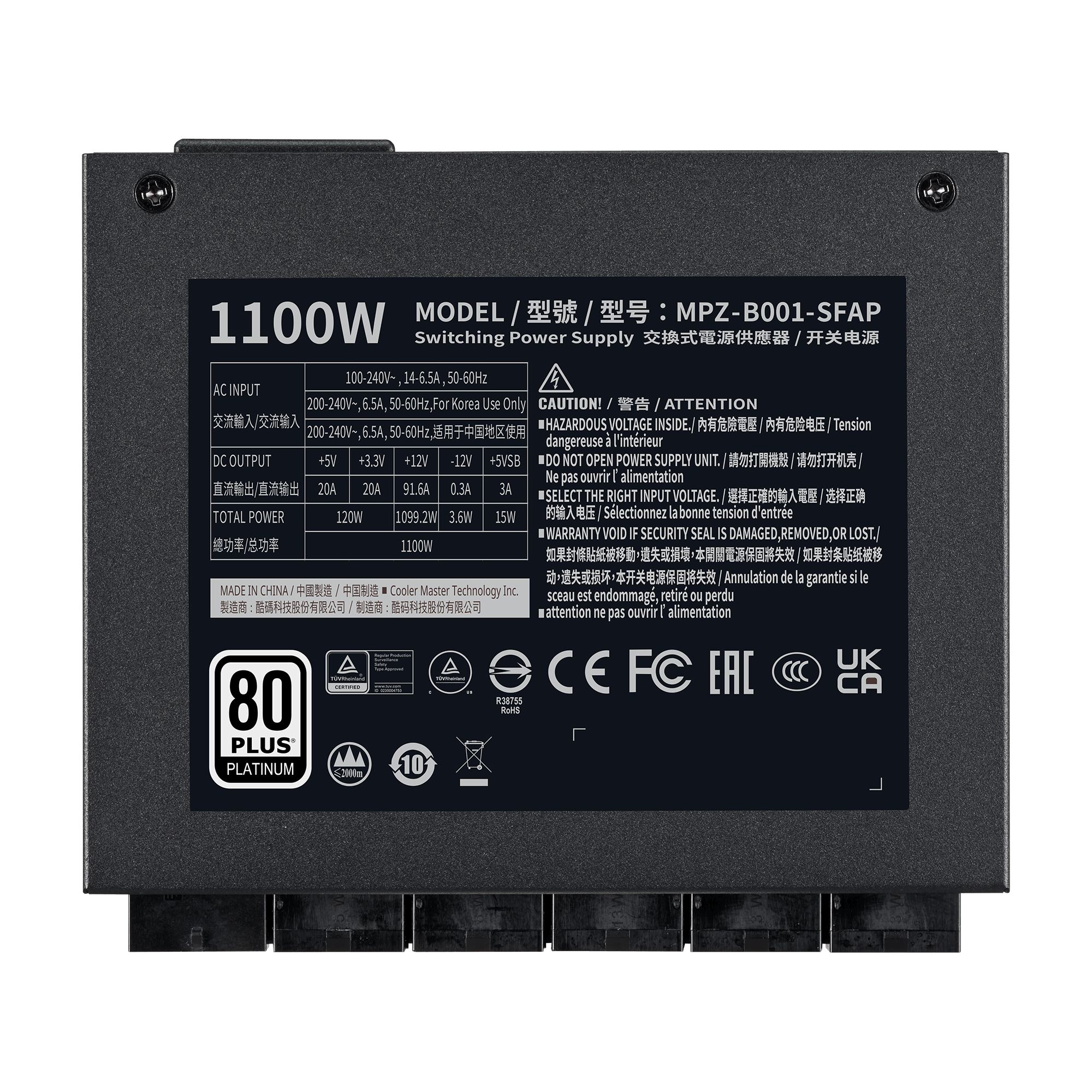

  • Model MPZ-B001-SFAP-B**
  • ATX Version SFX 12V Ver. 3.42
  • PFC Active PFC
  • Input Voltage 100-240V
  • Input Current 14-6.5A
  • Input Frequency 50-60Hz
  • Dimensions (L x W x H) 100 x 125 x 63.5 mm
  • Fan Size 92mm
  • Fan Bearing FDB
  • Efficiency ≥ 92% @ Typical Load
  • 80 PLUS Rating 80 PLUS Platinum
  • ErP 2014 Lot 3 Yes
  • Operating Temperature 0-50°C
  • Power Good Signal 100 - 150 ms
  • Hold Up Time ≥16ms at 70% Load
  • MTBF >100,000 Hours
  • Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA

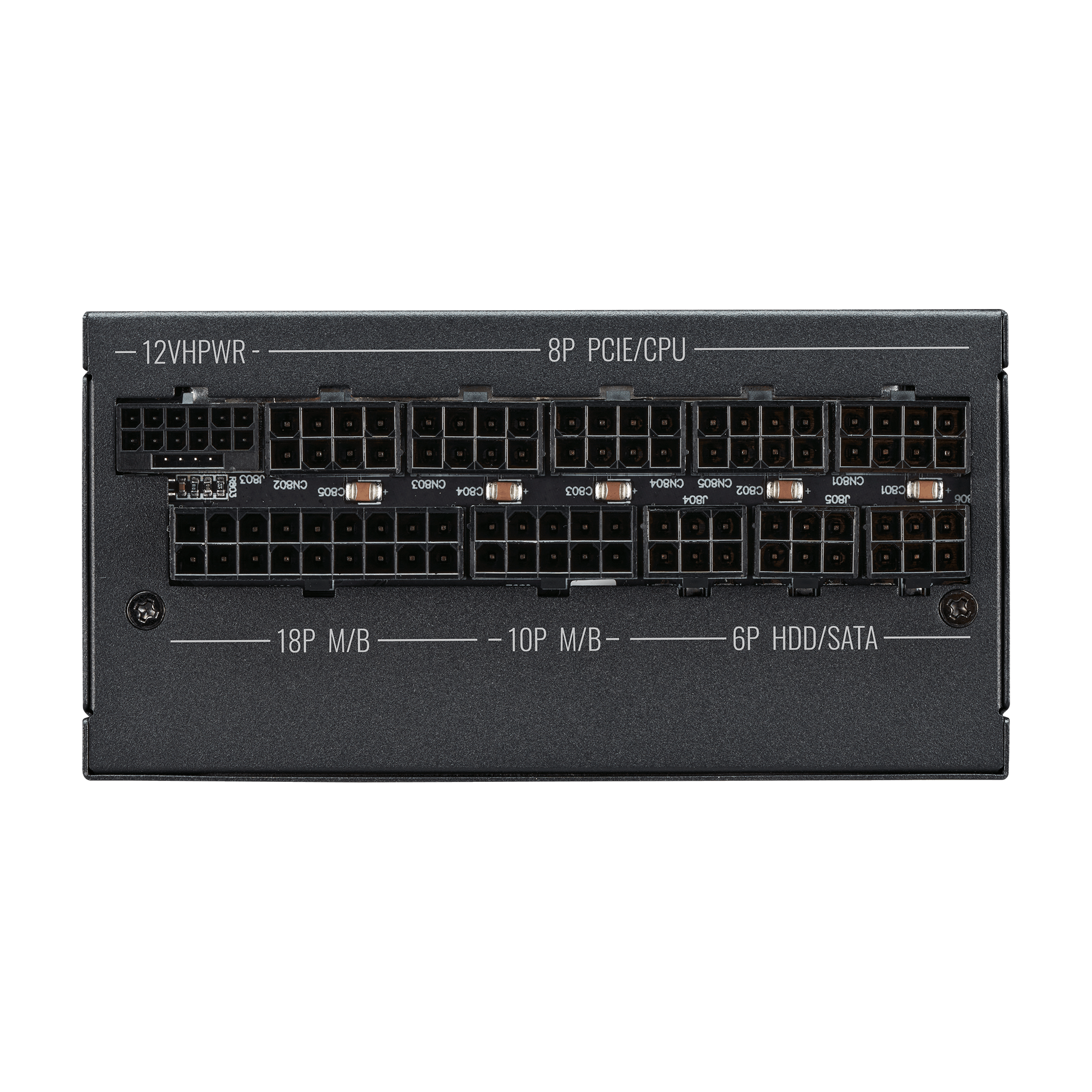

  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors 1
  • EPS 8 Pin Connector 1
  • SATA Connectors 8
  • Peripheral 4 Pin Connectors 4
  • PCI-e 6+2 Pin Connectors 3
  • 12VHPWR Connector 1
  • 80 Plus Efficiency Platinum
  • Series V SFX Series
  • Modular Fully Modular
  • Category Above 750W
  • Form Factor SFX
  • Watts 1100W
  • ATX Version ATX 3.0
  • Input Voltage Range Full Range
