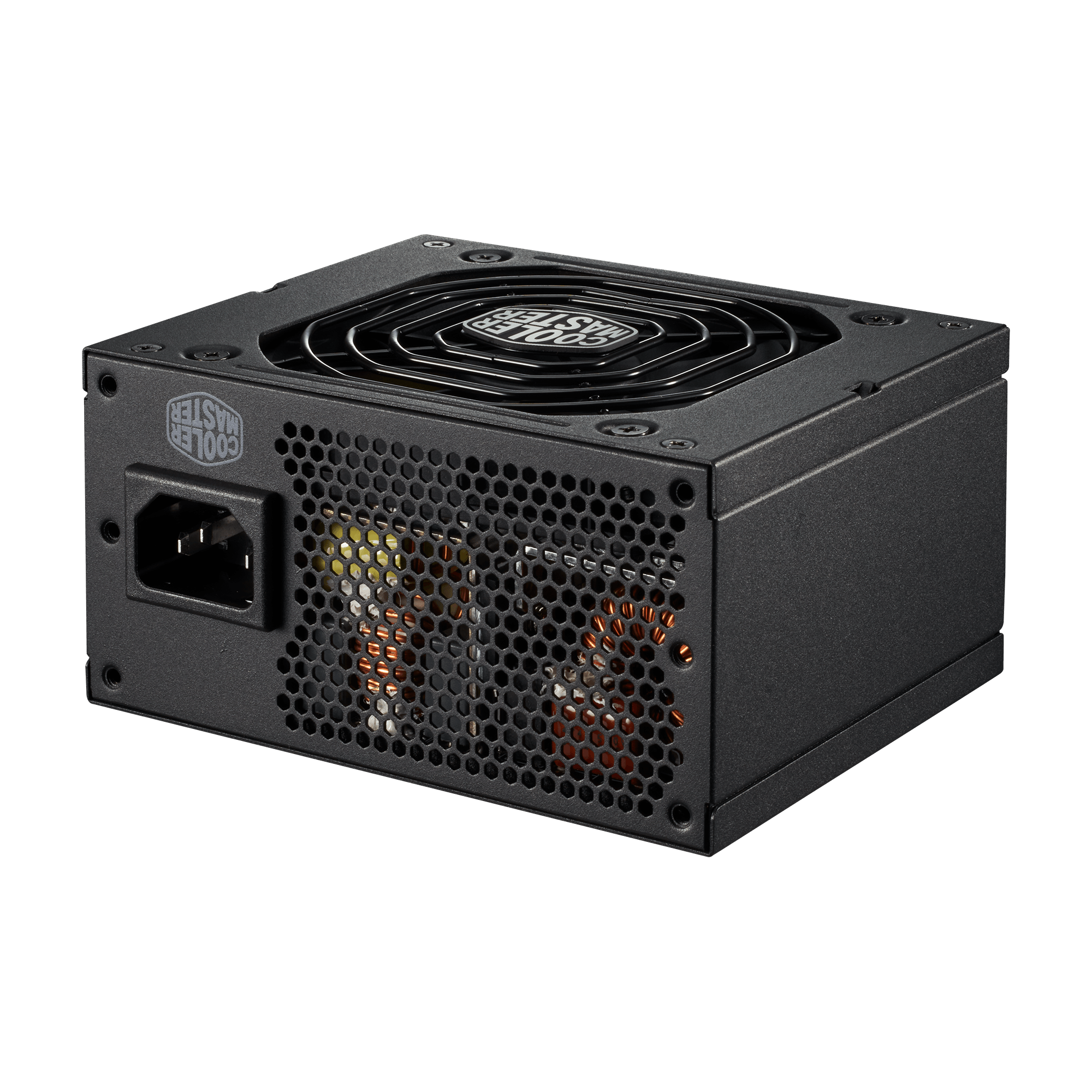

An SFX Revolution

V SFX Platinum 1300 230V

• High power density

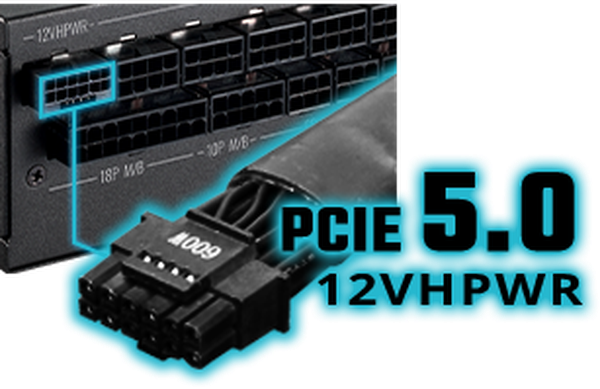

• ATX 3.0 support & a 90-degree 12VHPWR cable

• Advanced thermal performance

• 80 Plus Platinum efficiency

• Fully modular cabling

• 10-year warranty

model
Availability:
  • In Stock
€ 389,99

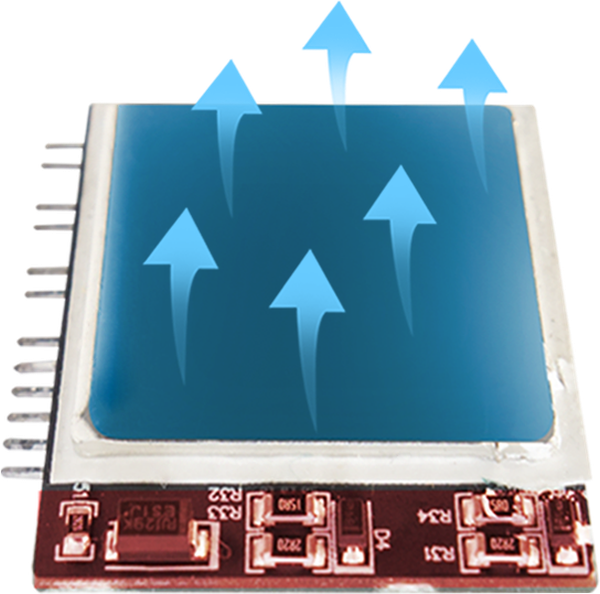

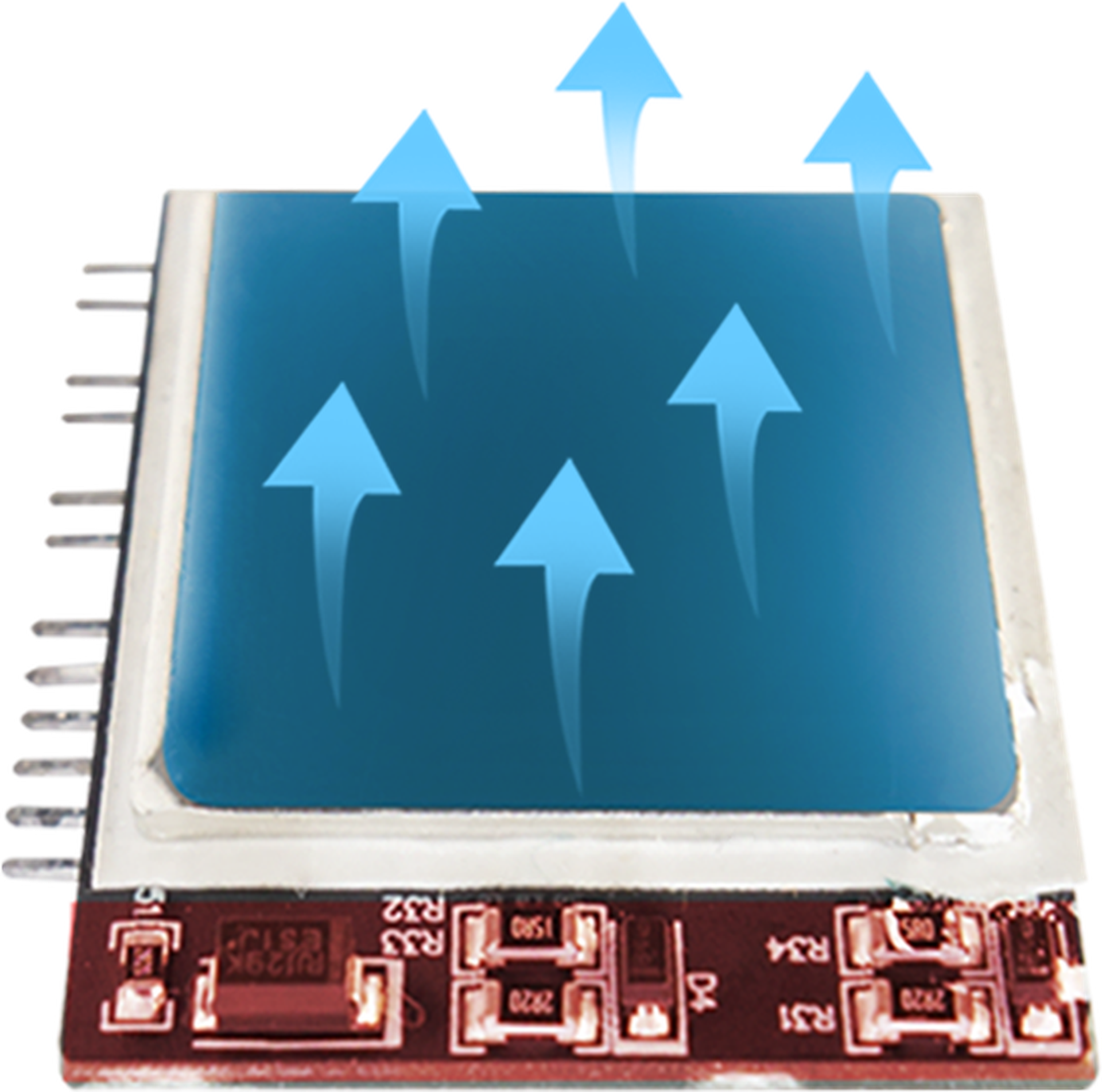

Enhanced Dissipation

High Power Density

Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 53% more than V SFX Gold 850W power supply, in the small form factor.

Miniaturized But Solid

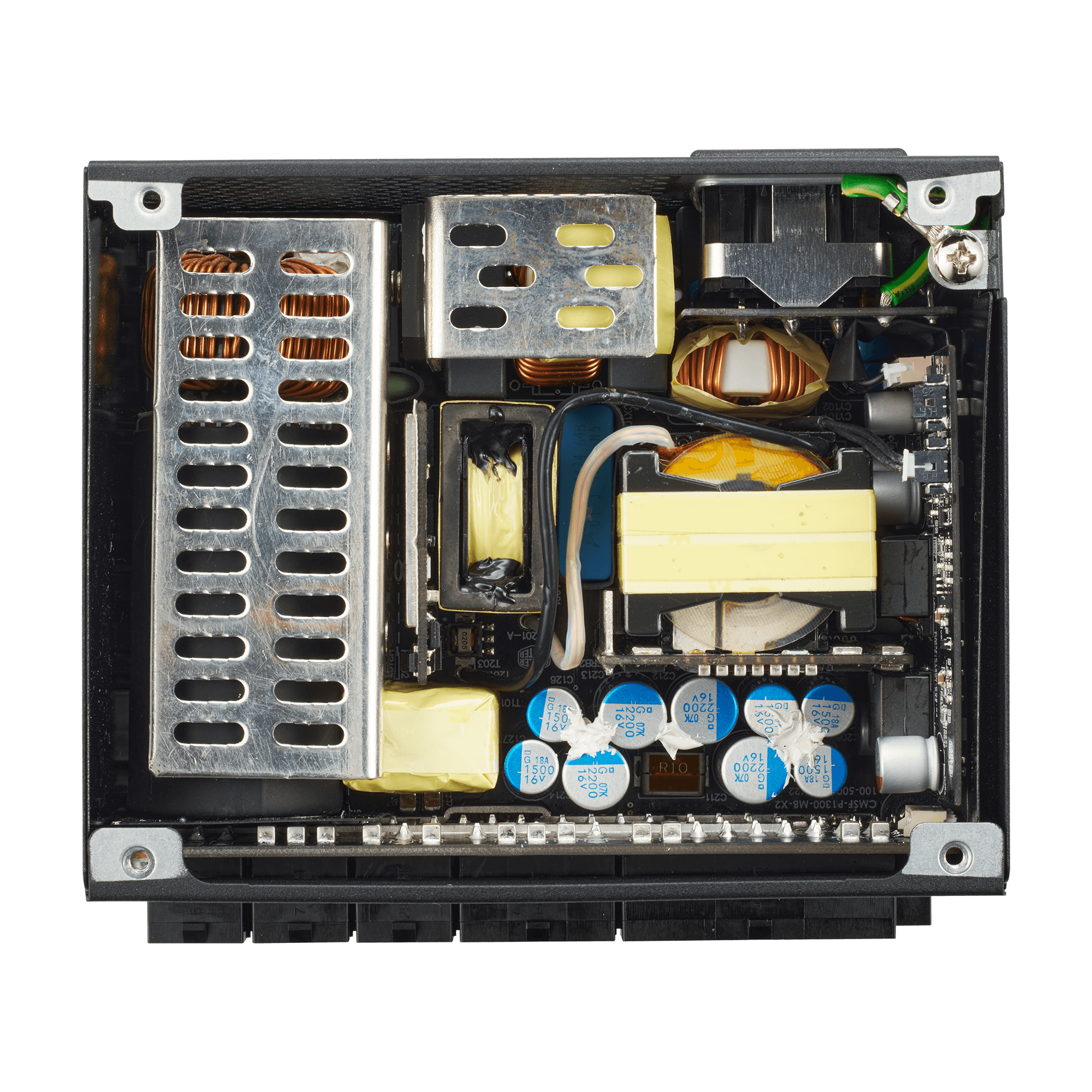

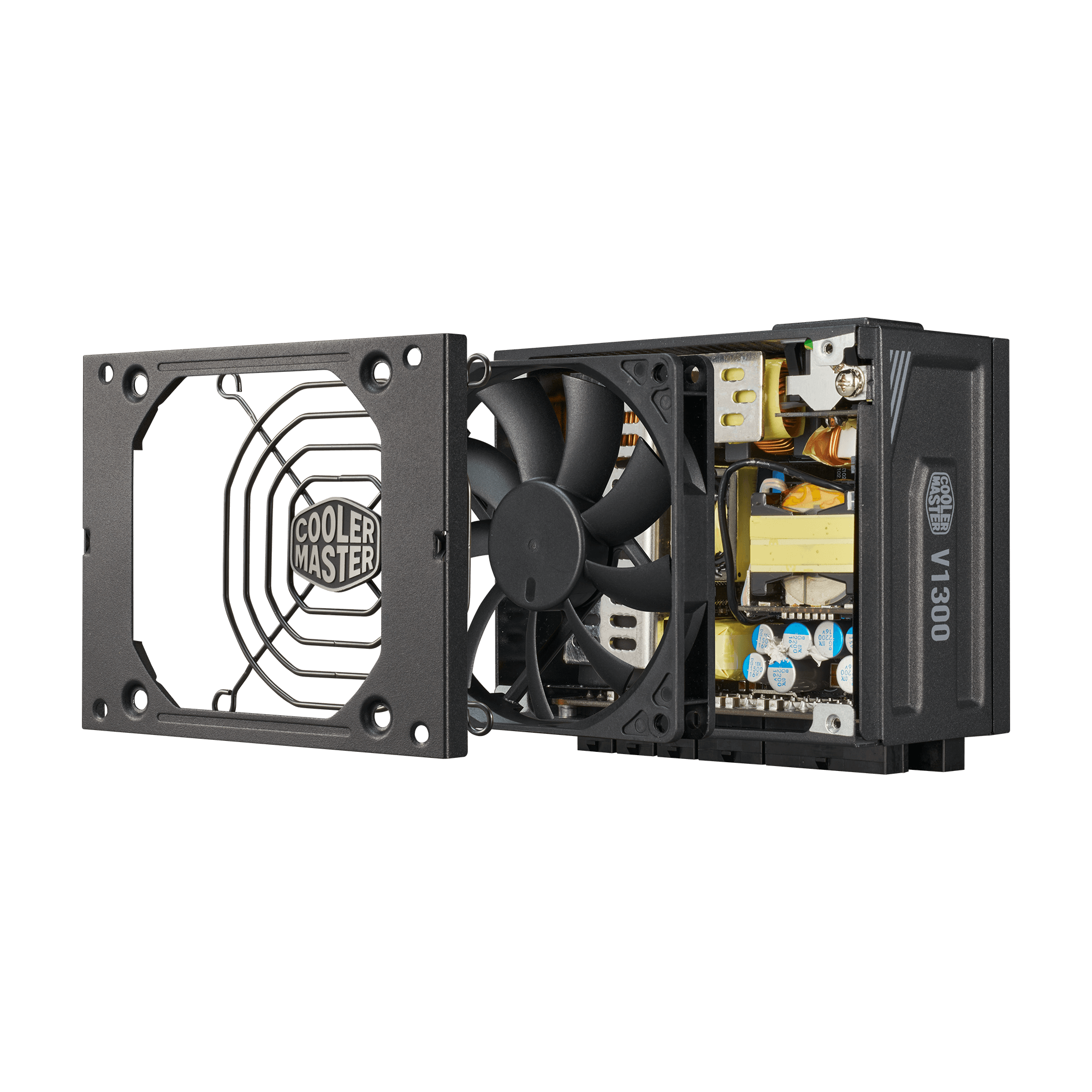

Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.

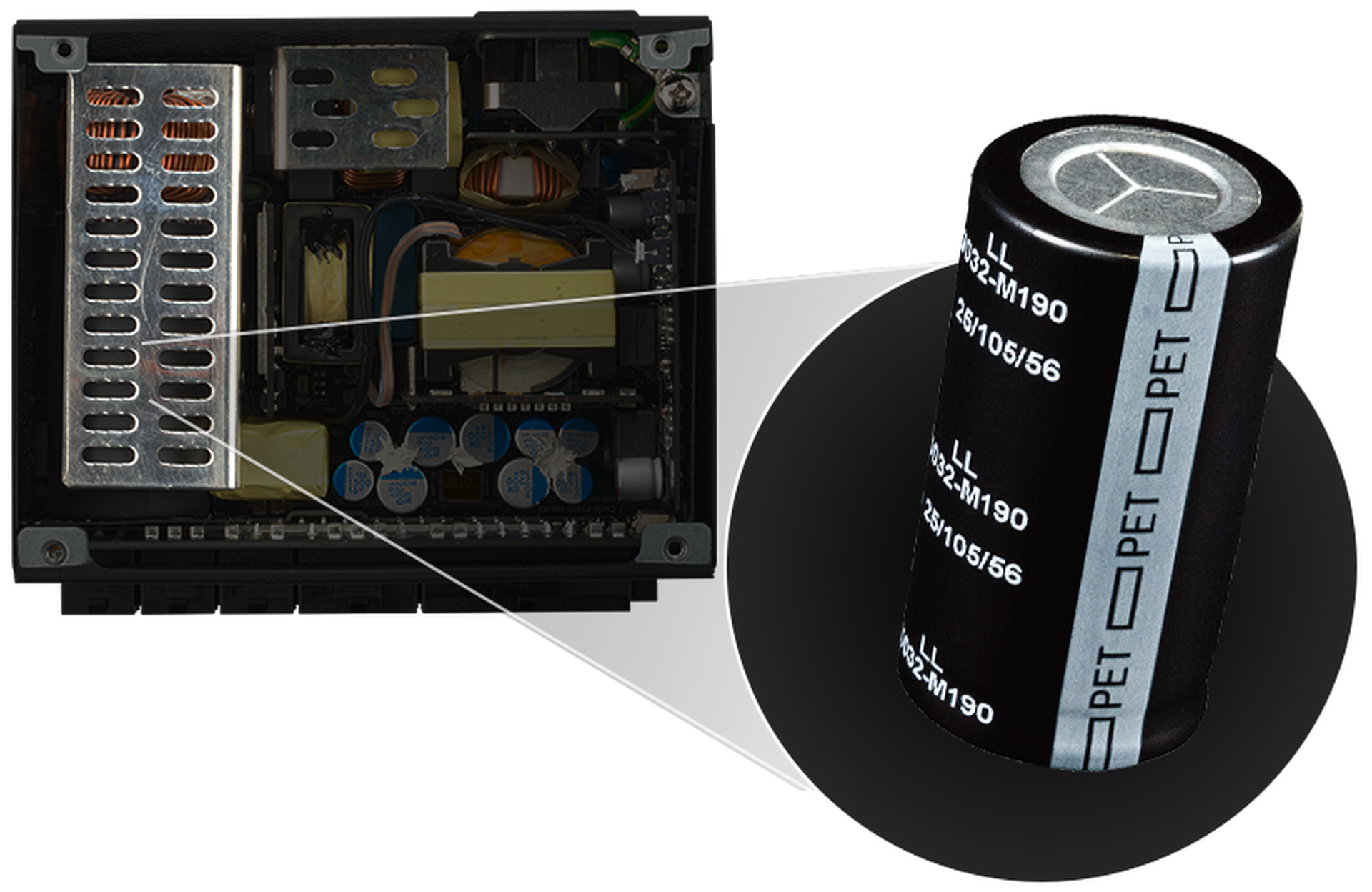

100% Japanese capacitors

10 Year Warranty

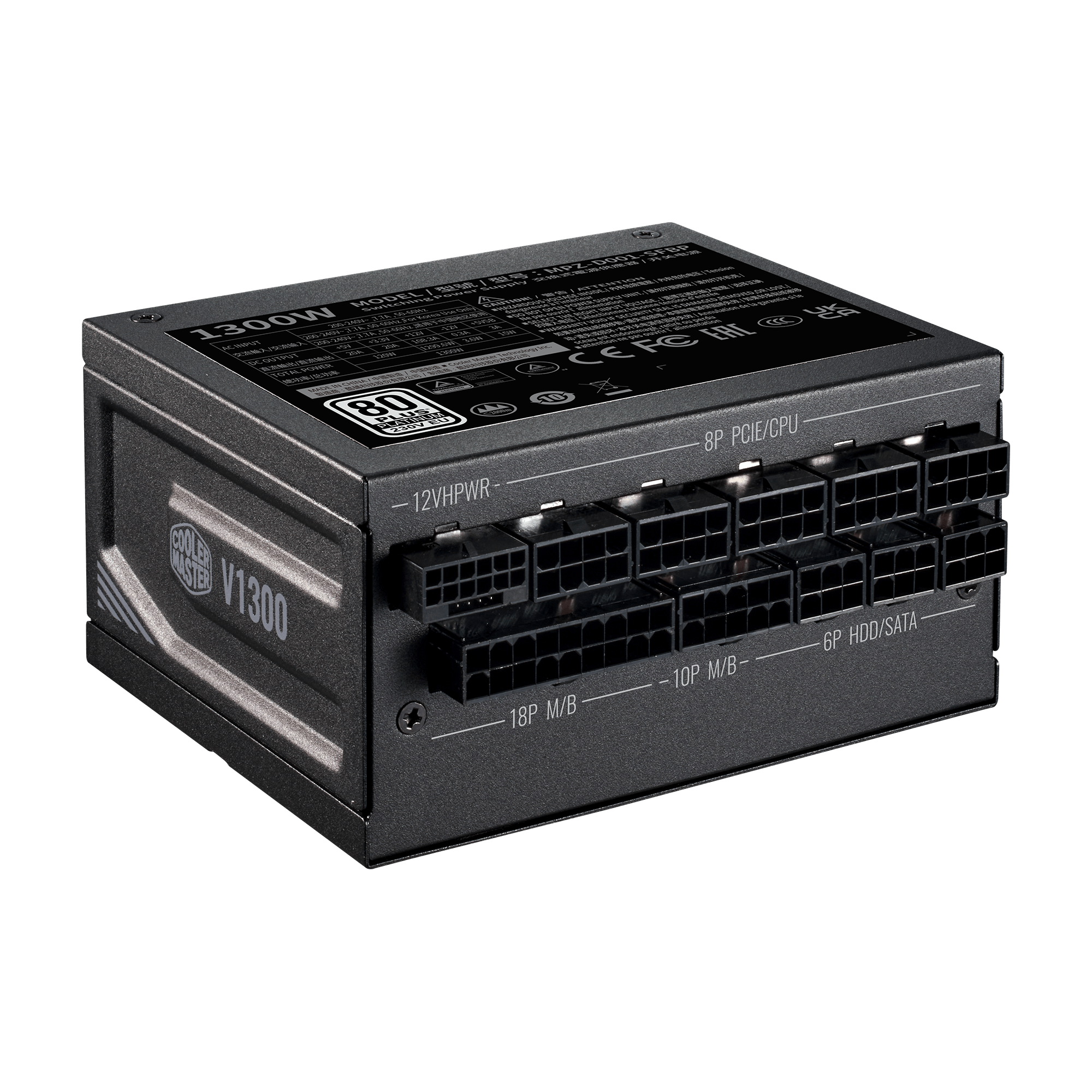

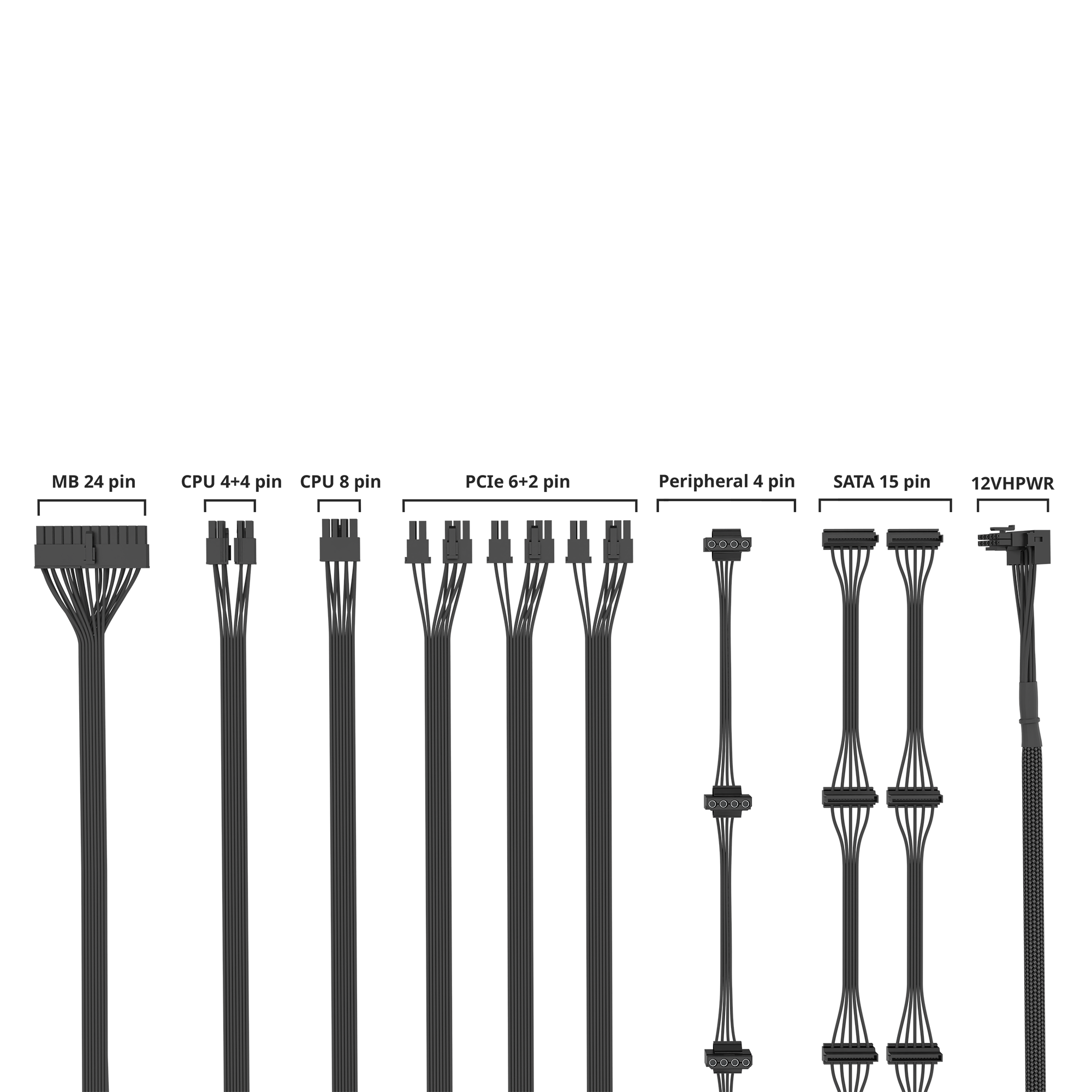

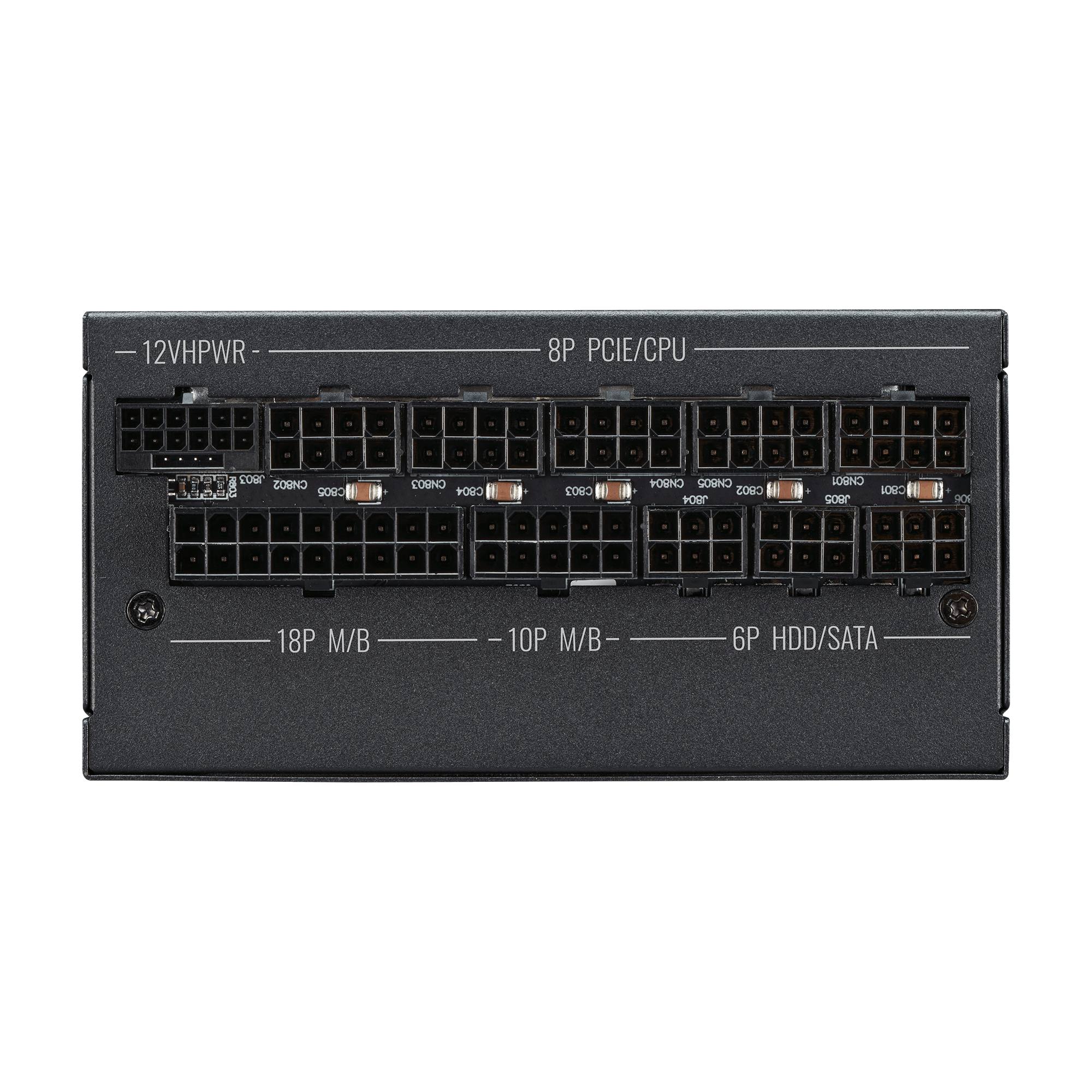

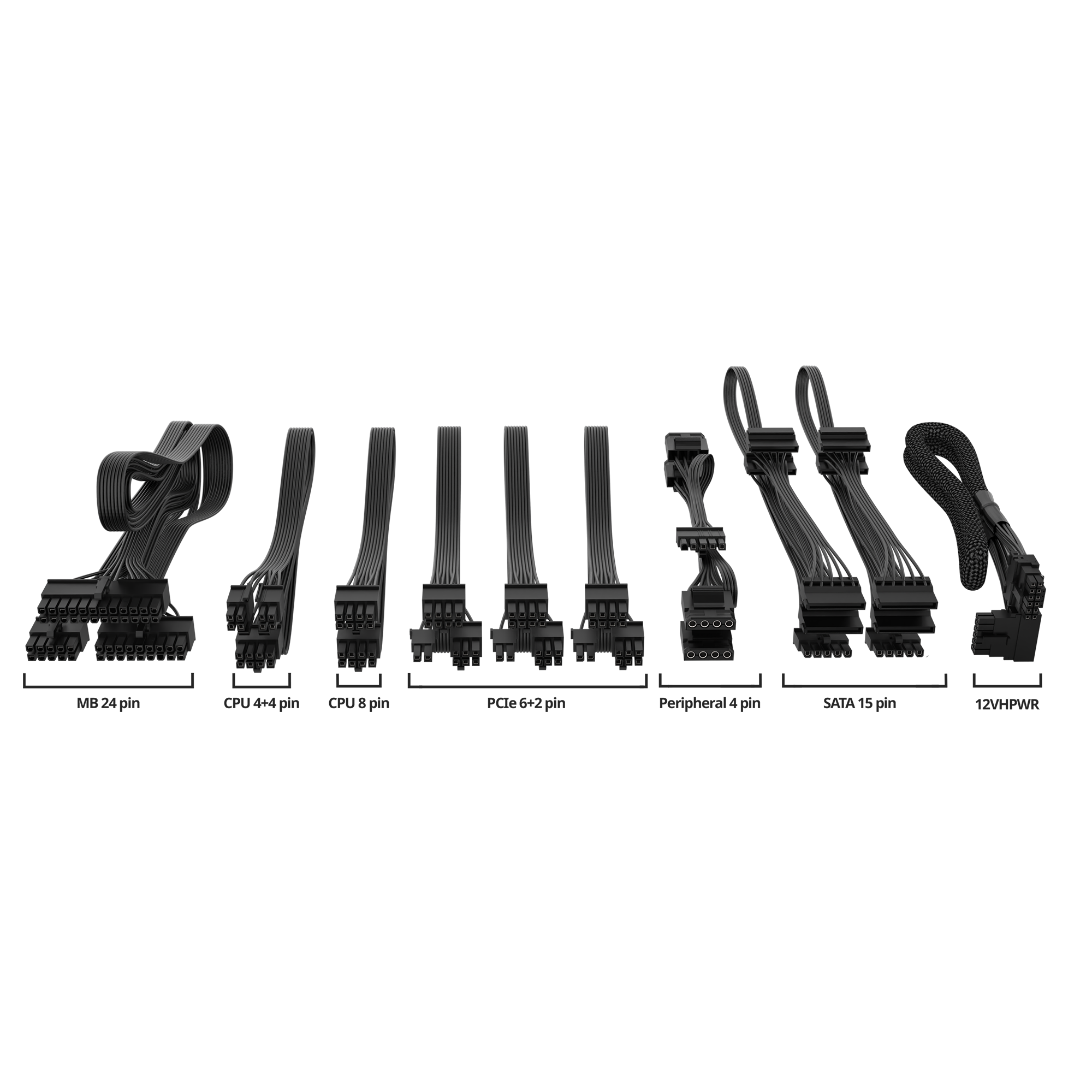

Fully Modular Cabling

Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

  • Model MPZ-D001-SFBP-B**
  • ATX Version SFX 12V Ver. 3.42
  • PFC Active PFC
  • Input Voltage 200-240V
  • Input Current 7.7A (Max.)
  • Input Frequency 50-60Hz
  • Dimensions (L x W x H) 100 x 125 x 63.5 mm
  • Fan Size 92mm
  • Fan Bearing FDB
  • Efficiency ≥ 94% @ Typical Load
  • 80 PLUS Rating 80 PLUS Platinum EU 230V
  • ErP 2014 Lot 3 Yes
  • Operating Temperature 0-50°C
  • Power Good Signal 100 - 150 ms
  • Hold Up Time ≥16ms at 60% Load
  • MTBF >100,000 Hours
  • Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
  • Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
  • ATX 24 Pin Connectors 1
  • EPS 4+4 Pin Connectors 1
  • EPS 8 Pin Connector 1
  • SATA Connectors 8
  • Peripheral 4 Pin Connectors 4
  • PCI-e 6+2 Pin Connectors 3
  • 12VHPWR Connector 1
  • Series V SFX Series
  • 80 Plus Efficiency Platinum
  • Modular Fully Modular
  • Category Above 750W
  • Form Factor SFX
  • Watts 1300W
  • ATX Version ATX 3.0
  • Input Voltage Range 230V
