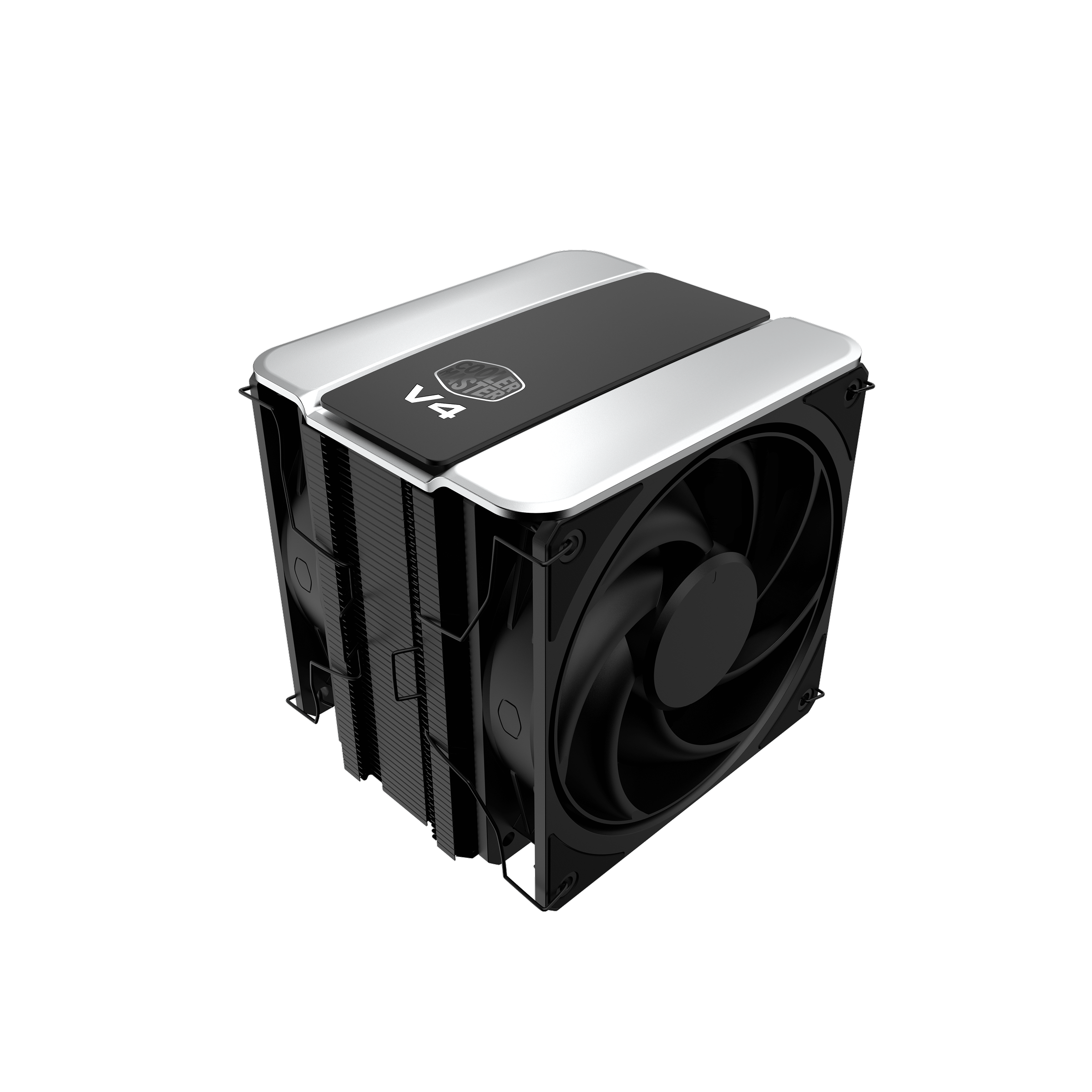

V4 Alpha 3DHP Black image number 0

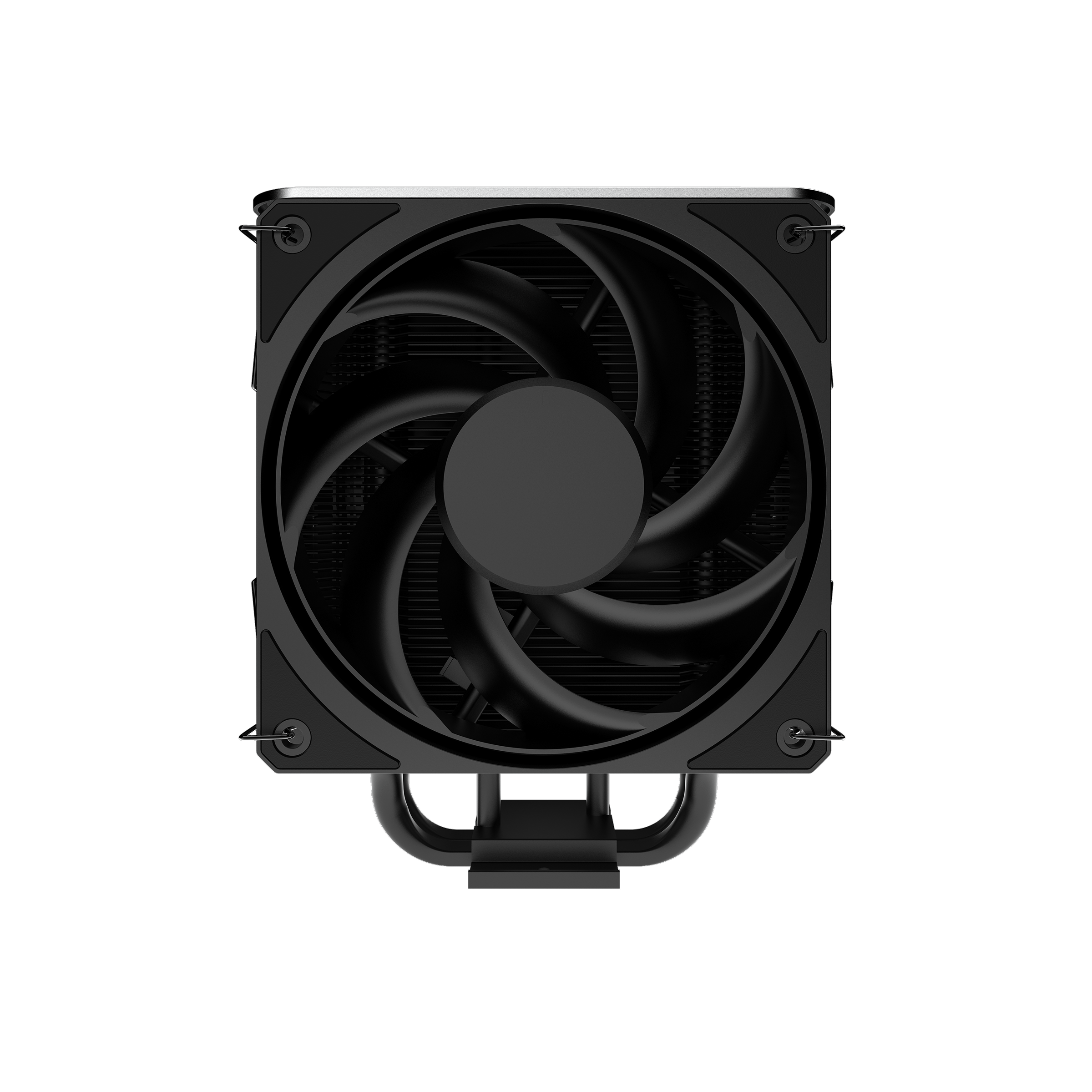

V4 Alpha 3DHP Black image number 1

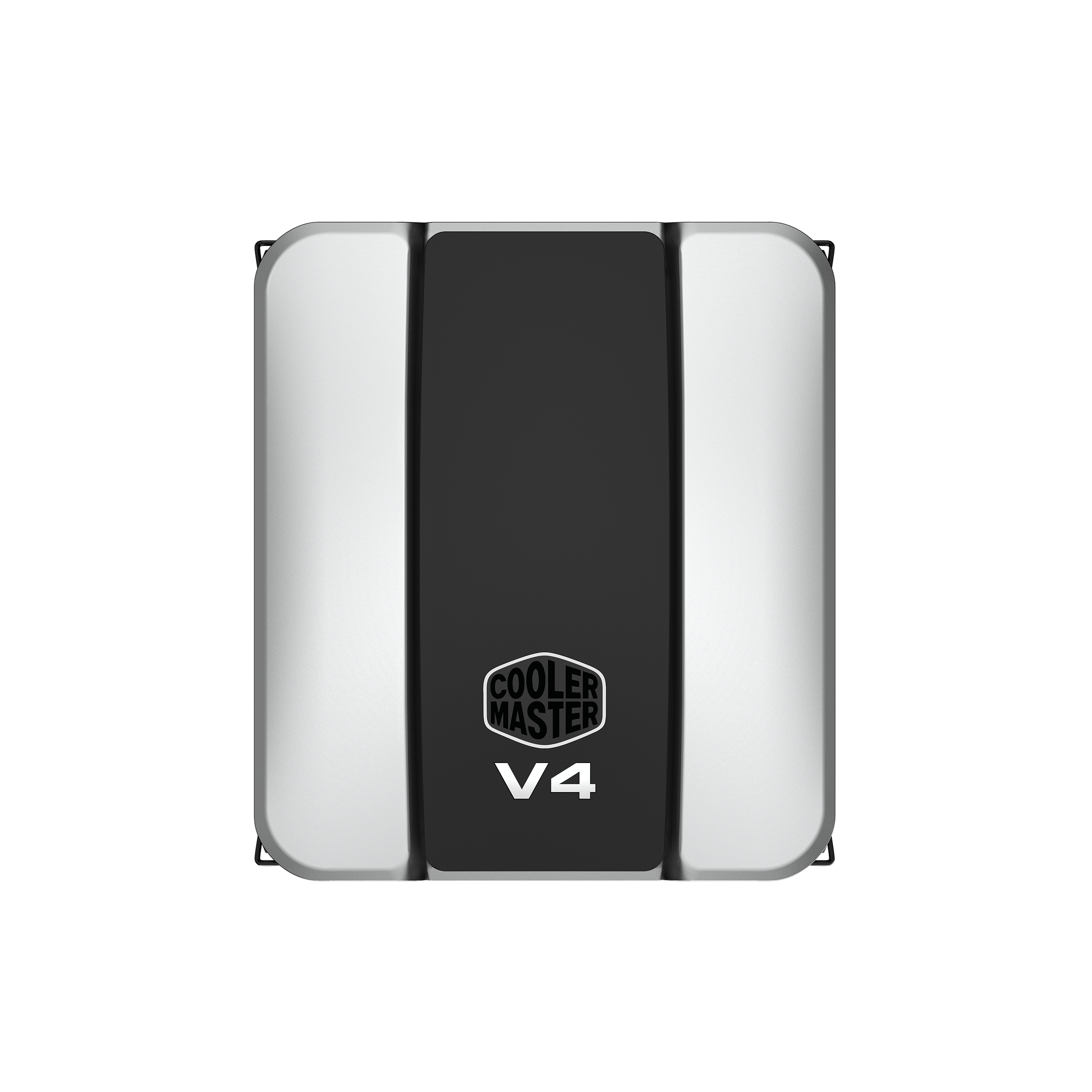

V4 Alpha 3DHP Black image number 2

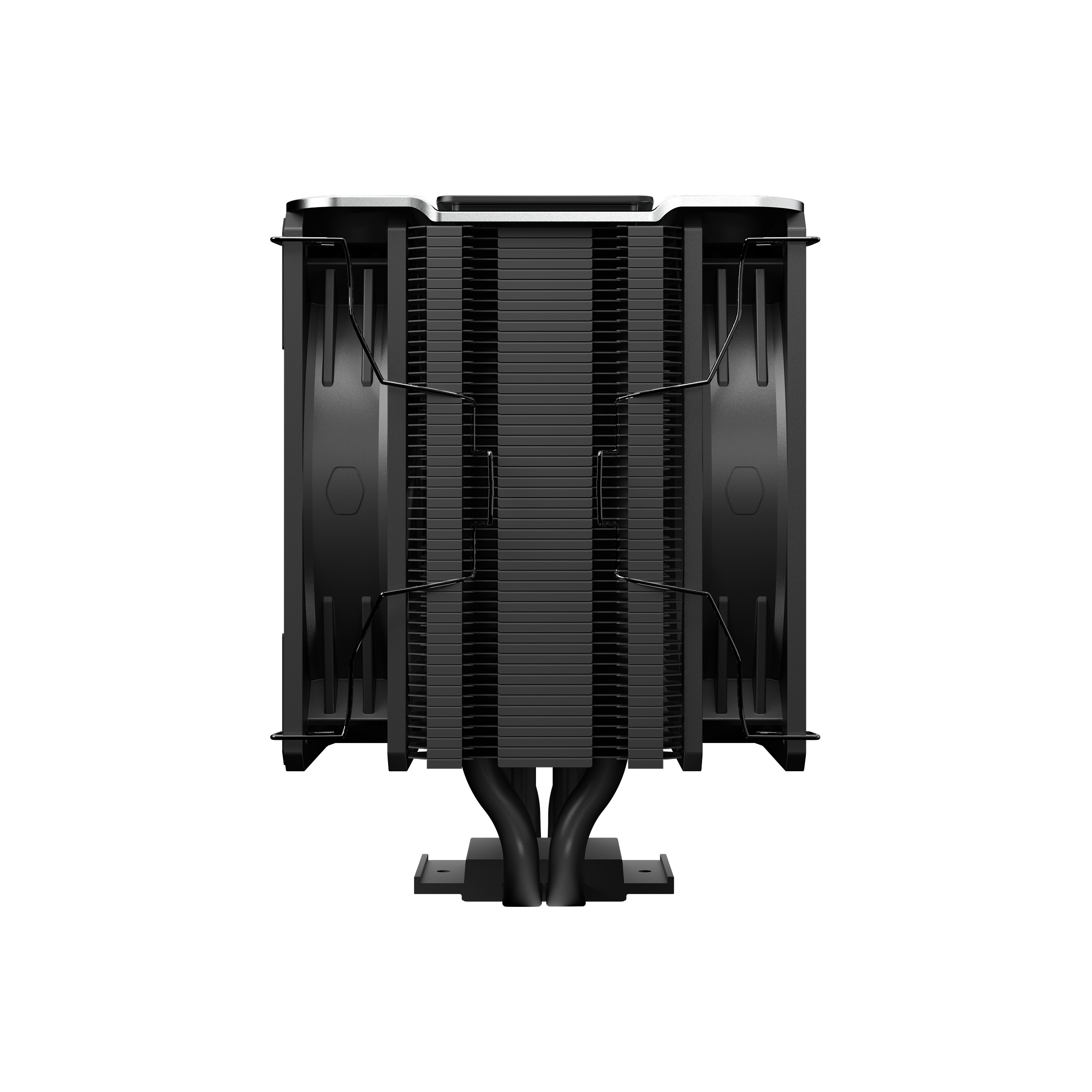

V4 Alpha 3DHP Black image number 3

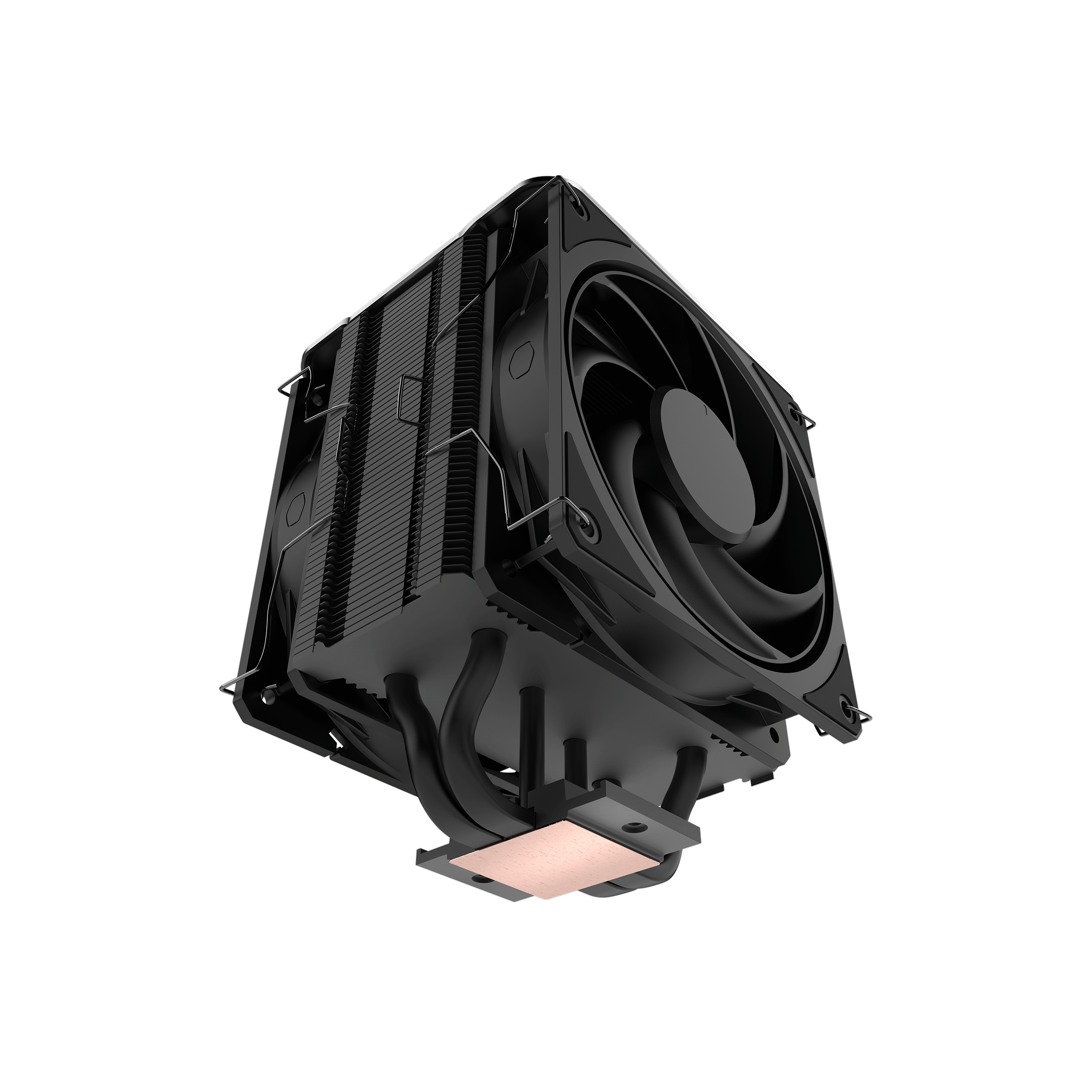

V4 Alpha 3DHP Black image number 4
V4 Alpha 3DHP Black
V4 Alpha 3DHP Black
V4 Alpha 3DHP Black
V4 Alpha 3DHP Black
V4 Alpha 3DHP Black

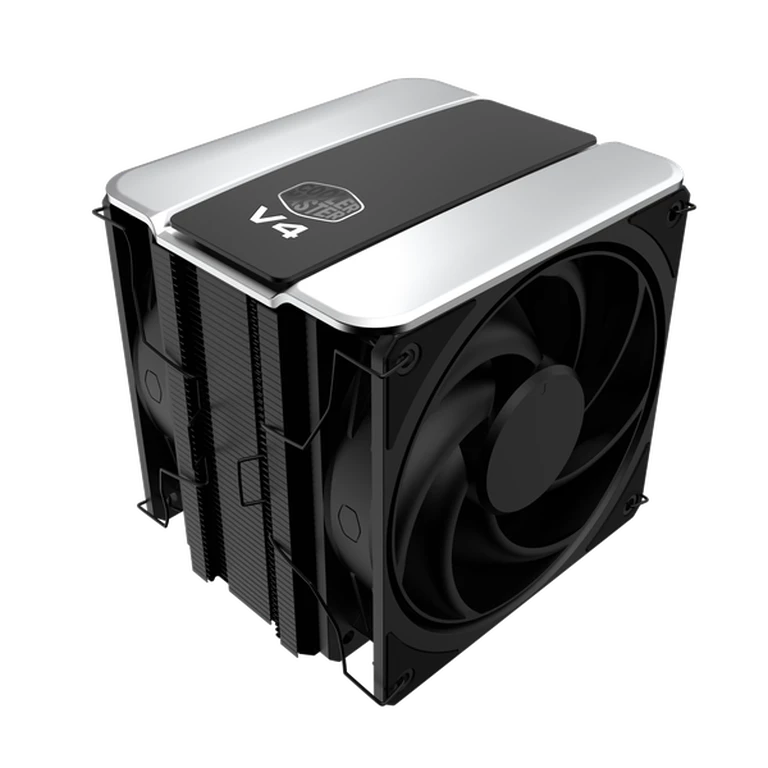

Advanced Cooling, Elevated

V4 Alpha 3DHP Black

● Cooler Master Proprietary 3DHP technology​

● Excellent thermal dissipation​

● Pre-installed ring blade fans​

● Larger contact surface area

model
Availability:
  • In Stock
€ 39,00

Cooler Master Proprietary 3DHP Technology​

3DHP technology redefines heat pipe design by adding a third dimension—an extra pipe that fills the dead zone in standard U-shaped layouts. This added connection improves heat transfer in a slimmer, more efficient design.​

​

It delivers the cooling power of a four-pipe solution with a more streamlined layout—giving you lower temps, quieter fans, and more flexibility, whether you’re building for silence or pushing your system to the limit.​

Quieter. Stronger. Smarter.​

Fewer pipes, better performance. 3DHP’s efficient heat transfer reduces radiator turbulence and lowers fan noise across the system. Whether you’re building for silence or tuning for peak output, 3DHP delivers.​

​

The Advanced 3DHP Internal Structure​

3DHP heat pipes use a hybrid internal structure that combines sintered powder and grooved channels in varying textures and sizes. Each section is optimized for a specific phase—evaporation, condensation, or liquid return—resulting in more efficient heat transfer than traditional designs.​

*Image for reference only; actual internal configuration may vary in the final product design.

​

​

Excellent Thermal Dissipation​

Keeps temperatures lower under the same CPU workload, helping maintain system stability and long-term reliability.​

Pre-Installed Ring Blade Fans​

The included Mobius 120 fans features a ring blade design that cuts high-frequency noise and keeps operation smooth and quiet—especially when paired with the 3DHP module.​

Minimalist Design

The V4 Alpha 3DHP Black draws inspiration from a classic V-style automotive engine—bold, compact, and built for performance. Its unique form factor supports efficient airflow and reliable cooling, all in a design that stands out

Larger Contact Surface for Maximum Heat Transfer​

Unlike most four-pipe coolers with direct contact, our solid copper base covers more surface area. Combined with wider 3DHP heat pipes, it ensures efficient heat transfer from the CPU to the cooling array.​

​

  • Product Name V4 Alpha 3DHP Black
  • Product Number MAZ-T2HP-217PK-R1
  • Exterior Color Black
  • CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
  • CPU Socket AMD® AM5 / AM4 Socket
  • Dimension 133 x 114 x 161 mm | 5.2 x 4.5 x 6.3 inch
  • Heat Sink Material 2 x 3DHP / Aluminum Fins
  • Fan Item Front / Rear
  • Fan Dimensions (L x W x H) 120 x 120 x 25mm
  • Fan LED Profiles Non-LED
  • Fan Quantity Front: 1, Rear: 1
  • Fan Speed Front: 0-2050 RPM​ ± 10%, Rear: 0-1850 RPM​ ± 10%,
  • Fan Airflow Front: 107.2 m³/h (63.1 CFM), Rear: 85.8 m³/h (50.5 CFM)
  • Fan Pressure Front: 2.69 mmH2O, Rear: 1.77 mmH2O
  • Fan MTTF >200,000 Hours
  • Fan Pressure Front: 22.6 dBA, Rear: 20 dBA
  • Fan Bearing Type Loop Dynamic Bearing
  • Fan Power Connector 4-Pin (PWM)
  • Fan Rated Voltage 12 VDC
  • Fan Rated Current Front: 0.12 A, Rear: 0.08 A
  • Fan Safety Current 0.35A
  • Fan Power Consumption Front: 1.44 W, Rear: 0.96 W
  • Warranty 5 years
  • Series V
  • Fan Size 120
  • Heatpipes 2
  • Cooler Type Air Cooler
