At Cooler Master, we believe great cooling is not about chasing benchmarks. It is about real-world reliability, thoughtful engineering and long-term performance. Our latest generation of liquid cooling features an advanced dual chamber pump design built on years of material science, structural innovation and endurance testing. This design delivers stable, efficient cooling for the long haul.

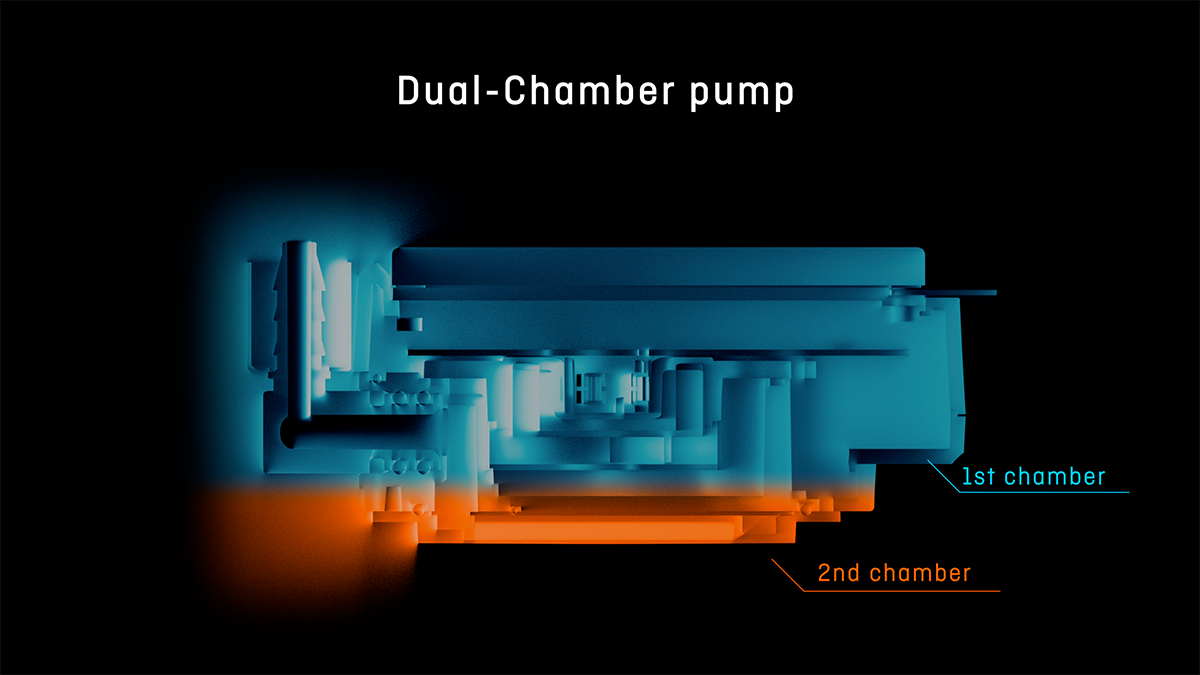

The Dual Chamber Advantage

Traditional AIO coolers rely on a single-chamber pump, where coolant flows through a shared internal space. Cooler Master’s dual chamber pump takes a different approach by separating the coolant flow into distinct paths within the housing. This separation prevents warm coolant from mixing with incoming, cooler liquid before it reaches the copper cold plate. This helps maintain optimal thermal transfer. A central flow channel directs coolant more efficiently, reducing thermal interference and supporting more consistent cooling performance.

By isolating the impeller from the motor stator, the dual chamber design also lowers heat exposure on sensitive components which contributes to overall pump longevity. These enhancements make the dual chamber pump especially effective for systems under continuous load, such as during gaming, rendering or professional workflows.

Engineering a Stronger Pump

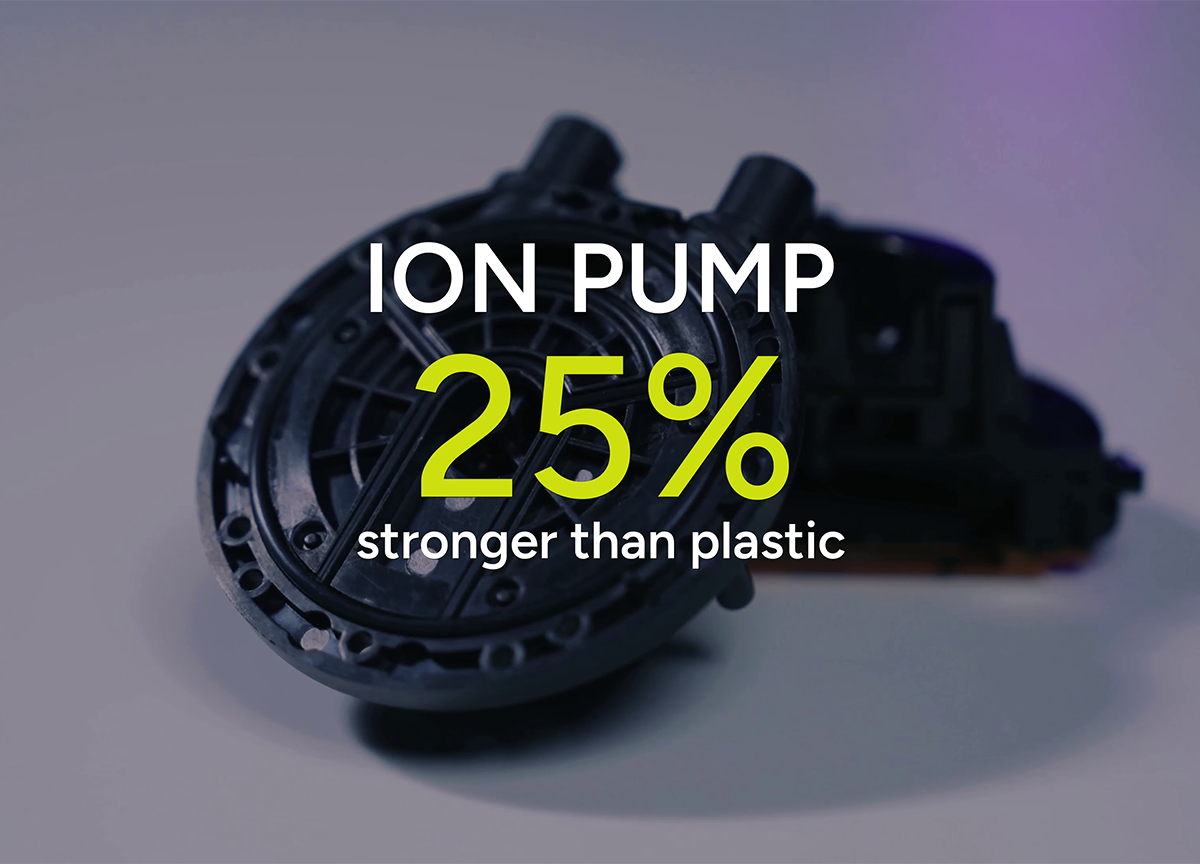

Durability starts with material selection. Our dual chamber pump is made from composite PPS, reinforced with 40% glass fiber for +25% improved strength, improved rigidity and heat resistance compared to conventional plastic.

• • Mechanical Strength: Tensile strength ranges from 180 to 200 MPa, while flexural strength reaches 250 to 280 MPa. These numbers reflect the dual chamber’s ability to maintain structure even under high internal pressure.

• • Heat Resistance: The material can withstand continuous temperatures up to 240°C, and short-term spikes up to 270°C. This ensures stability during long gaming sessions, professional workloads or overclocking.

• • Structural Design: The dual chamber includes internal ribbing around critical mounting areas to increase strength. A 3-millimeter thick outer wall and radial reinforcement ribs help resist deformation under thermal expansion.

Every detail of this structure is designed to hold its shape and integrity over time, even when operating at the edge of performance.

Components That Withstand the Test of Time

We choose components that last. Each part of the dual chamber pump and cooling system is optimized for its role and tested to perform under pressure.

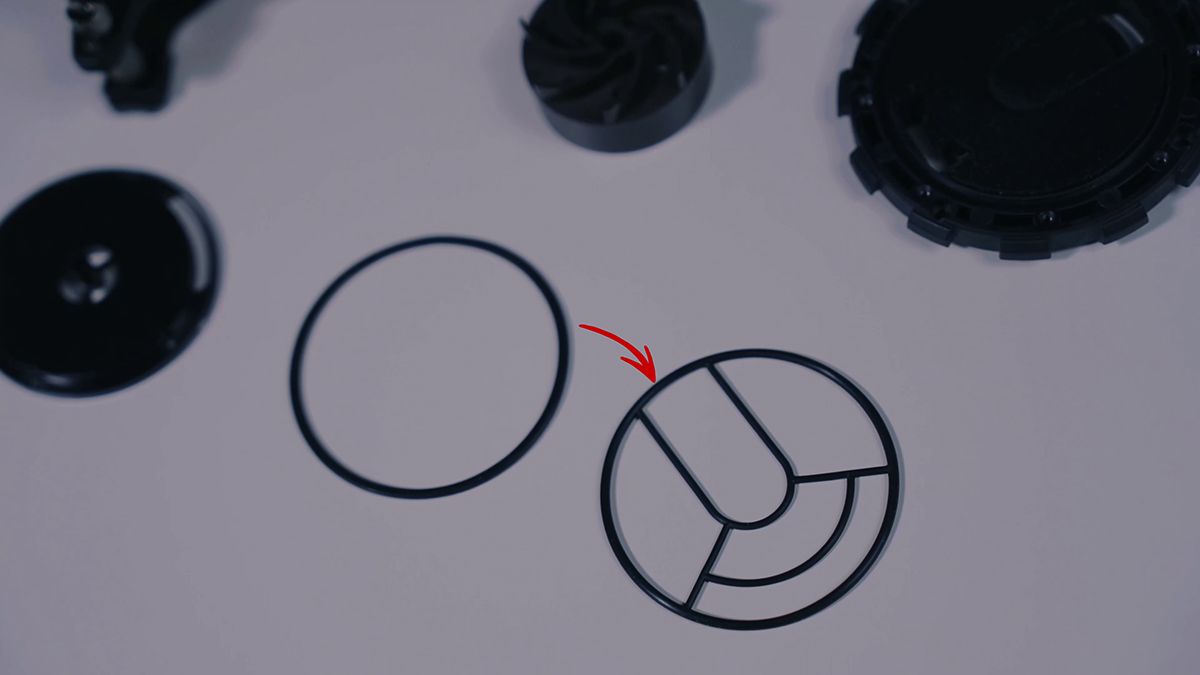

• • O-Rings: The seal rings use EPDM, a rubber compound with excellent chemical resistance and elasticity. It remains flexible from -40°C to 150°C, far exceeding the temperature range of a desktop PC. EPDM also withstands pressure without bending or losing its seal. Its use in demanding automotive systems indicates it will maintain sealing performance well above the operating conditions of a PC cooler.

• • Pump Shaft and Bearings: The rotor shaft is ceramic, paired with a PPS+ short fiber bearing. Ceramic offers high hardness and wear resistance, while PPS resin provides self-lubricating properties that lower friction and heat buildup without additional lubrication. This combination maintains precise rotation under varying temperature conditions and chemical exposure, extending pump life.

• • Impeller Magnets: We use molded ferrite plastic magnets that resist demagnetization, corrosion, and wear. These magnets maintain torque and rotational stability over years of operation without needing surface coatings or reinforcements.

Each of these parts is validated through real stress tests. We performed 2,000 hours of high-temperature testing at 88°C, followed by disassembly and inspection. No corrosion, deformation, or internal damage was found in any critical component.

High-Performance Tubing for the Real World

A cooling system is only as reliable as its tubing. That is why Cooler Master uses a hybrid compound made from EPDM and IIR. This combination delivers outstanding durability in the face of heat, moisture, and physical stress.

• • Thermal and Aging Resistance: EPDM resists heat, ozone, and UV radiation. It does not degrade or become brittle over time, making it ideal for PC builds and servers.

• • Sealing and Vapor Control: IIR provides exceptional sealing against vapor loss and coolant evaporation. This helps maintain internal pressure and reduces the need for regular refills.

• • Flex Performance: The inner braided structure distributes stress during bending. The tube can handle thousands of flex cycles without cracking or leaking.

This tubing is designed to perform in tight installations, high-pressure environments, and systems that run nonstop.

Coolant That Protects Your Investment

Cooler Master’s coolant is an automotive-grade, alcohol-based formulation that complies with major global standards including ASTM D3306 and SAE J1043. It provides:

• • Corrosion Protection: The formula prevents galvanic corrosion between mixed-metal parts, such as copper cold plates and aluminum radiators.

• • Thermal Efficiency: Organic acid and inorganic salt additives promote heat transfer while resisting scale buildup and sediment formation.

• • Lubricity Enhancers: The coolant includes agents that reduce wear inside the pump and improve overall longevity.

This coolant is chosen not only for performance but for reliability in shipping, storage, and varying temperature conditions across the globe.

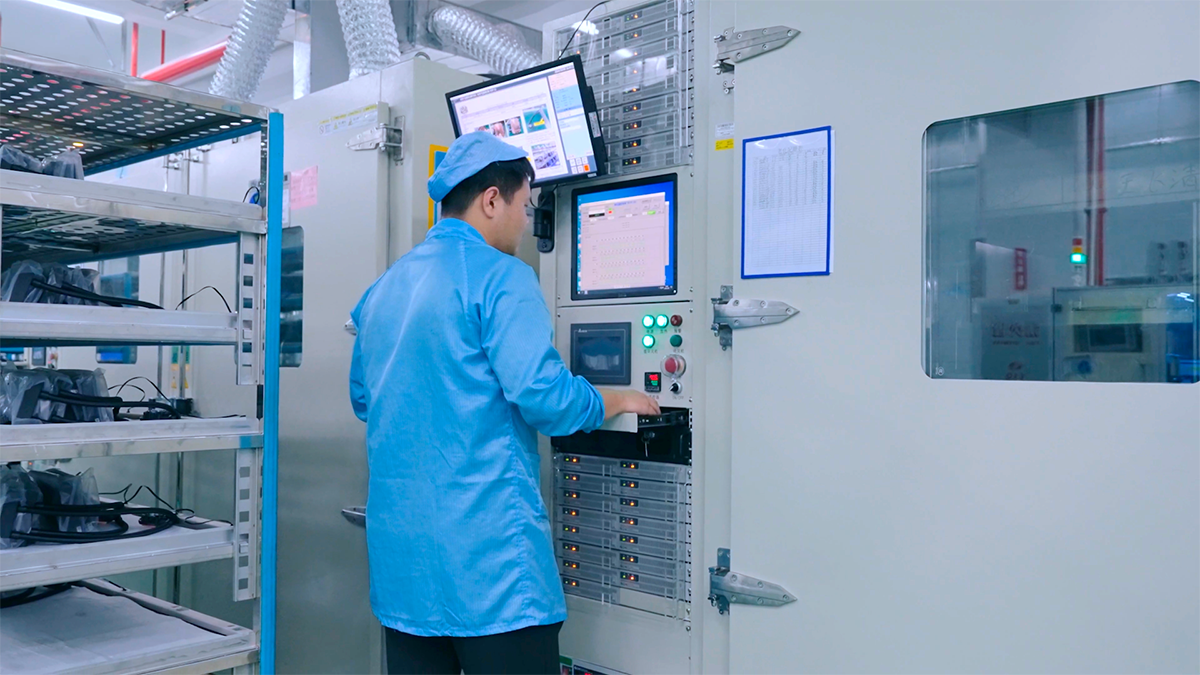

Tested and Trusted

Cooler Master validates every cooler through extended reliability testing using representative samples from pre-mass production. Pump assemblies and radiators are subjected to a 2,000-hour continuous high-temperature endurance tests at 88°C. Each sample is fully disassembled and inspected to pass the following:

• • Radiators: No internal discoloration, crystallization or oxidation at weld joints.

• • PPS composite chambers: No deformation, cracking or material corrosion.

• • Copper cold plate and fins: No darkening, rust or particulate residue.

• • EPDM seals and tubing: No material breakdown, flaking or loss of elasticity.

• • Impeller assembly: No warping, deformation or signs of material fatigue.

These tests are part of Cooler Master’s standard quality control process, which includes dimensional checks, pressure tests, and leak detection during production and in post-production sampling. The results confirm that the system maintains structural integrity and operational performance even under prolonged thermal stress, ensuring consistent reliability in real-world use.

Cooling Without Compromise

The dual chamber pump design is more than a specification. It is a statement of intent. Every design choice, material, and test reflects our commitment to building cooling solutions that last. From the reinforced pump housing to the chemically resistant seals and high-efficiency coolant, this system is built to serve creators, gamers, and builders who need more than basic performance.

Whether you are pushing frames in game, rendering video for hours, or running multi-core simulations, Cooler Master’s dual chamber pump design is made to keep up. No compromises, no marketing tricks, just dependable, proven cooling.

It’s time to Make It Yours.
