The Intelligent Guardian

MWE Gold V4

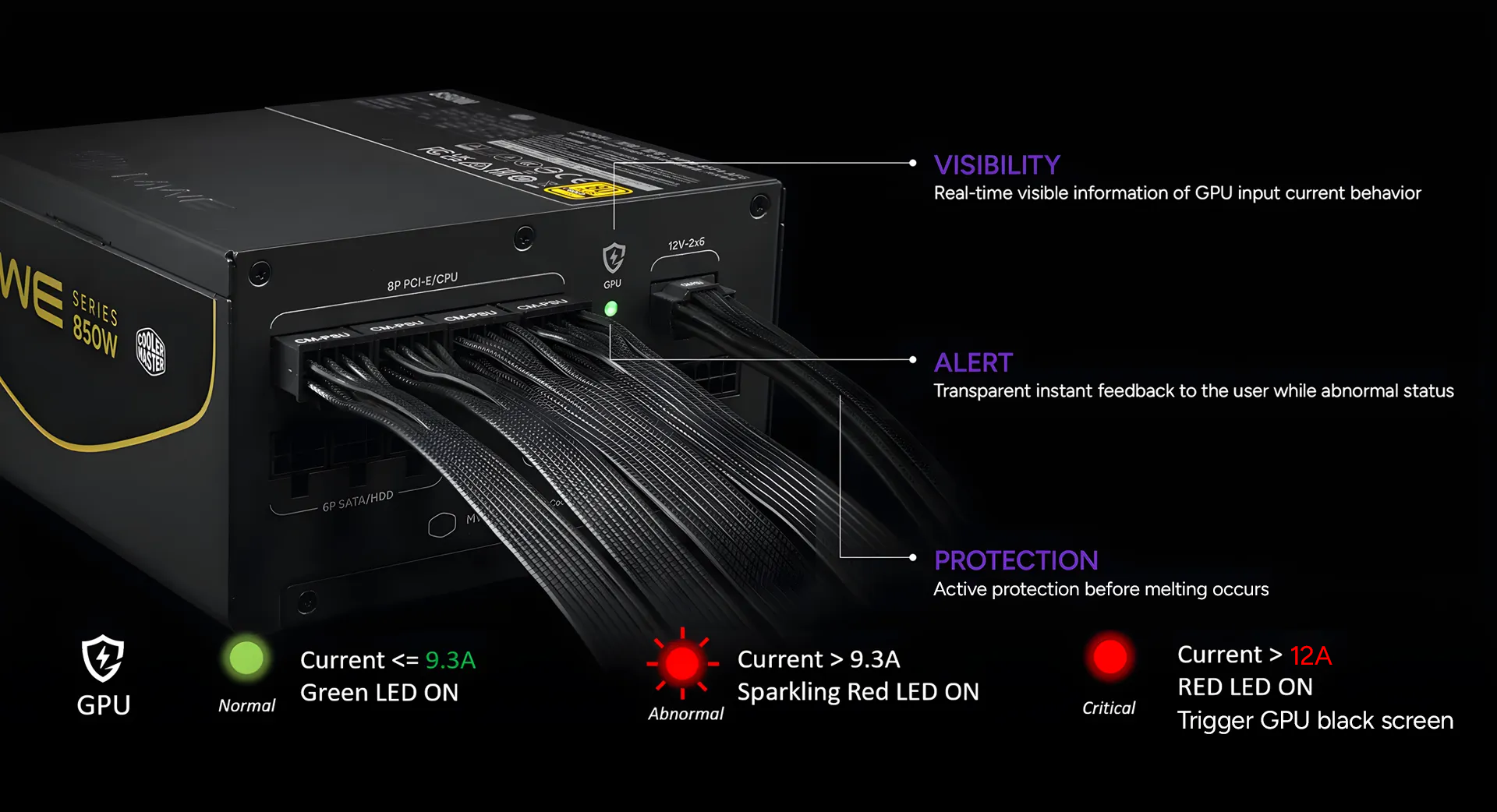

GPU Shield™ Intelligent Current Management

Automatically detects abnormal current, adjusts output in real time, and alerts users through LED indicators for safer, more stable power delivery.

GPU Shield™ Intelligent Current Management
GPU Shield™ Intelligent Current Management

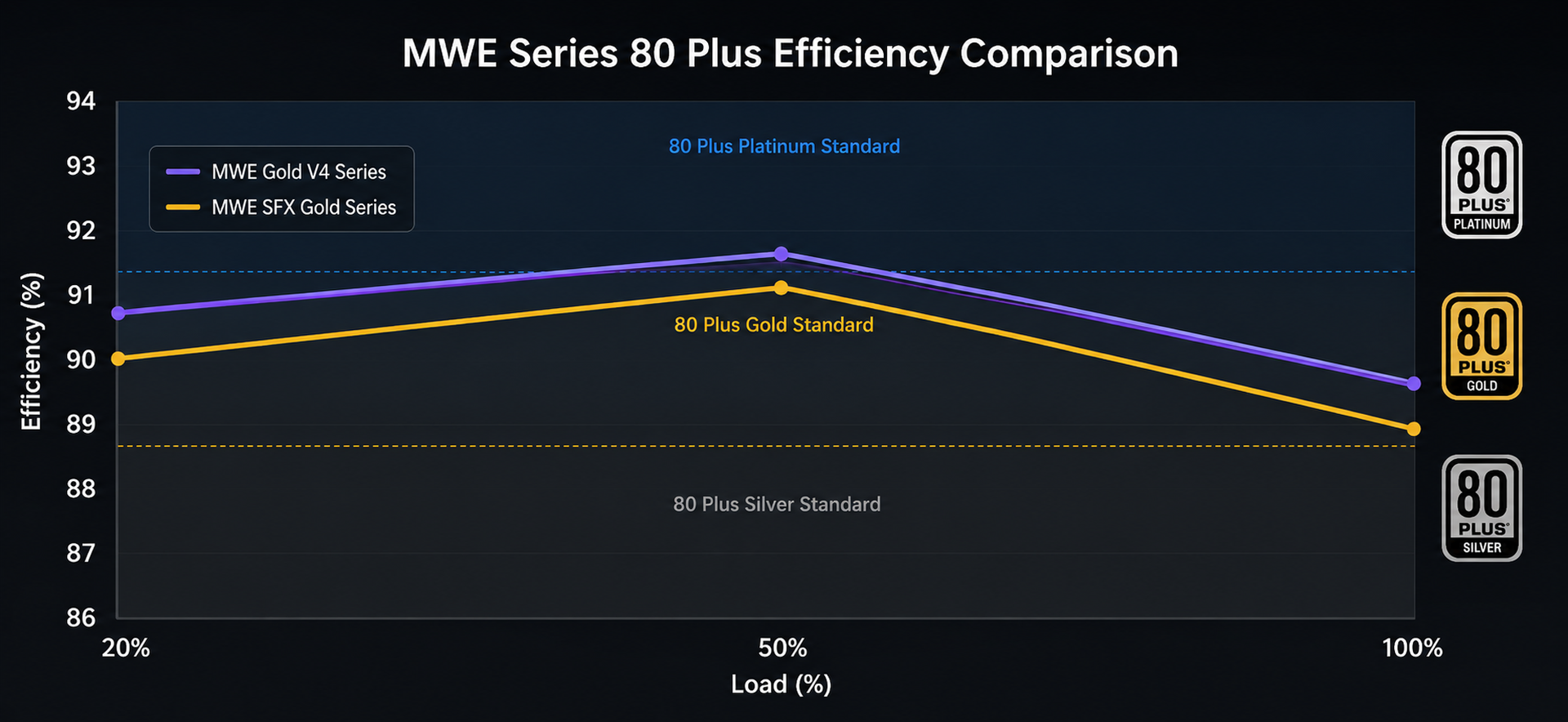

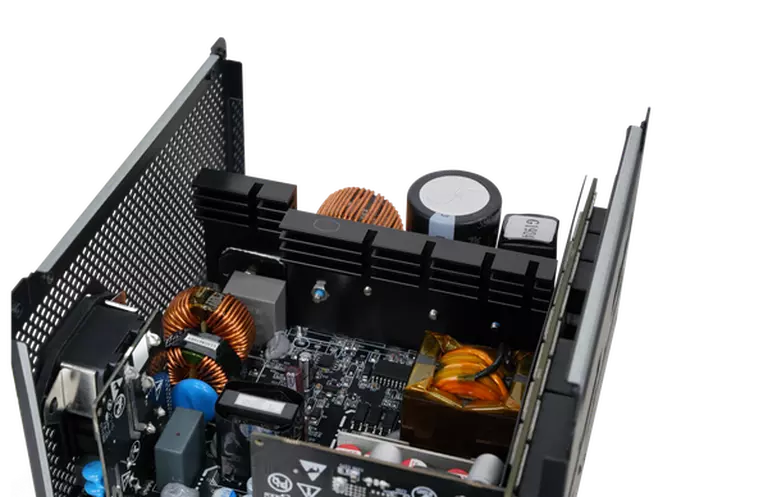

Digital Control IC

Engineered with digital control IC to achieve precise digital tuning of PFC and LLC, improving the overall efficiency 3% higher than previous series.

Digital Control IC
Digital Control IC

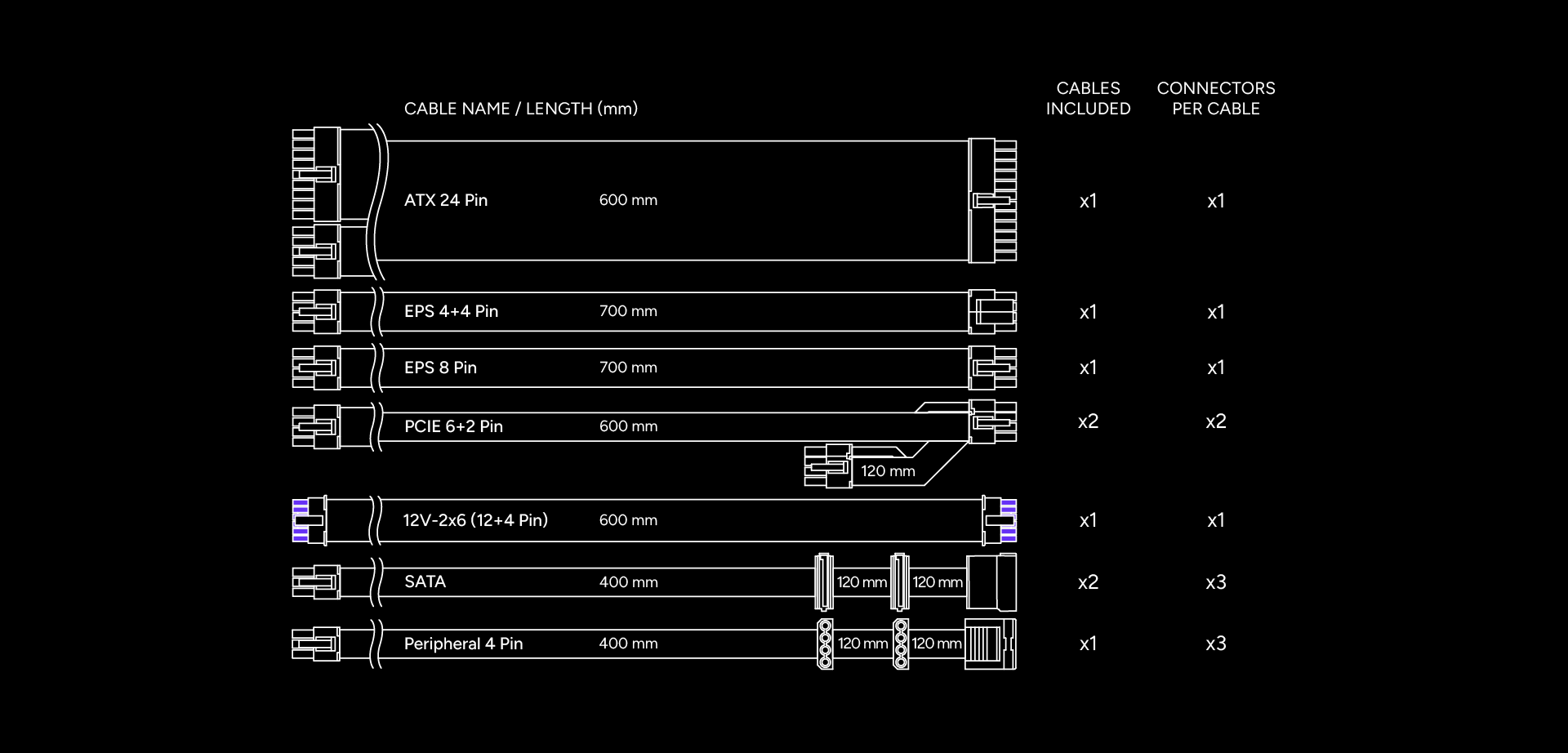

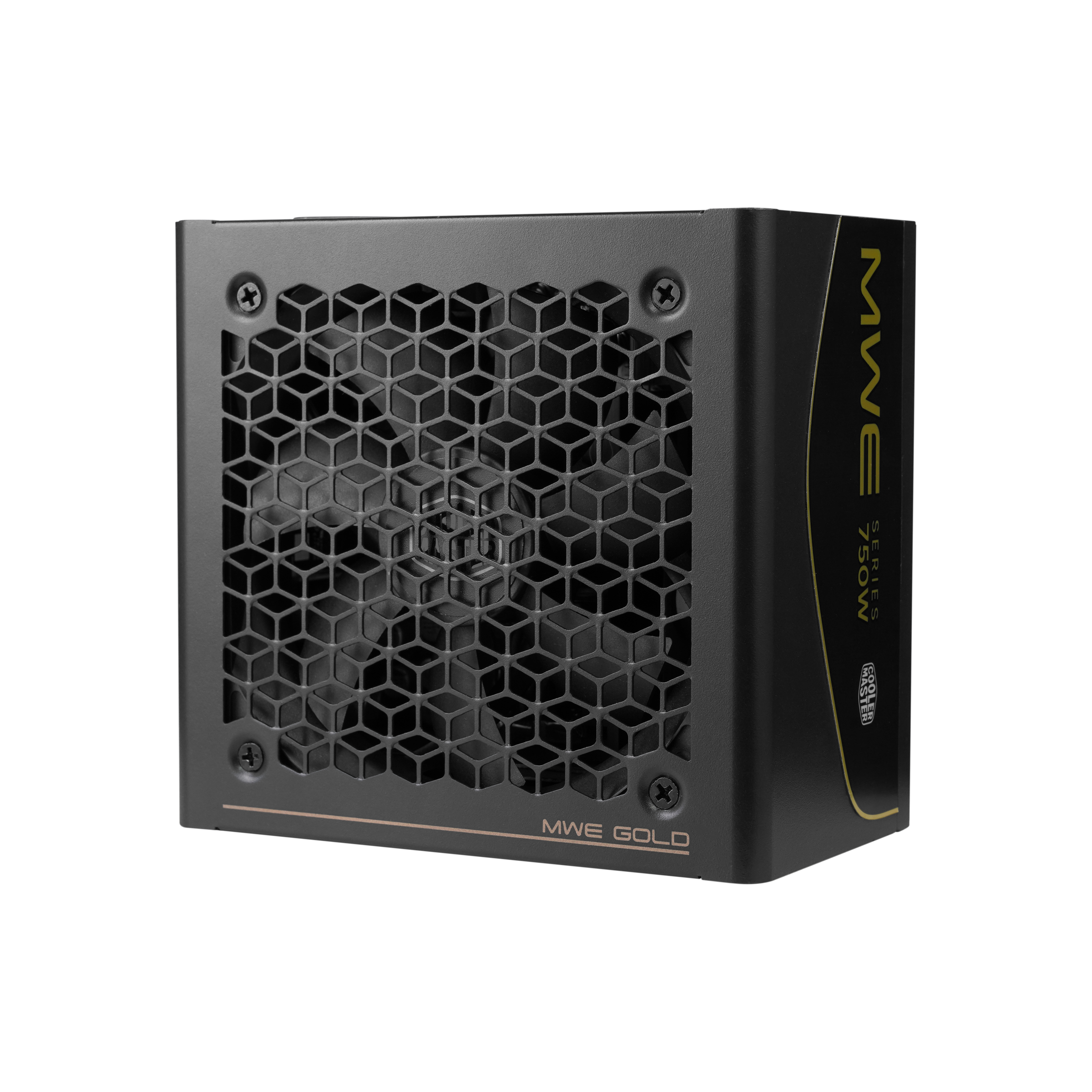

750W / 850W

Includes the same optimized cable configuration, designed for reliable performance and clean system builds.

750W / 850W
750W / 850W

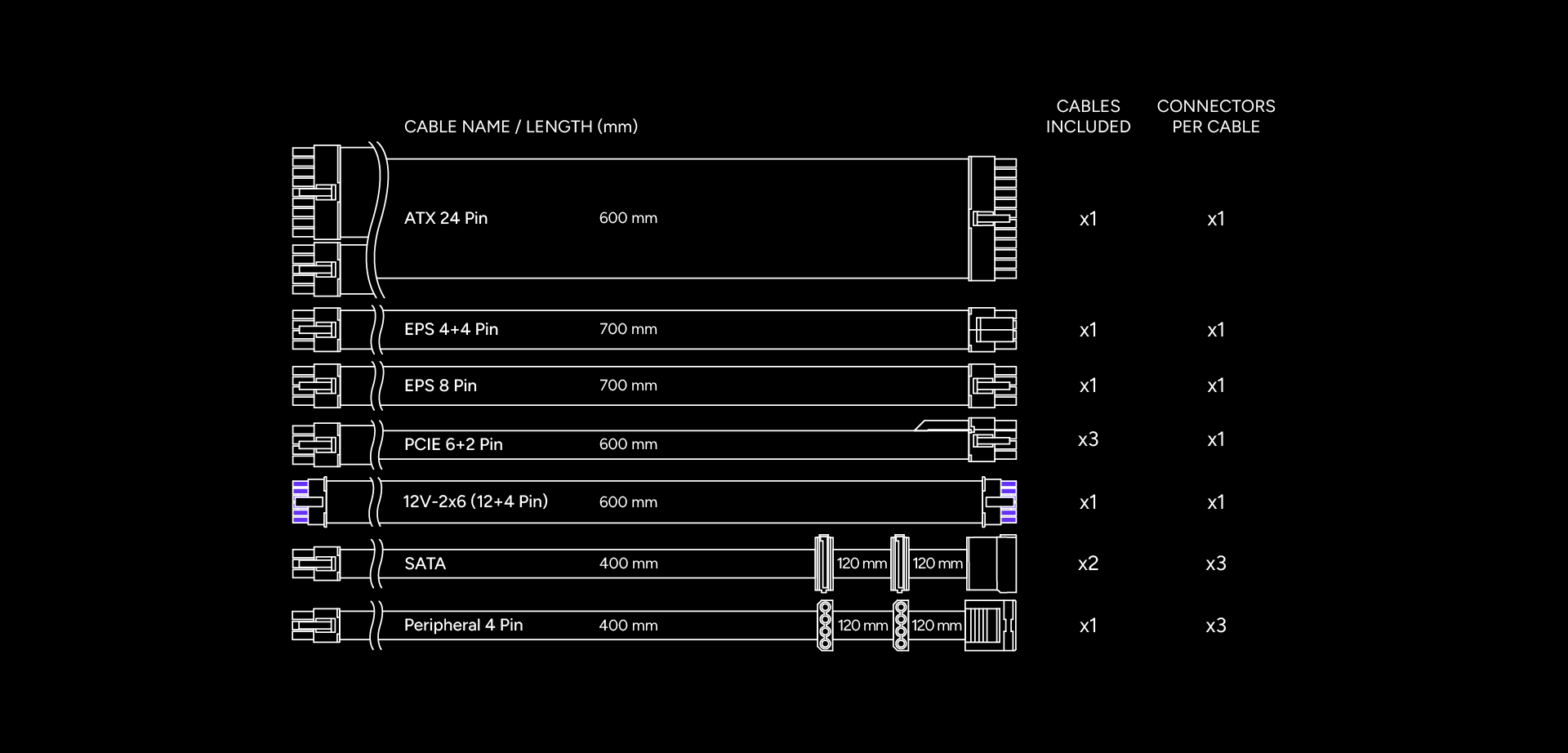

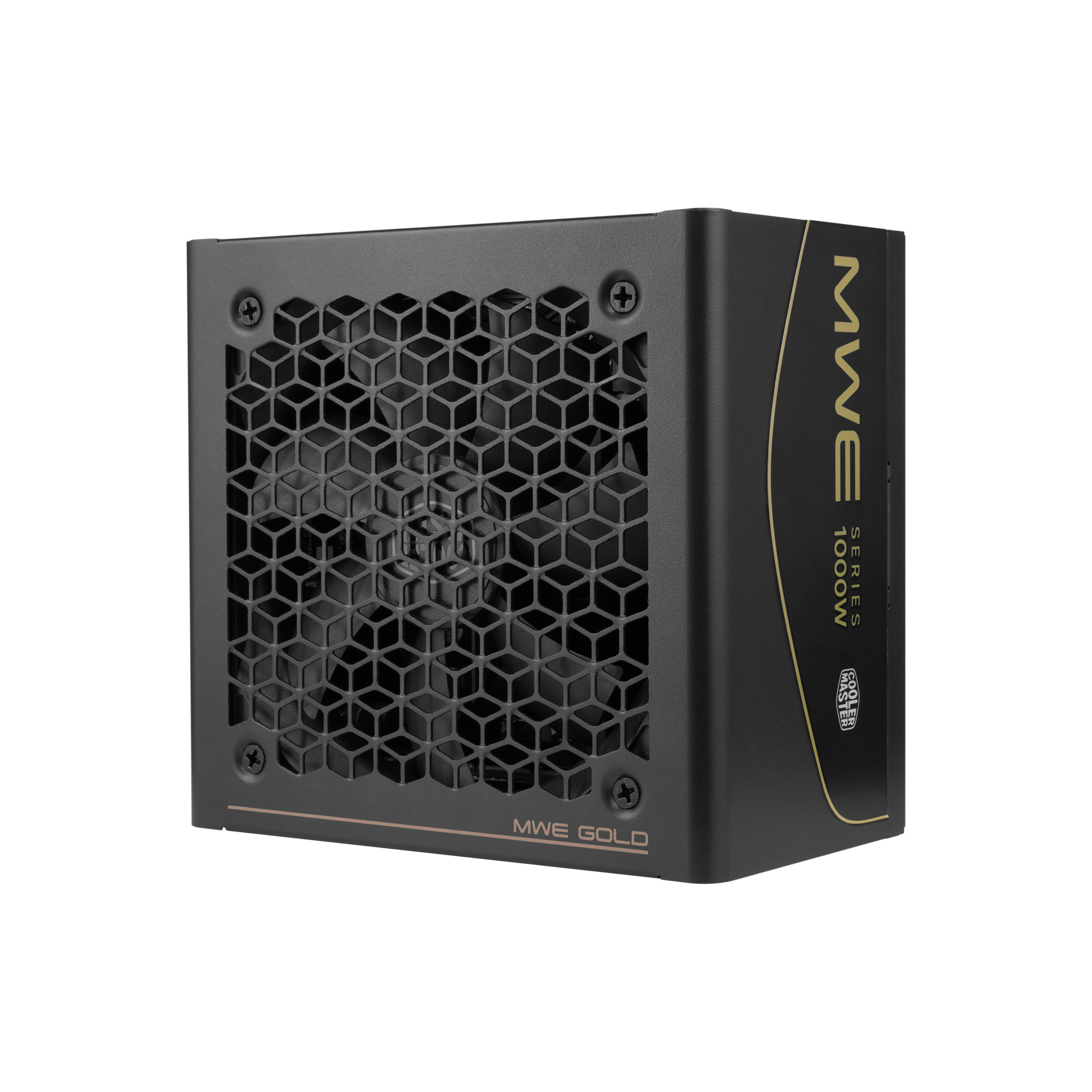

1000W

Features an enhanced cable configuration to support higher power demands and advanced high-performance setups.

1000W
1000W

ATX 3.1 & PCIe 5.1 Standards Support

Equipped with the latest standard and 12V-2x6 output connector, ready for next-gen flagship graphics cards.

Low-noise Design

Engineered to achieve a lab-level noise control to deliver quiet power operation.

Conformal Coating

Protective coating that improves durability and safeguards components in harsh environments.

10-year warranty

This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.

Specifications

  • Model 750W: MPM-75F4-AFG​ | 850W: MPM-85F4-AFG​ | 1000W: MPM-A0F4-AFG
  • ATX Version ATX 12V Ver. 3.1
  • PFC Active PFC
  • Input Voltage 100 – 240 V~
  • Input Current 750W / 850W: 10 – 6 A​ | 1000W: 15 – 8 A
  • Input Frequency 50-60Hz
  • Dimensions (L x W x H) 140 x 150 x 86 mm
  • Fan Size 120mm
  • Fan Bearing Hydrodynamic bearing
  • Efficiency ≥90% @ Typical Load
  • 80 PLUS Rating 80 PLUS Gold
  • ErP 2014 Lot 3 Yes
  • Operating Temperature 0-40°C
  • Power Good Signal 100 - 150 ms
  • Hold Up Time ≥ 11ms @ 100% Load
  • MTBF >100,000 hours @ 25℃ ambient
  • Protections SCP / OVP / UVP / OCP / OPP / OTP
  • Regulatory cTÜVus / TÜV / RoHS / CB / CE / FCC / BSMI / CCC / KCC / RCM / UKCA
  • ATX 24 Pin Connectors x1 = 1x (600mm)
  • EPS 4+4 Pin Connectors x1 = 1x (700mm)1
  • EPS 8 Pin Connector x1 = 1x (700mm)
  • PCI-e 6+2 Pin Connectors 750W / 850W: x4 = 2x (600+120mm)​ 1000W: x3 = 3x (600mm)
  • 12V-2x6 Connectors x1 = 1x (600mm)
  • Power Connector x6 = 2x (400+120+120mm)
  • Peripheral 4 Pin Connectors x3 = 1x (400+120+120mm)
